Braytron Bulkhead 12W LED Luminaire (3 Color Temperature) - Black User Manual

1. Introduktion

Thank you for choosing the Braytron Bulkhead 12W LED Luminaire. This product is designed to provide efficient and versatile lighting for various indoor and outdoor applications, featuring an IP65 protection rating and adjustable color temperature. Please read this manual carefully before installation and use to ensure proper operation and safety.

Denne manual dækker følgende model: Braytron Bulkhead 12W LED Luminaire - Black (Model: 4210e657-52c8-4833-82d2-ba38732b7202).

Figure 1: Braytron Bulkhead LED Luminaire providing illumination on an exterior wall.

2. Sikkerhedsinstruktioner

Always follow basic safety precautions when installing, operating, and maintaining electrical equipment. Failure to do so may result in personal injury or property damage.

• Elektrisk sikkerhed: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Ensure the power supply is disconnected before any installation, maintenance, or repair work.
• Produktintegritet: Do not modify or disassemble the luminaire. Any unauthorized modifications will void the warranty and may compromise safety.
• Håndtering: Handle the product with care. Avoid dropping or subjecting it to strong impacts.
• Driftsmiljø: This luminaire is rated IP65, making it suitable for outdoor use where it may be exposed to dust and water jets. However, avoid submerging the product in water.
• Lyskilde: Se ikke direkte ind i LED-lyskilden, når den er tændt, da dette kan forårsage øjenbelastning eller skader.

3. Pakkens indhold

Kontroller venligst pakkens indhold for at sikre, at alle varer er til stede og ubeskadigede:

• Braytron Bulkhead 12W LED Luminaire (1 unit)
• Mounting Screws and Wall Plugs (set)
• Brugervejledning (dette dokument)

4. Produktet er slutview

The Braytron Bulkhead LED Luminaire features a robust ABS housing and an integrated LED light source. Its design allows for versatile installation and provides adjustable color temperature options.

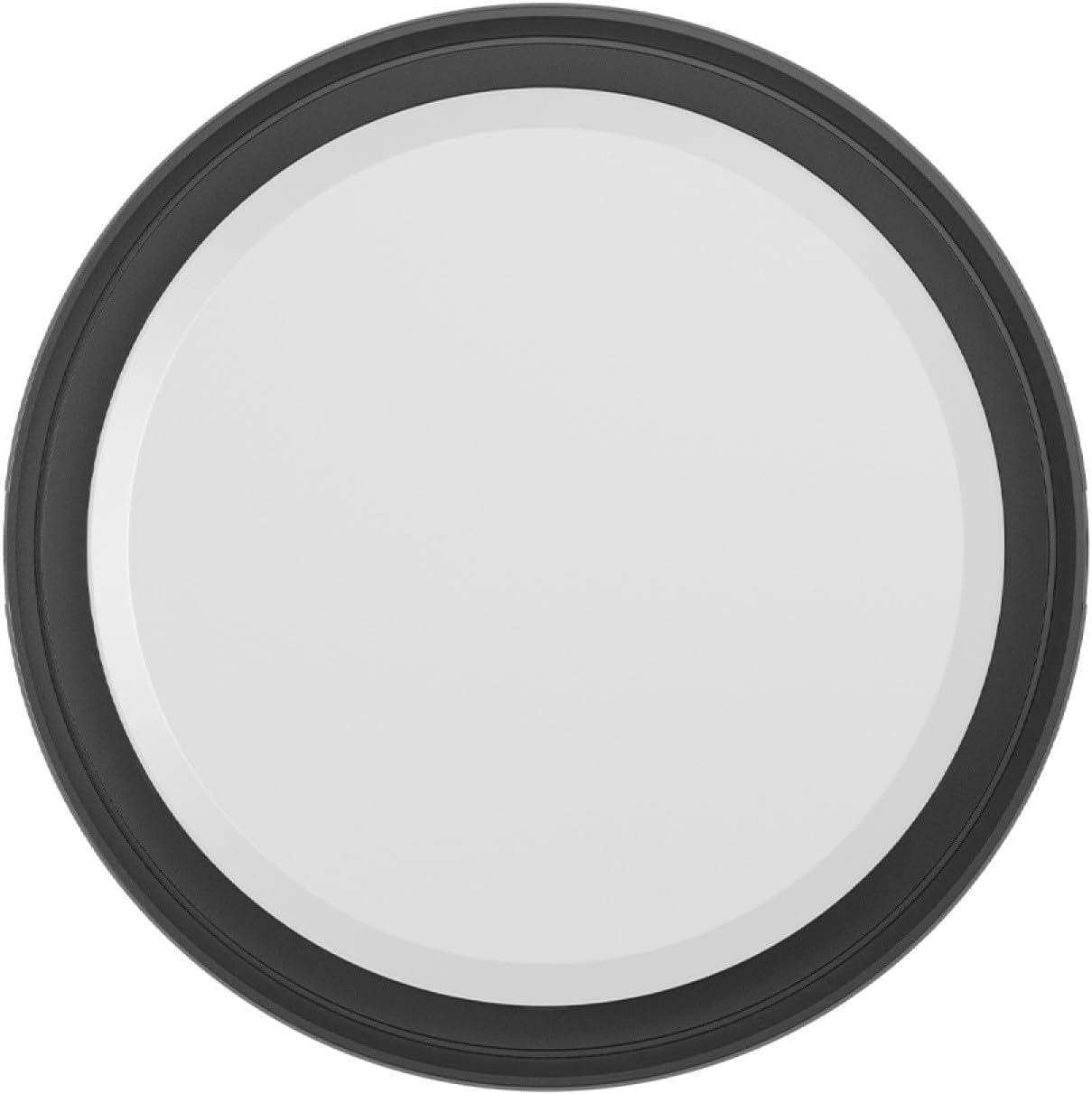

Figur 2: Forside view of the Braytron Bulkhead LED Luminaire.

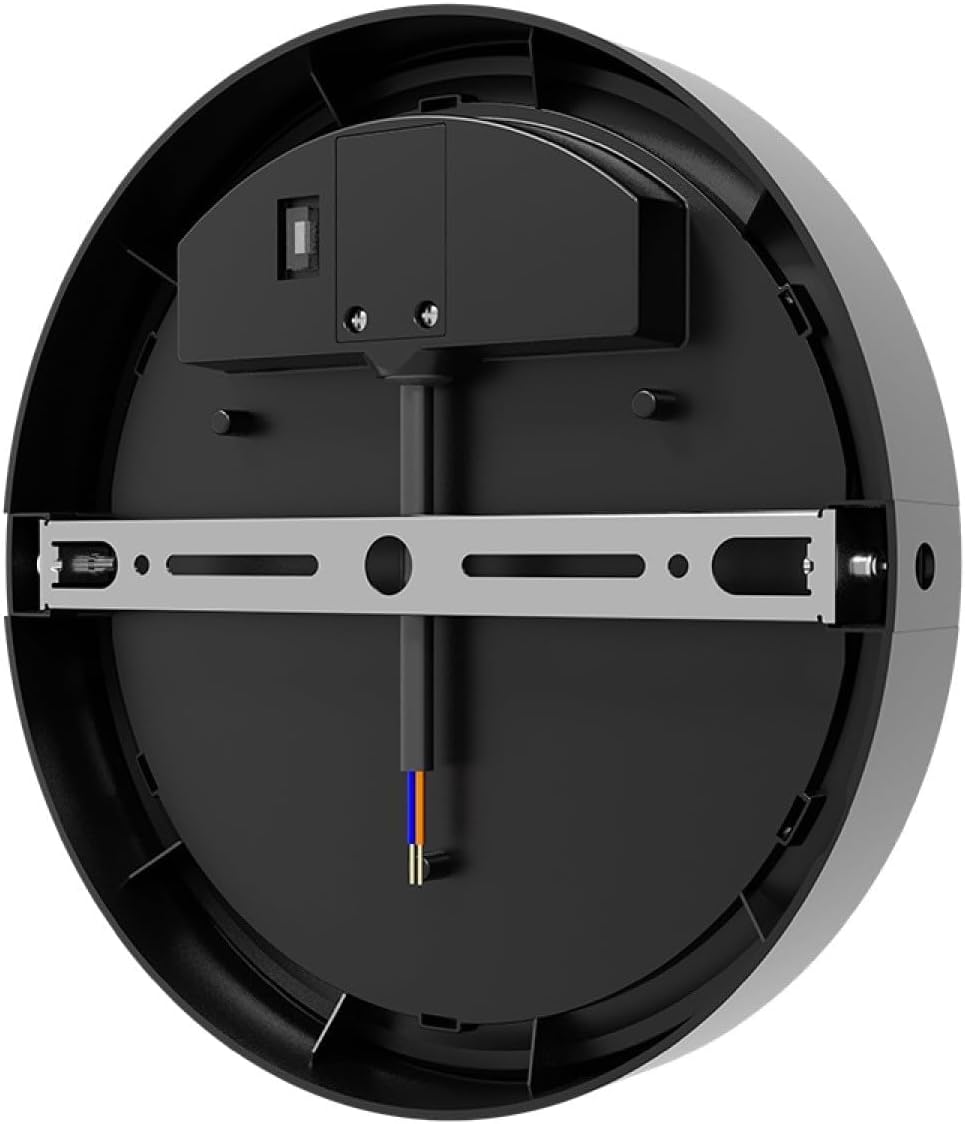

Figur 3: Bagside view with mounting bracket and wiring terminals.

5. Opsætning og installation

Before beginning installation, ensure the main power supply is switched off at the circuit breaker to prevent electric shock.

5.1. Montering

1. Forbered monteringsoverfladen: Choose a suitable location on a wall or ceiling. Ensure the surface is solid and can support the weight of the luminaire.
2. Markér borepunkter: Detach the mounting bracket from the back of the luminaire (refer to Figure 3). Place the bracket against the desired mounting surface and mark the drilling points.
3. Bore huller: Bor huller på de markerede punkter med et passende bor til dit vægmateriale. Indsæt rawlplugs om nødvendigt.
4. Sikker monteringsbeslag: Attach the mounting bracket to the surface using the provided screws.

5.2. Ledninger

5. Tilslut elektriske ledninger: Carefully connect the electrical supply wires to the luminaire's terminals. Ensure correct polarity (Live, Neutral, Earth) as indicated on the luminaire or in Figure 3. Use appropriate wire connectors if needed.
6. Secure Luminaire: Once wiring is complete, align the luminaire with the secured mounting bracket and fasten it securely. Ensure all connections are tight and the luminaire is stable.
7. Gendan strøm: Switch the main power supply back on at the circuit breaker.

6. Betjeningsvejledning

The Braytron Bulkhead LED Luminaire is designed for straightforward operation.

6.1. Tænd/sluk

The luminaire is controlled by a standard wall switch connected to its power supply. Simply toggle the switch to turn the light on or off.

6.2. Adjusting Color Temperature (3-Color Feature)

This luminaire offers three distinct color temperature options (e.g., Warm White, Neutral White, Cool White). To cycle through the available color temperatures:

1. Turn the luminaire ON ved hjælp af vægkontakten.
2. Turn the luminaire SLUKKET og så straks ON again. The color temperature will change to the next setting.
3. Repeat this process until your desired color temperature is selected. The luminaire will typically remember the last selected setting when powered off for a longer period.

7. Vedligeholdelse

The Braytron Bulkhead LED Luminaire requires minimal maintenance.

• Rensning: Disconnect power before cleaning. Wipe the luminaire with a soft, damp klud. Brug ikke slibende rengøringsmidler, opløsningsmidler eller stærke kemikalier, da disse kan beskadige overfladen eller de elektriske komponenter.
• Inspektion: Periodically inspect the luminaire for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
• LED lyskilde: The LED light source is integrated and not user-replaceable. If the LEDs fail, the entire luminaire should be replaced.

8. Fejlfinding

If you encounter issues with your luminaire, refer to the following common problems and solutions:

Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.

9. Specifikationer

Figur 4: Produktmål.

Figur 5: Energimærkning. For yderligere oplysninger, besøg EPREL-database.

10. Garanti og support

This Braytron product is covered by a standard manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.

For technical support, warranty inquiries, or replacement parts, please contact your retailer or the Braytron customer service department. Contact information can typically be found on the product packaging or the official Braytron webwebsted.
