Generic Replacement Ice Maker Installation Guide

1. Introduktion

This manual provides essential instructions for the safe and correct installation and operation of your new Generic Fricpart-046364 replacement ice maker. This part is designed for compatibility with Kenmore Refrigerator Model 106.56173500. Please read these instructions thoroughly before beginning installation to ensure proper function and to prevent damage to the appliance or injury.

Vigtige sikkerhedsoplysninger:

• Always disconnect power to the refrigerator before performing any service or installation.
• Brug passende personlige værnemidler, såsom handsker, under installationen.
• Hvis du er usikker på et trin, skal du kontakte en kvalificeret tekniker.

2. Installationsvejledning

Follow these steps carefully to replace your refrigerator's ice maker unit.

2.1 Forberedelse

1. Afbryd strømmen: Tag stikket til køleskabet ud af stikkontakten, eller sluk for afbryderen, der forsyner køleskabet med strøm.
2. Adgang til ismaskine: Open the freezer door and locate the existing ice maker. Depending on your refrigerator model, you may need to remove the ice bucket and any shelves obstructing access.
3. Saml værktøjer: You may need a screwdriver (Phillips or flathead, depending on fasteners) and possibly a nut driver.

2.2 Removing the Old Ice Maker

4. Disconnect Water Line: If the ice maker has a direct water line connection, carefully disconnect it. Be prepared for a small amount of residual water.
5. Frakobl det elektriske stik: Locate the electrical wire harness connected to the ice maker. Gently squeeze or unclip the connector and pull it apart.
6. Unmount Ice Maker: Identify the screws or clips holding the ice maker in place. Typically, there are two or three screws. Remove these fasteners.
7. Remove Unit: Skub eller træk forsigtigt den gamle ismaskine ud af dens monteringsbeslag.

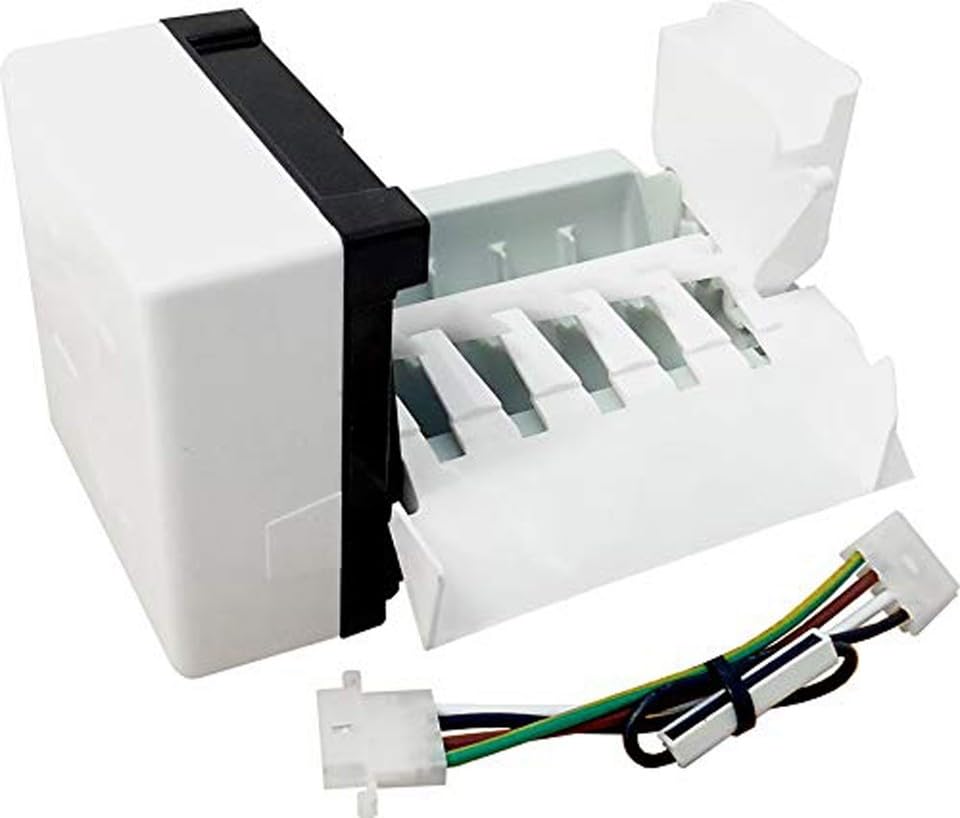

Figure 1: Generic Fricpart-046364 Replacement Ice Maker. This image shows the complete ice maker unit, including the motor, ice mold, and wiring harness, ready for installation.

2.3 Installing the New Ice Maker

8. Ny enhed: Align the new Fricpart-046364 ice maker with the mounting brackets in the freezer.
9. Sikker enhed: Reinsert and tighten the screws or re-engage the clips to secure the new ice maker firmly in place. Ensure it is level.
10. Tilslut elektrisk stik: Plug the electrical wire harness from the refrigerator into the corresponding connector on the new ice maker. Ensure a secure connection.
11. Tilslut vandledningen: If applicable, reattach the water line to the new ice maker. Check for a snug fit to prevent leaks.
12. Udskift komponenter: Reinstall any shelves or the ice bucket that were removed during the process.

2.4 Efterinstallation

13. Gendan strøm: Sæt køleskabet i stikkontakten igen, eller tænd for afbryderen.
14. Første vandpåfyldning: The ice maker will typically perform an initial water fill cycle within a few minutes of power restoration. Listen for the sound of water filling the ice mold.
15. Tjek for lækager: Monitor the water line connections for any signs of leaks.

3. Betjeningsvejledning

After installation, allow sufficient time for the ice maker to begin producing ice.

• Første isproduktion: It may take 12 to 24 hours for the ice maker to produce its first full batch of ice, as the freezer needs to reach the optimal temperature.
• Kassér de første portioner: For sanitary reasons, discard the first two to three batches of ice produced. This flushes any air or impurities from the water line and ice maker components.
• Normal drift: The ice maker will automatically produce ice until the ice bucket is full, at which point the shut-off arm will stop production. When ice is removed, the cycle will resume.
• Isniveauarm: Ensure the ice level arm (bail arm) is in the down position for ice production. Lifting it up will stop ice production.

4. Vedligeholdelse

Regelmæssig vedligeholdelse er med til at sikre optimal ydeevne og levetid for din ismaskine.

• Rensning: Periodically remove the ice bucket and wash it with mild soap and warm water. Rinse thoroughly and dry before returning it to the freezer. Do not use abrasive cleaners.
• Vandfilter: Hvis dit køleskab har et vandfilter, skal du sørge for at udskifte det i henhold til producentens anbefalinger for at opretholde vandkvaliteten og isproduktionen.
• Kontrol af vandledning: Undersøg vandforsyningsledningen lejlighedsvis for knæk, lækager eller skader.
• Ice Build-up: If ice builds up around the ice maker mechanism, disconnect power and allow it to defrost naturally, then clean and restart.

5. Fejlfinding

Inden du tilkalder service, vedrview disse almindelige problemer og løsninger.

6. Specifikationer

Key specifications for the Generic Fricpart-046364 Replacement Ice Maker:

• Varenummer: Fricpart-046364
• Kompatibel køleskabsmodel: Kenmore 106.56173500
• Mærke: Generisk
• Fabrikant: Fricparts
• ASIN: B0FDKKF6XK
• Fungere: Replacement ice maker for compatible refrigerator models.

Note: Appliance parts can appear similar. Always verify compatibility with your specific refrigerator model before installation.

7. Garanti og support

Warranty information and specific customer support details for this Generic replacement part are not provided in the product listing. Please refer to the seller or manufacturer's documentation included with your purchase for any warranty claims or technical assistance.

For general inquiries regarding your Kenmore refrigerator, please consult your original Kenmore appliance manual or contact Kenmore customer service.
