Kenmore 110.61402311 Dryer Heating Element Replacement Manual (Fricpart-056900)

Indledning

This manual provides detailed instructions for the installation, operation, and maintenance of the Fricpart-056900 replacement heating element for Kenmore dryer model 110.61402311. Please read this manual thoroughly before attempting any repair or installation to ensure safe and correct procedures.

Sikkerhedsoplysninger

ADVARSEL: Always disconnect power to the dryer before performing any service or maintenance. Failure to do so can result in serious injury or death from electrical shock.

Sørg for, at tørretumbleren er taget ud af stikkontakten, eller at afbryderen er slået fra, før du påbegynder noget arbejde.
Brug passende personlige værnemidler, såsom handsker, for at forhindre skader.
Hvis du er usikker på et trin, skal du kontakte en kvalificeret tekniker.
Keep all parts and tools away from children and pets.
Only use replacement parts specifically designed for your dryer model.

Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

1 x Fricpart-056900 Dryer Heating Element
1 x Installation Tool (as specified by the product description)

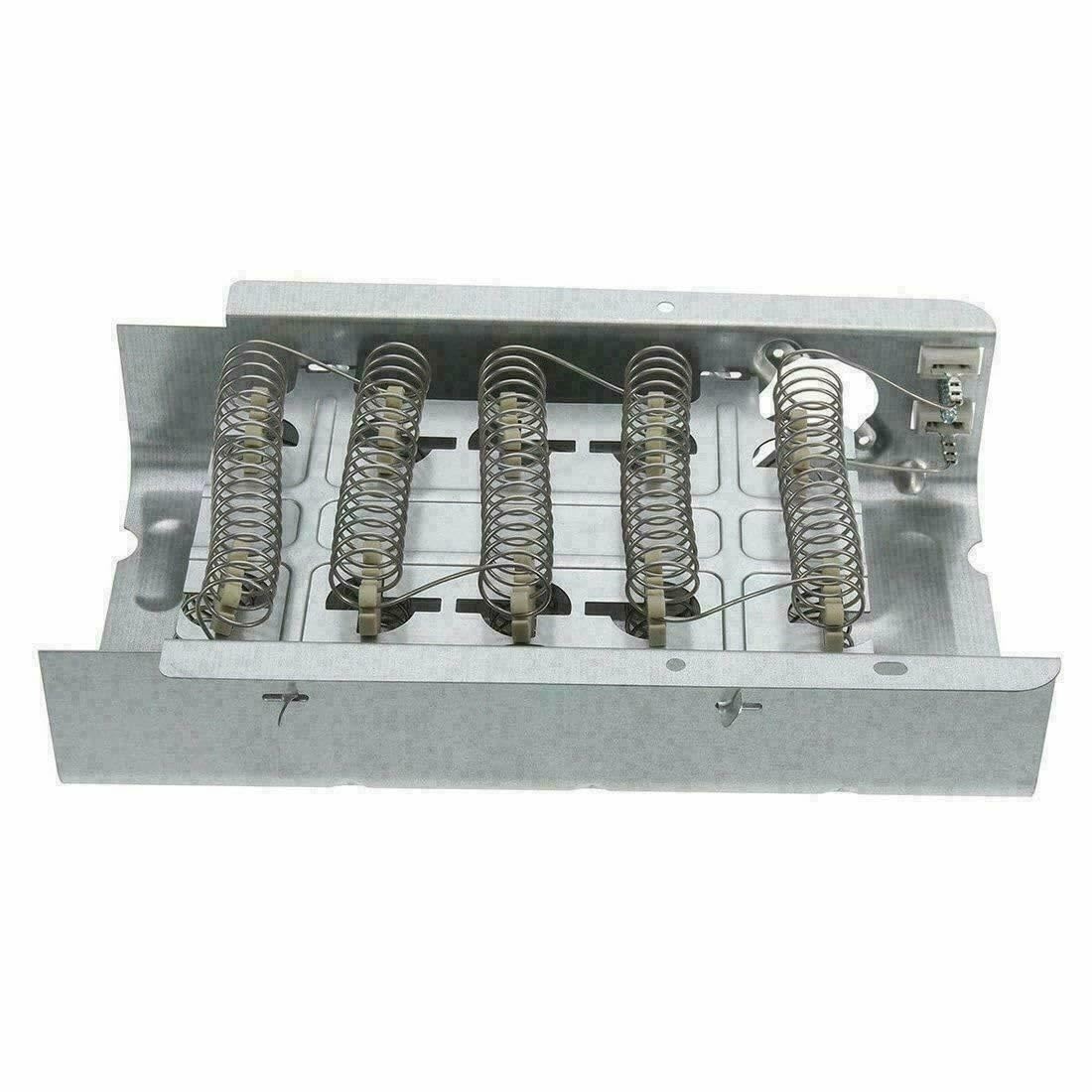

Image of the Fricpart-056900 replacement dryer heating element.

This image displays the Fricpart-056900 replacement dryer heating element, featuring multiple coiled heating wires mounted on a metal frame, ready for installation.

Opsætning og installation

This section outlines the general steps for replacing a dryer heating element. Specific disassembly and reassembly procedures may vary slightly depending on your exact dryer configuration. Refer to your dryer's service manual for detailed instructions if available.

Afbryd strømmen: Unplug the dryer from the wall outlet or turn off the circuit breaker supplying power to the dryer. Verify power is off before proceeding.
Adgang til varmeelementet: Depending on your Kenmore 110.61402311 dryer model, you may need to remove the back panel, front panel, or top panel to access the heating element housing. This typically involves removing screws and possibly disconnecting wire harnesses.
Locate the Old Heating Element: The heating element is usually housed in a metal chamber. Carefully identify the element and its electrical connections.
Afbryd ledninger: Take a photo or make a diagram of the wiring connections to the old heating element. Carefully disconnect all wires from the terminals of the old element.
Fjern det gamle varmeelement: Unscrew or unclip the old heating element from its housing. Gently pull it out, ensuring no damage to surrounding components.
Installer nyt varmeelement: Carefully insert the new Fricpart-056900 heating element into the housing. Ensure it is seated correctly and secure it with screws or clips as per the original installation.
Tilslut ledningerne igen: Reconnect the electrical wires to the terminals of the new heating element, matching your diagram or photo. Ensure all connections are secure and tight.
Saml tørretumbleren igen: Reattach any panels, screws, and wire harnesses that were removed during disassembly. Ensure all components are properly secured.
Test drift: Plug the dryer back into the electrical outlet or turn on the circuit breaker. Run a short cycle with no load and check if the dryer heats up properly. Monitor for any unusual noises or smells.

Note: The included installation tool is designed to assist with specific steps of the replacement process. Refer to its individual instructions if provided, or use it as a general aid for prying, fastening, or manipulating components as needed.

Betjeningsvejledning

The Fricpart-056900 heating element functions as an internal component of your Kenmore 110.61402311 dryer. Once correctly installed, its operation is integrated with the dryer's normal functions. No separate operating instructions are required for the heating element itself. Simply operate your dryer as you normally would, selecting the desired cycle and settings.

Opretholdelse

Proper maintenance of your dryer can help prolong the life of the heating element and ensure efficient operation:

Rens fnugfilter: Rengør fnugfilteret før eller efter hver vask for at opretholde korrekt luftgennemstrømning og forhindre overophedning.
Inspektion af udluftning: Periodically check the dryer's exhaust vent for blockages. A clogged vent can cause the dryer to overheat and stress the heating element.
Professionel rengøring: Consider professional dryer vent cleaning annually to remove accumulated lint from the entire duct system.
Undgå overbelastning: Do not overload the dryer, as this can restrict airflow and lead to longer drying times and increased strain on the heating element.

Fejlfinding

If your dryer is experiencing issues after replacing the heating element, consider the following common problems and solutions:

Problem	Mulig årsag	Løsning
Dryer not heating at all.	No power to the dryer. Blown thermal fuse or thermostat. Forkert ledningsforbindelse.	Check circuit breaker/outlet. Inspect and test thermal fuse/thermostat (replace if faulty). Recheck all wiring connections to the heating element.
Tørretumbleren tager for lang tid om at tørre.	Restricted airflow (clogged lint filter/vent). Partial heating element failure. Overloaded dryer.	Clean lint filter and check vent for blockages. Inspect heating coils for breaks (requires disassembly). Reducer belastningsstørrelsen.
Brændende lugt.	Lint accumulation on heating element. New element "burning off" manufacturing residue (temporary).	Immediately disconnect power and inspect for lint. Run a few empty cycles to dissipate residue. If smell persists, disconnect power and inspect.

Hvis fejlfindingstrinene ikke løser problemet, anbefales det at kontakte en kvalificeret tekniker til reparation af apparater.

Specifikationer

Modelnummer: Fricpart-056900
Compatible Dryer Model: Kenmore 110.61402311
Fabrikant: Fricparts
Varenummer: FRIC-PL-APP-TP-22052025-114799
Varepakkemængde: 1
Farve: Black/White (referring to components, not the element itself)
ASIN: B0FDKK4GZY

Garantioplysninger

Specific warranty details for the Fricpart-056900 replacement heating element are not provided in the product information. For warranty inquiries, please contact the seller or manufacturer directly at the point of purchase.

Støtte

For technical assistance, installation guidance, or further questions regarding the Fricpart-056900 heating element, please contact the seller, Fricgore, through the platform where the purchase was made. Ensure you have your model number and purchase details available when seeking support.
