PULWTOP BD242A Triple Display Docking Station User Manual

1. Introduktion

This manual provides detailed instructions for setting up, operating, and maintaining your PULWTOP BD242A Triple Display Docking Station. This 19-in-1 docking station is designed to expand your laptop's connectivity and display capabilities, supporting up to three 4K monitors simultaneously. Please read this manual thoroughly before use to ensure optimal performance and safety.

2. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• PULWTOP BD242A Docking Station
• 72W DC Power Adapter & Cable
• USB-C til USB-C-kabel med USB-A-adapter
• Flersproget brugermanual

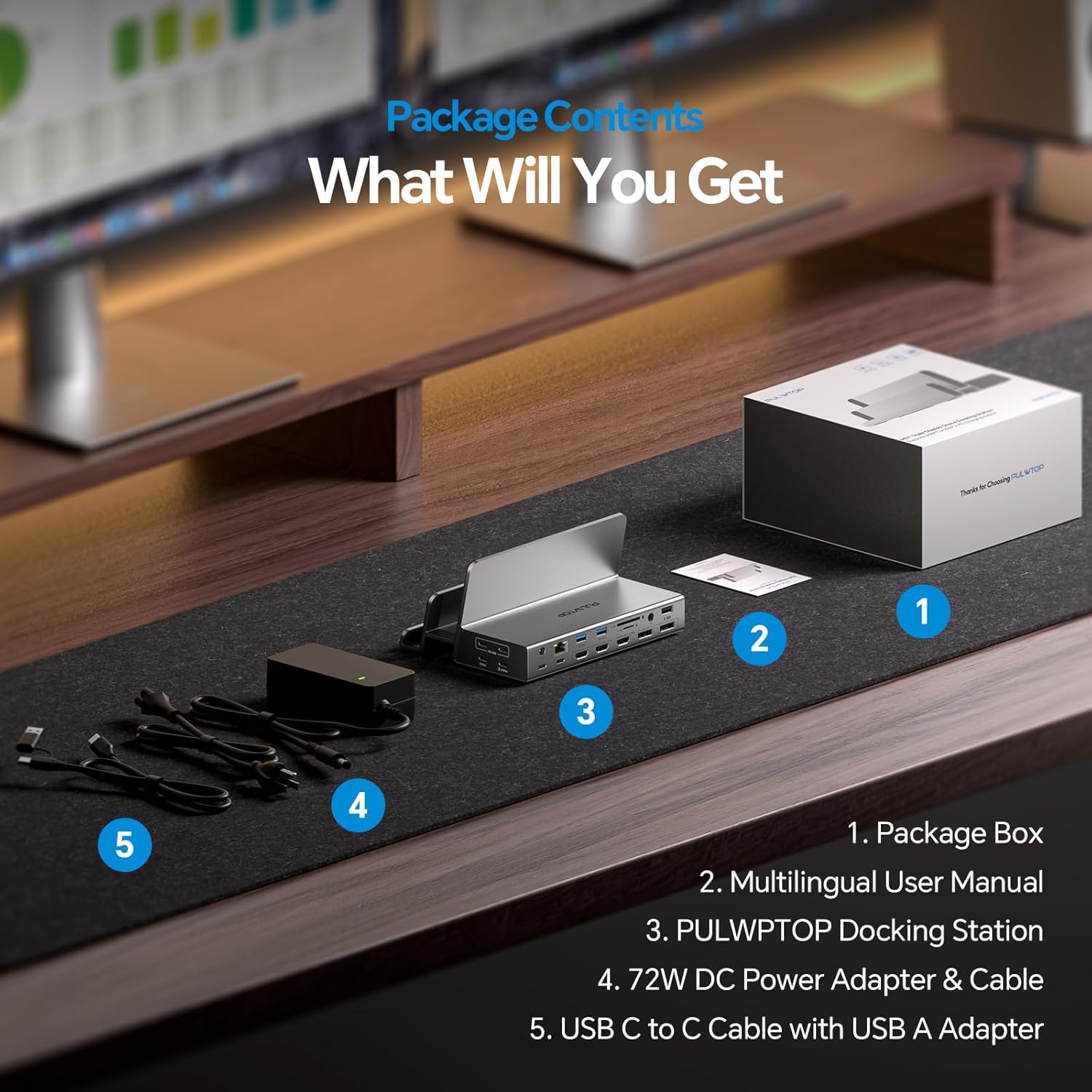

Image: The package contents, including the docking station, power adapter, USB-C cable, and user manual.

3. Physical Layout and Port Overview

The PULWTOP BD242A docking station features a comprehensive array of ports and a dual stand design for efficient workspace management.

Image: A detailed diagram illustrating the 19 ports available on the docking station.

Frontpanelporte:

• 2 x USB-C PD Output (Charging ONLY): Up to 45W for single port, or 22W per port when two are used. Do not support video output or data transfer.
• Dual Stand Slots: Max 29mm for laptops (MacBook/Windows) and Max 17mm for phones/tablets.

Bagpanelporte:

• DC IN (72W): Connect the included power adapter to power the docking station.
• USB-C til vært: Connects to your laptop (MacBook or other laptops).
• PD IN (100W Max): Connect an external PD adapter (not included) to charge your laptop.
• gigabit ethernet: 1000/100/10Mbps network connection.
• USB-C 10Gbps (Data ONLY): Højhastigheds dataoverførsel.
• USB-C 10Gbps with 7.5W: High-speed data transfer and charging.
• 2 x USB-A 5Gbps with 7.5W: Data transfer and charging for peripherals.
• USB-A 2.0: For keyboard, mouse, or other low-power devices.
• SD/TF-kortpladser: Simultaneous reading and writing up to 104Mbps.
• 3.5 mm lyd-/mikrofonstik: Til høretelefoner eller højttalere.
• 3 x HDMI 4K@60Hz: Videoudgangsporte.
• 2 x DisplayPort 4K@60Hz: Videoudgangsporte.

4. Opsætningsvejledning

4.1 Strømtilslutning

Connect the included 72W DC power adapter to the DC IN port on the docking station. This is essential for the docking station to function.

Image: Illustration of connecting the 72W DC power adapter to the docking station. An optional 100W PD adapter can be connected to the PD IN port to charge the laptop.

4.2 Host Connection

Connect your laptop to the docking station using the USB-C til vært cable. If your laptop only has USB-A ports, use the provided USB-A adapter.

4.3 Driver Installation (Required for Display Functionality)

The PULWTOP BD242A docking station requires the installation of a Silicon Motion driver for full display functionality, especially for macOS and multi-monitor setups. Please follow the steps below:

1. Visit the official Silicon Motion webwebsted: www.siliconmotion.com
2. Naviger til STØTTE > Downloadcenter.
3. Under Produktløsning, vælg Andre.
4. Locate and download the SM770 Driver Download for your operating system (Windows or macOS).

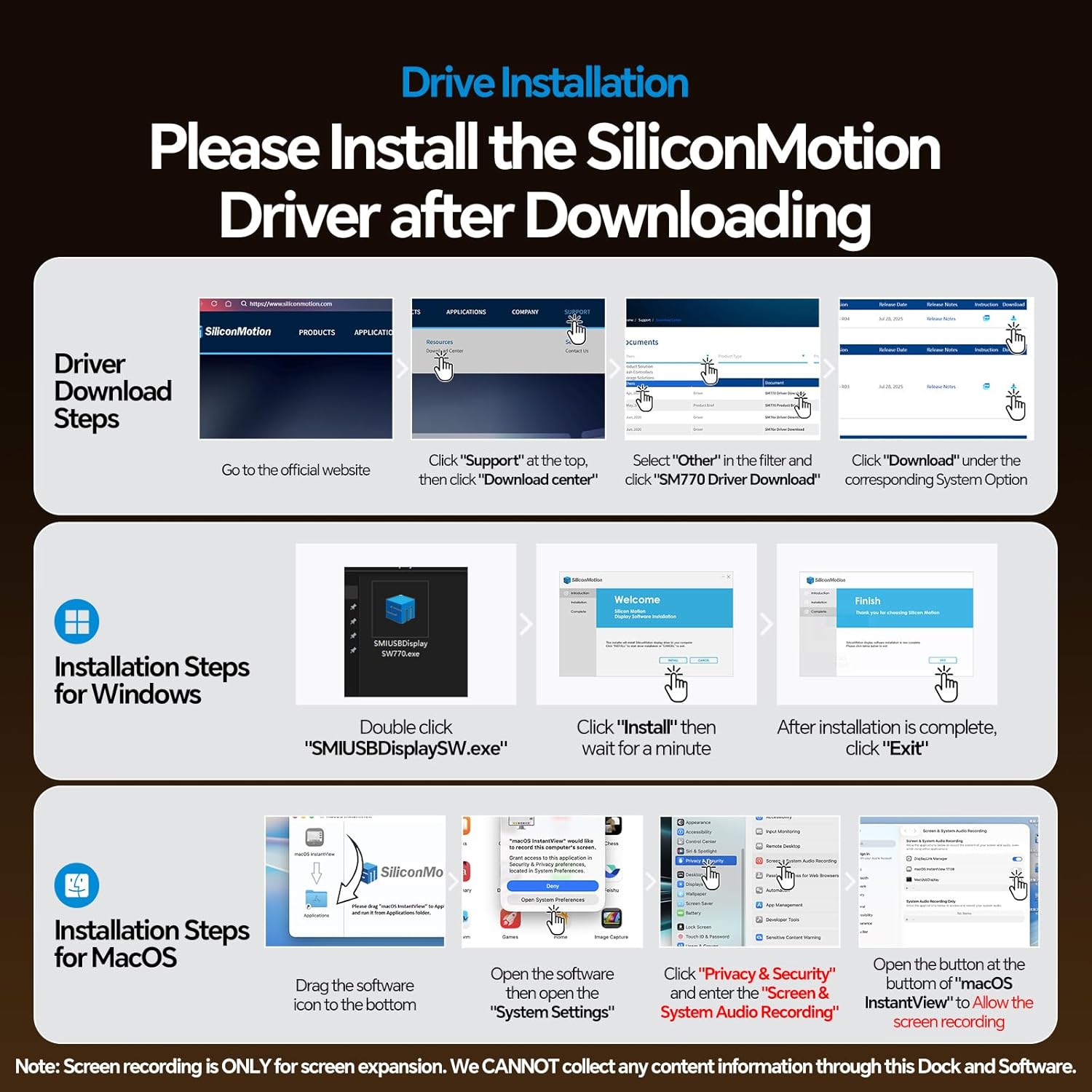

Image: Visual guide for downloading the Silicon Motion driver from the official website and installation steps for both Windows and macOS.

For Windows OS:

1. Dobbeltklik på den downloadede SMUSBDisplaySW.exe file.
2. Klik Installere and wait for the installation to complete.
3. Klik Udgang når færdig.

Video: A step-by-step guide demonstrating the Silicon Motion Driver Installation for Windows OS.

Til macOS:

1. Træk i macOS InstantView application icon to the Applications folder.
2. Open the application, then go to Systemindstillinger > Privatliv og sikkerhed.
3. Under Screen & System Audio Recording, grant access to macOS InstantView to record your computer's screen and audio.
4. You may need to quit and reopen the application for changes to take effect.

Note: Screen recording is ONLY for screen expansion. The software does not collect any content information from your computer.

Video: A step-by-step guide demonstrating the Silicon Motion Driver Installation for Mac OS.

4.4 Skærmforbindelse

Connect your external monitors to any of the 3 HDMI or 2 DisplayPort outputs on the docking station. The docking station supports various combinations for triple 4K@60Hz displays.

Image: A setup showing a laptop connected to the docking station, extending its display across three 4K monitors.

Video: An unboxing and initial setup demonstration of the Triple Display Docking Station with Dual Stand (BD242A).

5. Betjeningsvejledning

5.1 Opsætning af tredobbelt skærm

Once the driver is installed and monitors are connected, your laptop's display can be extended to up to three external monitors. You can choose any 3 of the 5 available HDMI and DisplayPort outputs.

Billede: En eksample of a triple display setup with a laptop and three external monitors, compatible with both MacBook and Windows systems.

Video: A demonstration of the 17-in-1 USB-C Docking Station supporting triple monitor output (BD242A).

5.2 Clamshell Mode

To use your laptop with the lid closed (clamshell mode) while connected to external monitors, ensure the following:

• A mouse must be connected to the docking station to wake up the laptop.
• The DC power adapter must be connected to power the dock.
• Your laptop's settings must be configured not to auto-sleep when the lid is closed and connected to an external display.

Image: Instructions for extending the display with the laptop lid closed (clamshell mode), highlighting necessary connections and settings.

5.3 Dataoverførsel

The docking station provides multiple high-speed data ports:

• USB-C 10Gbps (Data ONLY): For ultra-fast data transfer.
• USB-C 10Gbps with 7.5W: For data transfer and simultaneous charging of small peripherals.
• 2 x USB-A 5Gbps with 7.5W: For connecting various USB-A devices and charging.
• USB-A 2.0: Ideal for connecting keyboards, mice, or other low-bandwidth devices.

Image: A visual representation of connecting various devices for high-speed data transfer via the docking station's USB-C and USB-A ports.

5.4 Opladningsfunktioner

The docking station offers versatile charging capabilities:

• Laptop Charging (via PD IN): Connect an external PD adapter (up to 100W, not included) to the PD IN port to charge your laptop.
• Peripheral Charging (via USB-C PD Output): Two dedicated USB-C PD output ports provide up to 45W for a single port or 22W per port when both are used simultaneously, ideal for smartphones, tablets, and other accessories.

Image: An illustration detailing the fast charging capabilities, including 100W PD input for laptops and 45W/22W output for peripherals.

5.5 SD/TF-kortlæser

Insert your SD or TF (MicroSD) cards into the dedicated slots for simultaneous reading and writing at speeds up to 104Mbps.

5.6 Ethernet-forbindelse

Connect an Ethernet cable to the Gigabit Ethernet port for a stable and high-speed wired network connection (10/100/1000Mbps).

5.7 Lydstik

Plug your headphones or speakers into the 3.5mm audio/mic jack for audio output.

Billede: Et nærbillede view highlighting the SD/TF card reader, Gigabit Ethernet port, and 3.5mm audio/mic jack.

5.8 Dual Stand Usage

The integrated dual stand allows you to store your laptop, tablet, or smartphone vertically, saving desk space and keeping your workspace organized. The front slot is 17mm wide, suitable for phones/tablets, while the back slot is 29mm wide for laptops.

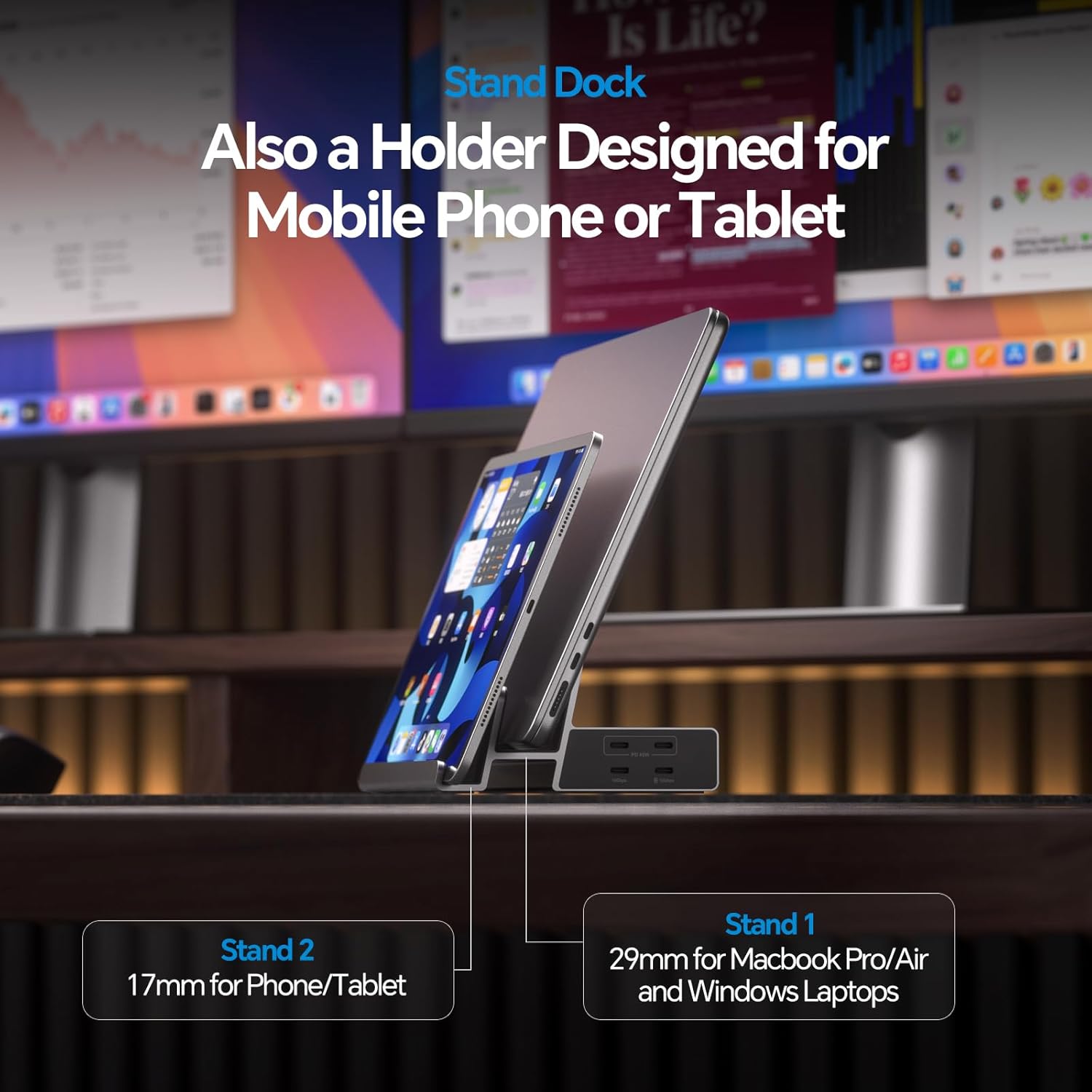

Image: The dual stand design of the docking station, holding a laptop and a tablet vertically to save desk space.

Video: En overview of the Triple Display Docking Station Stand for Laptops (BD242A), showcasindens funktioner og design.

6. Vedligeholdelse

For at sikre din dockingstations levetid og optimale ydeevne:

• Hold enheden ren og fri for støv. Brug en blød, tør klud til rengøring.
• Undgå at udsætte enheden for ekstreme temperaturer, fugt eller direkte sollys.
• Forsøg ikke selv at adskille eller reparere enheden. Kontakt kundesupport for at få hjælp.
• Sørg for tilstrækkelig ventilation omkring dockingstationen for at forhindre overophedning.

7. Fejlfinding

Hvis du støder på problemer med din dockingstation, kan du bruge følgende almindelige løsninger:

• Ingen skærmoutput:
  • Ensure the Silicon Motion driver is correctly installed and granted necessary permissions (especially on macOS).
  • Verify that the 72W DC power adapter is connected and providing power to the docking station.
  • Check all HDMI/DisplayPort cables and connections.
  • Genstart din bærbare computer og dockingstationen.
• Bærbar computer oplader ikke:
  • Ensure an external PD adapter (up to 100W) is connected to the PD IN port on the docking station. The included 72W adapter powers the dock, not the laptop directly.
  • Bemærk, at PD IN port will not charge your laptop when using the dock with a USB-A laptop.
• USB-enheder genkendes ikke:
  • Ensure the docking station is properly connected to your laptop via the USB-C til vært havn.
  • Prøv at tilslutte USB-enheden til en anden port på dockingstationen.
  • Ensure the device drivers for the USB peripheral are installed on your laptop.
• Problemer med Ethernet-forbindelse:
  • Kontroller Ethernet-kabelforbindelsen til både dockingstationen og din router/modem.
  • Bekræft netværksindstillingerne på din bærbare computer.

8. Specifikationer

9. Garanti og support

For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the PULWTOP official webwebsted. Gem din købskvittering for garantikrav.
