AFMAT PSC8 Electric Pencil Sharpener Instruction Manual

Model: PSC8 | Brand: AFMAT

Indledning

Thank you for choosing the AFMAT PSC8 Electric Pencil Sharpener. This fully automatic, rechargeable sharpener is designed for convenience and efficiency, providing a hands-free sharpening experience for various pencil types and sizes. Please read this manual carefully to ensure proper use and maintenance of your device.

Vigtige sikkerhedsoplysninger

  • Keep the sharpener away from water or other liquids.
  • Do not attempt to disassemble the sharpener beyond the specified maintenance steps.
  • Ensure the shavings tray is securely fastened before operation. The sharpener will not operate if the lid is removed.
  • Supervise children during use to prevent misuse. The sharp blade is not exposed during normal operation.
  • Use only a 5V 2A adapter for charging. Do not use adapters with output exceeding 5V.
  • If the sharpener overheats, allow it to cool down for 15-30 minutes before resuming use.
Child-safe design features of the AFMAT PSC8 Electric Pencil Sharpener
Figure 1: Child-Safe Design. The sharpener features safety mechanisms like automatic shut-off when the lid is removed and an unexposed blade, ensuring safe use for children.

Pakkens indhold

Bekræft at alle varer er inkluderet i din pakke:

  • AFMAT PSC8 Electric Pencil Sharpener
  • USB Charging Cable (Adapter not included)
  • Instruktionsmanual (dette dokument)

Produkt overview

Familiarize yourself with the main components of your AFMAT PSC8 Electric Pencil Sharpener:

  • Pencil Insertion Port: Top opening for inserting pencils.
  • Shavings Tray: Transparent compartment to collect pencil shavings.
  • Skarphedsjusteringsknap: Located at the bottom, allows selection of desired tip sharpness.
  • Opladningsport: Til tilslutning af USB-opladerkablet.
  • Skridsikker base: Sikrer stabilitet under brug.
AFMAT PSC8 Electric Pencil Sharpener showing its main features
Figure 2: AFMAT PSC8 Electric Pencil Sharpener. A view of the sharpener highlighting its compact design and transparent shavings tray.

Opsætning og opladning

  1. Indledende opkrævning: Before first use, fully charge the sharpener. Connect the provided USB cable to the charging port on the sharpener and to a 5V 2A USB adapter (not included).
  2. Opladningsindikator: The charging indicator light will illuminate during charging and change color or turn off when fully charged. A full charge typically takes about 2 hours.
  3. Batterilevetid: A single full charge can provide up to 600 pencil sharpenings.
AFMAT PSC8 Electric Pencil Sharpener connected to a charger, showing battery indicator
Figure 3: Charging the Sharpener. The image shows the sharpener connected to a power source, illustrating the charging process and battery indicator.

Betjeningsvejledning

1. Blyantkompatibilitet

The AFMAT PSC8 is designed to sharpen pencils with diameters between 7mm and 11.5mm, including standard, jumbo, and colored pencils. It supports various pencil shapes. It can sharpen pencils as short as 2.9 inches.

Diagram showing various pencil sizes and shapes compatible with the sharpener
Figure 4: Pencil Compatibility. This diagram illustrates the range of pencil diameters (7mm, 9mm, 11.5mm) and shapes (triangular, hexagonal, round) that the sharpener can accommodate.

2. Adjusting Sharpness Settings

Rotate the dial at the bottom of the sharpener to select one of three sharpness settings:

  • Sharp Tip (1st gear): For fine detail work.
  • Medium Tip (2nd gear): Suitable for rough sketches or general writing.
  • Blunt Tip (3rd gear): Ideal for shading or for children who are hard on pencils.

Note: For soft-core pencils (e.g., some colored pencils), use medium or blunt settings to prevent lead breakage. Ultra-soft pencils are not recommended.

Image showing the sharpness adjustment dial and examples of pencil tips for each setting
Figure 5: Sharpness Settings. The image displays the sharpness adjustment dial and visual examples of the three available pencil tip options.

3. Sharpening a Pencil

  1. Select your desired sharpness setting using the dial.
  2. Insert the pencil into the top insertion port. The sharpener will automatically pull the pencil in.
  3. The sharpener will operate until the pencil reaches the selected sharpness, then automatically eject it. This hands-free operation ensures safety and convenience.
Illustration of the automatic pencil insertion and ejection process
Figure 6: Fully Automatic Sharpening. This image demonstrates the sharpener's auto-in and auto-out feature, making the sharpening process hands-free.

Video 1: AFMAT PSC8 Fully Automatic Pencil Sharpener Demonstration. This video shows the sharpener in action, demonstrating its automatic pencil feeding and ejection for a perfect point.

Opretholdelse

1. Emptying the Shavings Tray

The sharpener features a large-capacity shavings tray. To empty it, twist the top cover counter-clockwise to unlock and remove it. Dispose of the shavings, then securely reattach the cover by twisting clockwise until it clicks into place.

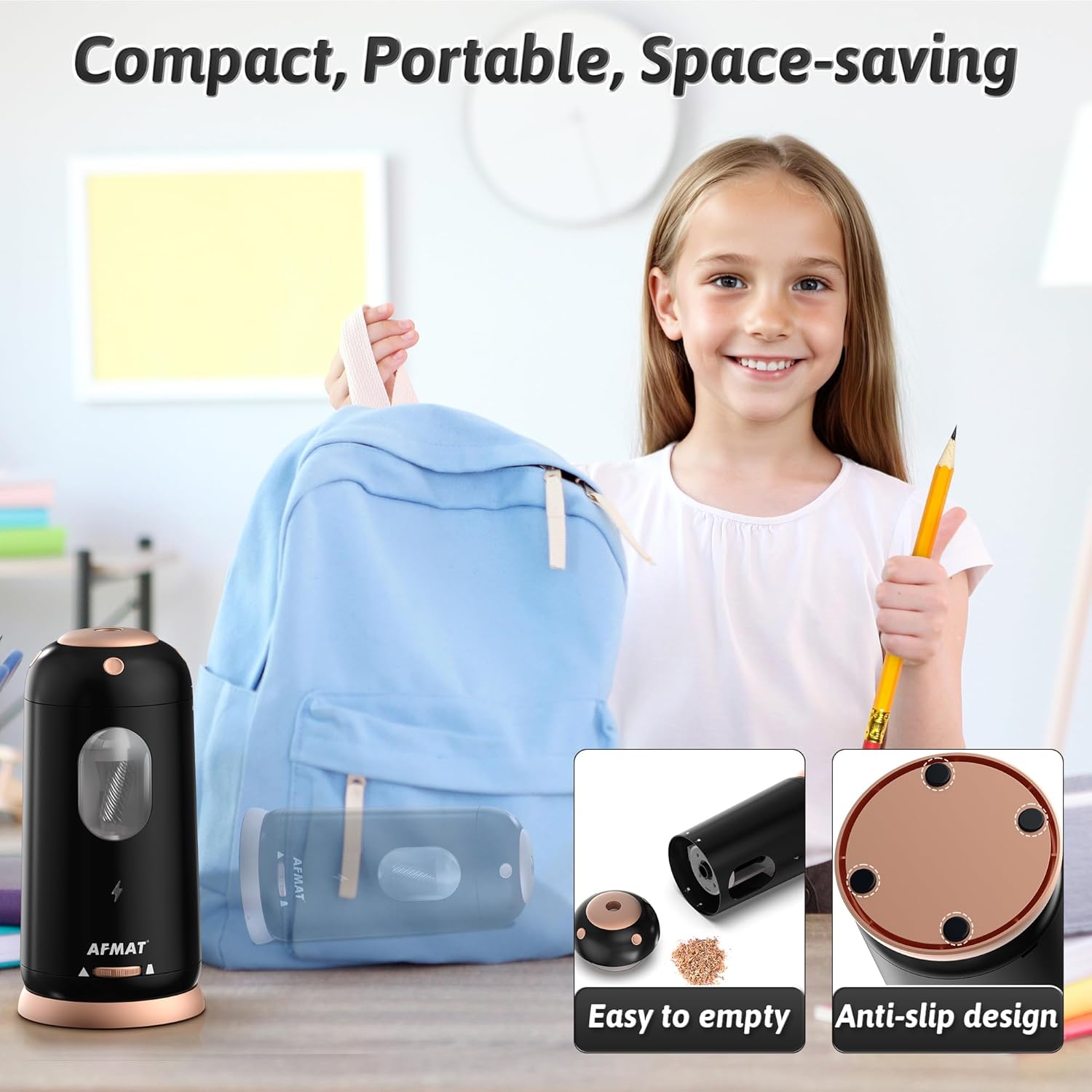

Image showing how to open the sharpener to empty shavings and its non-slip base
Figure 7: Easy Maintenance. This image highlights the easy-to-empty shavings tray and the non-slip base of the sharpener.

2. Udskiftning af kniv

The helical blade is durable and replaceable. If sharpening performance decreases over time, the blade may need replacement. To replace the blade:

  1. Unlock and remove the top cover.
  2. Fjern forsigtigt den gamle knivenhed.
  3. Insert a new blade assembly, ensuring it is properly seated.
  4. Reattach the top cover, twisting clockwise until it clicks.

Video 2: Troubleshooting and Blade Replacement for AFMAT PSC8. This video demonstrates how to remove the blade and clean out jammed pencil waste, and how to replace an old blade if sharpening isn't working well.

Fejlfinding

Problem Mulig årsag Løsning
Pencil not sharpening to a sharp point.
  • Jammed pencil waste.
  • Old or dull blade.
  • Pencil core is off-center.
  • Incorrect sharpness setting for pencil type.
  • Remove the top cover and clean out any jammed pencil waste from the blade assembly.
  • Replace the blade assembly if it is old or dull (refer to Maintenance section).
  • Ensure the pencil core is centered when inserting.
  • Adjust the sharpness dial to a medium or blunt setting for soft-core pencils.
Sharpener stops working after prolonged use. Overophedningsbeskyttelse aktiveret. Allow the sharpener to cool down for 15-30 minutes before using it again.
Slibemaskinen tænder ikke.
  • Lavt batteri.
  • Topdækslet er ikke ordentligt fastgjort.
  • Recharge the sharpener.
  • Ensure the top cover is twisted clockwise until it clicks into place.

Specifikationer

  • Model: PSC 8
  • Mærke: AFMAT
  • Dimensioner: 3.4 (W) x 7.2 (H) inches
  • Vægt: 1.34 pund
  • Materiale: Plast
  • Strømkilde: Genopladeligt batteri
  • Opladningsindgang: 5V 2A (USB cable included, adapter not included)
  • Blyantdiameter kompatibilitet: 7-11.5 mm
  • Sharpness Settings: 3 (Sharp, Medium, Blunt)
  • Sikkerhedsfunktioner: Auto in/out, hands-free, auto-stop, overheat protection, non-exposed blade.

Kundesupport

If you encounter any issues or have questions regarding your AFMAT PSC8 Electric Pencil Sharpener, please contact our customer support team for further assistance:
