Frigidaire Professional 30" Gas Cooktop PCCG3080AS Instruction Manual

1. Opsætning og installation

Proper installation is crucial for the safe and efficient operation of your Frigidaire Professional 30" Gas Cooktop. Refer to the detailed installation guide provided with your appliance for complete instructions. Below are key considerations.

1.1 Dimensions and Cutout Requirements

Ensure your countertop cutout meets the specified dimensions for this model. The cooktop is designed to fit standard 30-inch cutouts.

• Højde: 2 7/16"
• Bredde: 30"
• Dybde: 21"
• Minimum udskæringsbredde: 27 1/4"
• Minimum udskæringsdybde: 19"
• Maximum Cutout Width: 29 5/16"
• Maximum Cutout Depth: 20"

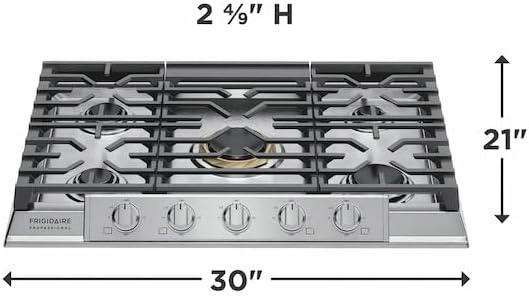

Billede: Top-down view of the cooktop with dimensions labeled: 2 4/9" H, 30" W, 21" D.

1.2 Frigidaire Fit Promise

This 30" Frigidaire Professional gas cooktop is designed to fit your existing countertop cutout of the same width and configuration. Refer to the official Frigidaire website for full program details and any applicable restrictions.

Image: Graphic displaying the 'Frigidaire Fit Promise' logo with text stating 'It will fit. We promise. Or up to $100 back.'

1.3 Compatibility and ADA Compliance

The cooktop is approved for installation above any Frigidaire Wall Ovens. This product also complies with the Americans with Disabilities Act (ADA) for accessibility.

2. Betjeningsvejledning

This section provides guidance on how to operate your Frigidaire Professional Gas Cooktop safely and effectively.

2.1 Five Burner Cooktop Overview

Your cooktop features five burners designed to accommodate various cooking needs, from delicate simmering to high-heat cooking.

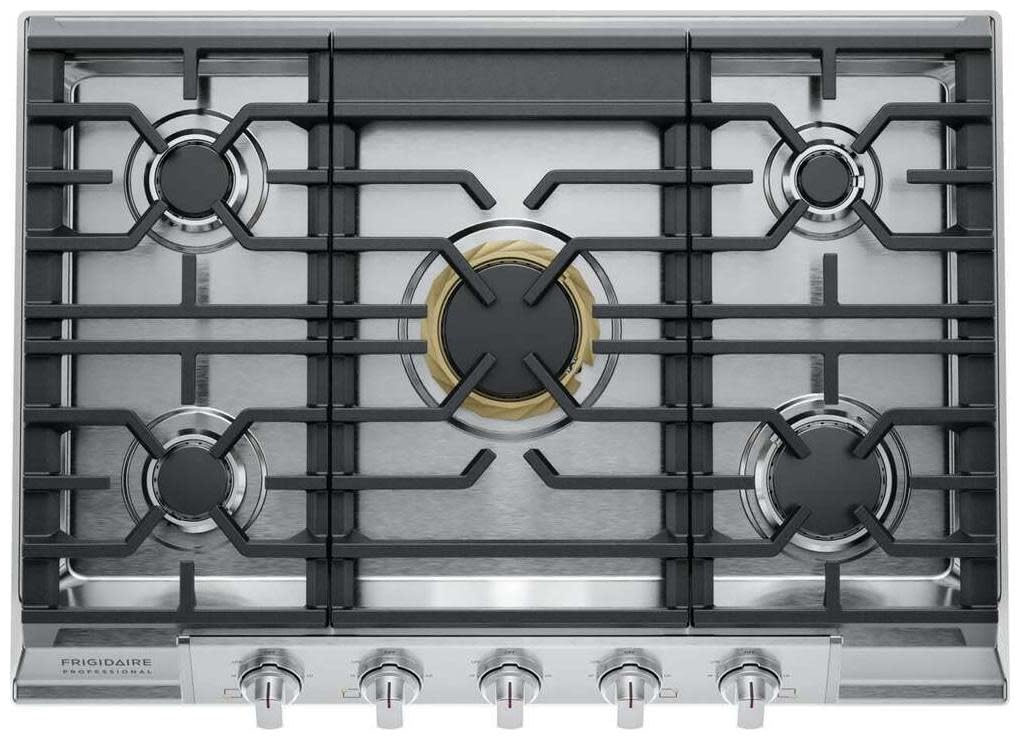

Billede: Vinklet view of the Frigidaire Professional 30-inch Gas Cooktop, showing the five burners and control knobs.

2.2 Even Temp Burner

The central 18,000 BTU burner is an Even Temp burner. This design distributes heat more uniformly across the element's surface, minimizing hot and cold spots in your cookware for consistent results.

Billede: Nærbillede view of the central burner with a brass accent ring, highlighting its powerful 18,000 BTU output.

2.3 Backlit LED Knobs

The control knobs are equipped with backlit LEDs. These lights illuminate when a burner is active, providing a visual indication of which burner is in use.

Image: Close-up of the cooktop's control panel, showing the five stainless steel knobs with illuminated LED backlighting.

2.4 Front Control Design

The front-mounted control knobs allow for easy adjustment of cooking temperatures without needing to reach over hot pots and pans on the cooktop surface.

3. Pleje og vedligeholdelse

Regular cleaning and maintenance will help preserve the appearance and functionality of your cooktop.

3.1 Dishwasher Safe Grates and Burner Caps

For convenient cleaning, the cooktop grates and burner caps are dishwasher safe. Remove them carefully and place them in your dishwasher according to the manufacturer's instructions for best results.

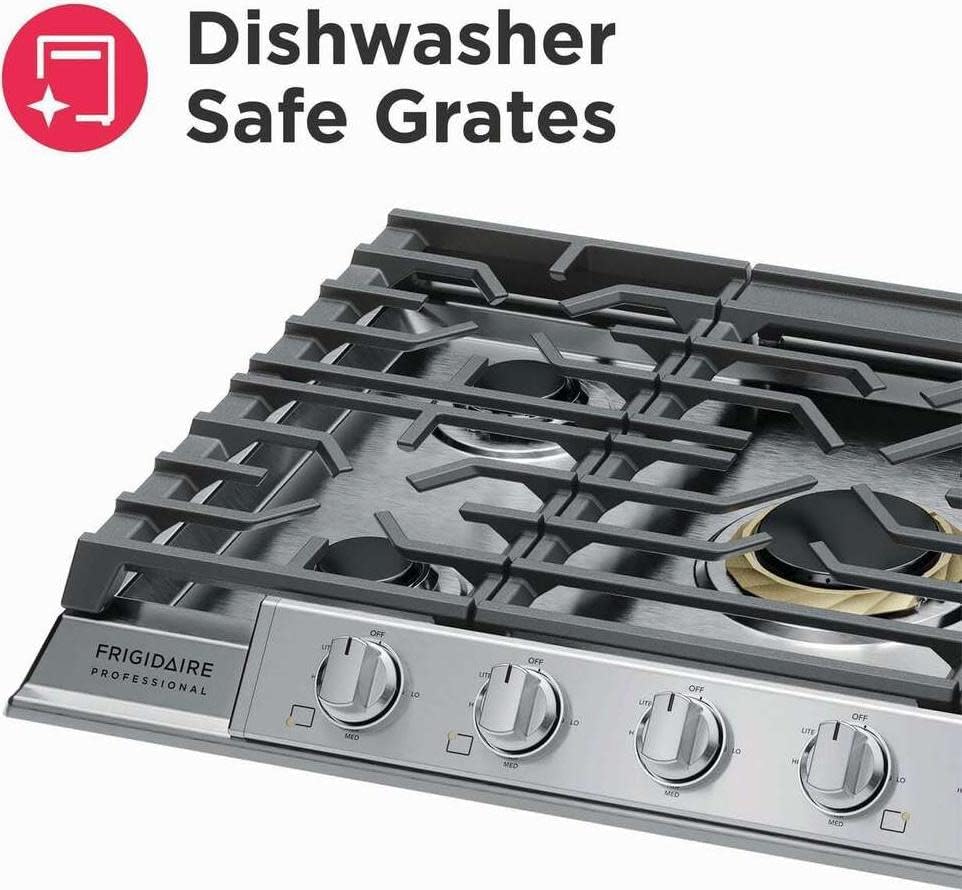

Image: Close-up of the cooktop grates with a graphic indicating they are dishwasher safe.

3.2 Cast Iron Grates

The continuous edge-to-edge cast iron grates facilitate easy movement of heavy pots and pans across the cooktop surface. While durable, avoid dropping heavy objects on them to prevent damage.

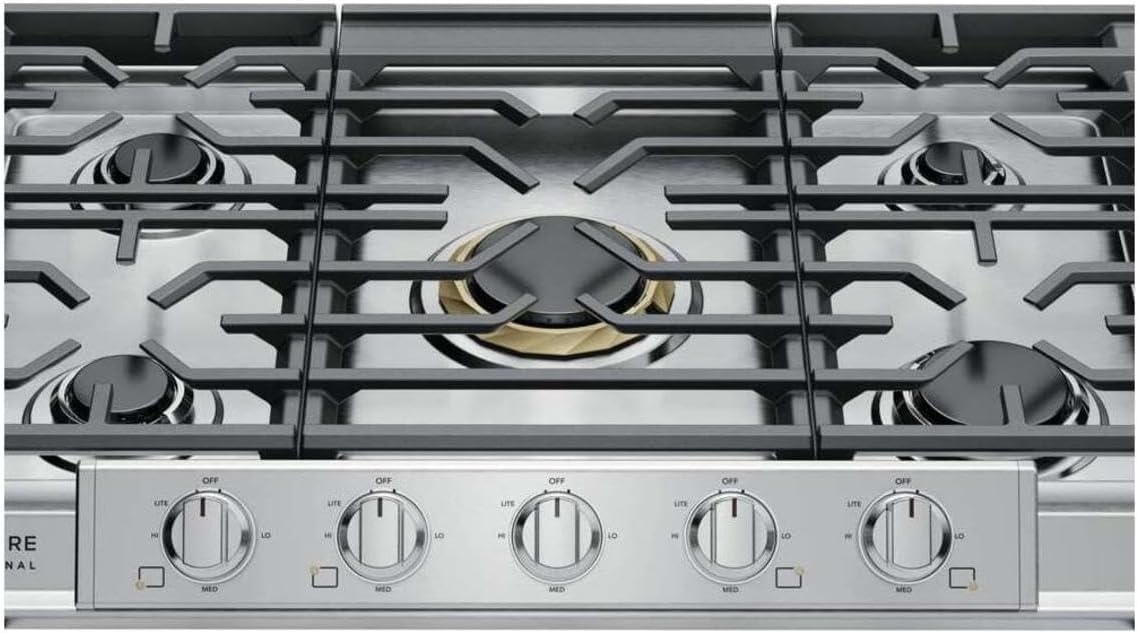

Billede: Detaljeret view of the cooktop's cast iron grates and burner components.

3.3 Stainless Steel Surface Cleaning

Clean the stainless steel surface with a soft cloth and a mild, non-abrasive cleaner specifically designed for stainless steel. Always wipe in the direction of the grain to prevent streaking.

4. Fejlfinding

This section provides solutions to common issues you might encounter with your cooktop. For problems not listed here, or if solutions do not resolve the issue, contact customer support.

4.1 Brænderen tænder ikke

• Tjek gasforsyning: Ensure the gas supply valve to the cooktop is fully open.
• Tjek strøm: Verify the cooktop is properly plugged in and there is power to the outlet. The electronic ignition requires electricity.
• Clean Burner Ports: Clogged burner ports can prevent ignition. Ensure burner caps and bases are clean and correctly seated.
• Fugtighed: If the cooktop was recently cleaned, ensure all burner components are completely dry.

4.2 Uneven Flame

• Placering af brænderdæksel: Ensure the burner cap is correctly positioned on the burner base.
• Clean Burner Ports: Food debris or spills can block burner ports, leading to an uneven flame. Clean the ports with a small brush or needle.

4.3 Backlit LED Knobs Not Lighting

• Burner On: Confirm that the corresponding burner is turned on. The LEDs only illuminate when the burner is active.
• Strømforsyning: Ensure the cooktop has power, as the LEDs require electricity to function.

5. Produktspecifikationer

Detailed technical specifications for the Frigidaire Professional 30" Gas Cooktop PCCG3080AS.

6. Garantioplysninger

Your Frigidaire Professional 30" Gas Cooktop PCCG3080AS is covered by a 1 års producentgaranti fra købsdatoen. Denne garanti dækker materiale- og fabrikationsfejl ved normal brug i husholdningen.

For specific terms, conditions, and to register your product, please refer to the warranty card included with your appliance or visit the official Frigidaire webwebsted.

7. Kundesupport

If you require further assistance, have questions about your cooktop, or need to schedule service, please contact Frigidaire customer support.

• Online support: Besøg den officielle Frigidaire website for FAQs, troubleshooting guides, and service requests.
• Frigidaire Store: Du kan også besøge Frigidaire-butikken på Amazon for produktinformation og tilbehør.

Please have your model number (PCCG3080AS) and serial number ready when contacting support.
