GarveeLife 13x20 Ft Carport Instruction Manual

Vigtige sikkerhedsoplysninger

• The carport is designed to withstand a maximum wind-resistant level of Beaufort 7.
• It must be placed on flat ground and securely anchored using ground pegs, guylines, and anchors.
• In windy areas, additional counterweights such as concrete, sandbags, or steel rope are recommended to enhance stability.
• During winter, snow accumulation on the roof must be cleaned regularly (no more than 4 inches) to prevent collapse.

Produkt overview

The GarveeLife 13x20 Ft Carport provides a versatile and robust shelter solution. It is designed for parking various vehicles and can also serve as a temporary outdoor shelter for events or storage.

Nøglefunktioner:

• Ample størrelse: Offers 260 square feet of space, suitable for full-size pickups, bass boats, sedans, SUVs, and crossovers.
• Holdbar metalramme: Constructed with 21 Ga. and 18 Ga. reinforced galvanized steel poles, coated with anti-rust powder for extended service life.
• Heavy-Duty Canopy: Features a 220g PE canopy with UPF 50+ protection, designed to protect against sun exposure and dust. The roof has a load capability of 1,000 lb.
• Nem adgang: Equipped with two rollable doors (front and rear) that close with zippers. Four roll-up mesh windows provide optimal airflow.

Figure 1: The GarveeLife 13x20 Ft Carport providing shelter for a truck.

Figure 2: Illustrated dimensions of the carport, showing its length, width, and height.

Opsætning og installation

The GarveeLife Carport is designed for quick assembly. It is packaged in two boxes and can typically be assembled within 2 hours with the help of 2-3 individuals.

Før du begynder:

• Ensure you have a flat, level ground for installation.
• Gather necessary tools: electric drills, gloves, and ladders.
• Unpack all components and verify against the parts list (refer to the included manual for a detailed list).
• Hvis nogen dele mangler eller er beskadiget, skal du straks kontakte kundesupport.

Installationstrin:

1. Rammeenhed: Connect the galvanized steel poles according to the diagrams in the detailed installation manual. Ensure all connections are secure.
2. Vedhæftning af baldakin: Carefully drape the 220g PE canopy over the assembled frame. Ensure it is centered and taut.
3. Door and Window Installation: Attach the roll-up doors and mesh windows as instructed.
4. Forankring: Securely fasten the carport to the ground using the provided ground pegs, guylines, and anchors. For added stability, especially in windy conditions, utilize sandbags or other counterweights around the base.

Figure 3: The carport is designed for quick installation, typically under 2 hours.

Figure 4: Proper anchoring with guylines is crucial for stability.

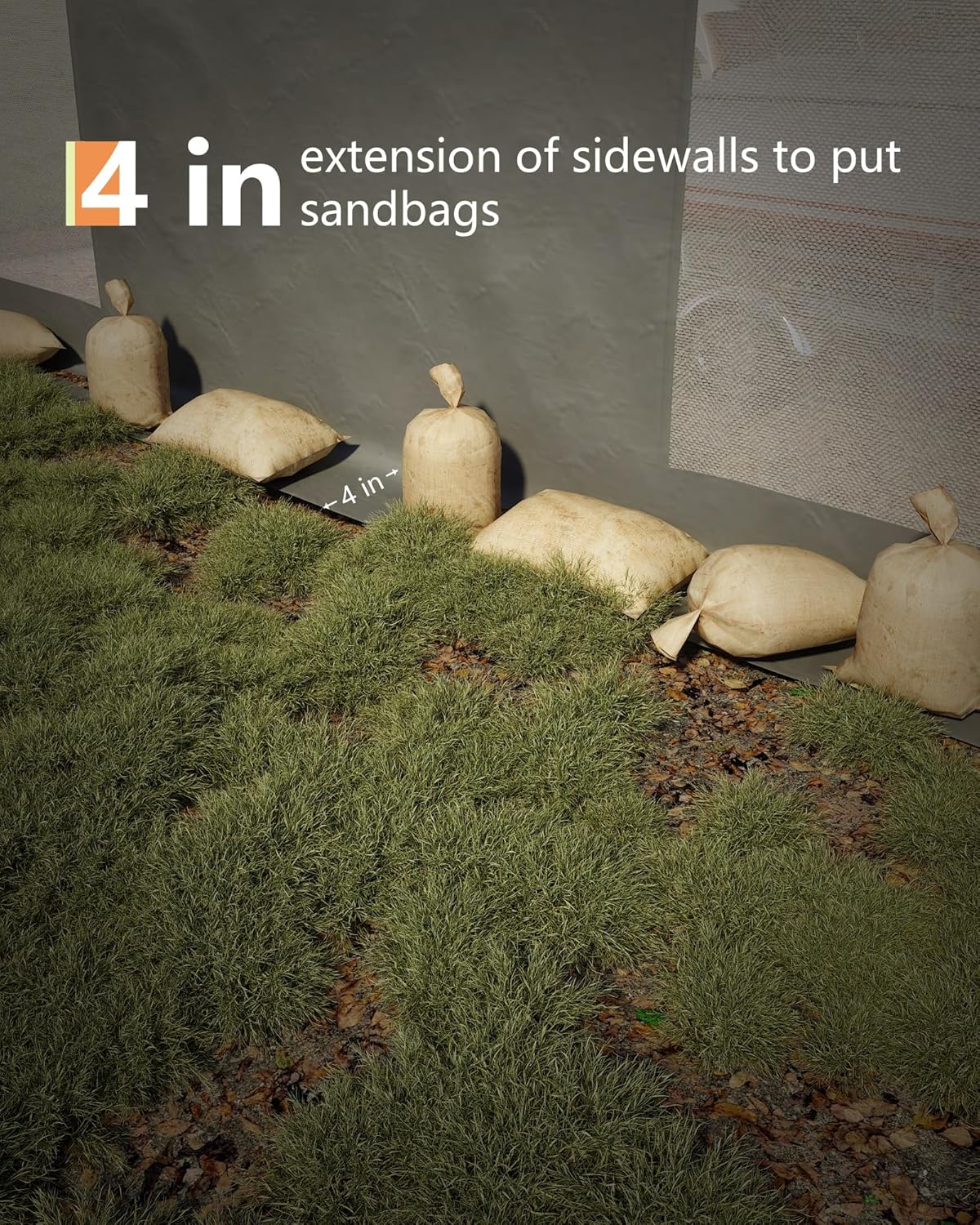

Figure 5: Sandbags can be used to provide extra stability to the carport.

Betjening og brug

The GarveeLife Carport is designed for ease of use and versatility.

Opbevaring af køretøjer:

The generous 13x20 ft dimensions accommodate a wide range of vehicles, including full-size pickups, bass boats, sedans, SUVs, and tractors. Drive vehicles in and out carefully to avoid contact with the frame or canopy.

Figure 6: The carport provides effective shelter for boats.

Figure 7: The carport can also be used to shelter agricultural equipment like tractors.

Adgang og ventilation:

• Roll-Up Doors: The front and rear doors can be rolled up and secured to allow easy entry and exit. Use the zippers to fully close the doors for maximum protection.
• Oprullbare vinduer: The four mesh windows can be rolled up to enhance airflow, which is beneficial for engine cooling or general ventilation.

Opretholdelse

Regular maintenance ensures the longevity and safety of your GarveeLife Carport.

• Snerydning: During winter, promptly remove snow from the roof. Do not allow snow accumulation to exceed 4 inches to prevent structural damage or collapse.
• Rengøring af baldakin: Clean the PE canopy periodically with mild soap and water to remove dirt and debris. Avoid harsh chemicals that could damage the material.
• Rammeinspektion: Regularly inspect the galvanized steel frame for any signs of rust, bending, or loose connections. Tighten any loose bolts and address rust spots as needed.
• Forankringstjek: Periodically verify that all ground pegs, guylines, and anchors are securely in place, especially after strong winds or heavy precipitation.

Figure 8: The carport is designed to withstand various weather conditions, but requires snow removal in winter.

Figure 9: The 220g PE tarp cover is designed to keep the interior dry.

Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på med din carport.

• Manglende eller beskadigede dele: If you receive your product with missing or damaged components, please contact GarveeLife customer support immediately for assistance. Products may be damaged during transportation if handled improperly.
• Installationsvanskeligheder: Refer to the detailed installation manual provided with your product. Ensure all steps are followed precisely. If issues persist, consider seeking assistance from 2-3 friends as assembly can be easier with multiple people.
• Stabilitetsproblemer: Ensure the carport is on flat ground and all anchoring points (pegs, guylines, anchors) are fully secured. In high-wind areas, add extra counterweights like sandbags or concrete blocks.
• Vandophobning på taget: Verify that the canopy is taut and properly stretched over the frame to prevent water pooling. Ensure snow is regularly cleared during winter.

Specifikationer

Figure 10: Reinforced steel poles provide durability and extended service life.

Garanti og kundesupport

GarveeLife is committed to providing quality products and support.

• Produktsupport: If you encounter any problems during use, or if you have missing or damaged parts, please do not hesitate to contact GarveeLife customer support.
• Returnerer: Dette produkt er berettiget til 30 dages nem returret.
• Kontaktoplysninger: For assistance, please refer to the contact details provided in your purchase documentation or visit the official GarveeLife store page on Amazon.
