Scheppach PCS56E Thermal Chainsaw User Manual

1. Introduktion

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Scheppach PCS56E thermal chainsaw. Please read this manual thoroughly before operating the chainsaw to ensure your safety and prolong the life of the product.

Safety First: Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, gloves, and protective clothing when operating the chainsaw. Ensure the work area is clear of bystanders and obstacles.

2. Produktfunktioner

The Scheppach PCS56E thermal chainsaw is designed for efficient wood cutting tasks. Key features include:

• Powerful 2-Stroke Engine: Equipped with a 3.1 HP (2.3 kW) gasoline engine for strong cutting performance.
• Elektrisk start: Convenient electric start function for easy ignition with the push of a button, reducing strain.
• ProCut Guide Bar and Chain: High-quality 20-inch (51 cm) ProCut guide bar and chain for precise and effective cuts.
• Automatisk kædesmøring: Ensures continuous lubrication of the chain for smooth operation and extended lifespan.
• Anti-tilbageslagssystem: Chain brake stops the chain in milliseconds in case of kickback, enhancing user safety.
• Anti-Vibration Function: Ergonomic design with anti-vibration technology to minimize user fatigue during prolonged use.
• Ergonomic Wrap-Around Handle: Provides comfortable handling and versatile use.
• Robust Felling Dog: Steel felling dog protects against slippage during cutting.

Diagram illustrating key features such as anti-vibration system, electric start, automatic chain lubrication, and cutting specifications.

3. Komponenter overview

Gør dig bekendt med hovedkomponenterne i din motorsav:

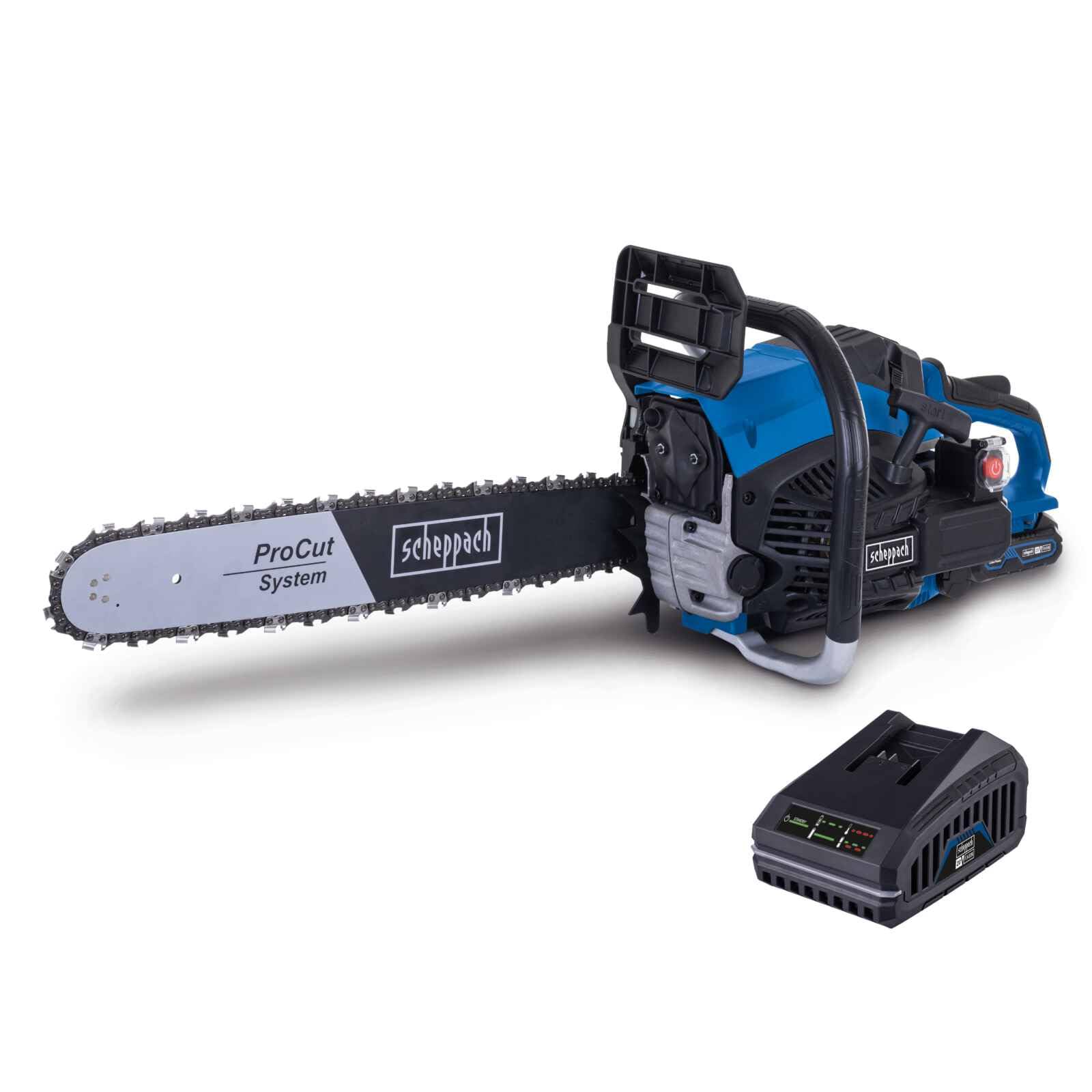

Samlet set view of the Scheppach PCS56E thermal chainsaw.

The ergonomic wrap-around handle with Softgrip coating for comfortable and versatile use.

Close-up of the electric start button for easy ignition.

The anti-kickback chain brake, designed to stop the chain in milliseconds for added safety.

A robust steel felling dog, providing protection against slippage during cutting operations.

4. Opsætning

4.1 Udpakning

Fjern forsigtigt alle komponenter fra emballagen. Kontroller for eventuelle skader under transporten. Sørg for, at alle dele, der er anført på pakkelisten, er til stede.

4.2 Montering af sværd og kæde

Follow these steps to correctly install the guide bar and chain:

1. Remove the chain cover by unscrewing the nuts.
2. Install the felling dog (if not pre-installed) using the provided screws.
3. Placer sværdet på tappene.
4. Carefully fit the chain around the drive sprocket and into the groove of the guide bar. Ensure the cutting edges of the chain are facing the correct direction (refer to the chain direction indicator on the guide bar).
5. Reattach the chain cover, ensuring the chain tensioner pin engages with the hole in the guide bar. Lightly tighten the nuts.

Technical diagrams illustrating the assembly and installation steps for the chainsaw components.

4.3 Brændstofblanding

Your Scheppach PCS56E chainsaw requires a specific fuel mixture for its 2-stroke engine:

• Bland blyfri benzin med 2-taktsmotorolie af høj kvalitet i et forhold på 40:1 (40 parts gasoline to 1 part oil).
• Always use a clean container for mixing and ensure thorough mixing before filling the fuel tank.

Illustration of the recommended 40:1 fuel mixture ratio.

4.4 Justering af kædespænding

Proper chain tension is crucial for safe and efficient operation. Adjust the chain tension as follows:

1. Løsn møtrikkerne på kædedækslet en smule.
2. Use the chain tensioning screw (usually located on the side of the chainsaw) to adjust the tension. Turn clockwise to tighten, counter-clockwise to loosen.
3. The chain is correctly tensioned when it can be pulled away from the guide bar by about 2-3 mm at the center, but the drive links remain in the guide bar groove.
4. Once tension is correct, firmly tighten the chain cover nuts.

5. Betjeningsvejledning

5.1 Start af motorsaven

Your chainsaw features an electric start for convenience:

1. Ensure the chain brake is engaged (pushed forward).
2. Fill the fuel tank with the correct 40:1 mixture and the oil tank with chain lubricant.
3. Indstil chokeren (ved koldstart) og spæd karburatoren (hvis monteret).
4. Press the electric start button. If the engine does not start immediately, release the button and try again after a short pause.
5. Once the engine starts, disengage the choke (if used) and allow the engine to warm up for a few moments.

The 'Easy Start' feature simplifies the starting process.

5.2 Safety Brake Check

Always check the chain brake before each use:

1. With the engine running at idle, engage the chain brake by pushing the front hand guard forward. The chain should stop immediately.
2. Disengage the chain brake by pulling the hand guard back. The chain should move freely.
3. If the chain brake does not function correctly, do not use the chainsaw and seek professional service.

5.3 Skæreteknikker

The Scheppach PCS56E is suitable for various cutting tasks:

• Cutting Firewood: Use a stable cutting surface and ensure the log is securely supported.
• Pruning Shrubs and Branches: Always maintain a stable footing and avoid overreaching. Be aware of falling branches.
• General Garden Maintenance: Use for various tasks requiring powerful cutting.

Always use the felling dog for stability when cutting larger logs. Avoid cutting with the tip of the guide bar to prevent kickback.

Diagram illustrating various applications for the chainsaw, including cutting firewood, pruning shrubs, and general garden maintenance.

6. Vedligeholdelse

Regular maintenance ensures optimal performance and safety:

• Renhed: Keep the chainsaw clean, especially the air filter, cooling fins, and chain area. Remove sawdust and debris regularly.
• Kædeslibning: En skarp kæde er afgørende for effektiv skæring og sikkerhed. Slib kæden regelmæssigt, eller udskift den, når den er sløv.
• Kædesmøring: Regularly check the chain oil level and refill as needed. Ensure the automatic lubrication system is functioning.
• Tændrør: Inspicer og rengør tændrøret regelmæssigt. Udskift det, hvis det er slidt.
• Generel inspektion: Before each use, check all nuts, bolts, and screws for tightness. Inspect the guide bar for wear and damage.

7. Fejlfinding

Her er nogle almindelige problemer og deres potentielle løsninger:

If you encounter issues not listed here or if solutions do not resolve the problem, please contact Scheppach customer support or a qualified service technician.

8. Specifikationer

Detailed technical specifications for the Scheppach PCS56E thermal chainsaw:

• Mærke: Scheppach
• Modelnummer: 5910116903
• Strømkilde: Benzin
• Motortype: 2-takts
• Power (HP): 3.1 CV
• Effekt (kW): 2.3 kW
• Styrestangslængde: 20 tommer / 51 cm
• Kædehastighed: 22 m/s
• Varens vægt: 9.9 kilo
• Produktmål (L x B x H): 49L x 29L x 30.5H centimeter
• Komponenter inkluderet: Motorsav
• Oprindelsesland: Kina

9. Garanti og support

For warranty information, service, or technical support, please refer to the documentation included with your product or contact Scheppach customer service directly. Keep your proof of purchase for any warranty claims.
