Generic Modern Nordic Geometry LED Chandelier L170cm Instruction Manual

1. Introduktion

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Generic Modern Nordic Geometry LED Chandelier, Model KWHWNAWAC-L170CM. Please read this manual thoroughly before installation and retain it for future reference.

Figur 1: Overview of the Modern Nordic Geometry LED Chandelier (L170cm model).

2. Sikkerhedsoplysninger

ADVARSEL: For at mindske risikoen for brand, elektrisk stød eller personskade skal du altid følge disse sikkerhedsforanstaltninger:

• Afbryd altid strømmen ved hovedafbryderen eller sikringsboksen, før installation eller vedligeholdelse påbegyndes.
• Installation must be performed by a qualified electrician or a person with adequate knowledge of electrical wiring.
• Sørg for, at monteringsfladen kan bære armaturets vægt.
• Tilslut ikke armaturet til et ujordet elektrisk system.
• Forsøg ikke at ændre armaturet. Enhver ændring kan ugyldiggøre garantien og skabe en sikkerhedsrisiko.
• Handle the fixture with care to avoid damage to the LED components or acrylic parts.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede og ubeskadigede, før du fortsætter installationen. Hvis der mangler eller er beskadigede dele, skal du kontakte kundesupport.

• LED Chandelier Fixture (L170cm)
• Loftbaldakin
• Monteringsbeslag
• Monteringsudstyr (skruer, trådmøtrikker)
• Instruktionsmanual (dette dokument)

4. Opsætning og installation

Følg disse trin omhyggeligt for korrekt installation:

1. Sluk for strømmen: Locate the circuit breaker controlling the light fixture's power supply and turn it off. Verify power is off using a voltage tester.
2. Forbered montering: Fastgør monteringsbeslaget til samledåsen i loftet med de medfølgende skruer. Sørg for, at det er sikkert fastgjort.
3. Juster højden: The chandelier features an adjustable hanging cable. Determine the desired hanging height and adjust the cable length accordingly. Secure the cable at the canopy.
4. Ledningsføring: Connect the fixture's wires to the household electrical wires.
   • Tilslut sort (Live) wire from the fixture to the sort (Live) wire from the ceiling.
   • Tilslut hvid (Neutral) wire from the fixture to the hvid (Neutral) wire from the ceiling.
   • Tilslut grøn or bart kobber (Ground) wire from the fixture to the grøn or bart kobber (Ground) wire from the ceiling.
   Fastgør alle forbindelser med trådmøtrikker og pak dem ind med elektrikertape for ekstra sikkerhed.
5. Monteringsbeslag: Carefully lift the chandelier and attach the ceiling canopy to the mounting bracket, securing it with the provided screws or nuts. Ensure no wires are pinched.
6. Gendan strøm: Når installationen er færdig, skal du tænde for strømmen igen ved afbryderen.

Figur 2: Key dimensions of the L170cm chandelier, showing length and adjustable height.

5. Betjeningsvejledning

Your LED Chandelier is designed for ease of use and offers multiple lighting options.

• Tænd/sluk: Use your standard wall switch to turn the chandelier on or off.
• Changing Light Color: This fixture supports three light color temperatures. Each time you toggle the wall switch OFF and then ON within a few seconds, the light color will cycle through the following options:
  • White Light (6000K): Klart, køligt hvidt lys.
  • Neutral Light (4000K): Balanced, natural white light.
  • Varmt lys (3000K): Soft, warm yellow light.
  Allow a few seconds between toggles for the fixture to register the change.

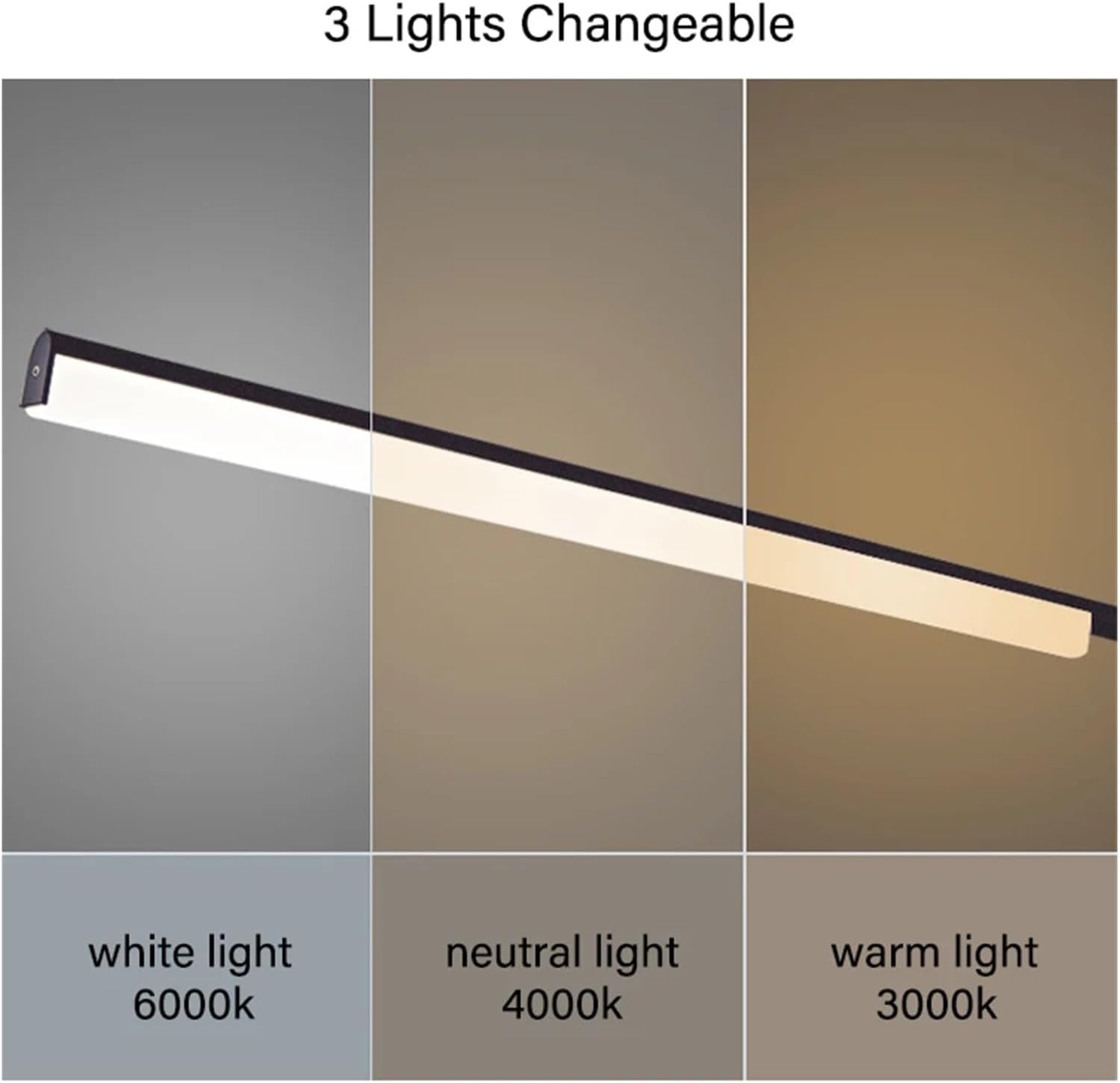

Figur 3: Illustration of the three available light color temperatures.

6. Vedligeholdelse

Regular maintenance ensures the longevity and appearance of your chandelier.

• Rensning: Before cleaning, ensure the power is turned off at the circuit breaker. Use a soft, dry, or slightly damp cloth to wipe the fixture. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or acrylic components.
• Udskiftning af pære: This fixture uses integrated LED lighting, which is designed for long-term use and does not require bulb replacement. If the LED light source fails, professional service may be required.

7. Fejlfinding

Hvis du støder på problemer med din lysekrone, kan du se følgende almindelige problemer og løsninger:

Hvis fejlfindingstrinene ikke løser problemet, bedes du kontakte kundesupport for yderligere assistance.

8. Specifikationer

9. Garanti og support

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration.

For technical support, missing parts, or warranty claims, please contact the retailer or manufacturer directly. Keep your purchase receipt as proof of purchase.
