Fuers 8CH 4K PoE Security Camera System (Model N6708-3) Instruction Manual

1. Introduktion og systemoversigtview

This manual provides detailed instructions for the Fuers 8CH 4K PoE Security Camera System. This system includes an 8-channel Network Video Recorder (NVR) with a pre-installed 500GB hard drive and two wired 6MP PoE dual-lens security cameras. The system is designed for 24/7 surveillance, offering features such as smart person detection, two-way audio, and remote access via mobile application or PC client.

The NVR supports up to 8 cameras, allowing for future expansion with additional Fuers IP cameras. Its Power over Ethernet (PoE) capability simplifies installation by providing both power and data transmission through a single network cable.

2. Hvad er der i æsken

Kontroller venligst, at alle nedenstående varer er inkluderet i din pakke:

• 1x 8CH NVR with 500G Hard Drive Pre-installed
• 1x NVR-strømadapter
• 2x 6MP PoE Dual-Lens Cameras
• 2x 18m netværkskabel
• 1 x HDMI kabel
• 1 x USB mus
• 2x monteringsskruesæt
• 1x Brugermanual (dette dokument)

Figur 2.1: Pakkens indhold

3. Systemkomponenter

3.1 Netværksvideooptager (NVR)

The NVR is the central unit for recording, storing, and managing video footage from your cameras. It features 8 PoE ports for direct camera connection, eliminating the need for separate power adapters for each camera.

Figur 3.1: Porte på NVR-bagpanelet

• PoE-porte (1-8): Connect PoE cameras directly.
• LAN-port: Tilslut til din router for internetadgang og fjernbetjening viewing.
• VGA/HDMI Ports: Connect to a monitor for local viewing.
• USB-porte: Connect the included USB mouse for control and for external storage/backup.
• Strømindgang: Tilslut NVR-strømadapteren.
• Tænd/sluk-knap: Power control for the NVR.

3.2 6MP PoE Dual-Lens Cameras

The included cameras are 6-megapixel (6MP) dual-lens units, providing high-resolution video. They are designed for outdoor use with IP66 waterproofing and support both ceiling and wall mounting.

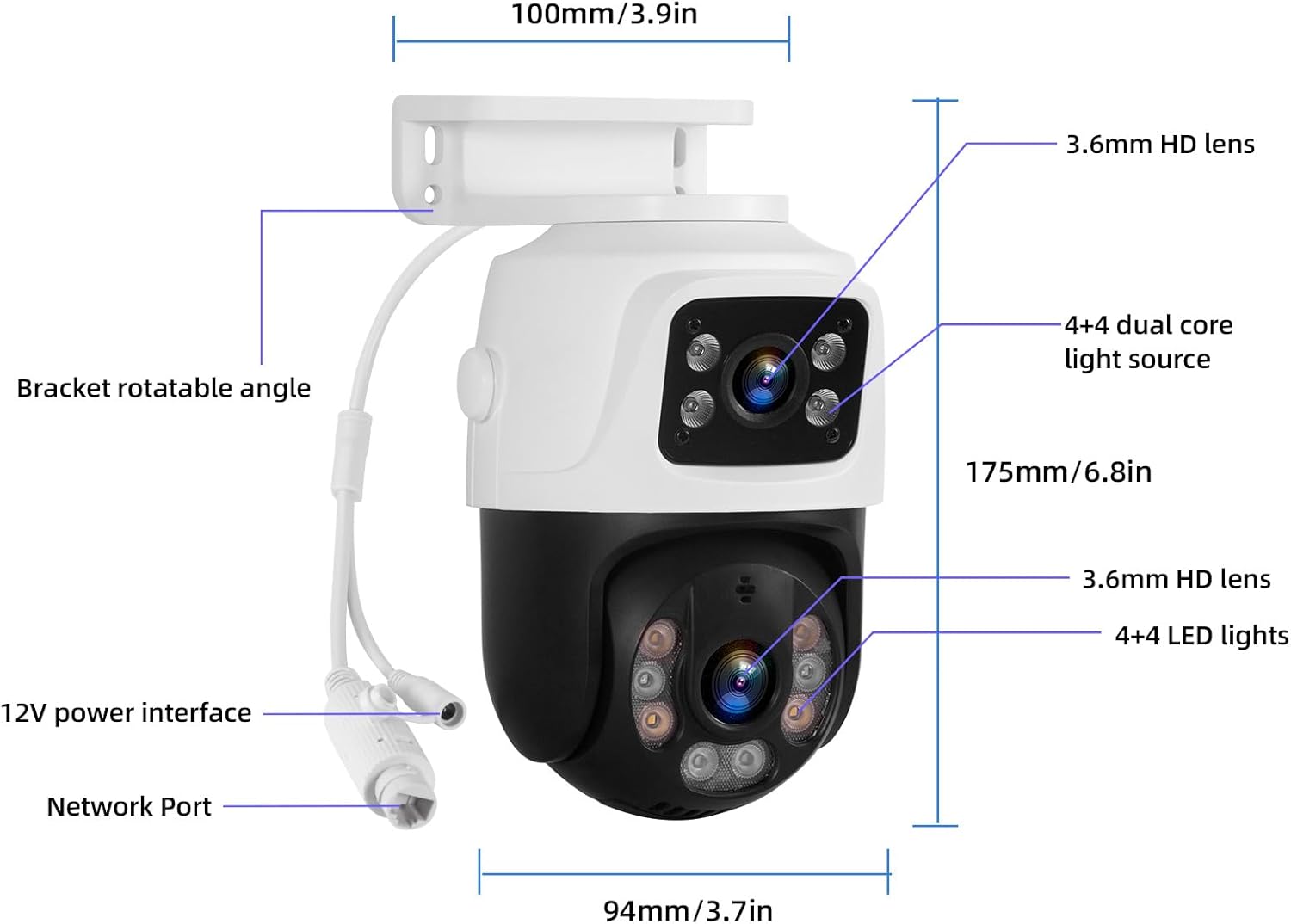

Figure 3.2: Camera Components and Dimensions

• Dobbelte linser: Provide a wider field of view or simultaneous views.
• PoE-forbindelse: Receives power and data via a single Ethernet cable.
• Indbygget mikrofon: Muliggør tovejs lydkommunikation.
• Nattesyn: Supports both infrared (black & white) and full-color night vision.
• IP66 Vejrbestandig: Suitable for outdoor installation in various weather conditions.

4. Opsætning og installation

4.1 Initial NVR Connection

1. Tilslut USB-musen til en USB-port på NVR'en.
2. Connect your monitor to the NVR using either the VGA or HDMI cable.
3. Connect the NVR power adapter to the NVR's DC input and plug it into a power outlet.
4. Turn on the NVR using the power switch on the rear panel. The system will boot up and display on the connected monitor.

4.2 Camera Connection (PoE Plug & Play)

The PoE feature allows for a straightforward connection:

1. Connect one end of the provided network cable to a PoE port on the NVR.
2. Connect the other end of the network cable to the camera's network port.
3. Repeat for all cameras. The cameras will automatically power on and connect to the NVR.

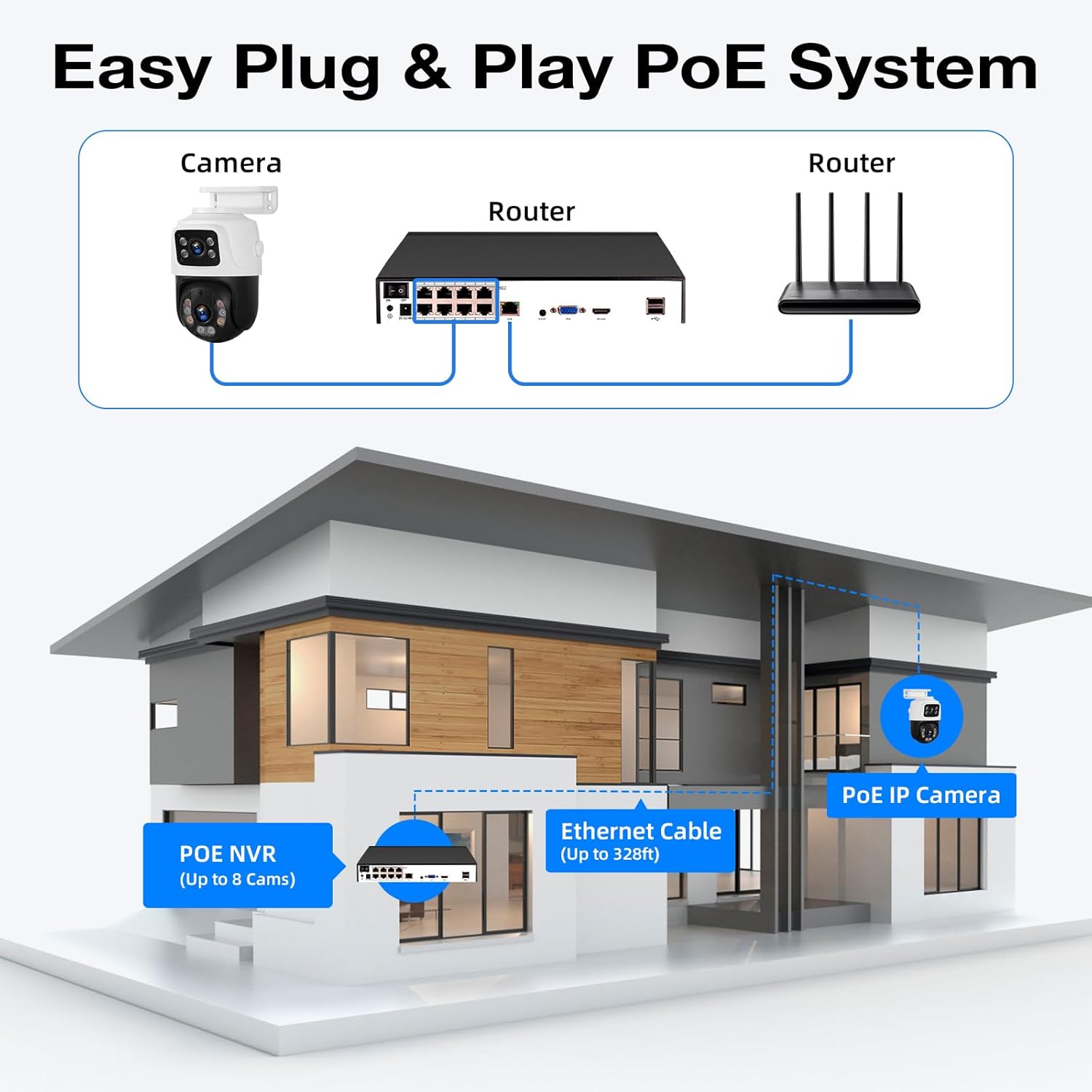

Figure 4.1: PoE System Connection Diagram

4.3 Netværksforbindelse til fjernadgang

For at aktivere fjernbetjening viewing and alerts, connect the NVR to your home network:

1. Connect one end of a network cable to the NVR's LAN port.
2. Connect the other end of the network cable to an available LAN port on your router.
3. Sørg for, at din router har en aktiv internetforbindelse.

Figure 4.2: Remote Access Connection

4.4 Mobile App & PC Client Setup

Download the free 'xmeye pro' app from your device's app store (iOS or Android) or the PC client for Windows/Mac. Follow the in-app instructions to add your device by scanning the QR code displayed on the NVR monitor or manually entering the device ID. This will allow you to view live footage, playback recordings, and receive alerts remotely.

4.5 Kameramontering

The cameras can be mounted on ceilings or walls. Choose a location that provides the desired viewing angle and is within reach of the network cables. Ensure the mounting surface is stable and secure.

Figure 4.3: Ceiling and Wall Mounting Options

5. Betjening

5.1 Live View og afspilning

Når systemet er konfigureret, kan du view live camera feeds on your connected monitor, mobile app, or PC client. Use the USB mouse to navigate the NVR interface for playback of recorded footage, system settings, and other functions.

5.2 Smart Person Detection

The cameras are equipped with smart person detection, which accurately identifies human figures and reduces false alarms from other movements. When a person is detected, the system can send instant alerts to your mobile device.

Figure 5.1: Smart Person Detection in Action

5.3 Tovejslyd

The built-in microphone and speaker in the cameras allow for two-way audio communication. You can listen to audio from the camera's location and speak through your mobile app or NVR to communicate with individuals near the camera.

Figur 5.2: Tovejs lydkommunikation

5.4 Nattesyn

The cameras offer both infrared (IR) night vision for clear black and white images in low light, and full-color night vision when ambient light is available or the camera's light alarm is activated. This ensures comprehensive surveillance around the clock.

Figure 5.3: Infrared vs. Full-Color Night Vision

5.5 Dual Lens & Auto Lock Motion

The dual-lens design allows for broader coverage or specific area focus. Some camera models may feature auto-tracking and auto-lock motion, where the camera automatically follows detected movement within its field of view, ensuring critical events are captured.

Figure 5.4: Dual Lens and Auto Lock Motion

6. Vedligeholdelse

6.1 24/7 Recording and Storage Management

The NVR records continuously to the pre-installed 500GB hard drive. For extended recording capacity, an additional hard drive up to 8TB can be connected via the eSATA port. Regularly check the NVR's storage status to ensure continuous recording.

Figur 6.1: Optagelses- og lagringsmuligheder døgnet rundt

Figure 6.2: Maximize Storage Capacity up to 8TB

6.2 Rengøring

Periodically clean the camera lenses with a soft, dry cloth to ensure clear image quality. For outdoor cameras, remove any accumulated dirt or debris from the housing.

6.3 firmwareopdateringer

Tjek producentens website or your mobile app for available firmware updates. Keeping your system's firmware updated ensures optimal performance, security, and access to new features.

7. Fejlfinding

• Ingen videovisning:
    - Check all cable connections (power, HDMI/VGA, network).
    - Ensure the NVR and monitor are powered on.
    - Verify that cameras are properly connected to PoE ports and their indicator lights are active.
• Ingen fjernadgang:
    - Confirm the NVR is connected to your router and has internet access.
    - Tjek din routers internetforbindelse.
    - Ensure the 'xmeye pro' app is correctly configured with your device ID and network settings.
• Bevægelsesdetektion virker ikke / Falske alarmer:
    - Adjust the motion detection sensitivity settings in the NVR or app.
    - Ensure the detection area is correctly configured, avoiding areas with constant movement (e.g., trees swaying).
    - Verify that smart person detection is enabled if you wish to filter out non-human movements.
• Dårlig billedkvalitet:
    - Rengør kameralinsen.
    - Check for obstructions in the camera's field of view.
    - Ensure the camera is securely mounted and not vibrating.
• Ingen lyd / Dårlig lydkvalitet:
    - Check audio settings on the NVR and in the app.
    - Ensure the camera's microphone is not obstructed.

8. Specifikationer

9. Garanti og support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Fuers customer service directly. You can often find support contact details on the manufacturer's official webwebsted.
