The Warn ZEON 10-S Platinum is a robust and dependable electric winch engineered for trucks and SUVs. It offers a powerful 10,000-pound single-line pulling capacity, designed to handle challenging terrains and recovery situations. Constructed with a durable cast-aluminum housing and a satin-black powder-coated finish, this winch combines advanced aesthetics with high-performance functionality. It features 100 feet of 3/8-inch Warn Spydura synthetic rope and a polished aluminum hawse fairlead for enhanced durability and ease of use. Muck-busting seals are integrated to protect internal components from environmental elements. The winch incorporates a new-design planetary gear train and a series-wound motor, ensuring fast, quiet, and reliable operation. With a convertible control pack for flexible mounting and a wireless handheld remote, the ZEON 10-S Platinum is built for long-lasting, trustworthy vehicle recovery.
Hvad er inkluderet
Your Warn Zeon 10-S Platinum winch package includes the following components:
- Warn Zeon 10-S Platinum 12V Electrical Utility Winch Unit
- 100 feet of 3/8 inch Spydura Synthetic Rope
- Trådløs fjernbetjening
- Epic Dual Pin "H" Shape Shackle Hyperlink
- Polished Aluminum Hawse Fairlead
- Monteringshardware
- Instruktionsmanualer

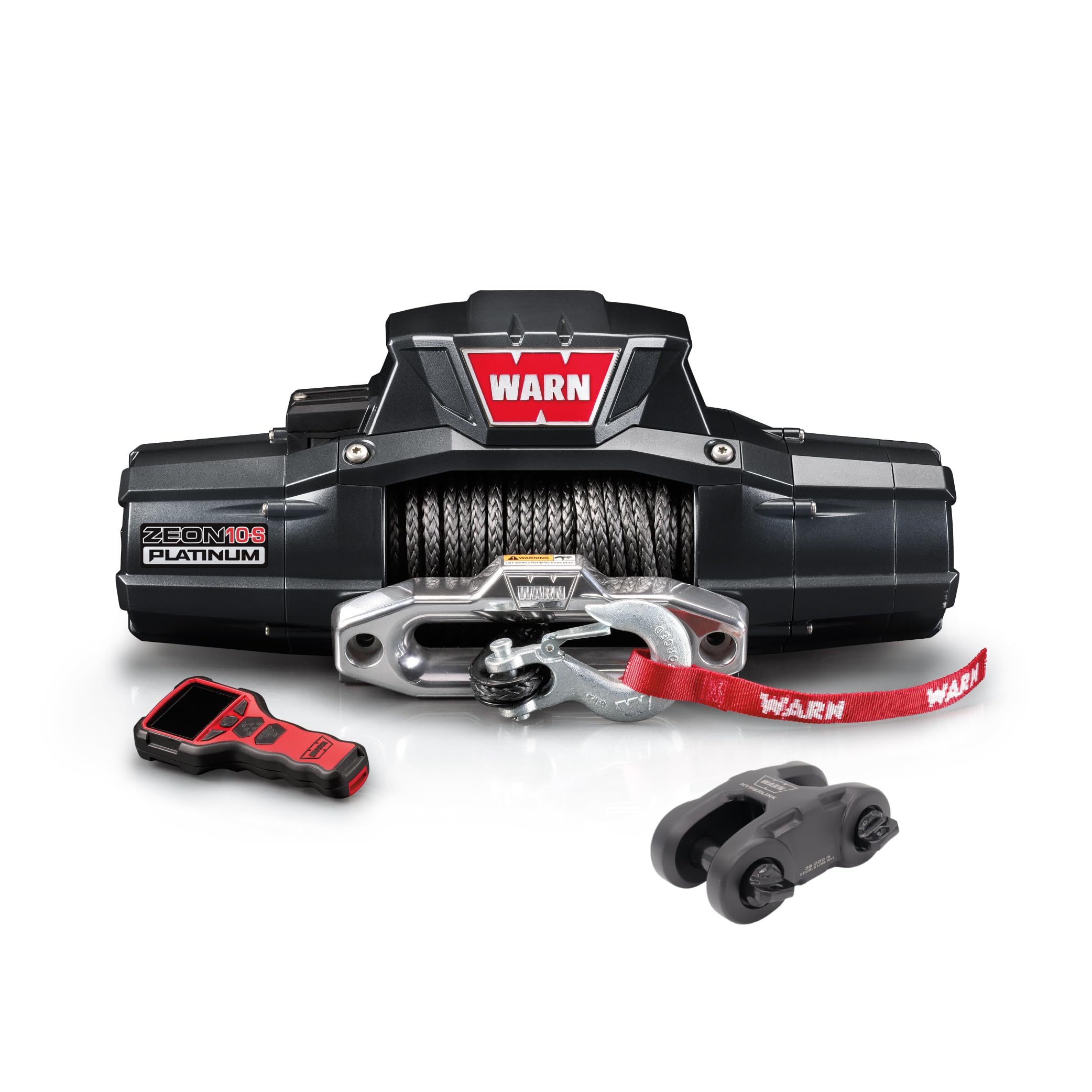

En overview of the Warn Zeon 10-S Platinum winch and all its components, including the synthetic rope, shackle, remote, and mounting hardware.
A coiled 100-foot length of 3/8-inch Warn Spydura Pro synthetic rope, featuring a temperature-resistant sleeve and ballistic nylon sliding sleeve.
A close-up of the Epic Dual Pin 'H' Shape Shackle Hyperlink, a forged aluminum body designed for secure attachment.
En unboxing-videovisningasing the contents of the Warn Zeon 10-S Platinum 12V winch package, including the winch unit, synthetic rope, remote, and accessories.
En hurtig forbiview video highlighting the key features and design of the Warn ZEON 10-S winch.
Opsætning og installation
Proper installation is crucial for the safe and effective operation of your Warn Zeon 10-S Platinum winch. Refer to the detailed diagrams and instructions provided in the included manual for specific steps tailored to your vehicle. The winch features a convertible control pack, allowing for flexible mounting options to suit various vehicle configurations. All necessary wiring is pre-installed for convenience.
Montering
Ensure your vehicle's bumper or mounting plate is compatible and robust enough to support the winch's weight and pulling capacity. Use the provided mounting hardware and follow the specified bolt patterns and torque settings.
A diagram illustrating the mounting pattern and recommended bolt lengths for installing the Warn Zeon winch.
Ledningsføring
Connect the winch to your vehicle's 12V electrical system according to the wiring diagram. Pay close attention to positive and negative terminals, ensuring secure connections. The control pack can be attached directly to the winch or remotely mounted for a cleaner installation.
A diagram showing the electrical wiring connections for the Warn Zeon winch, including power cable and ground connections.
A video demonstrating the Warn ZEON 10-S winch, focusing on its design and operational aspects, including a brief look at the control pack.
Betjeningsvejledning
The Warn Zeon 10-S Platinum winch is designed for intuitive operation. Familiarize yourself with the free spool and engage mechanisms, typically controlled by a lever on the winch. The included wireless remote provides convenient control from a safe distance, allowing you to manage line in and line out functions.
Free Spool and Engage
To rapidly deploy the synthetic rope, disengage the clutch to allow for free spooling. Once the rope is extended to the anchor point, engage the clutch to prepare for winching. Always ensure the clutch is fully engaged before applying load.
Brug af den trådløse fjernbetjening
The wireless remote offers precise control over the winching process. Ensure the remote is charged and properly paired with the winch. Use the designated buttons for winding the rope in and out. Always maintain a clear line of sight to the winch and the load during operation.
A video demonstrating the Warn Zeon car winch in action, showcasing its pulling power and recovery capabilities in an off-road setting.
Opretholdelse
Regular maintenance is essential to ensure the longevity and reliable performance of your Warn Zeon 10-S Platinum winch. After each use, especially in harsh conditions, inspect the synthetic rope for any signs of wear, fraying, or damage. Clean the winch unit, removing any mud, dirt, or debris. Check all electrical connections for corrosion or looseness. Periodically inspect the fairlead for smooth operation and any damage that could affect the rope. Refer to your full product manual for detailed maintenance schedules and procedures.
Fejlfinding
Should you encounter any issues with your Warn Zeon 10-S Platinum winch, consult the troubleshooting section of your comprehensive product manual. Common issues may include power supply problems, remote control connectivity, or mechanical engagement difficulties. Always ensure the vehicle battery is fully charged and all connections are secure. If the problem persists, contact authorized Warn service centers for assistance.
Specifikationer
A detailed table outlining the technical specifications of the Warn Zeon 10-S Platinum winch, including type, mount type, pulling capacity, gear ratio, line material, and remote type.
| Feature | Specifikation |
|---|---|
| Fabrikant | ADVARE |
| Varenummer | 100630 92815 |
| Varens vægt | 87 pund |
| Produktdimensioner | 27 x 19 x 9.5 tommer |
| Varemodelnummer | 100630 92815 |
| Farve | Sort |
| Materiale | Aluminium |
| Voltage | 12 volt |
| Vare Pakke Antal | 1 |
| Inkluderede komponenter | (1) EPIC Hyperlink, (1) Warn ZEON 12-S PLATINUM 12V Electrical Utility Winch (95960) |
| Trækkapacitet | 10,000 lbs. (4,536 kg) single-line |
| Reb Type | Spydura Synthetic Rope |
| Reb længde | 100 fod |
| Reb diameter | 3/8 tommer |
| Geartog | Planetarisk |
| Gear Reduktionsforhold | 162:1 |
| Max Line Pull Speed | 5.6 fod i minuttet |
| Bremse type | Mechanical Cone |
| Fjernbetjeningstype | Avanceret trådløs |
| Vandtætning | Muck-busting seals |
Garanti og support
The Warn Zeon 10-S Platinum winch is backed by a limited lifetime warranty on mechanical components and a seven-year warranty on electrical parts. For warranty claims, technical support, or service inquiries, please refer to the contact information provided in your product packaging or visit the official WARN website. Always ensure to register your product to facilitate any future support needs.
