Rosières RFC3O3351IN Catalytic Oven User Manual
Model: RFC3O3351IN | Brand: Rosières
1. Introduktion og overview
The Rosières RFC3O3351IN is a high-performance built-in electric oven designed for efficiency, simplicity, and modern aesthetics. Featuring a catalytic cleaning system, an intuitive LED display, and 8 cooking functions including circulating heat, grill, and defrost, this oven offers versatile cooking options and easy maintenance. Its elegant stainless steel finish integrates seamlessly into any kitchen design.
Figur 1.1: Forside view of the Rosières RFC3O3351IN catalytic oven, showcasing dets elegante design og kontrolpanel.
2. Sikkerhedsoplysninger
Læs alle sikkerhedsinstruktioner omhyggeligt, inden apparatet tages i brug. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.
- Elektrisk sikkerhed: Ensure the oven is properly grounded. Do not use extension cords. Disconnect power before any maintenance or cleaning.
- Varme overflader: The oven and its accessible parts become very hot during use. Always use oven mitts when handling hot dishes or parts. Keep children away.
- Ventilation: Sørg for tilstrækkelig ventilation omkring ovnen som angivet i installationsvejledningen. Bloker ikke ventilationsåbningerne.
- Rensning: Use only recommended cleaning agents. Do not use abrasive cleaners or sharp metal scrapers to clean the oven door glass, as they can scratch the surface, which may result in shattering.
- Børn og udsatte personer: Dette apparat kan bruges af børn i alderen 8 år og derover og personer med nedsatte fysiske, sensoriske eller mentale evner eller mangel på erfaring og viden, hvis de har fået opsyn eller instruktion i brugen af apparatet på en sikker måde og forstår de involverede farer. .
3. Produktfunktioner
The Rosières RFC3O3351IN oven is equipped with features designed for convenience and optimal cooking results:
- Katalytisk rengøring: Automatic catalytic cleaning for simplified maintenance.
- Generøs kapacitet: 74-liter volume, suitable for various cooking needs.
- 8 madlavningsfunktioner: Includes circulating heat for homogeneous cooking, grill, and defrost.
- Intuitive LED Programmer: Clear and easy-to-use LED display with timer function.
- Brugervenlig kontrol: Rotary knobs with retractable handles for precise control and a sleek appearance.
- Energieffektivitet: Class A energy rating for reduced energy consumption.
- Moderne design: Elegant stainless steel finish.
Figure 3.1: The Rosières RFC3O3351IN oven seamlessly integrated into a kitchen cabinet, highlighting its built-in design.
Figur 3.2: Detaljeret view of the oven's control panel, showing the LED display and rotary knobs.

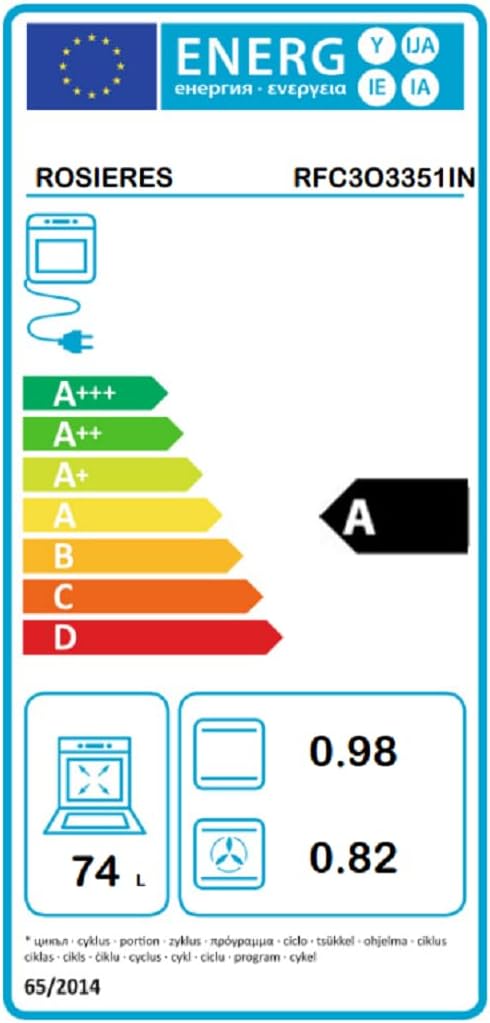

Figure 3.3: Energy efficiency label for the Rosières RFC3O3351IN oven, indicating its Class A rating and 74L capacity.
4. Installation og opsætning
The Rosières RFC3O3351IN is a built-in appliance and should be installed by a qualified technician to ensure proper functioning and safety. Refer to the separate installation guide for detailed instructions and dimensions.
- Skab Dimensioner: Sørg for, at kabinetåbningen opfylder de nødvendige mål for at sikre en sikker pasform.
- Elektrisk tilslutning: The oven requires a dedicated electrical circuit. Note that the power plug is not supplied with the oven and must be connected to the oven's cabling by a qualified electrician.
- Ventilation: Ensure proper air circulation around the oven to prevent overheating.
5. Betjeningsvejledning
Gør dig bekendt med ovnens betjeningselementer og funktioner for at opnå optimale tilberedningsresultater.
5.1. Kontrolpanel overview
The control panel consists of two rotary knobs and a central LED display with touch controls.
- Left Rotary Knob: Used to select cooking functions (e.g., circulating heat, grill, defrost).
- Right Rotary Knob: Bruges til at indstille temperaturen.
- LED display: Shows current time, cooking duration, temperature, and selected functions. The touch controls below the display are used for timer settings and menu navigation.
5.2. Grundlæggende betjening
- Tænd: Rotate either knob to activate the oven.
- Vælg funktion: Turn the left rotary knob to choose the desired cooking function.
- Indstil temperatur: Turn the right rotary knob to set the desired temperature. The LED display will show the selected temperature.
- Indstil timer (valgfrit): Use the touch controls on the LED display to set a cooking duration or a delayed start time.
- Begynd at lave mad: The oven will begin heating once the function and temperature are set.
- Sluk: Rotate both knobs to the 'off' position or wait for the timer to complete.
5.3. Madlavningsfunktioner
- Circulating Heat: Ideel til at tilberede flere retter samtidigt på forskellige niveauer, hvilket sikrer jævn varmefordeling.
- Grill: Perfect for browning, toasting, or grilling thin cuts of meat.
- Afrimning: Gently thaws frozen food using circulating air without heat.
- Se den fulde manual for detaljer om alle 8 funktioner.
6. Rengøring og vedligeholdelse
The Rosières RFC3O3351IN oven features a catalytic cleaning system for easy maintenance.
6.1. Catalytic Cleaning
The catalytic liners absorb and oxidize grease splashes during normal cooking at temperatures above 200°C (392°F). For optimal performance:
- After cooking, allow the oven to cool slightly.
- If significant grease build-up occurs, run the oven at its maximum temperature for approximately 1 hour to activate the catalytic process.
- Wipe away any remaining ash or residue with a damp cloth once the oven has cooled completely. Do not use abrasive cleaners on catalytic surfaces.
6.2. Generel rengøring
- Ydre: Clean the stainless steel exterior with a soft cloth and a mild, non-abrasive cleaner.
- Ovndørens glas: Use a glass cleaner specifically designed for ovens. Avoid harsh chemicals or abrasive materials that could scratch the glass.
- Tilbehør: Remove oven racks and trays and wash them with warm soapy water.
7. Fejlfinding
Før du kontakter kundeservice, bedes du gennemgå følgende almindelige problemer og deres mulige løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ovnen varmer ikke op. | Ingen strømforsyning; forkerte indstillinger. | Check circuit breaker. Ensure function and temperature are correctly set. |
| LED display is blank. | Power outage; oven not turned on. | Check power supply. Rotate a knob to activate the display. |
| Maden tilberedes ikke jævnt. | Incorrect rack position; oven overloaded. | Use recommended rack positions. Avoid overcrowding the oven. Ensure circulating heat function is used for multi-level cooking. |
| Ovnen lugter ved første brug. | Restprodukter fra fremstillingsprocessen. | This is normal. Run the oven empty at maximum temperature for 30-60 minutes before first use to burn off residues. Ensure good ventilation. |
8. Specifikationer
Technical specifications for the Rosières RFC3O3351IN Built-in Oven:
| Feature | Specifikation |
|---|---|
| Mærke | Rosières |
| Modelnummer | RFC3O3351IN |
| Type | Elektrisk indbygningsovn |
| Rengøringstilstand | Catalysis |
| Bind | 74 liter |
| Antal funktioner | 8 (including circulating heat, grill, defrost) |
| Vise | LED with Timer |
| Kontrolelementer | Rotary Knobs with Retractable Handles |
| Energiklasse | A |
| Farve | Rustfrit stål |
| Dimensioner (H x B x D) | 59.5 x 59.5 x 57.0 cm |
| Vægt | 40 kilo |
9. Garanti og support
This product is covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your appliance or contact Rosières customer service.
Our responsive customer service team is available to assist you with installation, usage, or any technical support requests. Please have your model number (RFC3O3351IN) and purchase date ready when contacting support.
For further assistance, visit the official Rosières webwebstedet eller kontakt dit lokale autoriserede servicecenter.
