Generic Nice Era One ON2E/ON4E/ON9E 2-Channel Remote Control Transmitter User Manual

1. Introduktion

This user manual provides detailed instructions for the proper setup, programming, operation, and maintenance of your Generic Nice Era One ON2E/ON4E/ON9E 2-Channel Remote Control Transmitter. Please read this manual thoroughly before using the device to ensure safe and efficient operation. Keep this manual for future reference.

2. Produktet er slutview

The Nice Era One remote control is a compact 2-channel transmitter designed for controlling compatible devices such as garage doors. It features a simple two-button design for ease of use.

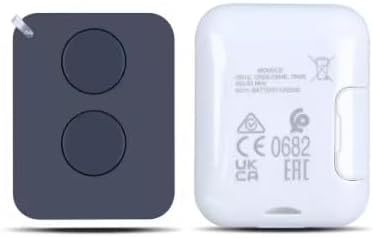

Billede 1: Forside og bagside view of the Nice Era One remote control. The left side shows the front with two distinct circular buttons. The right side shows the back, which includes regulatory marks such as CE 0682, UK CA, and EAC, along with model information.

Image 2: The Nice Era One remote control displayed with its retail packaging and an included keychain. The remote is black with two buttons, and the packaging box indicates 'Era One Transmitter 433.92 MHz' and 'Nice' branding.

3. Kompatibilitet

This remote control is compatible with the following Nice ERA systems:

• Nice ERA ONE
• Nice ERA inti
• Nice FLOR-S
• Nice Inti
• Nice One
• Nice Era Flor

Vigtig bemærkning: This remote operates at a frequency of 433.92 MHz (KUN USA) og does not support copying old remote controls.

4. Opsætning

4.1 Batteriinstallation

Your remote control comes with a battery pre-installed. If the battery needs replacement in the future, it requires 1 AAA batteri. Sådan udskiftes batteriet:

1. Åbn forsigtigt fjernbetjeningen casing.
2. Fjern det gamle AAA-batteri.
3. Insert a new AAA battery, ensuring correct polarity (+/-).
4. Luk fjernbetjeningen casing sikkert.

5. Programmeringsvejledning

Follow these steps to program your new remote control to your radio receiver or door opener:

1. Initiate Learning Mode: Briefly press and hold the learning button on your radio receiver or door opener. The LED indicator on the operator will turn on, indicating it is in learning mode.
2. Sendekode: While the operator's LED is on, press the desired button on your new remote control. The LED of the receiver will flash and then remain steadily lit.
3. Bekræft programmering: Continue holding the remote button until the LED of the receiver turns off. This indicates that the remote is now successfully coded to the operator.

6. Betjening

Once programmed, operating your Nice Era One remote control is straightforward:

• Knap funktion: Each of the two buttons on the remote control can be programmed to control a specific function or device (e.g., open/close a garage door, activate a gate).
• Aktivering: Press the programmed button firmly for a brief moment to send the signal to the receiver.
• Rækkevidde: Ensure you are within the operational range of your receiver for the remote control to function correctly.

7. Fejlfinding

7.1 Deleting Codes

To delete existing codes from the receiver:

1. Press and hold the learning button on the receiver.
2. The LED on the receiver will turn on. Continue holding the button.
3. Release the button when the LED of the receiver flashes for the tredje gang. All previously stored codes should now be deleted.

7.2 Almindelige problemer og løsninger

• Fjernbetjeningen svarer ikke:
  • Kontroller, om batteriet er korrekt installeret og har tilstrækkelig opladning. Udskift om nødvendigt.
  • Ensure the remote is properly programmed to the receiver (refer to Section 5).
  • Verify that the receiver is powered on and functioning correctly.
• Begrænset rækkevidde:
  • Sørg for, at der ikke er nogen forhindringer mellem fjernbetjeningen og receiveren.
  • Check for sources of radio interference (e.g., other wireless devices).
  • Udskift batteriet i fjernbetjeningen.
• Forkert betjening:
  • Confirm that the correct button on the remote is being pressed for the desired function.
  • If multiple remotes are in use, ensure there is no signal conflict.

8. Specifikationer

9. Vedligeholdelse

For at sikre fjernbetjeningens levetid og optimale ydeevne:

• Rensning: Wipe the remote with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• Opbevaring: Opbevar fjernbetjeningen et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
• Batteri: Replace the battery when the remote's performance degrades or if it stops working. Remove the battery if the remote will not be used for an extended period.
• Undgå påvirkning: Protect the remote from drops and impacts, which can damage internal components.

10. Garanti og support

For information regarding warranty coverage or technical support, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your purchase receipt as proof of purchase.
