Generisk fjernbetjeningsmanual til justerbar sengebund (model NL300B 127780C180135)

Vigtig information

This remote control is specifically designed for certain adjustable bed bases and is not universal. It is crucial to verify compatibility with your existing control box before use. Please ensure your control box model number matches NL300B 127780C180135.

Batteries and a comprehensive instruction manual for your specific bed base are not included with this remote. Refer to your bed base's original manual for detailed operational instructions beyond remote pairing.

For proper functionality, your old remote must be identical to this replacement, and your control box must be compatible.

Produkt overview

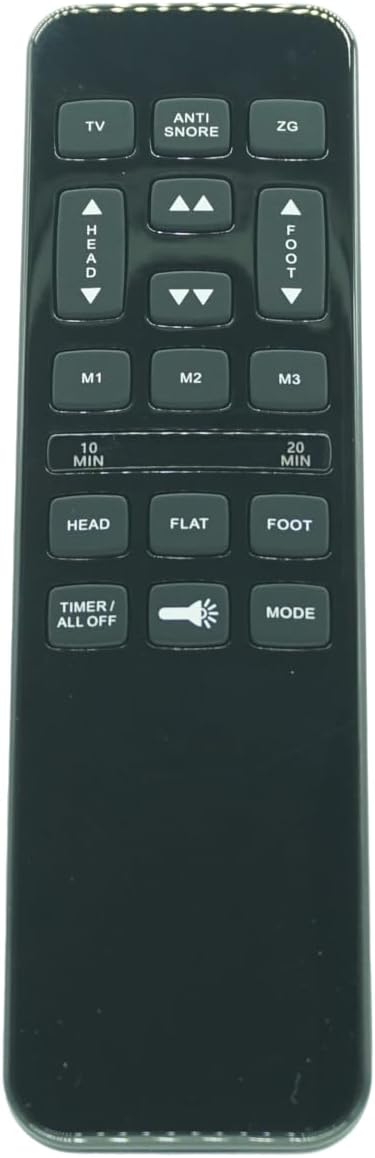

Billedbeskrivelse: A black, rectangular remote control with rounded corners. It features 20 gray, rectangular buttons arranged in a grid. The buttons are labeled with white text and icons. From top to bottom, left to right, the buttons include: TV, ANTI SNORE, ZG, HEAD (up arrow), double up arrow, FOOT (up arrow), HEAD (down arrow), double down arrow, FOOT (down arrow), M1, M2, M3, 10 MIN, 20 MIN, HEAD, FLAT, FOOT, TIMER/ALL OFF, a light bulb icon, and MODE.

Knap funktioner

• TV: Adjusts the bed to a TV viewing stilling.
• ANTI SNORE: Adjusts the head section to a position that may help reduce snoring.
• ZG (Zero Gravity): Adjusts the bed to a zero-gravity position, elevating the head and foot slightly to relieve pressure.
• HEAD Up/Down Arrows: Justerer sengens hoveddel opad eller nedad.
• Double Up/Down Arrows: Likely controls lumbar support or a similar feature, or a faster head/foot adjustment.
• FOOT Up/Down Arrows: Justerer sengens fodsektion opad eller nedad.
• M1, M2, M3: Memory preset buttons to save and recall preferred bed positions.
• 10 MIN / 20 MIN: Timer functions, possibly for massage or gentle bed movement.
• HOVED: Returns the head section to a flat position or a specific head preset.
• FLAD: Returns the entire bed to a flat position.
• FOD: Returns the foot section to a flat position or a specific foot preset.
• TIMER/ALL OFF: Activates/deactivates a timer function or turns off all bed functions.
• Pæreikon: Activates or deactivates under-bed lighting or a flashlight feature on the remote.
• KØRSELSVEJLEDNING: Cycles through different massage modes or other bed functions.

Opsætning

Installation af batteri

This remote control requires 2 AAA batterier. To install, slide open the battery compartment cover on the back of the remote. Insert the batteries, ensuring correct polarity (+/-), then replace the cover.

Verifikation af kompatibilitet

Before attempting to pair or use the remote, confirm that your adjustable bed base's control box is compatible. Locate the control box under your bed and verify that its model number is NL300B 127780C180135. If the model numbers do not match, this remote will not function with your bed base.

Betjeningsvejledning

Parringsmetode

The remote control must be paired with your adjustable bed base's control box before first use or after battery replacement. Follow these steps:

1. Trin 1: Ensure the remote batteries are functioning. Replace them if necessary.
2. Trin 2: Ensure the power cord for your adjustable bed base is securely plugged into a powered electrical outlet.
3. Trin 3: Tryk på og hold samtidigt nede HEAD Down knappen og FOD OP button on the remote control. While holding these two buttons, also press and hold the blå knap located on the control box cord (under the bed). Continue holding all three buttons until you hear two distinct beeps from the bed base.
4. Trin 4: Release all buttons. The remote control is now paired with your bed base and ready for use.

If pairing is unsuccessful, repeat the steps. If issues persist, refer to the troubleshooting section or your bed base's original manual.

Fejlfinding

• Fjernbetjeningen svarer ikke:
  • Check if the batteries are correctly installed and have sufficient charge. Replace with new AAA batteries if needed.
  • Ensure the bed base is plugged into a working power outlet.
  • Attempt the pairing process again as described in the "Operating Instructions" section.
• Bed functions are erratic or inconsistent:
  • Re-pair the remote control with the bed base.
  • Ensure there are no obstructions preventing the bed's movement.
• Remote does not power on or light up:
  • Verify battery installation and charge.
  • If the remote still does not function after new batteries, it may require replacement.

If these steps do not resolve the issue, contact the seller or manufacturer of your adjustable bed base for further assistance.

Specifikationer

Garanti og support

Specific warranty information for this replacement remote control should be obtained directly from the seller or the manufacturer at the time of purchase. Please retain your proof of purchase for any warranty claims.

For technical support or further assistance with your adjustable bed base, please refer to the original manual provided with your bed or contact the bed base manufacturer directly.
