FT-RZ-01/FT-RZ-02

QSZN Android Canbus Box FT-RZ-01/FT-RZ-02 Wiring Harness Instruction Manual

For Toyota CAMRY, RAV4, COROLLA, PRADO, SIENNA, and other compatible models

1. Introduktion

This manual provides detailed instructions for the installation and use of the QSZN Android Canbus Box FT-RZ-01/FT-RZ-02 wiring harness. This product is designed to integrate an aftermarket Android car radio with your vehicle's existing electrical system, enabling communication between the radio and the vehicle's CAN bus for functions such as steering wheel controls, door status, and reverse gear signals.

2. Køretøjskompatibilitet

The QSZN Canbus Box and wiring harness are compatible with various Toyota models. Please verify your vehicle's year and model against the lists below to ensure proper fitment.

2.1. FT-RZ-01 Cable Set Compatibility:

2.2. FT-RZ-02 Cable Set Compatibility:

3. Pakkens indhold

Pakken indeholder følgende komponenter:

Note: Other products not listed above are not included.

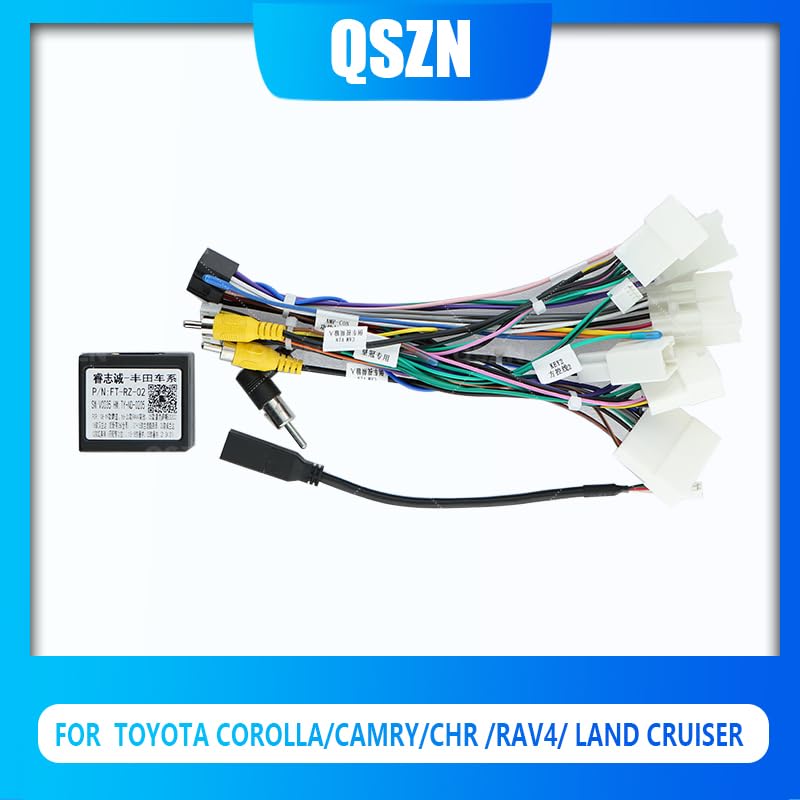

QSZN Canbus Box and Wiring Harness

Image 1: QSZN Canbus Box (FT-RZ-02 shown) connected to the wiring harness. This image displays the main components included in the package, featuring the black Canbus box with a QR code and model number, along with a multi-colored wiring harness with various connectors.

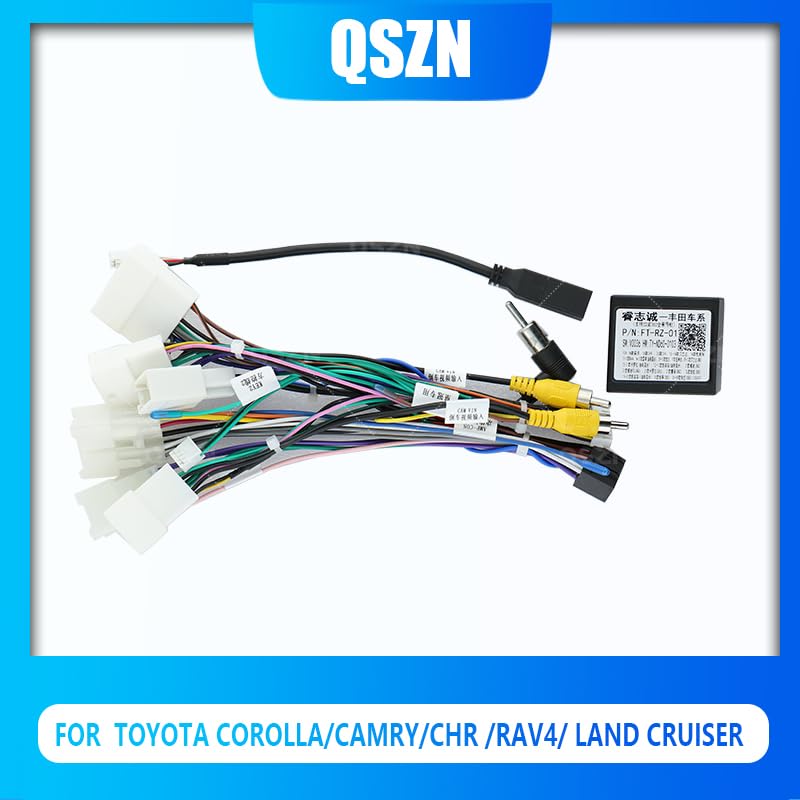

QSZN Canbus Box and Wiring Harness with RCA connectors

Image 2: QSZN Canbus Box (FT-RZ-02 shown) and wiring harness, highlighting the RCA connectors. This image provides another view of the components, emphasizing the audio/video input/output connectors (yellow, white, red RCA plugs) present on the harness, alongside the main power and data connectors.

4. Opsætning og installation

Installation of the QSZN Canbus Box and wiring harness requires basic knowledge of car audio wiring. If you are unsure about any steps, it is recommended to seek professional installation.

  1. Sikkerhed først: Før installationen påbegyndes, skal køretøjets negative batteripol frakobles for at forhindre kortslutninger og skader.
  2. Fjern eksisterende radio: Carefully remove your vehicle's factory radio or existing aftermarket head unit. Refer to your vehicle's service manual for specific instructions on dash disassembly.
  3. Identificer forbindelser: Locate the factory wiring harness connectors in your vehicle's dashboard.
  4. Connect QSZN Harness: Connect the QSZN wiring harness to the corresponding factory connectors. Ensure all connections are secure. The harness is designed for a plug-and-play fit for compatible vehicles.
  5. Tilslut Canbus-boks: Plug the QSZN Canbus Box into the designated connector on the QSZN wiring harness.
  6. Connect to Android Radio: Connect the other end of the QSZN wiring harness to your aftermarket Android car radio. This typically involves connecting the main power/speaker harness, RCA cables for audio/video, and specific data wires for CAN bus communication.
  7. Test forbindelser: Before fully reassembling the dashboard, reconnect the vehicle's negative battery terminal. Turn on the ignition and test the Android radio's basic functions, including power, audio, steering wheel controls, and reverse camera input (if applicable).
  8. Sikker ledningsføring: Once all functions are verified, carefully route and secure all wiring to prevent pinching or interference.
  9. Saml dashboardet igen: Reassemble the vehicle's dashboard and trim panels.

Note: The specific wiring configuration may vary slightly depending on your Android radio model. Consult your Android radio's manual for detailed wiring diagrams.

5. Driftsprincipper

The QSZN Canbus Box acts as an interface between your vehicle's CAN bus system and your aftermarket Android car radio. It translates the digital signals from the vehicle (e.g., steering wheel button presses, vehicle speed, reverse gear status, door open/close status) into a format that the Android radio can understand and utilize.

Once correctly installed, the Canbus Box enables features such as:

Ensure that your Android radio's settings are configured to recognize and utilize the Canbus protocol provided by the QSZN box. This usually involves selecting the correct Canbus type in the radio's factory settings or system settings menu.

6. Vedligeholdelse

The QSZN Canbus Box and wiring harness are designed for long-term, maintenance-free operation. No regular maintenance is required. To ensure optimal performance:

7. Fejlfinding

Hvis du støder på problemer efter installationen, kan du overveje følgende fejlfindingstrin:

If problems persist after following these steps, contact your product vendor or a qualified car audio technician for assistance.

8. Specifikationer

FeatureDetalje
ProdukttypeAndroid Canbus Box & Wiring Harness
ModelnumreFT-RZ-01, FT-RZ-02
MærkeGeneric (QSZN)
MaterialePlastic (for Canbus box and connectors)
OprindelseFastlandet Kina
KompatibilitetSpecific Toyota models and years (refer to Section 2)

9. Garanti og support

Specific warranty information for this product is typically provided by the seller or manufacturer at the time of purchase. Please retain your proof of purchase for any warranty claims.

For technical support or further assistance, please contact the retailer or the manufacturer directly. Ensure you have your product model number (FT-RZ-01 or FT-RZ-02) and vehicle details ready when seeking support.
