1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of your Hawkrown Smart Bidet Toilet ST-PRO. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
2. Sikkerhedsoplysninger
Overhold venligst følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af produktet.
- Elektrisk sikkerhed: Ensure the power outlet meets the product's specifications. Do not use extension cords. Disconnect power before any maintenance or cleaning.
- Vandforsyning: Ensure water supply is turned off before installation. Use appropriate plumbing connections to prevent leaks.
- Installation: Installation should be performed by a qualified professional if you are unsure. Ensure all connections are secure.
- Rensning: Brug kun milde, ikke-slibende rengøringsmidler. Undgå skrappe kemikalier, der kan beskadige overflader eller indvendige komponenter.
- Børn og kæledyr: Keep children and pets away from the toilet's moving parts and electrical components.
3. Produktet er slutview
The Hawkrown Smart Bidet Toilet ST-PRO integrates advanced features for hygiene and convenience. Familiarize yourself with its main components and functions.

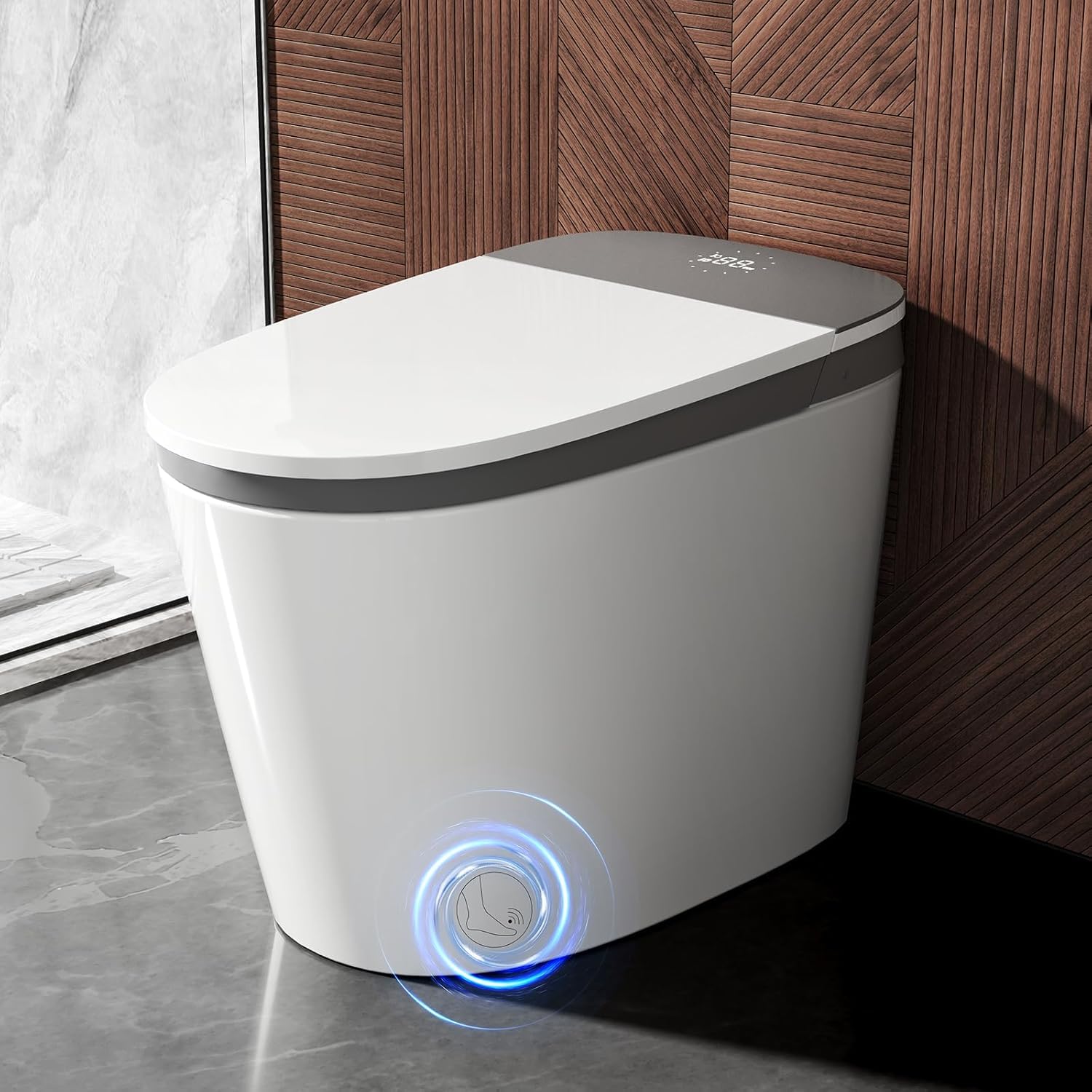

Figur 3.1: Forside view of the Hawkrown Smart Bidet Toilet ST-PRO.
Figure 3.2: Touch Screen Remote Control for the ST-PRO, showing various function buttons.
4. Opsætning og installation
Follow these steps for proper installation of your smart bidet toilet.
4.1 Kontrol før installation
- Sørg for at du har alle nødvendige værktøjer og komponenter som angivet på emballagen.
- Verify that the water supply line and electrical outlet are within reach of the installation area.
- Turn off the main water supply to the bathroom before beginning.
4.2 Vandtilslutning
Connect the toilet to the cold water supply line. The ST-PRO features a built-in tank and boost pump, allowing for stable flushing even in areas with low water pressure. This eliminates the need for external water pressure limitations.
Figure 4.1: Internal components illustrating the built-in water tank, pump-assisted flushing, and double siphon jet cleaning for efficient flushing without water pressure limits.
4.3 Elektrisk tilslutning
Plug the toilet into a grounded electrical outlet. Ensure the outlet is easily accessible and not shared with other high-power appliances.
4.4 Sluttjek
- Turn on the main water supply and check for any leaks.
- Turn on the power and allow the toilet to initialize.
- Udfør en testskylning, og kontroller alle bidetfunktioner.
5. Betjeningsvejledning
Your Hawkrown Smart Bidet Toilet ST-PRO offers a range of automated and customizable functions for a comfortable experience.
5.1 Automatic Lid and Seat Operation
The toilet features microwave sensing technology. As you approach, the lid and seat will automatically open. When you leave, they will automatically close.

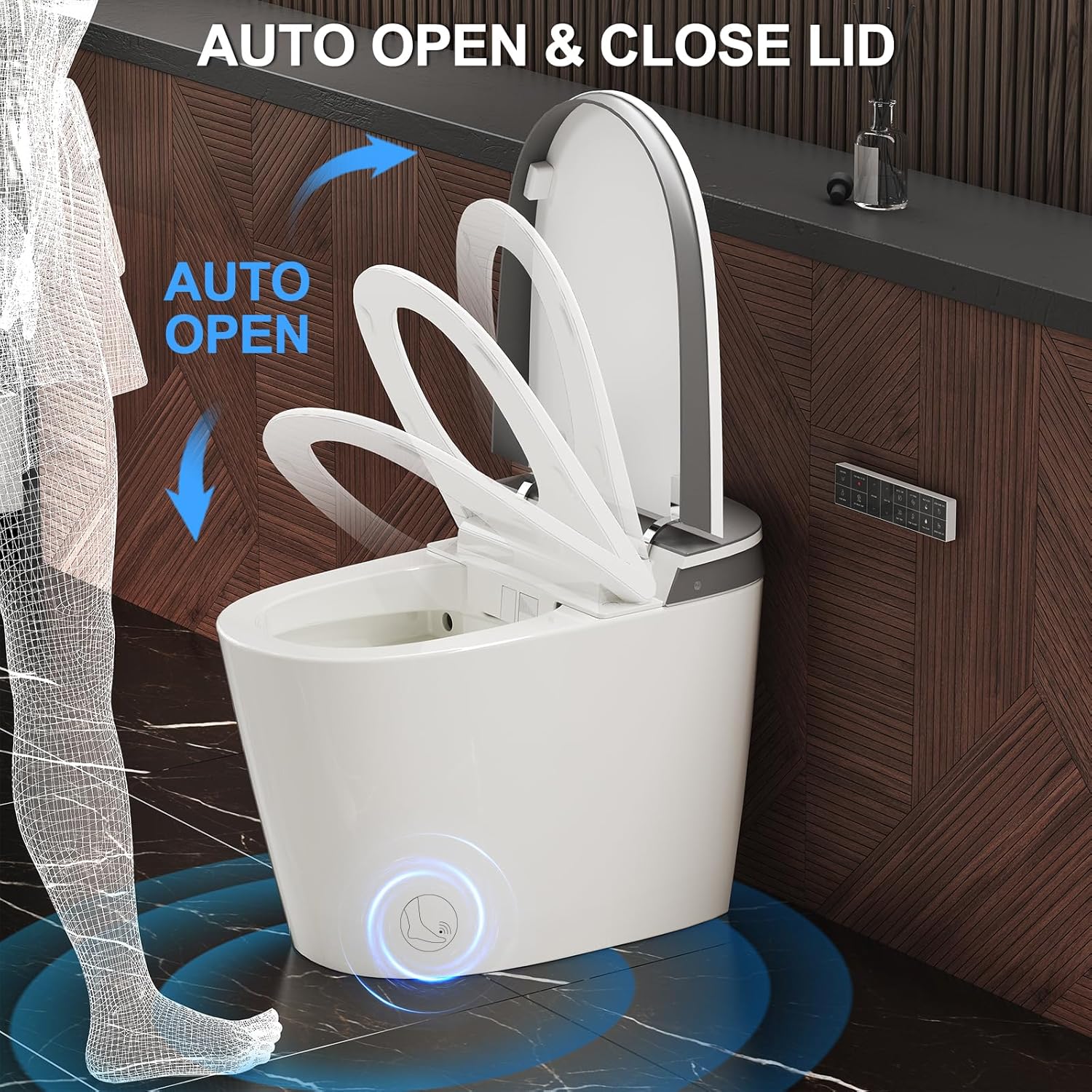

Figure 5.1: Illustration of the automatic lid and seat opening feature activated by proximity sensing.
5.2 Automatisk skylning
The ST-PRO is equipped with an auto dual-flush system. It offers a 1.6 GPF (6 L) full-flush and a 1.1 GPF (4.1 L) half-flush, achieving a 1000-gram MaP (Maximum Performance) flushing score for efficient waste removal.
Figure 5.2: MaP (Maximum Performance) Scoring Guide, indicating the ST-PRO's 1000-gram score for highly recommended flushing efficiency.
5.3 Bidet Functions (UV Purified Water Wash)
The bidet function uses UV purified water for enhanced hygiene. Use the remote control to activate rear or front wash modes. Adjust water temperature and pressure as desired.
Figure 5.3: Illustration of the UV water purification system, showing UV irradiation piping for efficient physical purification of water.
5.4 Movement Drying
After using the bidet, activate the movement drying mode. The drying air nozzle can move up and down to ensure thorough and efficient drying, reducing the need for toilet paper.

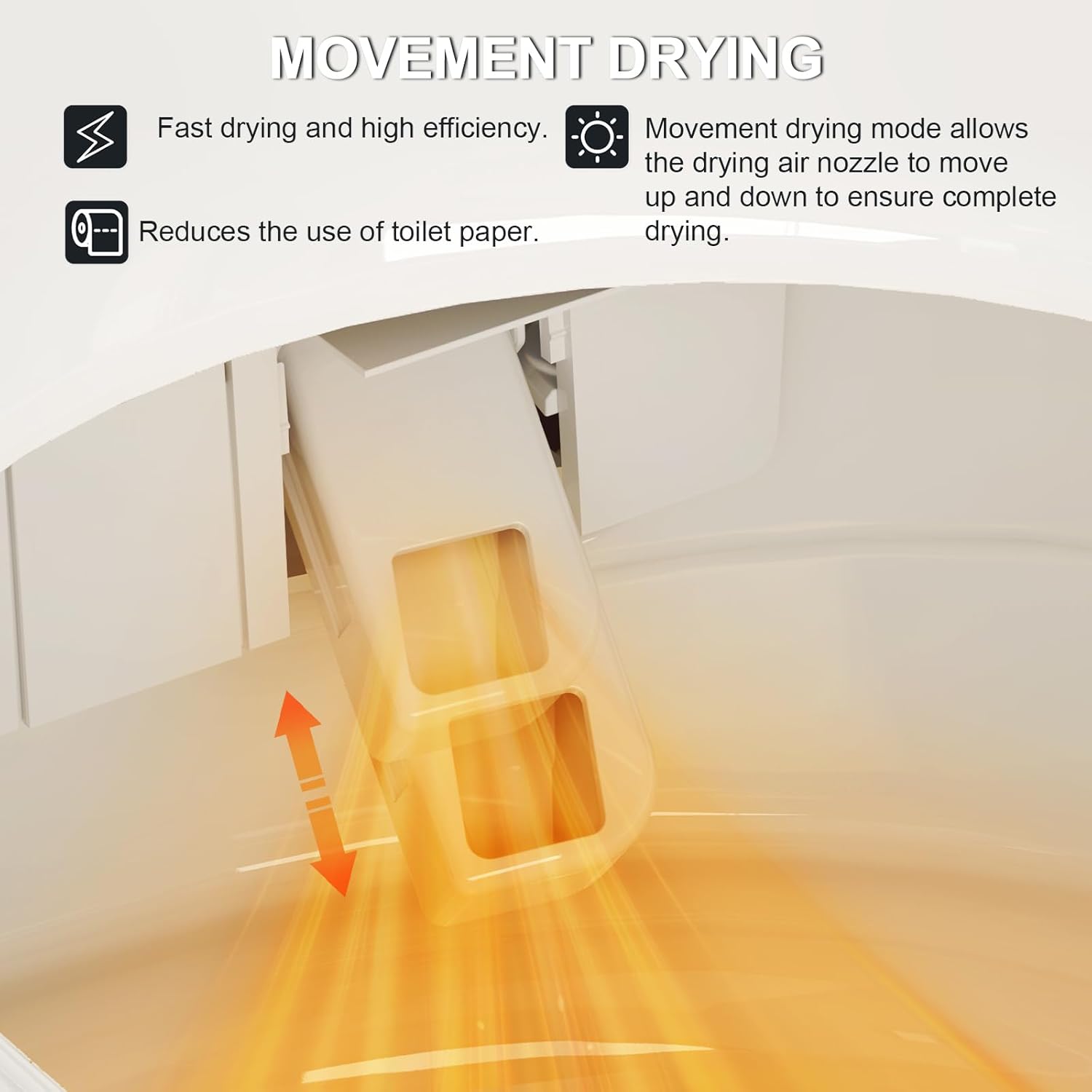

Figure 5.4: Detail of the movement drying nozzle, highlighting its adjustable motion for improved drying efficiency.
5.5 Heated Seat and Seasonal Temperature Sensing
The elongated seat provides adjustable heating for comfort. The toilet also features seasonal temperature sensing to optimize comfort based on ambient conditions.
Figure 5.5: A user experiencing the comfort of the heated seat and seasonal temperature sensing.
5.6 Foam Shielding and Deodorization
The ST-PRO includes a foam shielding function to prevent splashes and a photocatalyst-free deodorization system. This deodorization creates a catalytic reaction without light, converting airborne pollutants into water and carbon dioxide to purify the air.
5.7 Brug af fjernbetjening
The touch screen remote control allows you to manage all functions. Buttons include:
- Bag/Flyt: Activates rear wash and adjusts nozzle position.
- Front/Move: Activates front wash and adjusts nozzle position.
- Stop/Hold to ECO: Stops current function; hold for ECO mode.
- Dry/Dryer Temp: Activates drying and adjusts air temperature.
- Vandtemperatur: Adjusts water temperature for washing.
- Lufthastighed: Adjusts drying air speed.
- Sædetemperatur: Justerer temperaturen på det opvarmede sæde.
- Skumrenser: Activates foam dispensing.
- Halv skylning: Initiates a half flush.
- Fuld skylning: Initiates a full flush.
- Open/Close Seat: Manually opens or closes the seat.
- Åbn/luk låg: Manually opens or closes the lid.
6. Vedligeholdelse
Regular maintenance ensures the longevity and optimal performance of your smart bidet toilet.
6.1 Rengøring af ydersiden
Tør de udvendige overflader af med en blød, damp cloth and a mild, non-abrasive cleaner. Avoid spraying water directly onto electrical components.
6.2 Rengøring af dysen
The bidet nozzle typically has a self-cleaning function. For manual cleaning, gently pull out the nozzle and wipe it with a soft cloth. Do not use harsh brushes or abrasive materials.
6.3 Afkalkning
If you live in an area with hard water, periodic descaling of the water pathways may be necessary. Consult a professional if you notice reduced water flow or performance issues related to mineral buildup.
7. Fejlfinding
Se tabellen nedenfor for almindelige problemer og deres løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Toilettet skyller ikke ud. | No power, water supply off, or sensor obstruction. | Check power connection. Ensure water supply valve is open. Clear any obstructions around sensors. |
| Lid/Seat not opening/closing automatically. | Sensor obstructed or dirty, or feature disabled. | Clean the proximity sensor. Check remote settings to ensure auto-open/close is enabled. |
| Bidet water pressure is low. | Water supply partially closed, nozzle clogged, or filter dirty. | Ensure water supply valve is fully open. Clean the bidet nozzle. Check and clean any inline filters. |
| Varme i sædet virker ikke. | Seat heating feature disabled or temperature set too low. | Adjust seat temperature using the remote control. Ensure the feature is enabled. |
8. Specifikationer
- Model: ST-PRO
- Skyllesystem: Auto Dual-Flush (1.6 GPF / 6 L Full, 1.1 GPF / 4.1 L Half)
- MaP Flushing Score: 1000 gram
- Vandtryk: Built-in tank with boost pump for stable flushing (no water pressure limit)
- Lid/Seat: Automatic Open/Close (microwave sensing)
- Sæde: Elongated, Heated (adjustable temperature), Seasonal Temperature Sensing
- Bidet Wash: UV Purified Water Wash (Rear/Front), Adjustable Water Temperature and Pressure
- Tørring: Movement Drying Mode (adjustable air speed and temperature)
- Hygiene Features: Foam Shielding, Photocatalyst-Free Deodorization, Cleaning Foam Dispenser
- Kontrollere: Fjernbetjening med berøringsskærm
- ASIN: B0DZ6F6296
- Dato først tilgængelig: 4. marts 2025
9. Garanti og support
For warranty information or technical support, please refer to the documentation provided with your purchase or contact Hawkrown customer service directly. Keep your proof of purchase for warranty claims.
