CONOPUPlus D020R2EC-12L Electric Dehumidifier User Manual

1. Introduktion

Thank you for choosing the CONOPUPlus D020R2EC-12L Electric Dehumidifier. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before use and retain it for future reference.

Sikkerhedsoplysninger

• Placer altid affugteren på en stabil, plan overflade.
• Sørg for ordentlig ventilation omkring enheden; bloker ikke luftindtag eller -udtag.
• Betjen ikke enheden med en beskadiget strømledning eller stik.
• Hold apparatet væk fra vand og andre væsker.
• Tag stikket ud af enheden, før du rengør eller udfører vedligeholdelse.
• Dette apparat er kun designet til husholdningsbrug.

2. Produktet er slutview og funktioner

The CONOPUPlus D020R2EC-12L is a high-performance electric dehumidifier designed to effectively remove excess moisture from your indoor environment, preventing mold and improving air quality. It features advanced compression technology, smart controls, and versatile drainage options.

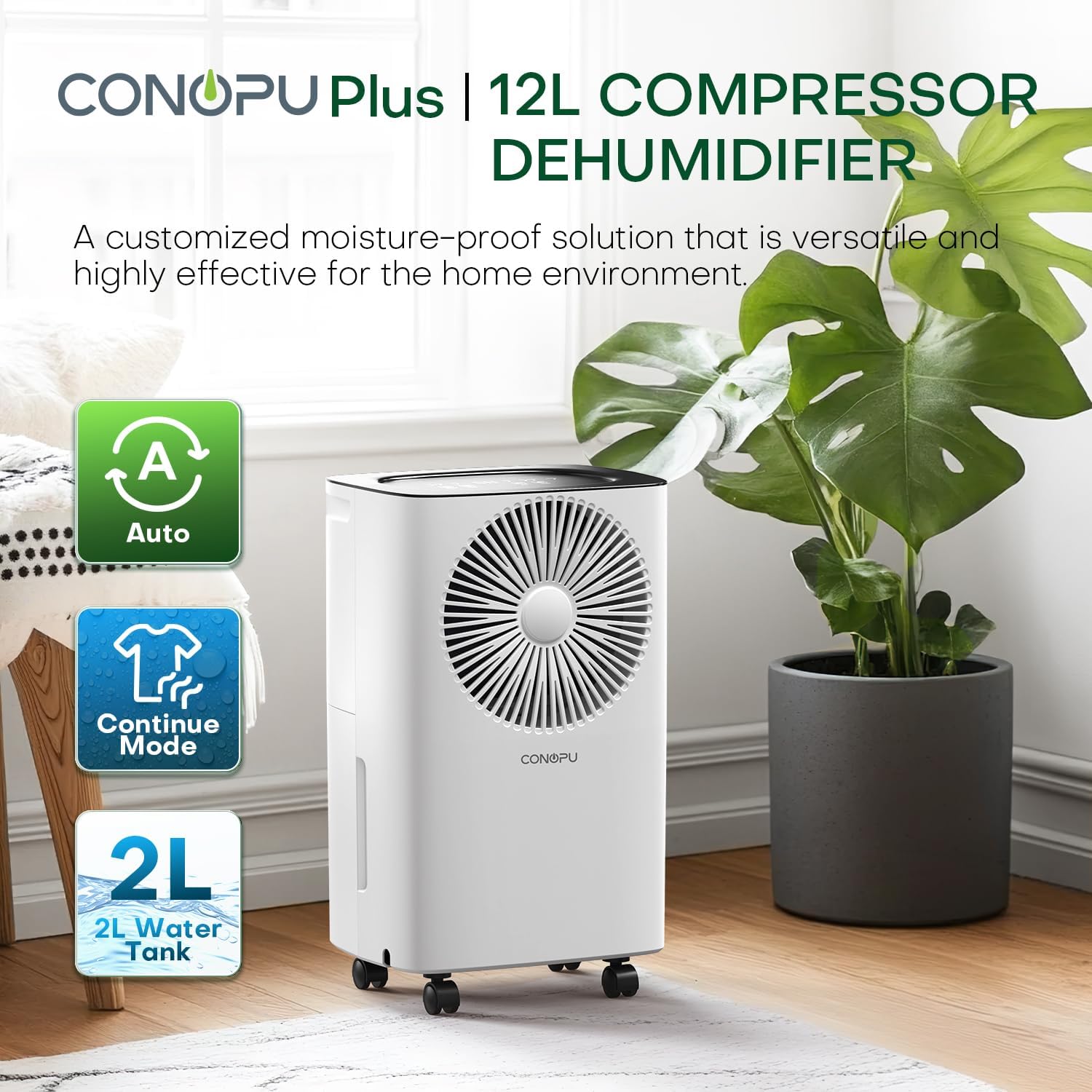

Image: The CONOPUPlus 12L Compressor Dehumidifier, highlighting its automatic and continuous operation modes.

Nøglefunktioner:

• High-Performance Compression Technology: Quickly absorbs moisture with a water collection capacity of 12 liters per day.
• Energy Saving and Smart Customization: Features a 24-hour timer and automatic control chip, consuming only 0.21 kWh.
• Continuous Drainage and Optimized Mobility: Includes two drainage hoses (60 cm and 20 cm) and integrated rollers for easy movement.
• Versatile Turbo and Silent Modes: Offers high airflow for rapid dehumidification and a quiet night mode.
• Automation and Enhanced Durability: Automatically adjusts humidity, activates auto-defrost, and operates stably between 7°C and 35°C.

Image: Design features of the dehumidifier, including its embedded handle, 360-degree wheels, and overall dimensions (41cm height, 20cm depth, 27cm width).

3. Komponenter og dele

Your CONOPUPlus D020R2EC-12L Dehumidifier package includes the following items:

• 1 x CONOPUPlus Dehumidifier Unit
• 1 x Brugermanual (dette dokument)
• 1 x Drainage Hose (60 cm)
• 1 x Drainage Hose (20 cm)

4. Opsætning

4.1 Udpakning

1. Tag forsigtigt affugteren og alt tilbehør ud af emballagen.
2. Undersøg enheden for tegn på skader. Hvis den er beskadiget, må den ikke anvendes, og du skal kontakte kundesupport.
3. Gem emballagen til senere opbevaring eller transport.

4.2 Placering

• Placer affugteren på en fast, plan overflade på det ønskede sted.
• Sørg for, at der er mindst 20 cm (8 tommer) plads omkring luftindtaget og -udtaget for at opnå optimal luftgennemstrømning.
• The unit is suitable for floor areas up to 60 square meters.
• Undgå at placere enheden i nærheden af ​​varmekilder eller i direkte sollys.

4.3 Dræningsmuligheder

Your dehumidifier offers two drainage methods: manual emptying of the water tank or continuous drainage.

Image: Illustration of the two drainage methods: continual drainage using a hose and manual drainage by removing the water tank.

4.3.1 Manuel dræning

The dehumidifier will automatically shut off when the water tank is full. You will need to manually empty the tank.

1. Træk forsigtigt vandtanken ud fra enhedens forside.
2. Tøm det opsamlede vand i en vask eller et afløb.
3. Slide the empty water tank back into the unit until it clicks into place.

4.3.2 Kontinuerlig dræning

For uninterrupted operation, you can set up continuous drainage using the provided hose.

1. Find det kontinuerlige drænudløb på bagsiden eller siden af ​​enheden.
2. Fjern gummiproppen (hvis den er monteret).
3. Connect one end of the drainage hose firmly to the outlet.
4. Route the other end of the hose to a suitable drain, ensuring it is sloped downwards to allow water to flow freely by gravity.
5. Sørg for, at slangen ikke er bøjet eller blokeret.

5. Betjeningsvejledning

5.1 Tænd/sluk

• Sæt netledningen i en jordet stikkontakt.
• Tryk på Magt knappen på kontrolpanelet for at tænde eller slukke for enheden.

5.2 Indstilling af ønsket luftfugtighedsniveau

• Tryk på Fugtindstilling button (often indicated by a droplet or percentage symbol) to adjust the target humidity level.
• The display will show the current humidity and then flash the target humidity. Use the Op/Ned arrows to set your desired level (e.g., 40% - 60% is generally recommended).
• The unit will operate until the desired humidity is reached, then cycle on and off to maintain it.

5.3 Valg af tilstand

The dehumidifier offers various operating modes to suit different needs:

• Automatisk tilstand: The unit automatically adjusts its operation based on the ambient humidity to maintain the set target.
• Turbo Mode (High Airflow): Provides rapid dehumidification for quick moisture removal. Ideal for very damp forhold.
• Silent Mode (Night Mode): Operates at a lower fan speed for quieter performance, suitable for use in bedrooms or during sleep.
• Laundry Mode (Drying Clothes): Utilizes continuous dehumidification and emitted heat to assist in drying clothes indoors.

Image: The dehumidifier operating in a laundry setting, demonstrating its Continuous Laundry Mode for drying clothes.

5.4 Timer Function (24H)

The 24-hour timer allows you to schedule the unit to turn ON or OFF automatically.

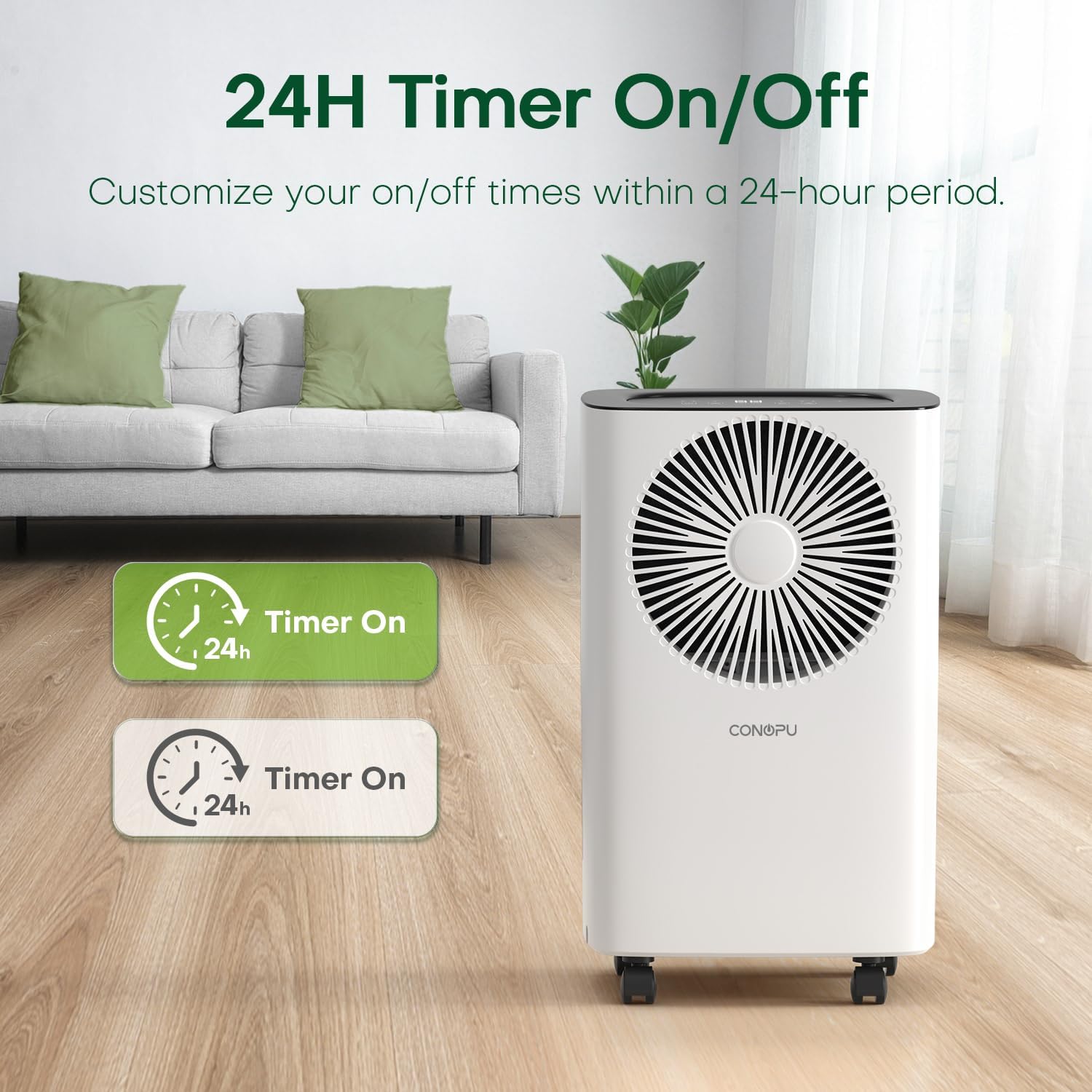

Image: The dehumidifier control panel indicating the 24-hour timer function for scheduled operation.

• To Set Auto-OFF Timer: Mens enheden er tændt, tryk på Timer knappen og brug Op/Ned arrows to select the desired number of hours until the unit turns OFF.
• To Set Auto-ON Timer: Tryk på, mens enheden er slukket Timer knappen og brug Op/Ned arrows to select the desired number of hours until the unit turns ON.
• The timer will start counting down, and the unit will perform the scheduled action.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din affugters lange levetid og effektive drift.

6.1 Rengøring af vandtank

• Empty the water tank regularly, especially if not using continuous drainage.
• Clean the tank with mild detergent and warm water every few weeks to prevent mold and mildew growth. Rinse thoroughly.

6.2 Rengøring af luftfilter

Luftfilteret bør rengøres hver anden uge eller oftere afhængigt af brug og luftkvalitet.

1. Sluk for affugteren, og tag stikket ud af stikkontakten.
2. Find og fjern luftfilteret (typisk på bagsiden eller siden af ​​enheden).
3. Vask filteret med varmt sæbevand. Ved meget støv kan en støvsuger først bruges.
4. Rinse the filter thoroughly and allow it to air dry completely before reinstalling. Do not use a dryer or direct heat.

6.3 Auto-Defrost Function

The unit is equipped with an automatic defrost function to prevent ice buildup on the evaporator coils, especially when operating in cooler temperatures. If ice is detected, the unit will temporarily stop dehumidifying and run the fan to melt the ice. This is normal operation and does not require user intervention.

7. Fejlfinding

Før du kontakter kundesupport, bedes du læse følgende almindelige problemer og løsninger:

8. Specifikationer

9. Garanti og support

Your CONOPUPlus D020R2EC-12L Dehumidifier comes with a standard manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions, including the warranty period and coverage details.

Kundesupport

If you encounter any issues not covered in this manual or require further assistance, please contact CONOPUPlus customer support through your retailer or the official brand website. Please have your model number (D020R2EC-12L) and purchase information ready when contacting support.
