Bazyths Smart Toilet ZYS1 User Manual

1. Introduktion

This manual provides essential information for the safe and efficient operation of your Bazyths Smart Toilet ZYS1. Please read all instructions carefully before installation and use, and retain this manual for future reference.

The Bazyths Smart Toilet ZYS1 is a one-piece elongated toilet designed for comfort and hygiene, featuring advanced functionalities such as a high-density foam shield, automatic lid operation, integrated bidet, warm air dryer, and heated seat.

2. Vigtige sikkerhedsadvarsler

• Elektrisk sikkerhed: Ensure the toilet is connected to a properly grounded 120V waterproof safety socket. Do not dismantle or repair the product without permission.
• Vandsikkerhed: Do not pour water or detergent directly onto the product or power plug. Avoid using chemical cleaning agents that may damage plastic parts or cause water leakage.
• Temperaturkontrol: Pay attention to low temperature burns. Adjust seat and water temperatures to a comfortable level, especially during prolonged use.
• Fysisk påvirkning: Do not place heavy objects on or stand on the toilet seat/cover. Do not forcibly impact the product.
• Børns sikkerhed: Supervise children during use. The child mode feature is available for their safety.
• Power Outage: The toilet is equipped with a built-in battery compartment for power-off flushing. Ensure batteries are installed for this function.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• Smart Toilet Main Unit
• Fjernbetjening
• Angle Valve & Tee Connector
• Sealing Flange & Mounting Accessory Kit
• Brugermanual
• Batteriboks (batterier medfølger ikke)
• Voks ring

Image: All components included with the Bazyths Smart Toilet ZYS1, laid out for easy identification.

4. Specifikationer

5. Installationsvejledning

Professional installation is recommended. Ensure water supply is turned off before beginning.

5.1 Forbered installationsområdet

• Remove your old toilet and clean the floor area thoroughly.
• Ensure your plumbing setup matches the 12-inch rough-in requirement for the ZYS1.
• Install the angle valve and tee connector to your water supply line.

5.2 Mount the Toilet

• Place the sealing flange and mounting bracket according to the provided diagram in the user manual.
• Carefully position the Smart Toilet Main Unit onto the mounting bracket and secure it with the provided screws.
• Connect the water supply line to the toilet.

5.3 Elektrisk tilslutning

• Plug the toilet's power cord into a properly grounded 120V waterproof safety socket.
• For power-off flushing, install 10 AA alkaline batteries (not included) into the battery box and connect it to the designated port on the toilet.

5.4 Parring af fjernbetjening

1. Plug in the power cord within 30 seconds after the toilet is powered on.
2. Press and hold the feminine wash button on the toilet's side panel until the display flashes once, then release.
3. Press and hold the rear wash button; the display screen will flash continuously.
4. Press the power stop button on the remote control. Pairing is successful when the display stops flashing.

Video: This video demonstrates the remote control pairing process for the Bazyths Smart Toilet ZYS1, showing how to activate pairing mode on the toilet and synchronize it with the remote.

Image: Illustration of the touch-free experience, detailing automatic lid opening/closing and foot sensor functions for seat control and flushing.

6. Betjeningsvejledning

6.1 Automatic Lid Opening/Closing & Foot Sensor

• The toilet lid automatically opens when a user approaches.
• Both the lid and seat close automatically 2 minutes after the user leaves the sensor range.
• A foot sensor allows you to open/close the lid or seat, and activate flushing with a simple foot gesture.

Image: A person activating the foot sensor to open the toilet lid, highlighting the touch-free operation.

6.2 Skumskærm

• The high-density foam shield creates a barrier to control splashes and block odors.
• Activate manually via the remote or set for automatic activation upon seating.

Video: This video demonstrates how to use the Bazyths Foam Shield feature, showing its effectiveness in splash control and odor blocking.

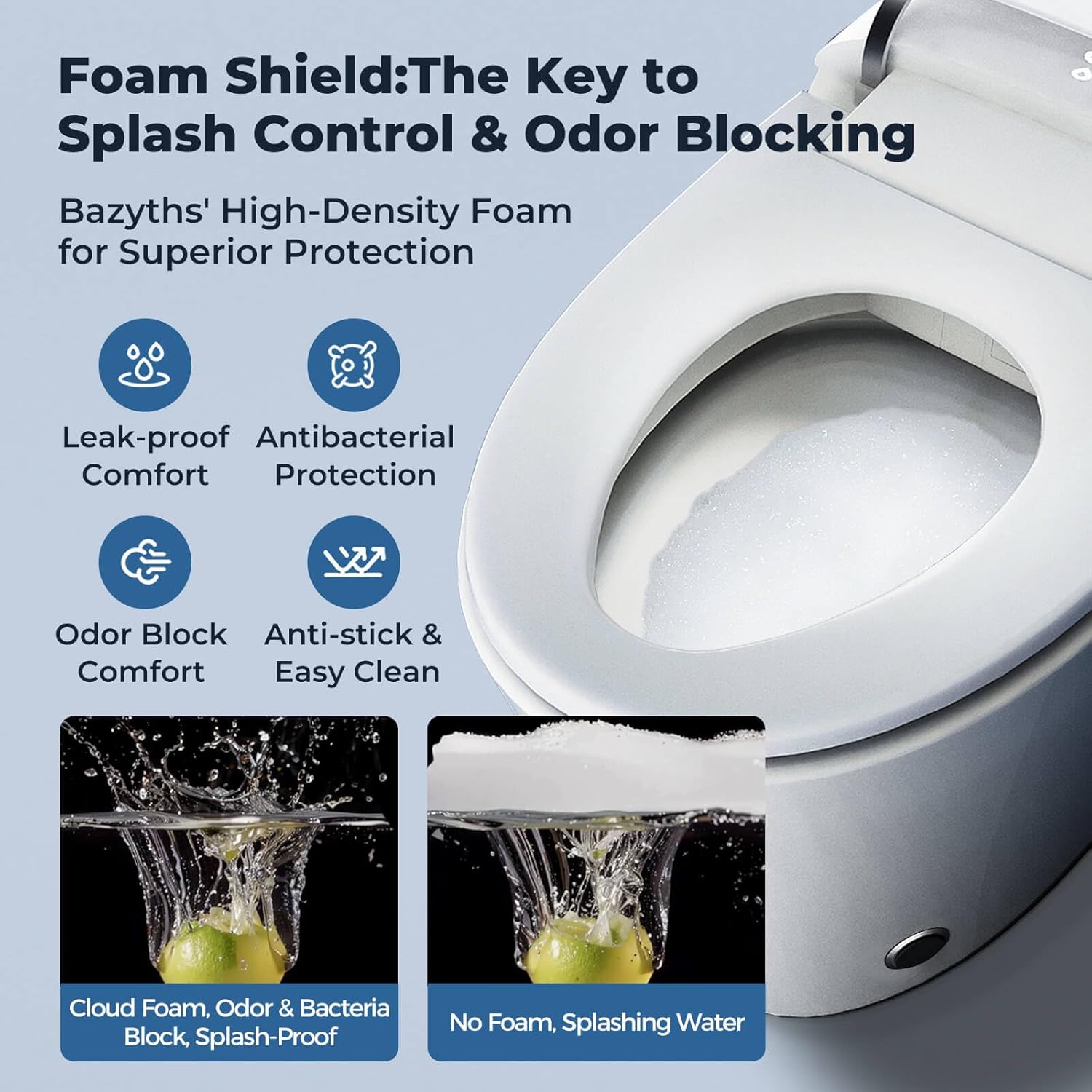

Image: Visual representation of the foam shield's benefits, including splash prevention and odor control.

6.3 Bidet Functions (Rear & Front Warm Water Cleaning)

• Choose from Rear wash, Feminine wash, Oscillating wash, and Warm/Cool wash modes.
• Adjust spray position, water temperature (Normal, 95°F, 100°F, 104°F), and pressure via the remote control.
• The nozzle self-cleans before and after each use and is detachable for thorough cleaning.

Billede: Detaljeret view of the automatic cleaning features, including bidet functions and nozzle self-cleaning.

6.4 Warm Air Dryer

• Experience quicker and more efficient drying with a 3-minute cycle.
• Offers four adjustable temperature settings: Room temperature, 95°F, 113°F, 131°F.

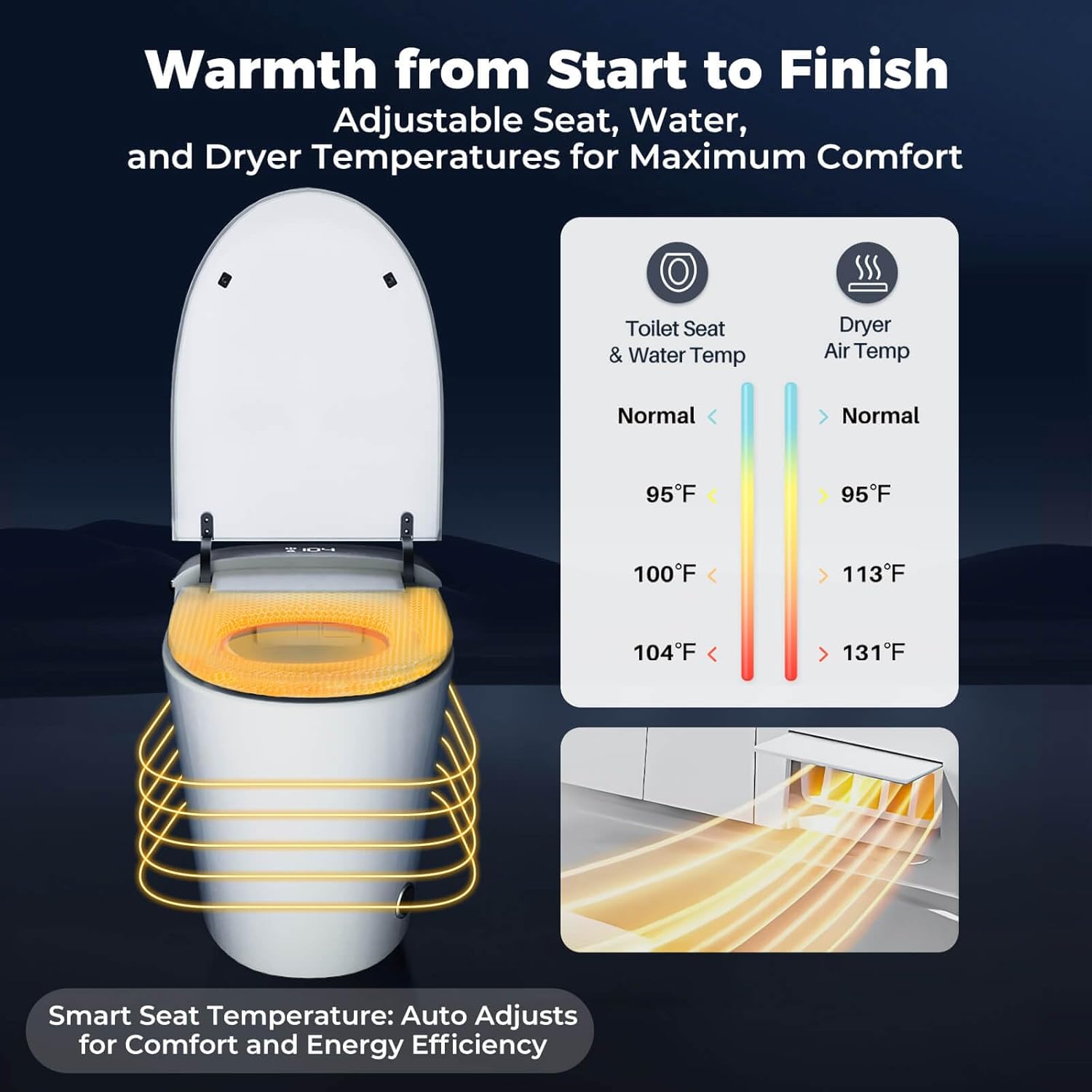

Image: Visual guide to the adjustable heated seat and warm air dryer temperatures.

6.5 Opvarmet sæde

• The seat includes built-in temperature sensors that automatically adjust the seat temperature based on room temperature.
• Adjustable temperature settings: Room temperature, 95°F, 100°F, 104°F.

6.6 Nightlight & LED Display

• A gentle nightlight provides guidance in the dark.
• The LED display shows current settings and status.

Image: The frameless LED display and the subtle nightlight providing illumination in a dark bathroom setting.

6.7 Remote Control & Side Control Buttons

• Effortlessly manage all toilet features using the included remote control.
• Side control buttons offer quick access to essential functions like front/rear wash and stop/flush.

Image: Close-up of the intelligent side control buttons and the comprehensive remote control.

6.8 Power-Off Flushing

• I tilfælde af en magt outage, the toilet can still be flushed by pressing the designated button, provided the backup batteries are installed.

Image: The power-off flushing mechanism, showing the backup battery box and activation button.

7. Vedligeholdelse

7.1 Dyserengøring

• Dysen udfører en automatisk selvrensningscyklus før og efter hver brug.
• For deeper cleaning, the nozzle is detachable. Refer to the user manual for detailed instructions on removal and reattachment.

7.2 Foam Shield Refill

• The foam shield agent is housed in a removable container at the back of the toilet.
• To refill, gently remove the back panel, detach the empty container, and replace it with a new Bazyths Foam Shield Cleaner bottle.

7.3 Generel rengøring

• Wipe the soiled area with a dried soft cloth. Avoid abrasive cleaners or harsh chemicals.
• It is recommended that the filter be cleaned once a month (refer to the manual for filter location).

8. Fejlfinding

• Ingen strøm/funktionalitet: Check if the power cord is securely plugged into a grounded outlet. Ensure the circuit breaker is not tripped.
• Fjernbetjeningen reagerer ikke: Re-pair the remote control following the instructions in Section 5.4. Check remote batteries.
• Svag flush: Verify that the water supply valve is fully open. Ensure the built-in tank is filling correctly. The ZYS1 is designed to operate under zero water pressure conditions due to its built-in tank and pump.
• Låget åbner/lukker ikke automatisk: Check for obstructions around the sensor area. Ensure the sensor is clean.
• Water Stains Inside Toilet Upon Unboxing: This is normal. To ensure quality and functionality, a water test is conducted on each toilet before shipping. Any residual water is harmless.
• Small Cracks in Unglazed Areas: Small cracks in unglazed areas are normal and occur due to the high-temperature firing process at 1280°C. These do not affect quality, cause leakage, or impact performance.

9. Garanti og support

For warranty information, please refer to the documentation included with your purchase or visit the Bazyths official website. For technical support or assistance with any issues not covered in this manual, please contact Bazyths customer service.

Bazyths Customer Support:

• Besøg Bazyths Store on Amazon
• Se kontaktoplysningerne på din produktemballage.
