Brugermanual til RC 265 mm akselafstandschassis

1. Produktet er slutview

The Generic RC 265mm Wheelbase Chassis is a high-quality, durable frame designed for 1:10 scale RC models, specifically compatible with HSP 94123 series. This chassis is ideal for DIY enthusiasts looking to build or upgrade their remote-controlled vehicles.

Constructed from premium materials, it features a robust design for enhanced stability and performance. The chassis incorporates a 4-piece shock-absorbing strut system to effectively reduce bumps during operation, ensuring a smoother ride and improved handling. The aluminum alloy motor base, manufactured using CNC process technology, provides stable motor fixation and exceptional durability. A carbon fiber chassis plate is included to protect against accidental scratching.

The metal drive shafts offer high hardness and polishing properties, contributing to the overall quality and longevity of the frame. This kit is designed for easy assembly and operation, providing an engaging building experience and superior performance for your RC car.

Figure 1.1: Fully assembled RC 265mm Wheelbase Chassis, showcasing its robust design and blue aluminum components.

2. Pakkens indhold

Upon opening the package, please verify that all components are present and undamaged. The standard package includes:

• 1 Piece 1/10 RC Car Chassis Frame Body Set (Tires Color Randomly, if included in your specific variant)
• Main chassis plate (carbon fiber)
• Aluminum alloy motor base
• 4 shock-absorbing struts
• Metal drive shafts
• Various suspension arms, steering components, and differential housings
• Assorted screws, nuts, and small hardware for assembly

Figur 2.1: Overview of the various components included in the RC chassis kit, showing the main chassis plate, suspension parts, and hardware.

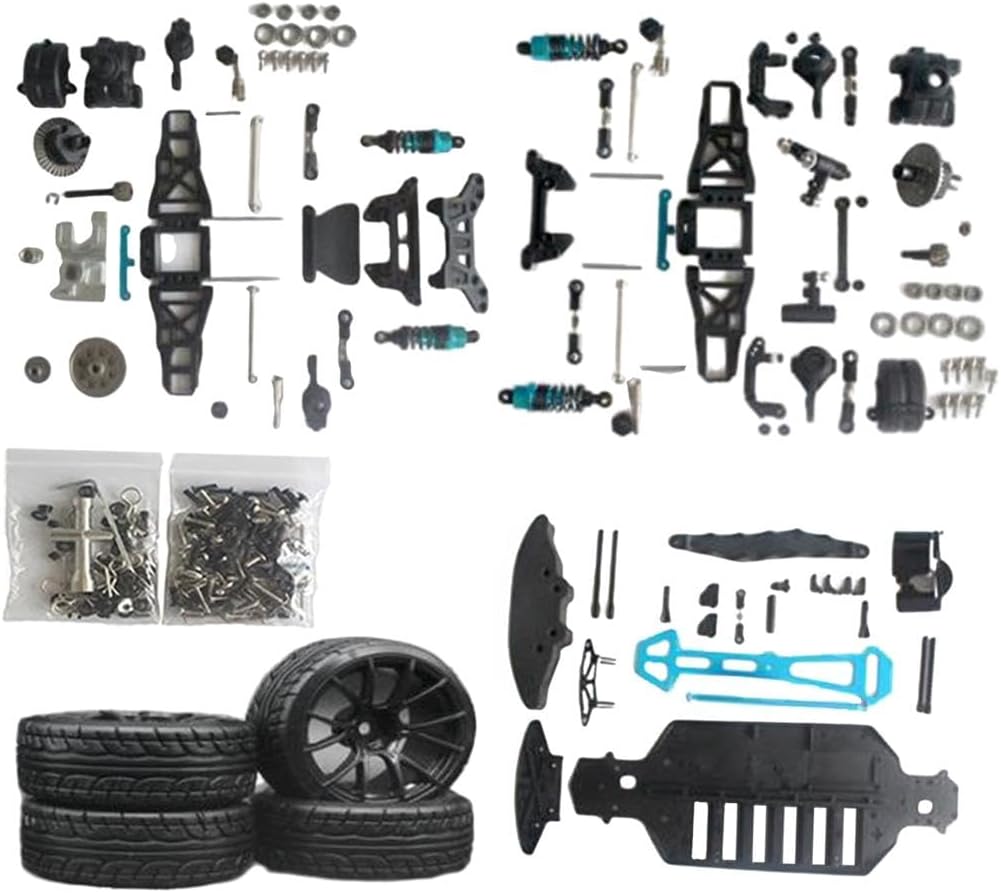

Figure 2.2: A more detailed view of the kit components, including the chassis, suspension, and additional parts, with tires shown for variants that include them.

3. Monteringsvejledning

This chassis is designed for DIY assembly. Please follow these general steps. Refer to detailed diagrams or specific instructions provided with your motor, ESC, and other electronic components for a complete build.

1. Forbered dit arbejdsområde: Ensure a clean, well-lit area with all tools readily accessible. Organize all parts from the kit.
2. Chassis Base Assembly: Begin by attaching the main suspension arms and differential housings to the carbon fiber chassis plate. Ensure all screws are tightened securely but do not overtighten.
3. Shock Absorber Installation: Install the four shock-absorbing struts onto the suspension towers. Ensure they are properly oriented and move freely.
4. Drive Shafts and Axles: Assemble the metal drive shafts and connect them to the differential outputs and wheel axles. Verify smooth rotation.
5. Motor Mount and Steering Assembly: Attach the aluminum alloy motor base to the chassis. Install the steering servo and connect the steering linkages. Ensure the steering mechanism operates smoothly without binding.
6. Wheel and Tire Installation (if applicable): If your kit includes wheels and tires, mount them onto the axles.
7. Afsluttende inspektion: Before installing electronics, perform a thorough inspection. Check all screws for tightness, ensure all moving parts operate smoothly, and confirm there is no excessive play in any joints.

Figure 3.1: Various stages and configurations of the chassis, illustrating different assembly options or completed builds with varying wheel types.

4. Opsætning og kalibrering

Once the chassis is assembled, the next steps involve installing and calibrating your RC car's electronics (motor, ESC, servo, receiver, battery). These steps are crucial for optimal performance.

• Motor- og ESC-installation: Securely mount your chosen motor to the aluminum motor base. Connect the motor to the Electronic Speed Controller (ESC) according to the ESC manufacturer's instructions.
• Servoinstallation: Install the steering servo into its designated mount. Connect the servo horn to the steering linkages.
• Receiver and Battery Placement: Mount the receiver in a secure location, away from electrical interference. Place the battery in its tray, ensuring it is balanced for optimal weight distribution.
• Radio System Binding and Calibration: Bind your receiver to your transmitter. Calibrate the ESC and servo endpoints according to their respective manuals to ensure full range of motion and proper throttle response.
• Suspension Tuning: Adjust the shock absorbers and spring tension to suit your driving style and terrain. Ensure equal ride height on all four corners.
• Hjuljustering: Check and adjust toe-in/toe-out settings for optimal steering response and tire wear.

5. Driftsvejledninger

While this product is a chassis, its proper operation depends on the complete RC vehicle build. Always adhere to general RC operating safety guidelines.

• Pre-Run Checks: Before each use, inspect all screws for tightness, check battery charge, and ensure all electronic connections are secure.
• Sikkert driftsmiljø: Operate your RC vehicle in open areas, away from people, pets, and obstacles. Avoid public roads.
• Batterisikkerhed: Always use appropriate chargers for your battery type. Never leave charging batteries unattended. Disconnect batteries when not in use.
• Undgå overophedning: Monitor motor and ESC temperatures during operation. Excessive heat can damage components.
• Post-Run Care: After use, clean the chassis of dirt and debris. Inspect for any damage or loose parts.

6. Vedligeholdelse

Regular maintenance will extend the lifespan and performance of your RC chassis.

• Rensning: After each run, especially in dusty or dirty conditions, clean the chassis using a soft brush or compressed air. Avoid water directly on electronics.
• Screw Checks: Periodically check all screws and fasteners for tightness. Vibrations can cause them to loosen over time.
• Bearing and Bushing Inspection: Inspect bearings and bushings for smooth operation. Replace any that feel gritty or show excessive play.
• Shock Absorber Maintenance: Check shock oil levels and seals. Refill or replace as needed to maintain consistent damping.
• Drive Train Inspection: Examine drive shafts, gears, and differentials for wear or damage. Lubricate moving parts as recommended by your specific component manufacturers.
• Dæk- og hjulinspektion: Check tires for wear and tears. Ensure wheels are securely mounted and not warped.

7. Fejlfinding

This section addresses common issues you might encounter with the chassis components. For issues related to electronics, refer to the respective component manuals.

8. Specifikationer

Key technical specifications for the RC 265mm Wheelbase Chassis:

9. Garanti og support

For specific warranty information, please refer to the documentation provided by the retailer or manufacturer at the time of purchase. As a DIY component, warranty coverage may vary depending on the specific parts and your assembly process.

For technical support or inquiries regarding replacement parts, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.

For general RC hobbyist resources and community support, consider visiting online forums or local hobby shops.
