Defiant Castle Satin Nickel Entrance Door Handleset with Interior Knob

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your Defiant Castle Satin Nickel Entrance Door Handleset with Interior Knob. Designed for residential use, this handleset meets or exceeds ANSI Grade 3 Standards, offering durability and resistance to rust and tarnishing. It features an exterior handle with a key lock and an interior knob, providing secure entry and exit for your home.

The handleset is ambidextrous, fitting both left and right-handed doors, and includes an EZ fit latch for versatile backset accommodation. For enhanced security, this handleset can be paired with a separate deadbolt (not included).

2. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• Exterior Handleset (with key lock and thumb latch)
• Indvendig knap
• Låsemekanisme
• Slagplade
• Mounting Hardware (screws, spindle)
• Nøgler

Note: A separate deadbolt is not included with this handleset and must be purchased separately if desired for additional security.

3. Specifikationer

4. Opsætning og installation

Installation of the Defiant Castle Handleset is designed to be straightforward, often requiring only a screwdriver for replacement installations. Follow these general steps:

1. Forbered døren: Ensure your door has standard bore holes. If replacing an existing handleset, remove the old hardware.
2. Installer låsen: The EZ fit latch accommodates both 2-3/8 inch and 2-3/4 inch backsets. Adjust the latch as needed. The latch features a radius faceplate and can be converted to a drive-in style if required. Insert the latch into the door edge and secure it with screws.
3. Installer udvendigt håndtag: Position the exterior handleset onto the door, aligning the spindle through the latch mechanism. Ensure the keyhole and thumb latch are correctly oriented. The design features no exposed screws on the exterior side for a clean appearance.
4. Installer indvendig knap: Place the interior knob assembly onto the door, aligning it with the exterior handleset and latch. Secure both sides using the provided mounting screws. Tighten screws firmly but do not overtighten.
5. Installer låseplade: Monter slutblekket på dørkarmen, og juster det med låsebolten. Fastgør med skruer.
6. Test drift: Close the door and test the handleset's locking and unlocking functions from both the interior and exterior. Ensure smooth operation.

Figure 1: Defiant Castle Satin Nickel Entrance Door Handleset installed on a wooden door, showing the exterior handle with keyhole and thumb latch.

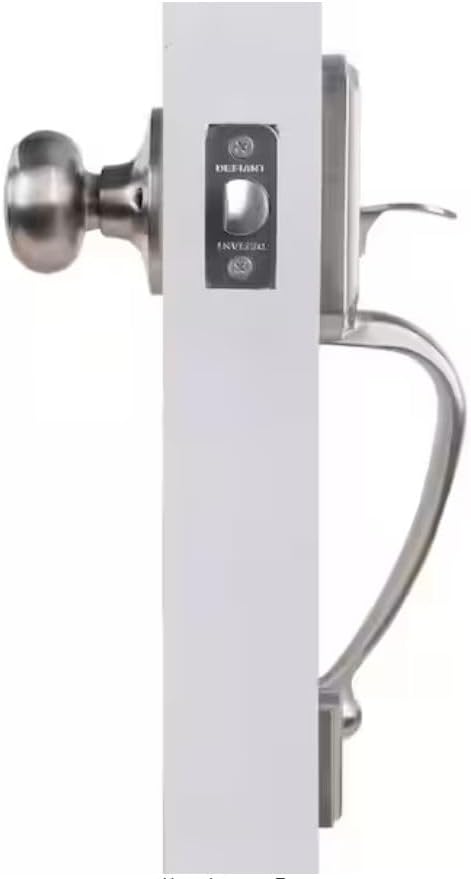

Figur 2: Side view of the Defiant Castle Handleset installed on a white door, illustrating the latch mechanism and interior knob.

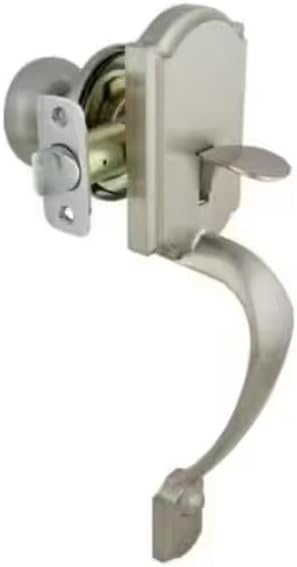

Figure 3: Components of the Defiant Castle Handleset, including the exterior handle, interior knob, latch, and mounting hardware.

5. Betjening

• Opening from Exterior: Insert the key into the keyhole and turn to unlock. Depress the thumb latch to retract the bolt and open the door.
• Opening from Interior: Turn the interior knob to retract the bolt and open the door.
• Locking from Exterior: Close the door. Turn the key to lock the handleset. Remove the key.
• Locking from Interior: Close the door. Rotate the turn-button on the interior knob to lock the handleset.

6. Vedligeholdelse

• Rensning: Rengør håndgrebet regelmæssigt med en blød kludamp klud. Undgå slibende rengøringsmidler, opløsningsmidler eller barske kemikalier, da disse kan beskadige overfladen.
• Smøring: Periodically apply a small amount of graphite lubricant to the keyway to ensure smooth key operation. Do not use oil-based lubricants as they can attract dirt.
• Tilspændingsskruer: Kontrollér og spænd alle monteringsskruer med jævne mellemrum for at sikre, at håndtaget forbliver sikkert fastgjort til døren.

7. Fejlfinding

• Håndtaget er løst: Check and tighten all mounting screws. Ensure the spindle is correctly engaged.
• Key is Difficult to Turn: Apply graphite lubricant to the keyway. Ensure the key is fully inserted. Check for any obstructions in the keyway.
• Latch Does Not Retract Fully: Verify that the latch mechanism is installed correctly and not obstructed. Ensure the strike plate is properly aligned with the latch bolt.
• Døren låser ikke: Check the alignment of the strike plate on the door frame. Adjust if necessary to ensure the latch bolt fully engages.

8. Garanti og support

This Defiant Castle Satin Nickel Entrance Door Handleset is backed by a Begrænset livstidsgaranti. This warranty covers defects in material and workmanship under normal use. For warranty claims or technical support, please refer to the contact information provided with your purchase documentation or visit the official Defiant webwebsted.

Gem venligst din købsbevis for at validere garantien.
