Gappo køkkenvask instruktionsmanual

1. Introduktion og overview

Thank you for choosing the Gappo 32 x 19 Inch Stainless Steel Undermount Kitchen Sink. This manual provides essential information for the safe and proper installation, operation, and maintenance of your new kitchen sink. Please read these instructions thoroughly before beginning installation or use, and retain this manual for future reference.

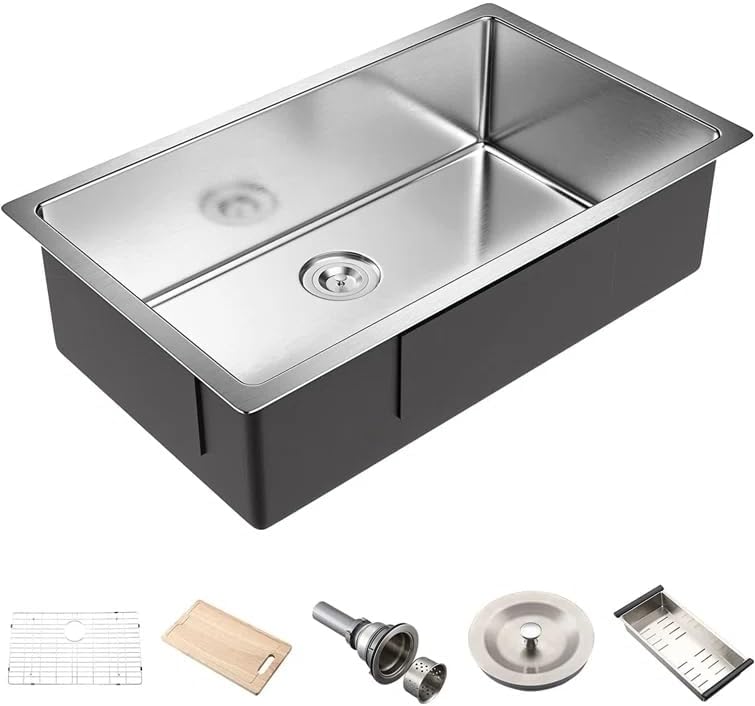

Figure 1.1: Gappo Stainless Steel Undermount Kitchen Sink and Accessories

This image displays the Gappo 32x19 inch stainless steel undermount kitchen sink, showcasing its sleek design and the various accessories that come with it, including a drain strainer, a wooden cutting board, and a roll-up drying rack, all designed to enhance kitchen functionality.

2. Produktfunktioner

The Gappo kitchen sink is designed with functionality and durability in mind, offering a premium experience for your kitchen workspace.

• Integrated Workstation: Features a single-tier track with overhanging lips that act as a track for sliding built-in accessories, converting your sink into a versatile workspace.
• Premium tilbehør: Includes a solid wooden cutting board, a deep stainless steel colander, and a dish-drying roll-up rack that slides conveniently on the ledges.
• Effektiv dræning: Equipped with a 304 stainless steel drain strainer, featuring a large diameter and stainless steel filter for fast water filtration and resistance to clogging.
• Robust konstruktion: The drying rack is welded from 304 stainless steel rebar with a 2mm thickness, capable of supporting up to 40kg.
• Materiale af høj kvalitet: Constructed from food-grade 304 stainless steel with a polishing coating process. The sink thickness is 16 gauge (1.5mm) for enhanced noise reduction.
• Holdbart design: Every corner features a round design to minimize wear. The back of the sink is covered with powder painting to prevent scratches.
• Functional Accessories Details: The 3.2cm pure natural oak cutting board undergoes a fumigation process and 200,000 cutting tests for durability and hygiene. The 1mm thick stainless steel shelf is food-grade and chrome-plated for a polished finish.

Figure 2.1: Sink Features in a Kitchen Setting

This image shows the Gappo kitchen sink integrated into a modern kitchen countertop, emphasizing its spacious design and the practical use of its accessories, such as the drying rack and colander, which contribute to an organized and efficient workspace.

3. Pakkens indhold

Please verify that all components are present and undamaged upon opening the package. If any items are missing or damaged, please contact Gappo customer support immediately.

• Gappo 32 x 19 Inch Stainless Steel Undermount Kitchen Sink
• Solid Wooden Cutting Board
• Deep Stainless Steel Colander / Shelf
• Dish-Drying Roll-Up Rack
• 304 Stainless Steel Drain Strainer Assembly
• Mounting Hardware (clips, screws, etc.)
• Installation Template (typically included for undermount sinks)

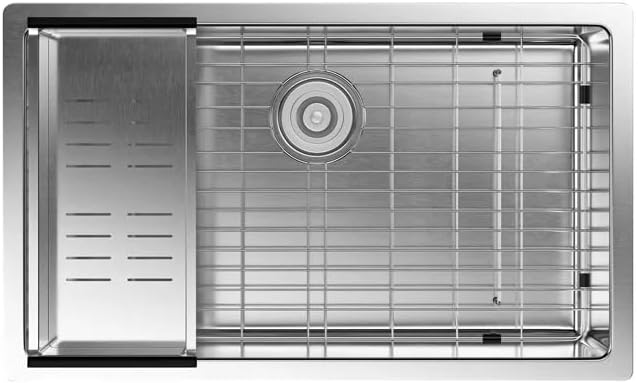

Figure 3.1: Sink with Grid and Colander

This image provides a top-down perspective of the Gappo kitchen sink, clearly showing the stainless steel grid covering the main basin and the colander positioned on the side ledge, illustrating how these accessories fit within the sink's design.

4. Sikkerhedsoplysninger

Please observe the following safety precautions during installation and use to prevent injury or damage.

• Sluk altid for hovedvandforsyningen, inden du påbegynder VVS-arbejde.
• Brug passende personlige værnemidler (PPE), herunder sikkerhedsbriller og handsker, under installationen.
• Handle the sink with care; stainless steel edges can be sharp.
• Ensure the countertop material is suitable for an undermount sink and can support its weight when filled with water.
• Hvis du er usikker på nogen del af installationsprocessen, skal du kontakte en kvalificeret VVS-installatør eller professionel installatør.
• Opbevar emballagematerialer utilgængeligt for børn for at forhindre kvælningsfare.

5. Opsætning og installation

Undermount sink installation typically requires professional expertise. The following steps are a general guide. Always refer to the specific instructions provided with your mounting hardware and consult a professional if needed.

5.1. Kontrol før installation

1. Verify sink dimensions (31.5"D x 18.9"W x 8.7"H) against your cabinet and countertop cutout.
2. Ensure all necessary tools and materials are available (sealant, drill, clamps, mounting clips, etc.).
3. Clean the underside of the countertop and the top flange of the sink thoroughly.

Figure 5.1: Sink Dimensions

This diagram illustrates the precise measurements of the Gappo kitchen sink, including its length (31.5 inches), width (18.9 inches), and depth (8.7 inches), along with the 1-inch flange, crucial for proper installation planning.

5.2. Installationstrin

1. Forbered bordpladen: Use the provided template to mark and cut the opening in your countertop. Ensure the edges are smooth and clean.
2. Påfør tætningsmiddel: Apply a continuous bead of silicone sealant or plumber's putty around the rim of the sink where it will meet the countertop.
3. Position Vask: Løft forsigtigt vasken op, og juster den med bordpladens åbning nedefra. Tryk godt ned for at sikre god kontakt med fugemassen.
4. Fastgør med klips: Attach the mounting clips to the sink's rim and tighten them against the underside of the countertop. Distribute clips evenly for secure support.
5. Tilslut VVS: Install the drain strainer assembly into the sink's drain opening. Connect the P-trap and other plumbing lines according to local codes.
6. Vandtest: Once all connections are secure, turn on the water supply and check for any leaks around the drain, connections, and sink rim.

6. Betjeningsvejledning

Your Gappo kitchen sink is designed for daily use and offers enhanced functionality with its integrated accessories.

6.1. Using the Main Basin

• The deep single bowl design provides ample space for washing large pots and pans.
• The 16-gauge stainless steel construction ensures durability and resistance to daily wear.

6.2. Utilizing Integrated Accessories

The sink's single-tier track allows for seamless integration of the included accessories:

• Wooden Cutting Board: Place the cutting board on the sink's ledges to create an extended food preparation area directly over the sink, allowing for easy disposal of scraps.
• Stainless Steel Colander/Shelf: Slide the colander onto the ledges for rinsing fruits and vegetables, draining pasta, or holding utensils while washing.
• Roll-Up Drying Rack: Unroll the rack over the sink to air-dry dishes, glasses, or produce. It can be easily rolled up and stored when not in use.

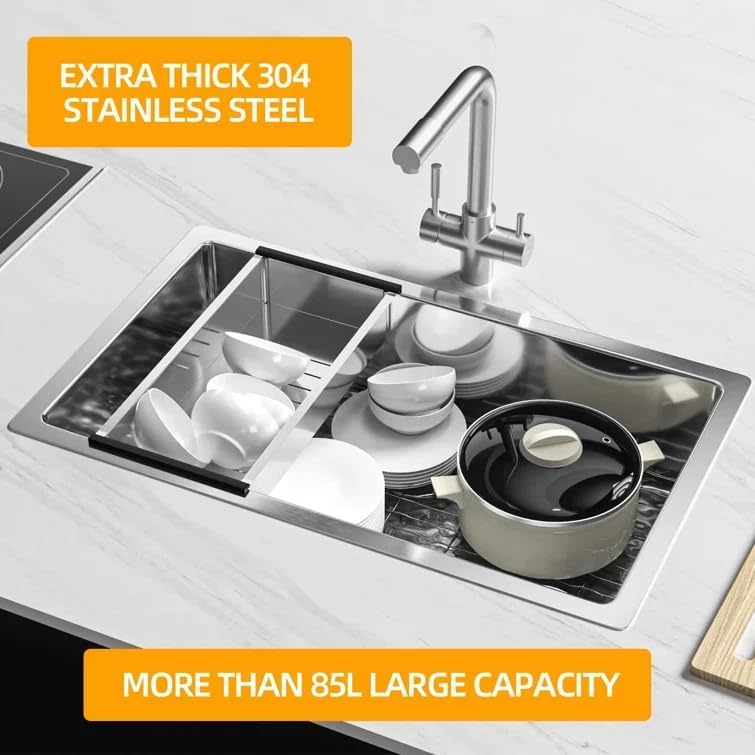

Figure 6.1: Sink with Accessories in Use

This image demonstrates the Gappo kitchen sink in active use, with dishes and bowls neatly arranged on the integrated drying rack and within the colander, showcasing the sink's generous capacity and how its accessories facilitate efficient kitchen tasks.

6.3. Afløbssi

• The included drain strainer effectively catches food particles, preventing clogs in your plumbing.
• Regularly remove and clean the strainer to maintain optimal drainage.

7. Vedligeholdelse og pleje

Proper care will ensure the longevity and appearance of your Gappo kitchen sink.

7.1. Stainless Steel Sink Care

• Daglig rengøring: After each use, rinse the sink thoroughly with water to remove food particles and soap residue. Wipe dry with a soft cloth to prevent water spots and mineral buildup.
• Regelmæssig rengøring: For deeper cleaning, use a mild dish soap or a specialized stainless steel cleaner with a soft sponge or cloth. Always rub in the direction of the grain.
• Undgå slibemidler: Do not use abrasive cleaners, steel wool, or scouring pads, as these can scratch the surface and damage the finish.
• Forebyg pletter: Avoid leaving acidic foods (e.g., citrus, tomatoes) or harsh chemicals (e.g., bleach, drain cleaners) in contact with the sink surface for extended periods. Rinse immediately if contact occurs.
• Rustforebyggelse: While 304 stainless steel is highly rust-resistant, prolonged exposure to iron particles (e.g., from cast iron cookware) or certain chemicals can cause surface rust. Remove any rust spots promptly with a non-abrasive stainless steel cleaner.

7.2. Tilbehørspleje

• Wooden Cutting Board: Hand wash with mild soap and water. Do not soak or put in a dishwasher. Dry immediately and apply food-grade mineral oil periodically to prevent drying and cracking.
• Stainless Steel Colander/Rack: Wash with mild soap and water. These can typically be cleaned in a dishwasher, but hand washing is recommended for longevity.
• Drain Strainer: Regularly remove food debris from the strainer basket. Clean with a brush and mild soap to prevent buildup and odors.

8. Fejlfinding

This section addresses common issues you might encounter with your Gappo kitchen sink.

9. Specifikationer

Detailed technical specifications for the Gappo Kitchen Sink.

10. Garanti og support

Gappo is committed to providing high-quality products. While specific warranty details are typically provided with your purchase documentation, Gappo products generally come with a manufacturer's warranty covering defects in materials and workmanship.

For warranty claims, technical assistance, or any questions regarding your Gappo kitchen sink, please contact Gappo customer support through the retailer where you purchased the product or visit the official Gappo webwebsted for kontaktoplysninger.

Please have your model number (Y39001-US) and proof of purchase ready when contacting support.
