1. Produktet er slutview
This manual provides essential information for the installation, operation, and maintenance of the RATION SteShaft Assembly, designed as a direct replacement for part number 34260-16201. This assembly is specifically engineered for compatibility with Kubota L2600 and L285 tractor models, ensuring smooth operation and reliable performance.

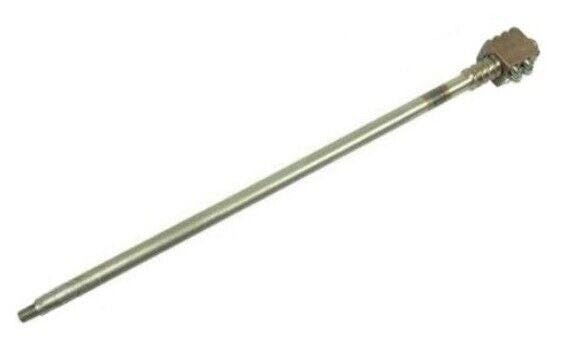

Figur 1: RATION SteShaft Assembly. This image displays the full length of the SteShaft assembly, highlighting its elongated shaft and the connection mechanism at one end, indicating its role as a critical component in agricultural machinery.
Nøglefunktioner:
- Direct replacement for Kubota part number 34260-16201.
- Engineered for precise fit and function in Kubota L2600 and L285 tractors.
- Ensures smooth operation and reliable performance of the steering mechanism.
- Manufactured with precision for durability and longevity.
- Designed to meet or exceed original equipment specifications.
2. Opsætning og installation
Proper installation is crucial for the safe and effective operation of your equipment. It is recommended that installation be performed by a qualified technician. Always refer to your tractor's official service manual for specific instructions and safety precautions.
Generelle installationstrin:
- Sikkerhed først: Ensure the tractor is turned off, parked on a level surface, and the parking brake is engaged. Disconnect the battery to prevent accidental startup.
- Access the Steering Mechanism: Locate and carefully remove any covers or components obstructing access to the existing SteShaft assembly.
- Fjern gammel samling: Disconnect all linkages and fasteners securing the old SteShaft assembly. Note the orientation and connections for reassembly.
- Efterse komponenter: Before installing the new assembly, inspect surrounding components for wear or damage. Replace any worn parts as necessary.
- Installer ny samling: Carefully position the RATION SteShaft Assembly into place. Secure it with appropriate fasteners, ensuring all connections are tight and properly aligned.
- Genopret forbindelser: Reattach all steering linkages and ensure they move freely without binding.
- Saml og test igen: Reinstall any removed covers or components. Reconnect the battery. Perform a functional test of the steering system at a low speed in a safe, open area before full operation.
For detailed diagrams and torque specifications, consult the Kubota L2600 or L285 service manual.
3. Driftsmæssige overvejelser
Once installed, the RATION SteShaft Assembly operates as an integral part of your tractor's steering system. No special operating procedures are required beyond the standard operation of your Kubota L2600 or L285 tractor.
Vigtige bemærkninger:
- Always operate your tractor according to the manufacturer's guidelines.
- Avoid excessive force on the steering wheel, as this can prematurely wear components.
- If you notice any unusual noises, stiffness, or play in the steering, cease operation immediately and inspect the system.
4. Vedligeholdelse
Regular maintenance helps ensure the longevity and optimal performance of your SteShaft Assembly and the overall steering system.
Anbefalet vedligeholdelsesplan:
- Every 50 Hours of Operation / Annually: Inspect all steering linkages and connections for looseness, wear, or damage. Tighten any loose fasteners.
- Efter behov: Clean the assembly to prevent accumulation of dirt and debris, which can lead to premature wear.
- Smøring: Refer to your tractor's service manual for specific lubrication points and intervals related to the steering system. Ensure any grease fittings are properly serviced.
If any significant wear or damage is observed, replace the affected components promptly to maintain steering integrity.
5. Fejlfinding
This section provides basic troubleshooting steps for common issues related to the steering system. For complex problems, consult a qualified technician.
| Symptom | Mulig årsag | Løsning |
|---|---|---|
| Excessive play in steering wheel | Loose connections or worn bushings/bearings in steering column or linkages. | Inspect and tighten all fasteners. Check for worn components and replace as necessary. |
| Stiff or difficult steering | Lack of lubrication, binding components, or damaged steering gear. | Lubricate all grease points. Inspect for obstructions or bent linkages. If issue persists, professional inspection is recommended. |
| Unusual noises during steering | Worn bearings, dry joints, or interference with other components. | Identify the source of the noise. Lubricate moving parts. Check for proper clearance around the SteShaft assembly. |
6. Specifikationer
Technical specifications for the RATION SteShaft Assembly.
| Attribut | Detalje |
|---|---|
| Fabrikant | RATIONERE |
| Varenummer (erstatter) | 34260-16201 |
| Kompatible traktormodeller | Kubota L2600, Kubota L285 |
| ASIN | B0DTKRCHCD |
| Materiale | High-grade steel alloy (typical for such components) |
| Dimensioner | Refer to product images and original part specifications for precise measurements. |
7. Garanti og support
Information regarding product warranty and customer support is not available within the scope of this manual. Please refer to the product packaging, purchase documentation, or the RATION official webwebstedet for detaljer om garantidækning og hvordan du kontakter kundesupport for at få hjælp.
For technical inquiries or assistance with installation, it is recommended to consult a certified agricultural machinery technician or the official Kubota service manual for your specific tractor model.
