Blue-Bot Programmable Floor Robot User Manual

Indledning

The See and Say Blue-Bot is a programmable floor robot designed to introduce control and programming concepts in an engaging and interactive manner. This manual provides detailed instructions for setting up, operating, and maintaining your Blue-Bot, along with its accompanying TacTile Code Reader and TacTile Standard Extension Pack. It is an ideal tool for fostering computational thinking and problem-solving skills in educational environments.

The Blue-Bot can communicate with other Blue-Bots and Bee-Bots, promoting teamwork. Its transparent design allows users to observe the internal mechanisms, sparking curiosity about technology. The robot aligns with Key Stages 1 and 2 Computing curriculum, supporting learning in programming, debugging, and algorithm understanding.

Produktkomponenter

Your Blue-Bot package includes the following components:

• 6x Blue-Bot Programmable Rechargeable Robot (See & Say Version)
• 1x TacTile Code Reader with 25x Blue-Bot Tiles
• 1x TacTile Standard Extension Pack (25 pieces)

Figur 1: Overview of the Blue-Bot kit components, including multiple robots, the TacTile Code Reader, and various programming tiles.

Opsætningsvejledning

1. Blue-Bot Robot Setup

• Opladning: Before first use, fully charge your Blue-Bot using the provided USB cable. Connect the cable to the charging port on the robot and a compatible USB power source. The charging indicator light will show the charging status.
• Tænd: Locate the power switch on the underside of the Blue-Bot and slide it to the 'ON' position. The robot will emit a sound and its eyes will light up, indicating it is ready for use.

Figur 2: En detaljeret view of the Blue-Bot robot, highlighting its transparent design and control interface.

2. TacTile Code Reader Setup

• Opladning: The TacTile Code Reader is rechargeable. Connect it to a USB power source using its charging cable.
• Tænd: Turn on the TacTile Code Reader.
• Connecting to Blue-Bot: Ensure your Blue-Bot is powered on. On the TacTile Code Reader, press the "Connect" button. Wait for the blue light on the reader to illuminate, indicating a successful connection with the Blue-Bot. You can connect up to three readers for longer programs.

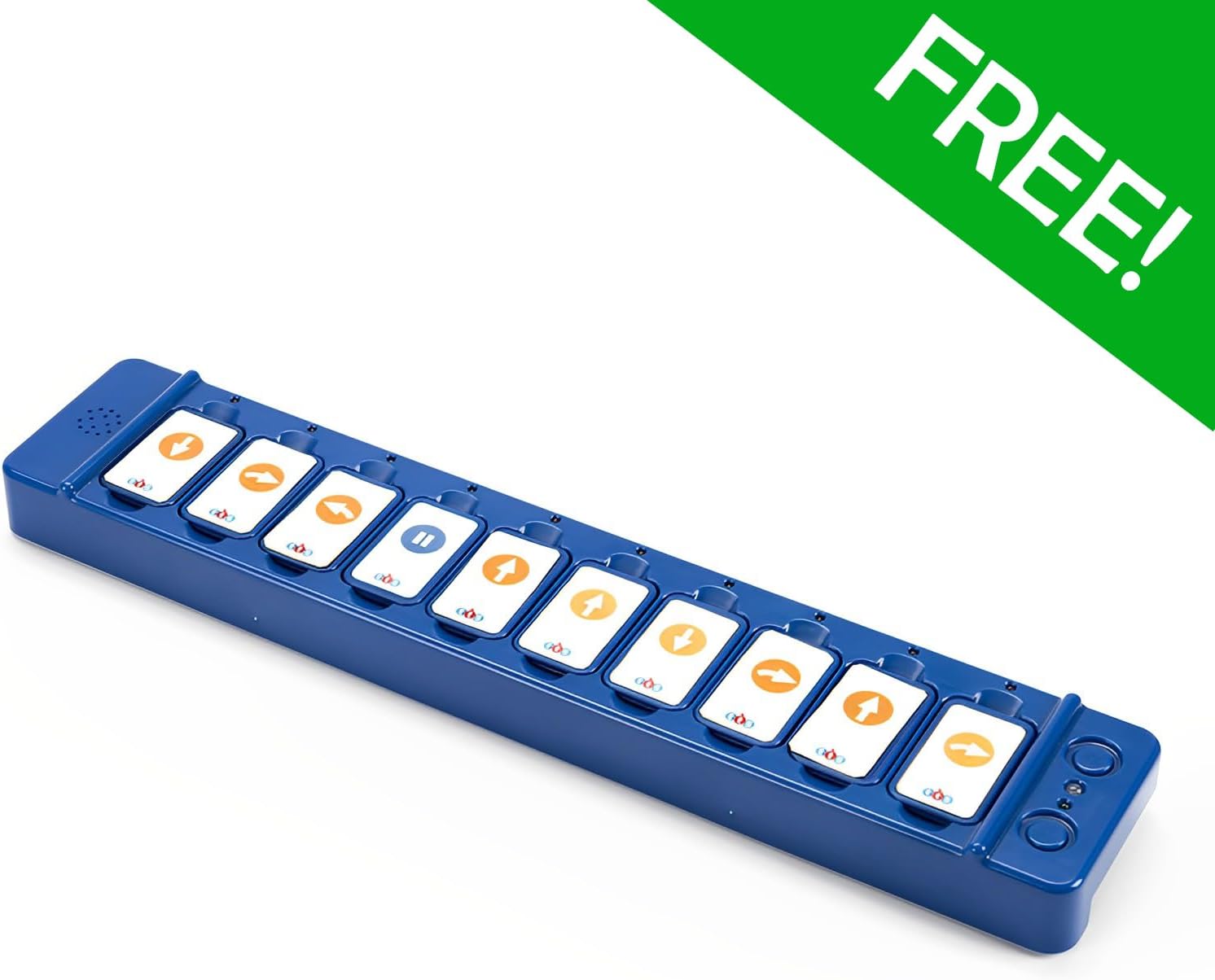

Figure 3: The TacTile Code Reader, ready for programming with inserted tiles.

Betjeningsvejledning

1. Basic Blue-Bot Operation (On-Board Buttons)

The Blue-Bot can be programmed directly using the buttons on its back:

• Pile frem/tilbage: Move the Blue-Bot one step forward or backward.
• Venstre/højre pile: Rotate the Blue-Bot 90 degrees left or right.
• Pause Button (||): Inserts a pause in the program.
• Clear (X) Button: Clears the current program sequence.
• Gå-knap: Executes the programmed sequence.

Figure 4: Blue-Bot's control panel with directional and action buttons.

2. Programming with the TacTile Code Reader

The TacTile Code Reader offers an alternative and intuitive method for programming your Blue-Bot:

• Arrange Tiles: Select the desired TacTile programming cards (e.g., forward, turn, pause) and arrange them in the slots of the TacTile Code Reader in the sequence you want the Blue-Bot to follow.
• Udfør program: Once the tiles are arranged, press the "Go" button on the TacTile Code Reader. The Blue-Bot will then execute the program precisely as instructed by the tiles.
• Modify Program: If a mistake is made or you wish to change the program, simply rearrange or swap the tiles in the reader and press "Go" again.

Figure 5: Demonstrating the placement of a programming tile into the TacTile Code Reader.

Figure 6: A child engaging with the Blue-Bot and TacTile Code Reader for interactive learning.

3. Using the TacTile Extension Pack

The Extension Pack adds advanced functionality to your programming:

• 45-Degree Turn Tiles: Introduce more precise directional control.
• Repeat Loop Tiles (e.g., x2, x3): Simplify complex algorithms by repeating a sequence of commands multiple times.
• Integrate these tiles into your TacTile Code Reader sequences to explore more complex programming concepts and spatial awareness.

Figure 7: TacTile Extension Pack tiles, offering advanced programming commands.

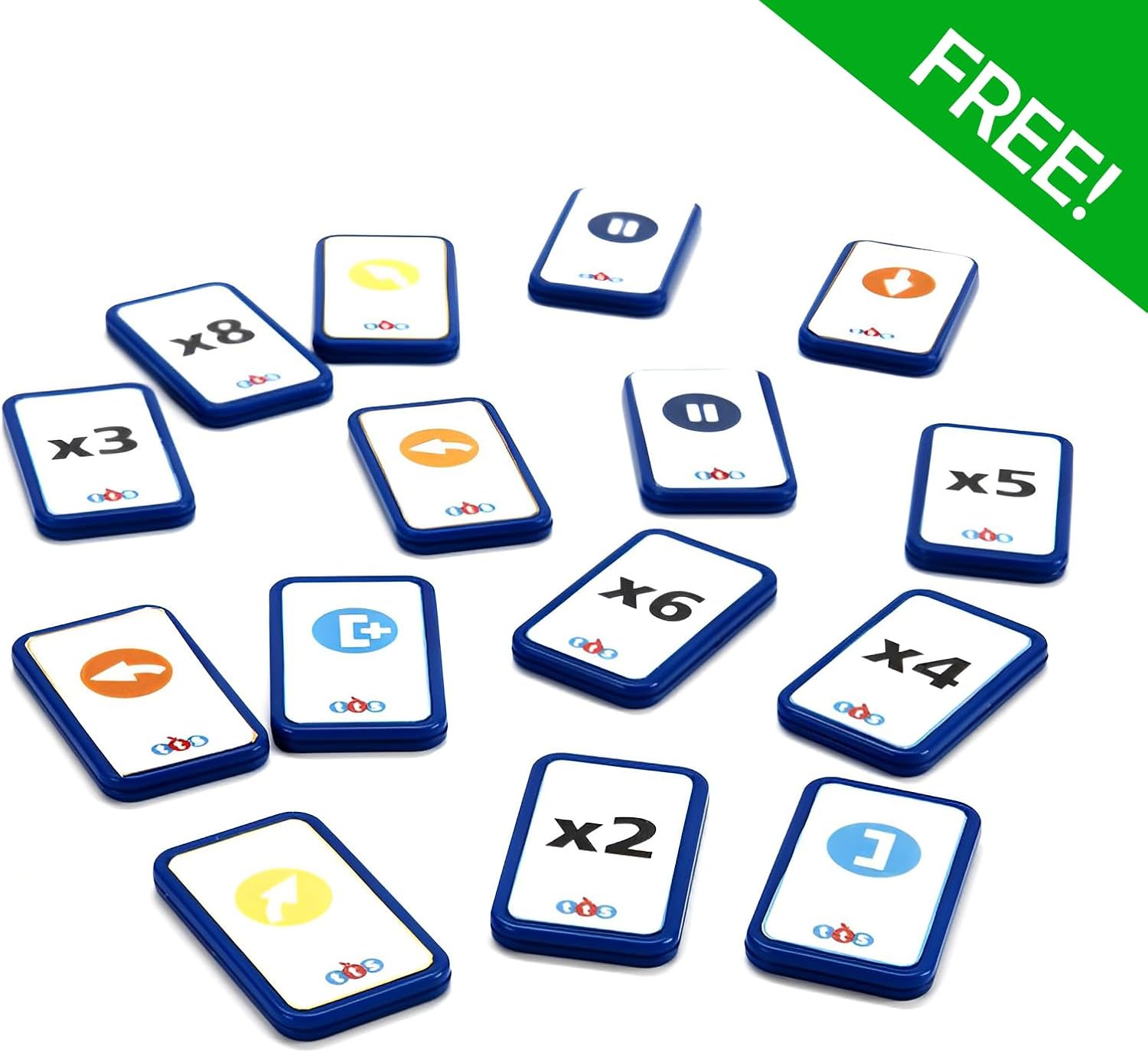

Figur 8: Detaljeret view of individual TacTile Extension Pack cards.

4. Bluetooth Connectivity (Tablet Integration)

The Blue-Bot features Bluetooth functionality for enhanced programming experiences:

• Download the official Blue-Bot app on your compatible tablet device.
• Sørg for, at Bluetooth er aktiveret på din tablet.
• Open the Blue-Bot app and follow the on-screen instructions to connect to your Blue-Bot. This allows for secure and innovative programming without personal data collection.

Figure 9: Programming the Blue-Bot via a tablet application.

Opretholdelse

• Rensning: Wipe the Blue-Bot and TacTile components with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• Opbevaring: Store the Blue-Bot and its accessories in a cool, dry place away from direct sunlight and extreme temperatures.
• Batteripleje: For optimal battery life, avoid fully discharging the Blue-Bot and TacTile Code Reader frequently. Recharge them regularly.

Fejlfinding

Specifikationer

Garanti og support

For garantioplysninger og teknisk support henvises til producentens officielle webwebstedet eller kontakt deres kundeserviceafdeling. Gem din købsbevis til eventuelle garantikrav.

Manufacturer: Terrific Teaching Solutions
