VEVOR 4ft Bypass Sliding Door Hardware Kit

1. Introduktion

This instruction manual provides detailed guidance for the installation, operation, and maintenance of your VEVOR 4ft Bypass Sliding Door Hardware Kit. This heavy-duty aluminum alloy system is designed for two door panels, each with a thickness of 1 3/8" to 1 3/4" and a width of 24.5". The kit supports a maximum weight of 150 lbs (68 kg). Its robust construction ensures smooth, quiet, and stable door movement, making it suitable for various residential and office applications.

Image: VEVOR Bypass Sliding Door Hardware Kit in use.

2. Produktspecifikationer

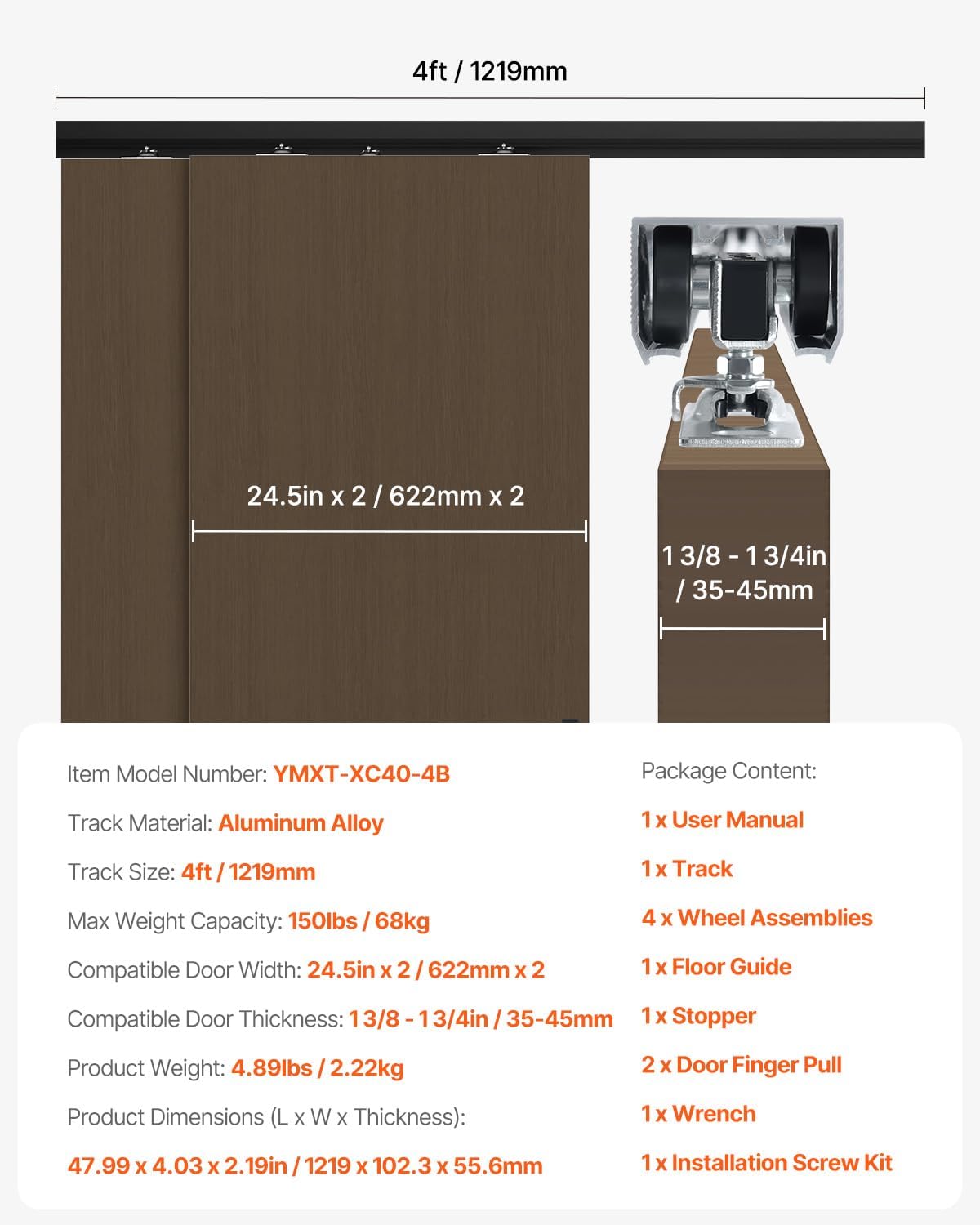

Image: Compatible Door Size and Specifications.

3. Pakkens indhold

The VEVOR 4ft Bypass Sliding Door Hardware Kit includes the following components:

• 1 x brugermanual
• 1 x Track
• 4 x hjulsamlinger
• 1 x Floor Guide
• 1 x Stopper
• 2 x Door Finger Pull
• 1 x nøgle
• 1 x monteringsskruesæt

Image: Package Contents Overview.

4. Sikkerhedsoplysninger

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in injury or damage to the product or property. Keep this manual for future reference.

• Brug altid passende sikkerhedsudstyr, herunder sikkerhedsbriller og handsker, under installationen.
• Ensure the mounting surface (wall studs, header) is structurally sound and capable of supporting the weight of the doors and hardware.
• Use the correct tools for each step as specified in the instructions.
• Hold børn og kæledyr væk fra arbejdsområdet under installationen.
• Overskrid ikke den maksimale vægtkapacitet på 68 kg.
• Ensure all fasteners are securely tightened before operating the doors.

5. Opsætning og installation

The VEVOR Bypass Sliding Door Hardware Kit is designed for straightforward installation. For a visual guide, please refer to the official installation video below. Detailed steps are also provided.

Installationstrin:

1. Forbered åbningen: Ensure your door opening meets the minimum height and width requirements. The minimum height should be door height plus 4-1/2" (114mm). The width should be 2X door width plus 1" (25mm).
2. Install the Track: Secure the track to the top of the door frame. Ensure it is level and properly aligned.
3. Install Hangers on Doors: Attach the wheel hangers to the top edge of each door panel. Ensure they are securely fastened and positioned correctly for smooth operation.
4. Mount Doors to Track: Carefully lift each door panel and engage the wheel hangers with the track. Ensure the doors slide freely.
5. Vejledning til montering af gulv: Position and secure the floor guide to the floor directly beneath the door opening. This prevents the doors from swinging out.
6. Installer stopklodser: Adjust and install the stoppers at the ends of the track to prevent the doors from sliding too far.

Image: Easy Installation Steps.

Image: Quiet and Smooth Sliding Hangers.

Image: High-Quality Aluminum Alloy Track.

6. Betjeningsvejledning

Once installed, your VEVOR Bypass Sliding Doors operate by gently pushing or pulling the door panels along the track. The three-wheel hangers with heavy-duty ball bearings ensure a smooth and quiet gliding motion. Use the integrated finger pulls for easy opening and closing.

• To open a door, gently slide it in the desired direction.
• To close a door, slide it back until it meets the stopper or the other door panel.
• Avoid forcing the doors, as this can damage the hardware or door panels.

Image: Installed Bypass Doors in a Bedroom.

7. Vedligeholdelse

Regular maintenance will ensure the longevity and smooth operation of your bypass door hardware.

• Rensning: Wipe the aluminum track and wheel assemblies with a soft, damp klud til at fjerne støv og snavs. Undgå slibende rengøringsmidler.
• Smøring: Periodically apply a silicone-based lubricant to the wheel bearings and track to maintain smooth gliding. Do not use oil-based lubricants, as they can attract dirt.
• Inspektion: Regularly check all screws and fasteners for tightness. Re-tighten any loose components to prevent misalignment or damage.
• Dørjustering: If doors become misaligned, refer to the installation section or the video for adjustment procedures.

8. Fejlfinding

If you encounter issues with your VEVOR Bypass Sliding Door Hardware, refer to the following common problems and solutions:

• Døre sidder fast eller er svære at åbne:
  • Check the track for debris or obstructions and clean thoroughly.
  • Apply silicone lubricant to the track and wheel bearings.
  • Inspect wheel assemblies for damage or wear; replace if necessary.
  • Verify the track is level and securely mounted.
• Overdreven støj under drift:
  • Lubricate the track and wheel bearings.
  • Ensure all fasteners are tight, especially those securing the hangers to the doors and the track to the frame.
  • Check for any loose components or parts rubbing against each other.
• Doors are misaligned:
  • Adjust the height of the door panels using the adjustment mechanism on the hangers.
  • Ensure the floor guide is properly aligned and secured.
  • Verify the track is level and straight.
• Doors come off the track:
  • Ensure the stoppers are correctly installed and adjusted.
  • Check that the hangers are fully engaged with the track.
  • Inspect the track for any damage or bending.

9. Garanti og support

For warranty information or technical support, please contact VEVOR customer service through their official website or the retailer where the product was purchased. Please have your model number (YMXT-XC40-4B) and purchase details ready when contacting support.
