JYFORNWC TV Motherboard TP.MS638.PC822 User Manual

1. Introduktion

This manual provides essential information and instructions for the installation, operation, and maintenance of the JYFORNWC TV Motherboard, specifically model TP.MS638.PC822. This product is designed as a replacement component for compatible television sets to restore or improve functionality.

2. Sikkerhedsoplysninger

Please read and understand all safety instructions before attempting installation or repair. Failure to follow these instructions may result in electric shock, fire, or damage to the product or other components.

• Afbryd strømmen: Always unplug the television from the power outlet before opening the TV casing eller udfører nogen form for installation.
• Statisk elektricitet: Electronic components are sensitive to static discharge. Use an anti-static wrist strap or discharge static electricity by touching a grounded metal object before handling the motherboard.
• Professionel installation anbefales: Installation of TV motherboards requires technical knowledge and experience. If you are not confident in your ability to perform the installation safely, seek assistance from a qualified technician.
• Håndteres med forsigtighed: Undgå at berøre de integrerede kredsløb og stikkene direkte. Hold kortet i kanterne.
• Ventilation: Ensure proper ventilation around the TV after installation to prevent overheating.

3. Produktet er slutview

The JYFORNWC TV Motherboard is a critical component responsible for controlling various functions of your television, including image processing, audio output, and input/output management. This specific model, TP.MS638.PC822, is compatible with several TV models, including TP.HV530.PC821 and TP.HV510.PC822.

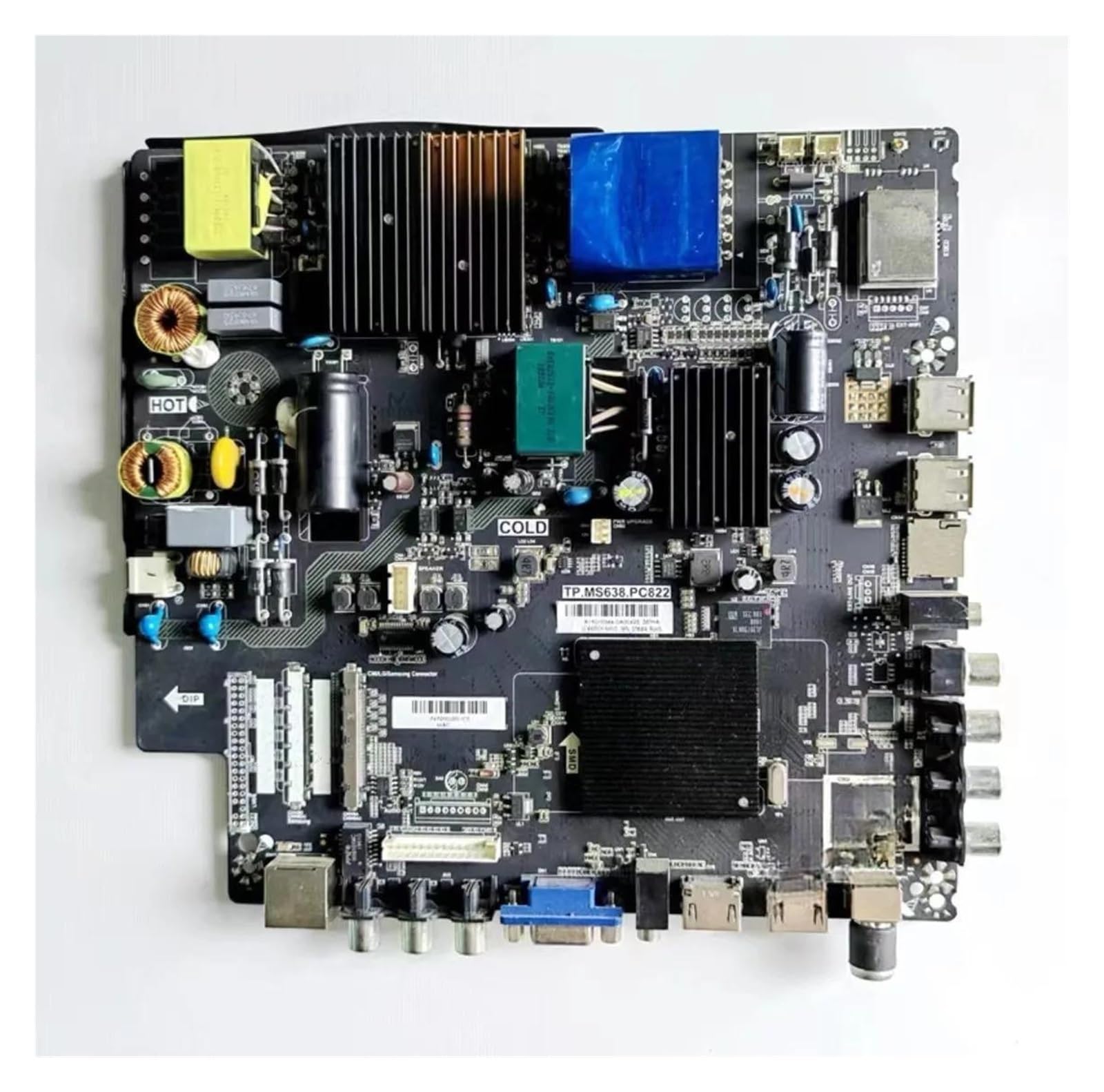

Figure 1: JYFORNWC TV Motherboard (Model TP.MS638.PC822). This image shows the main circuit board with various components and connectors.

4. Opsætning og installation

This section outlines the general steps for replacing a TV motherboard. Specific procedures may vary depending on your TV model. Always refer to your TV's service manual for detailed instructions.

4.1. Forberedelse

• Gather necessary tools: screwdrivers (Phillips, flathead), anti-static wrist strap, plastic prying tools, clean workspace.
• Ensure the TV is unplugged from all power sources and external devices.
• Placer tv'et med forsiden nedad på en blød, ren overflade for at beskytte skærmen.

4.2. Installationstrin

1. Carefully remove the back cover of the television. Document screw locations if necessary.
2. Find det eksisterende bundkort. Tag billeder af alle kabelforbindelser, før du frakobler dem.
3. Disconnect all cables and ribbon connectors from the old motherboard. Handle connectors gently to avoid damage.
4. Unscrew and remove the old motherboard from the TV chassis.
5. Carefully place the new JYFORNWC TP.MS638.PC822 motherboard into position, ensuring it aligns with the mounting holes.
6. Fastgør det nye bundkort med de passende skruer. Undgå at overspænde.
7. Reconnect all cables and ribbon connectors to their correct ports on the new motherboard, referring to your photos. Ensure all connections are firm and secure.
8. Before replacing the back cover, perform a preliminary test by plugging in the TV and checking for basic functionality (power on, display).
9. If the test is successful, unplug the TV again and reattach the back cover.

5. Betjening

The motherboard functions as the central processing unit for your television. Once correctly installed, it enables all standard TV operations, including power management, signal processing from various inputs (HDMI, USB, etc.), and output to the display panel and speakers. No direct user operation is performed on the motherboard itself; its function is integrated into the TV's overall system.

6. Vedligeholdelse

Korrekt vedligeholdelse kan forlænge levetiden på dit tv og dets komponenter, inklusive bundkortet.

• Fjernelse af støv: Periodically clean the interior of your TV to prevent dust buildup on the motherboard and other components. Use compressed air or a soft brush. Ensure the TV is unplugged before cleaning.
• Ventilation: Sørg for, at TV'ets ventilationsåbninger ikke er blokerede, så der er korrekt luftgennemstrømning og varmeafledning.
• Undgå væsker: Keep liquids away from the television to prevent spills that could damage internal electronics.

7. Fejlfinding

Replacing the TV motherboard can resolve several common television malfunctions. If you experience issues after installation, consider the following:

• No Power/Black Screen:
  • Kontroller, at alle strømkabler er korrekt tilsluttet.
  • Kontroller, om stikkontakten fungerer.
  • Ensure all internal connectors to the motherboard are firmly seated.
• Flimrende skærm:
  • Inspect ribbon cables connecting the motherboard to the display panel for proper connection and damage.
  • Confirm the motherboard model is compatible with your TV's display panel.
• No Audio/Video from Inputs:
  • Ensure external devices are correctly connected to the TV's input ports.
  • Verify the TV's input source selection is correct.

If issues persist, re-check all installation steps or consult a professional technician.

8. Specifikationer

9. Garanti og support

This product is typically covered by a return policy. For this specific purchase, a 30 dages returret is generally applicable from the date of receipt. Please refer to your purchase documentation for exact terms and conditions.

For technical support or inquiries regarding compatibility, please contact the seller, songxdian, or the brand, JYFORNWC, through the platform where the purchase was made. Additional protection plans (e.g., 3-Year or 4-Year Protection Plans) may be available for separate purchase to extend coverage beyond the standard return period.
