KORAD KA3005D-23 Precision Variable Adjustable 30V, 5A DC Linear Power Supply - User Manual

1. Introduktion

The KORAD KA3005D-23 is a heavy-duty, single-channel linear DC power supply designed for precision applications in labs, colleges, and production environments. It offers continuously adjustable voltage and current settings with low ripple and noise, high reliability, and high accuracy. This manual provides detailed instructions for the safe and efficient operation of your KA3005D-23 power supply.

This unit features a bright, easy-to-read 4-digit LED screen displaying voltage, current, and power values. It also includes four memory locations (M1-M4) for storing frequently used settings, and multiple protection features such as over-voltage og overstrømsbeskyttelse.

2. Sikkerhedsoplysninger

Please read all safety instructions carefully before operating the device. Failure to comply with these instructions may result in electric shock, fire, or damage to the device.

• Sørg for, at strømforsyningen er tilsluttet en jordet stikkontakt.
• Brug ikke enheden i vådt eller damp forhold.
• Åbn ikke c'enasing. Der er ingen dele indeni, som kan serviceres af brugeren. Overlad al service til kvalificeret personale.
• Bekræft input voltage selector switch on the rear panel is set correctly for your local power grid (110V or 220V) before connecting to AC power.
• Always turn off the output and disconnect power before making or changing connections to the output terminals.
• Avoid short-circuiting the output terminals for extended periods, even with protection features enabled.
• Use appropriate test leads rated for the voltage and current levels you will be working with.

3. Enhedens funktioner

The KORAD KA3005D-23 is equipped with several features to enhance its functionality and user experience.

Figure 3.1: Unit Features Overview. This image highlights the key features of the KORAD KA3005D-23 power supply, including its power and protection mechanisms, memory settings, bright 4-digit LED display, and switchable power input.

3.1 Power & Protection

• 30V/5A Benchtop Supply: Provides a stable and adjustable DC power source.
• Built-in Over-Current Protection (OCP): Automatically limits current to prevent damage to the connected circuit.
• Built-in Over-Voltage-beskyttelse (OVP): Forhindrer udgangsvolumentage from exceeding a set limit, protecting sensitive components.
• Dedicated On/Off Button: Controls the unit's output, allowing for safe connection and disconnection of loads.

3.2 Memory Settings (M1-M4)

• Four dedicated memory locations allow users to store and recall frequently used voltage and current settings, streamlining repetitive tasks.

3.3 Bright 4-Digit LED Display

• Provides a precise and legible readout of voltage, current, and active settings from various angles.

3.4 Switchable Power Input

• Easily switchable between 110V and 220V on the rear panel to accommodate different regional power standards.

4. Panel overview

Familiarize yourself with the front and rear panels of the KORAD KA3005D-23 power supply.

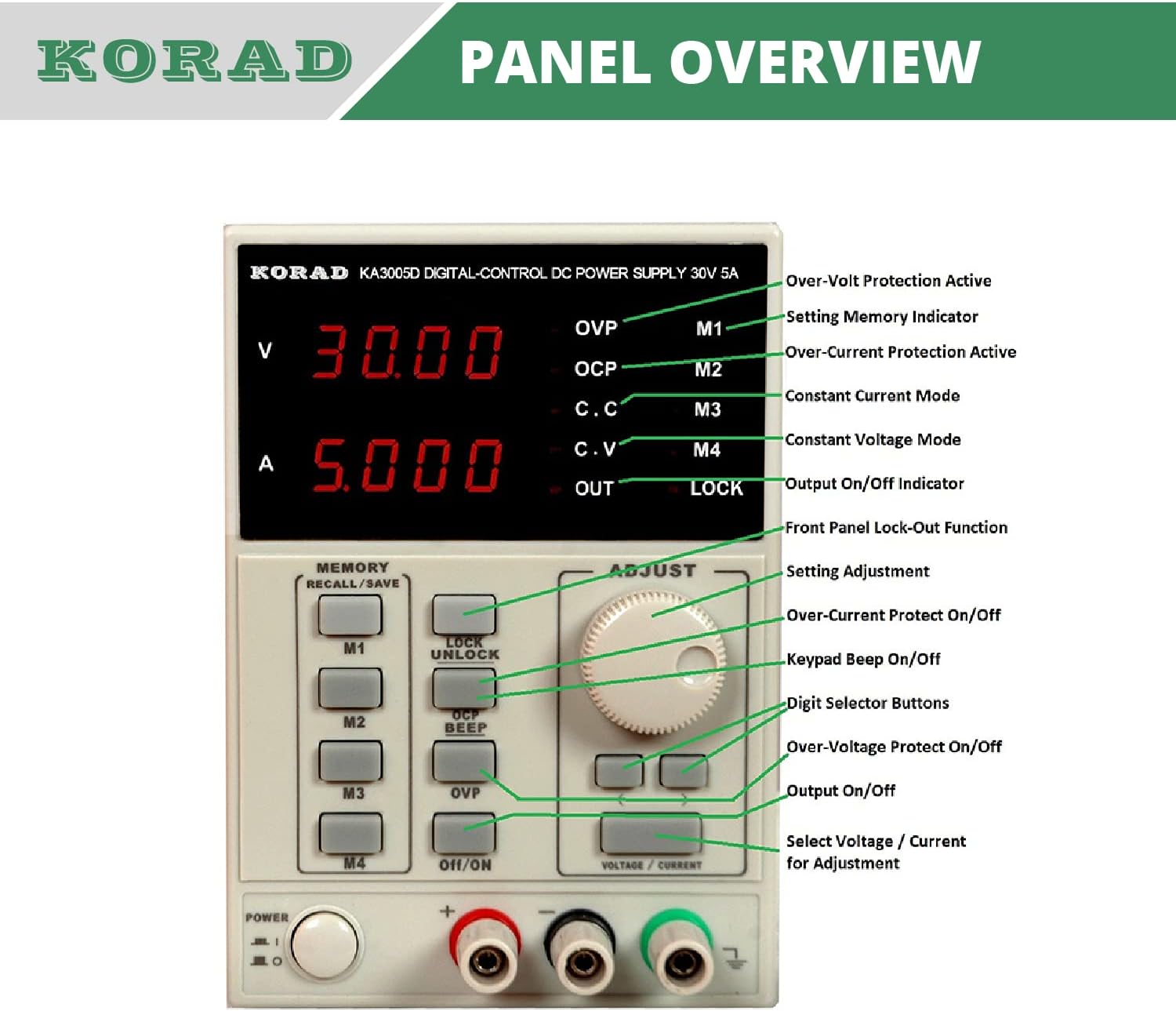

Figur 4.1: Frontpanellayout. Dette billede giver en detaljeret view of the front panel, labeling all indicators, buttons, and controls for easy identification and understanding.

4.1 Kontrol og indikatorer på frontpanelet

4.2 Bagpanel overview

Figure 4.2: Rear Panel Input Voltage Vælger. This image shows the rear panel of the power supply, highlighting the AC power input, the voltage selector switch (110V/220V), and the cooling fan vent.

• AC strømindgang: Standard IEC C14 inlet for connecting the power cord.
• Voltage Vælgerkontakt: Tillader valg mellem 110V og 220V AC-indgang. Ensure this is set correctly before connecting to mains power.
• Køleventilator: Intelligent temperature-controlled fan for efficient heat dissipation.
• USB-port: For PC connectivity and software control (if applicable).

5. Opsætning

1. Udpakning og inspektion: Carefully remove the power supply from its packaging. Inspect the unit for any signs of physical damage. If damage is found, contact your supplier immediately.
2. Input bindtage Valg: Before connecting the power cord, locate the voltage selector switch on the rear panel (refer to Figure 4.2). Ensure it is set to match your local AC mains voltage (110V eller 220V). Forkert indstilling kan beskadige enheden.
3. Strømtilslutning: Tilslut den medfølgende netledning til strømindgangen på bagpanelet og derefter til en jordet stikkontakt.
4. Første gang tændt: Press the main Power button on the front panel. The display should illuminate.
5. Output Terminal Connections: Connect your load to the output terminals (+, -, GND) using appropriate test leads. Ensure proper polarity.


   Figure 5.1: Power Supply with Test Leads. This image shows the KORAD KA3005D-23 power supply along with the included test leads, demonstrating how they connect to the output terminals.

6. Betjeningsvejledning

6.1 Indstilling Voltage og Nuværende

1. Vælg justeringstilstand: Tryk på Voltage/Strøm button to toggle between voltage (V) and current (A) adjustment modes. The corresponding display will show the value to be set.
2. Vælg ciffer: Brug < og > buttons to select the digit you wish to adjust. The selected digit will blink.
3. Juster værdi: Drej på Juster knap clockwise to increase the value and counter-clockwise to decrease it.
4. Aktiver output: Når den ønskede voltage and current limit are set, press the Til/Fra button to activate the output. The OUT indicator will illuminate.

6.2 Hukommelsesfunktioner (M1-M4)

• Gemmer indstillinger: Indstil den ønskede voltage and current. Press and hold one of the M1-M4 buttons for approximately 2 seconds until a beep confirms the setting is saved.
• Genkaldelse af indstillinger: Tryk kort på en af M1-M4 buttons. The stored voltage and current values will be loaded. Note that recalling a setting does not automatically activate the output; you must press the Til/Fra knap.

6.3 Protection Features (OCP, OVP)

• Overstrømsbeskyttelse (OCP): Tryk på OCP button to enable or disable this feature. When enabled, if the output current exceeds the set limit, the output will shut down to protect the load and the power supply. The OCP indicator will illuminate. To reset, clear the fault condition and press the Til/Fra knap.
• Over-bindtage-beskyttelse (OVP): Tryk på OVP button to enable or disable this feature. When enabled, if the output voltage exceeds the set limit, the output will shut down. The OVP indicator will illuminate. To reset, clear the fault condition and press the Til/Fra knap.

6.4 Tastaturlåsfunktion

• For at forhindre utilsigtede ændringer af indstillingerne skal du trykke på og holde LÅS/LÅS OP button for approximately 2 seconds. The LOCK indicator will illuminate, and all front panel controls will be disabled.
• For at låse op skal du trykke på og holde nede LÅS/LÅS OP button again for 2 seconds. The LOCK indicator will turn off.

7. Vedligeholdelse

• Rensning: Afbryd strømforsyningen fra lysnettet før rengøring. Brug en blød, tør klud til at tørre ydersiden af. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Ventilation: Ensure the cooling fan vents on the rear panel are clear of obstructions to allow for proper airflow.
• Opbevaring: When not in use for extended periods, store the unit in a dry, dust-free environment.
• Udskiftning af sikring: If the unit does not power on, check the fuse located near the AC input on the rear panel. Replace only with a fuse of the same type and rating (e.g., 5A 250V for 110V input, 3A 250V for 220V input). Refer to the fuse holder for specific ratings.

8. Fejlfinding

9. Specifikationer

Figure 9.1: Technical Specifications Table. This image provides a comprehensive table of the KORAD KA3005D-23's electrical specifications, including voltage and current ranges, load regulation, and ripple.

Figure 9.2: Unit Dimensions. This image illustrates the physical dimensions and weight of the KORAD KA3005D-23 power supply.

Note: Specifications are subject to change without notice. For the most up-to-date information, please refer to the manufacturer's official webwebsted.

10. Garanti og support

Specific warranty terms and conditions for the KORAD KA3005D-23 power supply are typically provided with the product packaging or available on the manufacturer's official webwebsted. Se venligst disse ressourcer for detaljerede oplysninger om garantidækning, varighed og procedurer for reklamationer.

For technical support, service, or inquiries about replacement parts, please contact KORAD customer service through their official channels. Keep your purchase receipt and product serial number handy when seeking support.
