1. Introduktion
Tak for købetasing the KEGIAN JH-400Y 3-IN-1 Portable Evaporative Air Cooler. This appliance is designed to provide cooling, fan, and humidification functions for indoor and outdoor use. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.

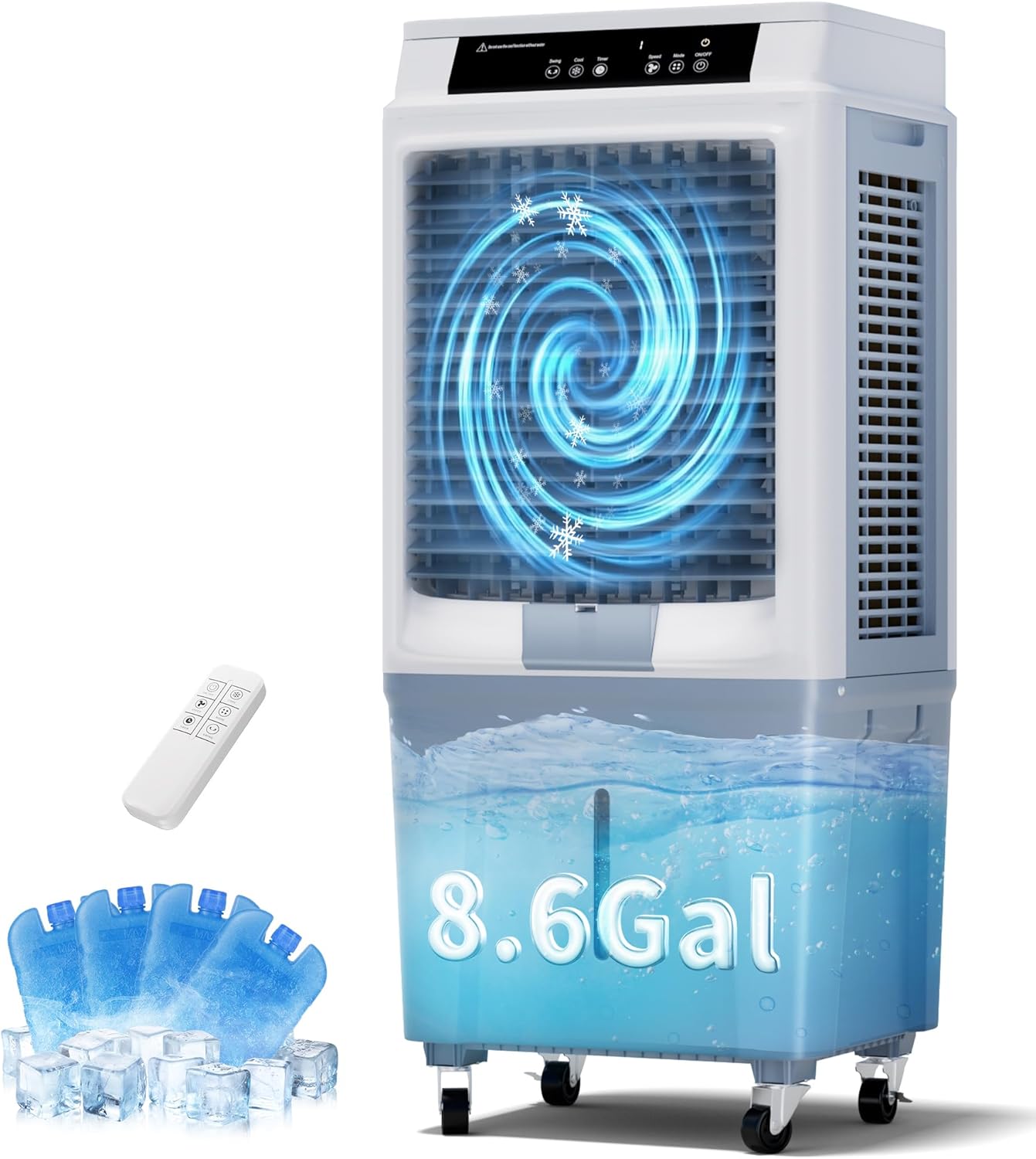

Image 1.1: KEGIAN JH-400Y Evaporative Air Cooler with included remote control and ice packs.
2. Sikkerhedsinstruktioner
For at mindske risikoen for brand, elektrisk stød eller personskade skal du altid følge disse grundlæggende sikkerhedsforanstaltninger:
- Læs alle instruktioner, før du bruger dette apparat.
- Sørg for, at strømforsyningen matcher voltagsom angivet på apparatets typeskilt.
- Do not operate the cooler without water in the tank when using the cooling or humidifying function.
- Always unplug the appliance from the power outlet before cleaning, servicing, or moving it.
- Stik ikke fingre eller fremmedlegemer ind i luftindtaget eller -udtaget.
- Hold apparatet væk fra varmekilder, direkte sollys og brandfarlige materialer.
- Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de er blevet under opsyn eller instruktion i brugen af apparatet af en person, der er ansvarlig for deres sikkerhed. .
- Do not use the appliance if the power cord or plug is damaged. Contact customer service for repair.
- Placer apparatet på en stabil, plan overflade for at forhindre, at det vælter.
3. Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- 1 x KEGIAN JH-400Y Evaporative Air Cooler
- 1 x fjernbetjening
- 4 x isposer
- 1 x Brugermanual (dette dokument)
4. Produktet er slutview
The KEGIAN JH-400Y combines three functions: fan, cooler, and humidifier. It features a user-friendly control panel and remote for convenient operation.
Image 4.1: The 3-in-1 functionality of the evaporative air cooler.
Nøglekomponenter:
- Kontrolpanel: LED display with touch buttons for various settings.
- Luftudtag: Adjustable louvers for airflow direction.
- Vandtank: 8.6-gallon (33-liter) capacity with top-fill design and water level alarm.
- Kølepuder: Three high-density cooling pads for efficient evaporation.
- Hjul: Four 360° casters for easy mobility.
- Fjernbetjening: For bekvem betjening på afstand.
5. Opsætning
5.1 Udpakning
- Tag forsigtigt køleren ud af emballagen.
- Remove all packing materials and ensure no components are left inside the unit.
- Enheden leveres færdigmonteret.
5.2 Placering
Place the cooler on a firm, level surface. Ensure there is adequate space around the unit for proper airflow. The unit is designed for both indoor and outdoor use.
5.3 Påfyldning af vandtanken
Image 5.1: Water tank filling options and ice pack placement.
- Ensure the cooler is unplugged from the power outlet.
- Open the top water fill cover.
- Pour clean water into the tank. Observe the water level indicator on the front of the unit. Do not exceed the 'MAX' line.
- For enhanced cooling, place the provided ice packs (after freezing them) into the designated compartments within the water tank or directly into the water.
- Luk vandpåfyldningsdækslet forsvarligt.
Important: Do not use the cooling or humidifying function without sufficient water in the tank. The unit is equipped with a water level alarm.
6. Betjening
6.1 Kontrolpanel og fjernbetjening
Image 6.1: The digital touch panel and remote control facilitate easy operation.
The cooler can be operated using the touch control panel on the unit or the included remote control. The remote control has a range of up to 28 feet.
6.2 Tænd/sluk
- Sæt netledningen i en standard 120V AC stikkontakt.
- Tryk på ON/OFF knappen på kontrolpanelet eller fjernbetjeningen for at tænde eller slukke enheden.
6.3 Justering af ventilatorhastighed
Tryk på Hastighed button repeatedly to cycle through the three fan speeds:
- Lav
- Medium
- Høj
6.4 Valg af tilstand
Tryk på Mode button repeatedly to select from three operating modes:
- Normal: Konstant luftstrøm ved den valgte hastighed.
- Naturlig: Simulerer naturlig brise med varierende ventilatorhastigheder.
- Køling: Activates the evaporative cooling function, requiring water in the tank. This mode also functions as a humidifier.
6.5 Oscillationsfunktion
Tryk på Svinge button to activate the automatic horizontal oscillation (40°). The vertical airflow can be manually adjusted up to 100°.
Image 6.2: The cooler offers multiple options for customized comfort, including oscillation.
6.6 Timer funktion
Tryk på Timer button to set the automatic shut-off timer. The timer can be set from 1 to 12 hours. Each press increases the timer by one hour.
7. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger levetiden for din fordampningsluftkøler.
7.1 Rengøring af ydersiden
- Tag altid stikket ud af stikkontakten før rengøring.
- Tør de udvendige overflader af med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
7.2 Rengøring af vandtanken
- Tøm eventuelt resterende vand fra tanken.
- The water tank is seamless for easier cleaning. Wipe the inside of the tank with a damp cloth and mild detergent if necessary. Rinse thoroughly.
- Fyld op med frisk vand inden næste brug.
7.3 Cleaning the Cooling Pads and Grills
- The grills and cooling pads are designed to be easily removable for cleaning.
- Carefully remove the back grill and then the cooling pads.
- Rinse the cooling pads under running water to remove dust and mineral deposits. Do not use harsh chemicals.
- Allow the cooling pads to air dry completely before reinserting them.
- Clean the air inlet and outlet grills with a soft brush or vacuum cleaner.
7.4 Opbevaring
If the cooler will not be used for an extended period:
- Drain and clean the water tank and cooling pads thoroughly.
- Ensure all parts are dry.
- Opbevar enheden et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
8. Fejlfinding
If you encounter issues with your KEGIAN JH-400Y, refer to the following table:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke | Ingen strømforsyning; Netledningen er ikke sat korrekt i; Stikkontakten er ikke i stikkontakten. | Check power cord connection; Try a different outlet; Ensure power is on. |
| No cool air / Weak cooling effect | Water tank is empty; Cooling pads are dirty or dry; Room humidity is too high; Air inlet/outlet blocked. | Fill water tank; Clean cooling pads; Add ice packs for enhanced cooling; Ensure proper ventilation; Clear any obstructions. |
| Usædvanlig støj | Unit not on a level surface; Foreign object in fan; Water pump issue. | Place on a level surface; Unplug and check for obstructions (contact support if unable to remove); Contact customer service. |
| Vandlækage | Water tank overfilled; Drain plug not secured; Unit tilted. | Do not exceed 'MAX' water level; Ensure drain plug is tightly closed; Place on a level surface. |
| Fjernbetjening virker ikke | Batterierne er døde eller isat forkert; Blokering mellem fjernbetjening og enhed. | Replace batteries (not included); Ensure clear line of sight to the unit's receiver. |
If the problem persists after attempting these solutions, please contact KEGIAN customer support.
9. Specifikationer
| Feature | Specifikation |
|---|---|
| Modelnummer | JH-400Y |
| Luftstrøm | Op til 3600 CFM |
| Dækningsområde | Op til 800 sq. ft. |
| Vandtankkapacitet | 8.6 gallons (33 liter) |
| Driftstilstande | Normal, Natural, Cooling |
| Blæserhastigheder | 3 (Lav, Medium, Høj) |
| oscillation | 40° Horizontal Auto-Oscillation, 100° Vertical Manual Adjustment |
| Timer | 1-12 timer |
| Støjniveau | Minimum 58 dB |
| Voltage | 120 volt (AC) |
| Wattage | 120 watt |
| Dimensioner (L x B x H) | 30.48 x 43.18 x 96.52 cm (12 x 17 x 38 tommer) |
| Vægt | 12.7 kg (28 lbs) |
| Farve | Hvid |
10. Garanti og support
10.1 Produktgaranti
The KEGIAN JH-400Y Evaporative Air Cooler comes with a free one-year product warranty service from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use.
Garantien dækker ikke:
- Skader forårsaget af forkert brug, uagtsomhed eller ulykke.
- Skader fra uautoriserede reparationer eller ændringer.
- Almindelig slitage.
10.2 Kundesupport
For warranty claims, technical assistance, or any questions regarding your KEGIAN product, please contact our customer support team. Contact information can typically be found on the product packaging or the official KEGIAN webwebsted.
