CTOLITY XP1000 bærbar kraftstation brugermanual

1. Sikkerhedsinstruktioner

Please read and understand all safety instructions before operating the CTOLITY XP1000 Portable Power Station. Failure to follow these instructions may result in electric shock, fire, or serious injury.

Enheden må ikke skilles ad, repareres eller modificeres.
Udsæt ikke enheden for ild eller ekstreme temperaturer.
Avoid contact with liquids. Do not immerse the unit in water.
Brug kun godkendt tilbehør og opladningskabler.
Hold enheden væk fra børn og kæledyr.
Sørg for tilstrækkelig ventilation under brug og opladning for at forhindre overophedning.
Brug ikke enheden, hvis den er beskadiget eller ser ud til at fungere forkert.

2. Pakkens indhold

Bekræft at alle varer er inkluderet i din pakke:

XP1000 bærbar kraftstation
AC -ladekabel (indgang)
Car Input Charging Cable (Car to XT60 Input)
Solar ladekabel (MC4 til XT60 indgang)
Brugermanual

Image showing the contents of the XP1000 package including the power station, AC cable, car charging cable, solar charging cable, and user manual.

Figur 2.1: Hvad er der i æsken

3. Produktet er slutview

The CTOLITY XP1000 is a portable power station featuring a 1024Wh LiFePO4 battery and 1600W AC output (2600W surge). It is designed to provide reliable power for various applications, including outdoor camping, RV travel, and home backup during outages.

Diagram of the CTOLITY XP1000 Portable Power Station with labels for all ports and controls.

Figure 3.1: XP1000 Front Panel Overview

3.1. Porte og kontroller

Power knap: Tænder/slukker enheden.
Liquid Crystal Display (LCD): Viser input/output strøm, batteriprocenttage, remaining charge/discharge time, and status indicators.
AC-udgangsporte (x2): 1600W pure sine wave AC output for household appliances.
USB-A-porte (x4): QC3.0 (18W) for fast charging compatible devices.
USB-C-porte (x2): One PD100W and one PD22.5W for high-speed charging of laptops, tablets, and smartphones.
DC Car Charging Output (x2): 12V output for car-powered devices.
LED lys: Integreret lys med flere tilstande.
XT60-indgangsport: For solar and car charging.
AC-indgangsport: Til vægopladning.

Close-up of the XP1000's intuitive LCD display showing various indicators like input/output power, battery level, and remaining time.

Figure 3.2: Intuitive LCD Display

4. Opsætning

Before first use, ensure the power station is fully charged. Unpack the unit and all accessories. Place the power station on a stable, flat surface with adequate ventilation.

Video 4.1: Unboxing and Initial Setup of the CTOLITY XP1000 Power Station. This video demonstrates opening the package, identifying the included cables (solar, AC, car), and connecting the solar panel to the power station for charging.

5. Opladning af kraftværket

The XP1000 offers multiple charging options:

AC vægudtag: Connect the AC charging cable to the power station's AC input port and then to a standard wall outlet. The unit can fully recharge in approximately 1.2 hours with 1000W AC input.
Solpanel: Connect a compatible solar panel (up to 500W) to the XT60 input port using the provided solar charging cable. The built-in MPPT charge controller optimizes solar input, allowing for a full charge in about 2 hours under optimal sunlight.
Biloplader: Use the car input charging cable to connect the power station to your vehicle's 12V car outlet. This is ideal for recharging on the go.

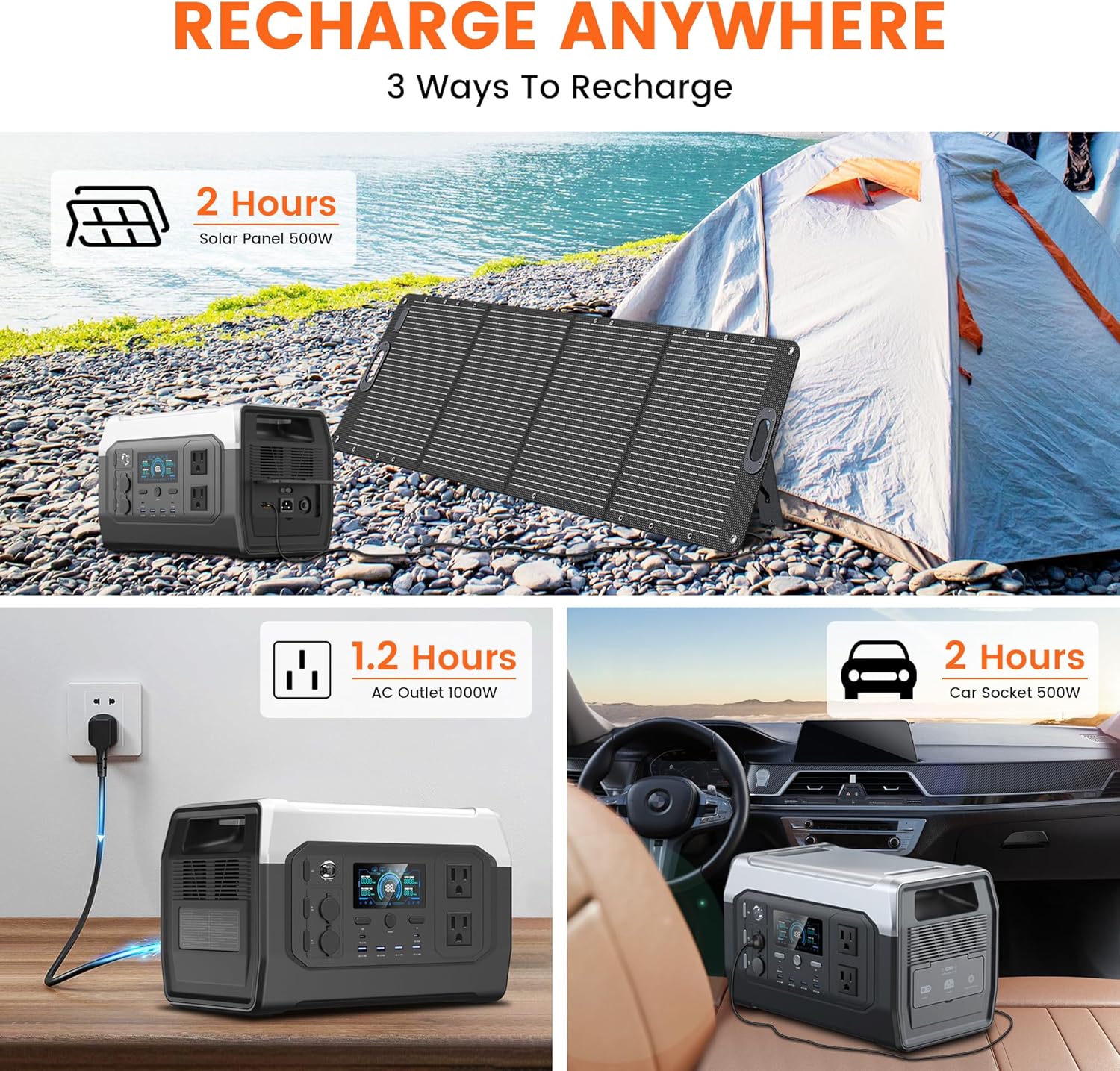

Image showing three ways to recharge the XP1000: via solar panel, AC wall outlet, and car socket, with estimated charging times.

Figure 5.1: Recharge Anywhere

Image illustrating AC input charging at 1000W, car charging, and solar panel charging at 500W max.

Figur 5.2: Opladningsmuligheder

6. Betjening af kraftværket

To operate the XP1000, press the main power button to turn on the unit. The LCD will illuminate, displaying the battery status and other information. To activate specific output ports (AC, DC, USB), press their respective power buttons.

6.1. Tilslutning af enheder

AC-enheder: Plug your AC appliances directly into the AC output ports. Ensure the total wattage does not exceed 1600W (or 2600W surge).
USB-enheder: Connect your USB-A or USB-C devices to the corresponding ports. The power station will automatically detect and deliver optimal charging.
DC-enheder: Plug 12V DC devices into the car charging output ports.

Image showing the XP1000 powering multiple devices simultaneously, including a laptop, phone, and drone, in an outdoor setting.

Figure 6.1: Power Up to 10 Devices

Image of the XP1000 powering various appliances like a cooking pot, coffee maker, refrigerator, and desktop computer, with estimated runtimes, in an outdoor campscene.

Figure 6.2: Power Your Needs

6.2. Ansøgninger

The XP1000 is versatile for various scenarios:

Udendørs aktiviteter: Power for camping, RV trips, outdoor movies, and remote work.
Hjemmesikkerhedskopiering: Hold vigtige apparater kørende under strømafbrydelsetages.
Arbejdssteder: Operate power tools where grid power is unavailable.

Image showing the XP1000 powering various devices like phones, laptops, drones, cameras, mini-fridges, and speakers for extended durations during outdoor activities.

Figure 6.3: Take Power Outdoors

Image depicting the XP1000 providing emergency power for home appliances such as Wi-Fi routers, projectors, fans, electric blankets, and CPAP machines, with estimated runtimes.

Figure 6.4: Home Emergency Power

Image of a person using a chainsaw powered by the XP1000 in a garden setting, with estimated runtimes for various power tools.

Figure 6.5: Power for Tools

7. LED-lysfunktion

The XP1000 includes an integrated LED light with multiple modes for various situations:

Lav: Provides soft illumination for general use.
Høj: Brighter light for increased visibility.
Strobe: Flashing light for signaling or emergencies.
SOS: International morsekodesignal i nødstilfælde.

Image showing the XP1000's LED light illuminating a tent at night, with icons for Low, High, Strobe, and SOS modes.

Figure 7.1: Bright Your Night

Image of the XP1000's LED light providing illumination inside a tent, with icons for three lighting modes: Low, High, and SOS Strobe.

Figure 7.2: Light Up Anywhere

8. Batteristyringssystem (BMS)

The CTOLITY XP1000 is equipped with advanced LiFePO4 (Lithium Iron Phosphate) battery cells, known for their long lifespan of over 3,000 charge cycles to 80% capacity. A sophisticated Battery Management System (BMS) is integrated to ensure safe and reliable operation. The BMS provides comprehensive protection features:

Overopladningsbeskyttelse
Overladningsbeskyttelse
Overstrømsbeskyttelse
Over Voltage Beskyttelse
Kortstrømsbeskyttelse
Overbelastningsbeskyttelse
Termisk beskyttelse
Beskyttelse mod batterifejl

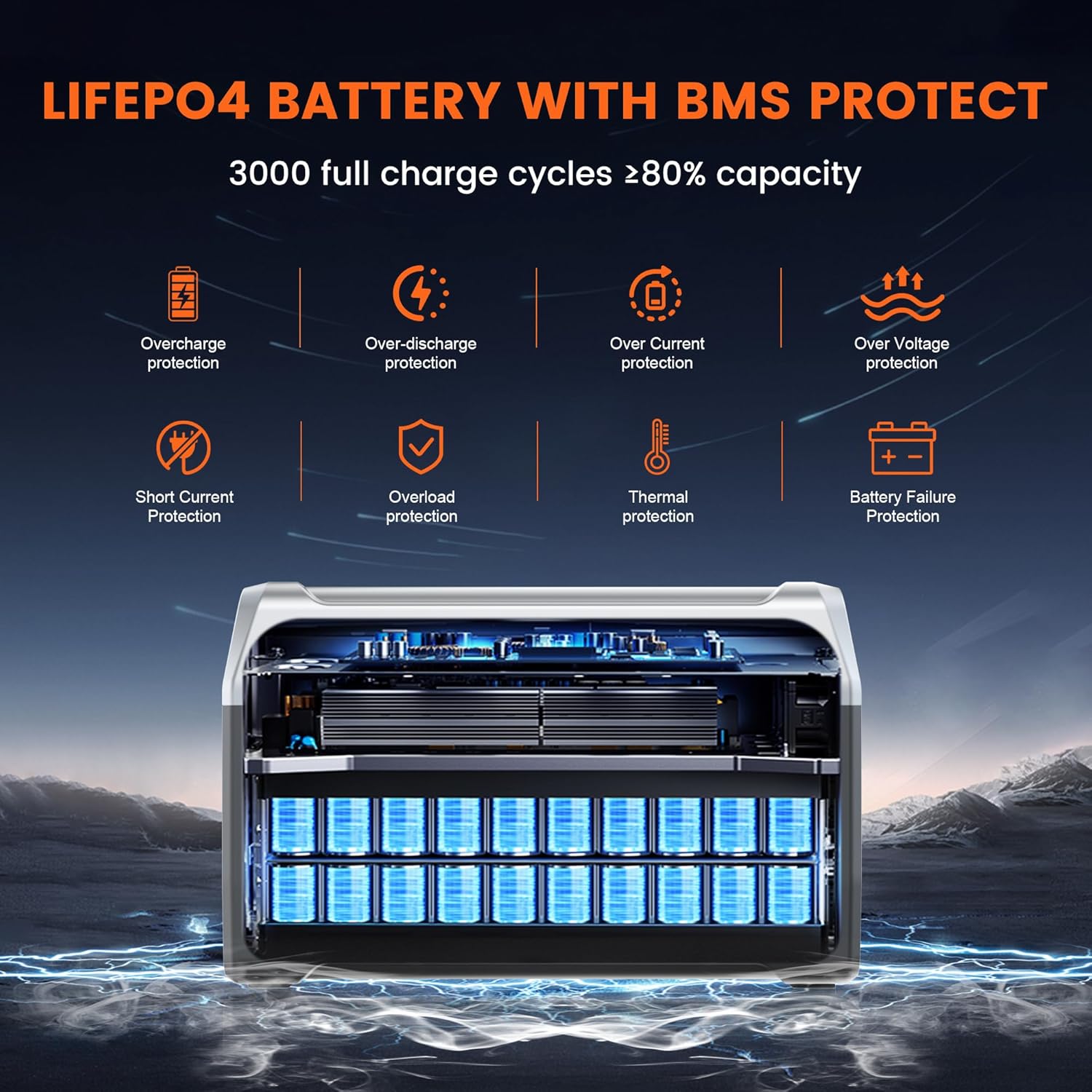

Diagram showing the internal structure of the XP1000 with LiFePO4 battery cells and various BMS protection features listed.

Figure 8.1: LiFePO4 Battery with BMS Protection

Image illustrating the advanced BMS system with 8-fold protection circuits for safe and long-lasting operation.

Figure 8.2: Safe and Long-Lasting BMS

9. Vedligeholdelse

To ensure the longevity and optimal performance of your XP1000 Portable Power Station, follow these maintenance guidelines:

Opbevaring: Store the unit in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge the battery to 50-80% every 3-6 months.
Rensning: Brug en tør, blød klud til at rengøre enhedens yderside. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
Ventilation: Ensure the ventilation vents are clear of dust and debris to prevent overheating.
Batteriets sundhed: Avoid fully discharging the battery frequently to maximize its lifespan.

10. Fejlfinding

If you encounter issues with your XP1000, refer to the following common problems and solutions:

Enheden tænder ikke: Sørg for, at batteriet er opladet. Hvis ikke, skal du tilslutte det til en strømkilde.
Ingen output fra porte: Check if the specific output button (AC, DC, USB) is pressed and illuminated. Ensure the connected device is within the power station's wattage grænser.
Langsom opladning: Verify that the charging cable is securely connected. For solar charging, ensure panels are in direct sunlight and free from obstructions. Check the wattage of your AC adapter or solar panel.
Overbelastningsindikator: If the overload indicator appears on the LCD, disconnect some devices to reduce the load. The unit will automatically reset after a short period.
Overophedningsindikator: If the overheating indicator appears, move the unit to a cooler, well-ventilated area and allow it to cool down before resuming use.

If the problem persists, please contact CTOLITY customer support for assistance.

11. Specifikationer

Mærke	KOLITET
Modelnavn	XP1000 portable power station
Wattage	1024 watt-timer
Output Wattage	1600 Watts (2600W Surge)
Voltage	110 volt
Brændstoftype	Elektrisk
Strømkilde	Batteridrevet
Batteritype	LiFePO4 (lithiumjernfosfat)
Battericykler	3,000+ cyklusser til 80% kapacitet
AC indgang	1000W (fuld opladning på 1.2 timer)
Solindgang	Up to 500W (Full charge in ~2 hours)
Varens vægt	37.48 pund
Produktdimensioner	15.67 cm L x 8.97 cm B x 10.08 cm H
Materiale	ABS
Særlige funktioner	1600W AC Output, Adjustable, BMS Protection, Fast charging, Portable

12. Garanti og support

The CTOLITY XP1000 Portable Power Station comes with a 1 års fabriksgaranti. For warranty claims, technical support, or any questions regarding your product, please contact CTOLITY customer service through the retailer where you purchased the product or visit the official CTOLITY webwebsted for kontaktoplysninger.
