Mankeel Electric Scooter User Manual

1. Introduktion

Thank you for choosing the Mankeel Electric Scooter. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before using the scooter to ensure optimal performance and safety. Keep this manual for future reference.

The Mankeel Electric Scooter (Model MK083) is designed for adults and teenagers, featuring a powerful 350W motor, a range of up to 30 km, and a top speed of 20 km/h. Its foldable design and robust construction make it ideal for daily commutes and urban travel.

2. Sikkerhedsinstruktioner

WARNING: Always wear a helmet and appropriate safety gear when riding the electric scooter. Failure to follow safety instructions may result in serious injury or death.

• Overhold altid lokale færdselslove og regler.
• Kør ikke i vådt føre, kraftig regn eller på glatte overflader.
• Avoid riding on uneven terrain, potholes, or obstacles.
• Hold en sikker afstand til andre køretøjer og fodgængere.
• Overskrid ikke den maksimale vægtkapacitet på 120 kg.
• Lad ikke børn under 16 år betjene scooteren.
• Sørg for, at scooteren er fuldt opladet, og at alle komponenter er forsvarligt fastgjort før hver tur.
• Familiarize yourself with the dual disc brake system for effective stopping.
• Use the integrated lighting (headlamp and taillight) when riding in low-light conditions.

3. Pakkens indhold

Når du åbner pakken, skal du kontrollere, at alle følgende varer er inkluderet:

• Mankeel Electric Scooter (MK083)
• Oplader
• Brugervejledning (dette dokument)

Hvis nogen varer mangler eller er beskadigede, bedes du kontakte kundesupport med det samme.

4. Produktet er slutview

Familiarize yourself with the different parts of your Mankeel Electric Scooter:

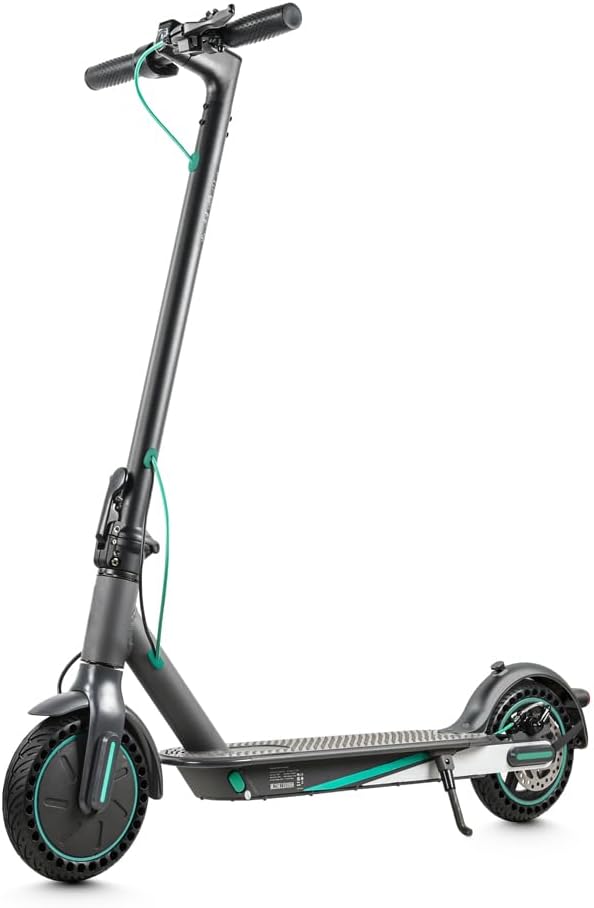

Figur 4.1: Samlet set view of the Mankeel Electric Scooter.

4.1 nøglekomponenter

• Styr: Til styring og kontrol.
• LED Smart-skærm: Shows speed, gear, and battery level.
• Bremsehåndtag: Controls the front and rear disc brakes.
• Gashåndtag: Accelerates the scooter.
• Foldemekanisme: Giver mulighed for kompakt opbevaring og transport.
• Forhjul: Equipped with an 8.5-inch solid rubber tire.
• Baghjul: Equipped with an 8.5-inch solid rubber tire and disc brake.
• Dæk: Standing platform.
• Stativ: For parking the scooter.
• Headlamp: Front LED light for visibility.
• Baglygte: Rear light for visibility and braking indication.
• Opladningsport: Til tilslutning af opladeren.

Figure 4.2: The LED Smart Display shows speed, gear, and battery status. The 'Set / Switch' button controls various functions.

Figure 4.3: Illustration of the 350W motor power, 25 km/h max speed (note: product states 20 km/h), and 15% max slope capability.

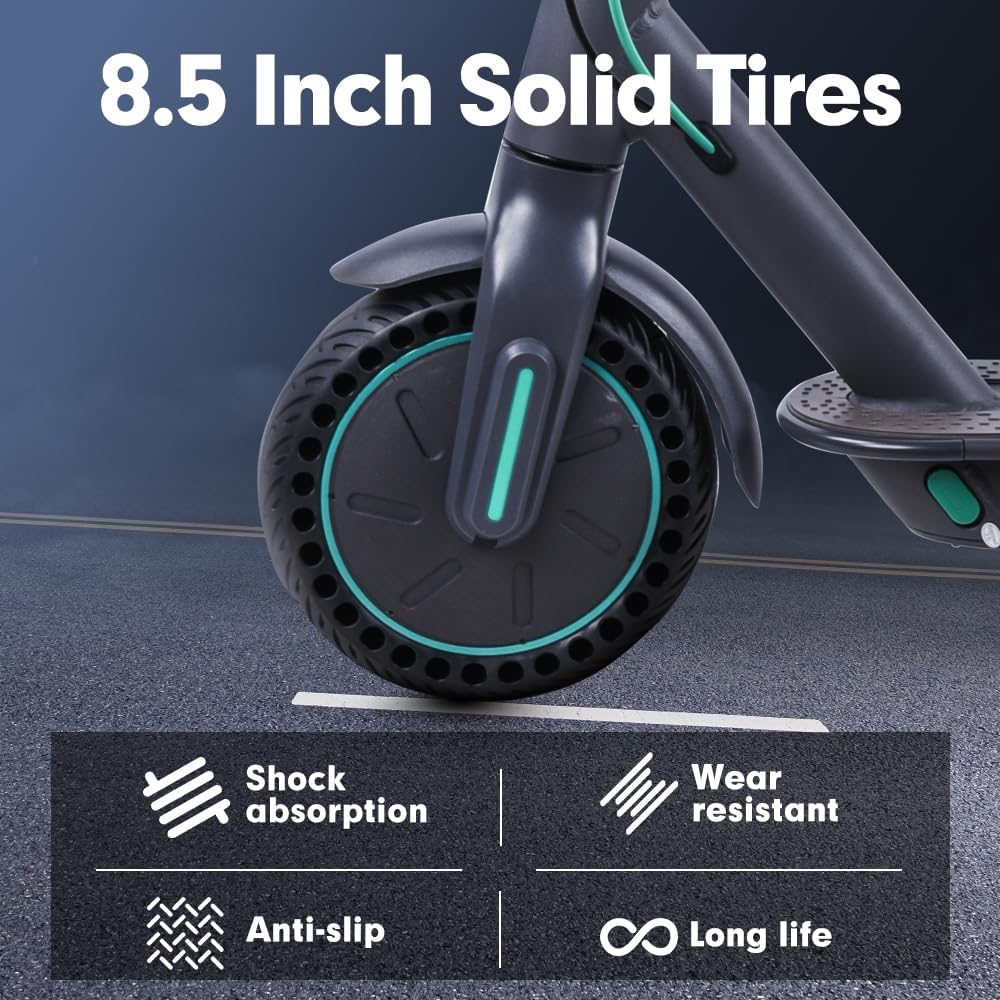

Figure 4.4: The 8.5-inch solid tires offer shock absorption, wear resistance, anti-slip properties, and long life.

Figure 4.5: The scooter features an LED Highlight Headlamp, a Reflection Strip Design for side visibility, and a Taillight for rear visibility and brake indication.

5. Opsætning

5.1 Udfoldning af scooteren

1. Placer scooteren på en flad overflade.
2. Find den foldede lås nær bunden af ​​​​styrfrempinden.
3. Slip låsen, og løft forsigtigt styrstammen, indtil den låser i den oprejste position. Sørg for, at den klikker sikkert på plads.
4. Unfold the handlebars if they are folded inwards.

Figure 5.1: Unfolding and folding dimensions of the scooter. Unfolded: 41.5 x 17.16 x 45.27 inches. Folded: 41.5 x 17.16 x 18.9 inches.

5.2 Indledende opladning

Before your first ride, fully charge the scooter's battery. This typically takes several hours.

1. Sørg for, at scooteren er slukket.
2. Find opladningsporten, normalt dækket af en gummiklap, på siden af ​​​​dækket.
3. Tilslut opladeren til opladningsporten, og sæt derefter opladeren i en almindelig stikkontakt.
4. Indikatorlampen på opladeren skifter (f.eks. fra rød til grøn), når opladningen er færdig.
5. Disconnect the charger and securely close the charging port flap.

6. Betjeningsvejledning

6.1 Tænd/sluk

• For at tænde: Press and hold the power button (usually on the display) for a few seconds until the display illuminates.
• For at slukke: Tryk på tænd/sluk-knappen igen, og hold den nede, indtil skærmen slukker.

6.2 Køretilstande

The Mankeel Electric Scooter offers 3 adjustable riding modes to suit different preferences and conditions:

• Øko-tilstand: Lower speed, optimized for maximum range and energy efficiency.
• Standardtilstand: Balanced speed and power for everyday riding.
• Sportstilstand: Higher speed and acceleration for dynamic riding.

To switch between modes, short press the power button or use the dedicated mode button on the display (refer to Figure 4.2).

6.3 At køre på scooter

1. Placer den ene fod fast på dækket.
2. Skub fra med din anden fod for at få indledende momentum (kickstart).
3. Når motoren er i bevægelse, skal du forsigtigt trykke på gashåndtaget for at aktivere den.
4. Placer din anden fod på dækket.
5. To slow down or stop, release the throttle and gently apply the brake levers.

6.4 Bremsesystem

The scooter is equipped with a dual disc brake system (front and rear) for reliable stopping power. Apply both brake levers simultaneously for optimal and controlled braking.

6.5 App kontrol

The Mankeel Electric Scooter supports app control for enhanced features. Download the official Mankeel app from your smartphone's app store. The app allows you to:

• View real-time riding data (speed, distance, battery).
• Adjust riding modes.
• Lock/unlock the scooter.
• Opdater firmware.

Follow the in-app instructions for pairing your scooter via Bluetooth.

6.6 Sammenfoldning af løbehjulet

The 3-second folding design allows for quick and easy storage:

1. Sørg for, at scooteren er slukket.
2. Locate the folding latch/lever on the handlebar stem.
3. Engage the folding mechanism and carefully fold the handlebar stem downwards until it latches onto the rear fender.
4. The scooter is now in its compact, folded state, ready for transport or storage.

Figure 6.1: The scooter's 3-second folding design allows for easy portability and storage in various environments, such as on public transport or in a car trunk.

7. Vedligeholdelse

Regular maintenance will prolong the life of your Mankeel Electric Scooter:

• Batteripleje:
  • Oplad batteriet regelmæssigt, selvom det ikke er i brug, for at bevare dets sundhedstilstand.
  • Undgå at aflade batteriet helt før genopladning.
  • Opbevar scooteren et køligt og tørt sted, væk fra direkte sollys og ekstreme temperaturer.
• Dæk: Although solid, inspect tires regularly for any signs of wear, cracks, or damage.
• Bremser: Periodically check the brake levers and disc brakes for proper function. Ensure the brakes respond smoothly and effectively. If you notice any issues, have them inspected by a qualified technician.
• Rensning: Tør scooteren af ​​med reklameamp klud. Brug ikke højtryksvandstråler, og nedsænk ikke scooteren i vand.
• Fastgørelsesmidler: Kontrollér regelmæssigt alle skruer og bolte for at sikre, at de er spændte.

8. Fejlfinding

Hvis du støder på problemer med din scooter, kan du se følgende almindelige problemer og løsninger:

For issues not listed here, or if solutions do not resolve the problem, please contact Mankeel customer support.

9. Specifikationer

10. Garanti og support

Mankeel provides a limited warranty for its products. Please refer to the warranty card included with your purchase or visit the official Mankeel webhjemmeside for detaljerede garantivilkår.

For technical support, spare parts, or any inquiries regarding your Mankeel Electric Scooter, please contact your retailer or Mankeel customer service directly. Have your model number (MK083) and purchase date ready when contacting support.

Fabrikant: SHENZHEN MANKE TECHNOLOGY CO., LTD
