EAZYRC FMS FCX10 1/10 RC Crawler LC80 PRO V2 Instruction Manual
Model: FCX10 LC80 PRO V2
Mærke: EAZYRC
1. Introduktion
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your EAZYRC FMS FCX10 1/10 RC Crawler LC80 PRO V2. Please read this manual thoroughly before operating the vehicle to ensure optimal performance and longevity.

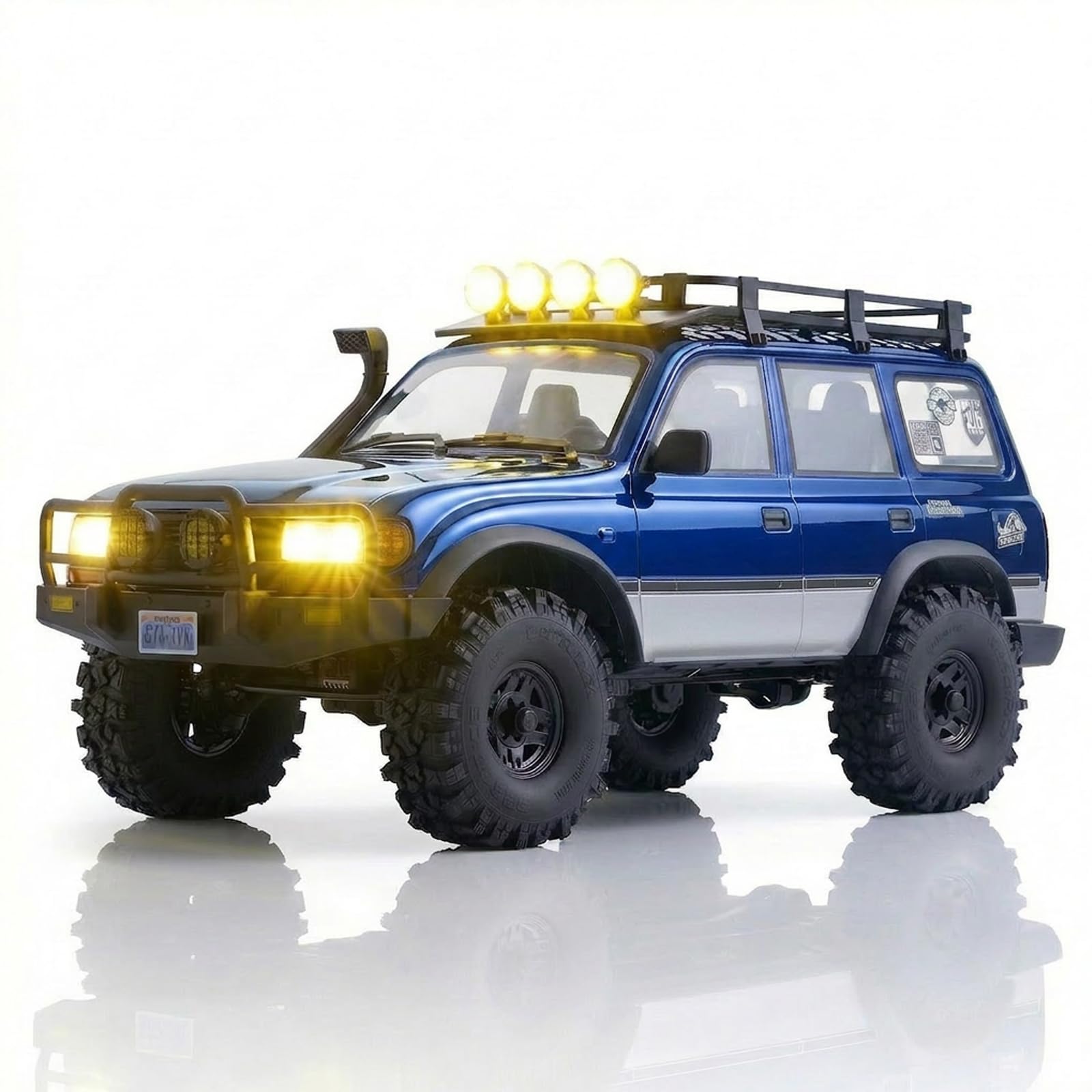

Image: The EAZYRC FMS FCX10 LC80 PRO V2 RC Crawler in blue, showcasing its detailed exterior and off-road capabilities.
2. Sikkerhedsoplysninger
Always operate the RC crawler in a safe and responsible manner. Failure to do so may result in injury or damage to the product or property. Observe the following safety guidelines:
- Hold hænder, hår og løstsiddende tøj væk fra bevægelige dele.
- Må ikke anvendes i nærheden af mennesker, kæledyr eller forhindringer.
- Avoid operating in wet conditions unless specifically designed for it (this model features a waterproof motor).
- Sørg for, at batterierne oplades korrekt og håndteres sikkert.
- Voksenopsyn anbefales til brugere under 16 år.
3. Opsætning
3.1 Udpakning og inspektion
Carefully remove all components from the packaging. Verify that all items listed in the "What's in the Box" section are present. Inspect the vehicle for any visible damage from shipping.
3.2 Batteriinstallation og opladning
The EAZYRC FMS FCX10 LC80 PRO V2 requires Lithium-Ion Polymer batteries. While batteries are required, they are not included with the product. Ensure you use a compatible charger for LiPo batteries.
- Find batterirummet på køretøjet.
- Connect the battery to the vehicle's power connector.
- Fastgør batteriet i batterirummet for at forhindre bevægelse under drift.
- Charge the battery fully before first use according to your charger's instructions.
3.3 Opsætning af fjernbetjening
The vehicle comes with a remote control. Ensure the remote control batteries are installed (not included). Power on the remote control first, then the vehicle. Follow the binding instructions in the remote control's manual if the vehicle does not respond.
Video: This video demonstrates the FMS FCX10P LC80Pro V2 in action, showcasing its features and handling. It highlights the vehicle's performance and design.
4. Betjening
4.1 Grundlæggende kontroller
- Gashåndtag: Controls forward and reverse movement. Gently increase throttle for smooth acceleration.
- Styretøj: Controls left and right turns. Use precise movements for optimal control, especially in challenging terrain.
4.2 Køretips
The FCX10 LC80 PRO V2 is designed for high-performance off-road crawling. Its metal chassis and portal axle structure provide excellent ground clearance and durability.
- Two-Speed Transmission: Utilize the two-speed transmission for different terrains. Low gear provides maximum torque for crawling, while high gear offers faster speeds on flatter surfaces.
- Differentialespærre: The front and rear differential locks enhance traction and stability on slippery or uneven terrains. Engage them for maximum grip when needed.
- Realistic LED Lighting: The vehicle features functioning LED headlights, turn signals, roof lights, and reverse lights. These lights improve visibility and add to the realistic driving experience.
Image: The EAZYRC FMS FCX10 LC80 PRO V2 RC Crawler navigating a rocky outdoor terrain, demonstrating its robust suspension and high ground clearance.
5. Vedligeholdelse
5.1 Rengøring
After each use, especially in dirty or wet conditions, clean your RC crawler. Use a soft brush or compressed air to remove dirt and debris. A damp cloth can be used for the body, but avoid excessive moisture near electronic components.
5.2 Komponentinspektion
- Chassis og affjedring: Regularly check the metal chassis, links, and gears for any signs of wear or damage. Ensure all screws are tight.
- Dæk: Inspect tires for cuts or excessive wear. Ensure they are securely mounted to the wheels.
- Elektronik: Keep electronic components clean and dry. Check wiring for any fraying or loose connections.
5.3 Pleje af batterier
- Always store LiPo batteries in a cool, dry place, away from direct sunlight and extreme temperatures.
- Undlad at overoplade eller overaflade batterier.
- If a battery becomes damaged or swollen, discontinue use immediately and dispose of it properly.
6. Fejlfinding
If you encounter issues with your RC crawler, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Køretøjet reagerer ikke | Low battery (vehicle/remote), not bound, power switch off | Charge batteries, re-bind remote, check power switches |
| Dårlig vejgreb | Differential locks disengaged, worn tires, unsuitable terrain | Engage diff locks, replace worn tires, choose appropriate terrain |
| Motor overophedning | Continuous heavy load, incorrect gearing | Allow motor to cool, check gearing, reduce continuous heavy use |
Hvis problemet fortsætter, bedes du kontakte kundesupport.
7. Specifikationer
- Mærke: EAZYRC
- Modelnavn: FMS FCX10P LC80
- Skala: 1: 10 skala
- Strømkilde: Battery Powered (Lithium-Ion Polymer batteries required, not included)
- Driftstilstand: Fjernbetjening
- Materiale Type: Nylon
- Varens vægt: 5.85 kilo
- Emnedimensioner: 13 x 24 x 13 tommer
- Yderligere funktioner: Adjustable, Realistic, Official Licensed, Detailed, Powerful, Lighting
- Producentens minimumsalder: 192 måneder (16 år)
8. Garanti
Please refer to the product packaging or the EAZYRC official website for detailed warranty information. Keep your proof of purchase for any warranty claims.
9. Support
For further assistance, technical support, or spare parts, please visit the official EAZYRC Store or contact their customer service directly. You can find more information at: EAZYRC Store on Amazon.
