SEEKONE Cordless Mini Heat Gun User Manual

Indledning

The SEEKONE Cordless Mini Heat Gun is a versatile and portable tool designed for various applications such as heat shrink tubing, resin curing, small paint surface heating, and paint removal. Its cordless design, precise temperature control, and safety features make it an ideal tool for both professional and DIY projects.

Vigtige sikkerhedsinstruktioner

Please read and understand all safety instructions before operating the heat gun to prevent injury or damage.

• Safe Start Function: To prevent accidental activation during transport or storage, the heat gun features a safety lock. It must be unlocked before first use and can be re-locked for safety.
• Overophedningsbeskyttelse: The heat gun is equipped with an automatic overheat protection system that will shut down the unit if the temperature becomes too high. Allow the unit to cool down before resuming operation.
• Opladningssikkerhed: Do not use the heat gun while it is charging. Ensure the unit is fully charged before use. For long-term storage, charge the battery every 3 to 6 months.
• Ventilation: Ensure adequate ventilation when using the heat gun, especially when working with materials that may emit fumes.
• Holdes væk fra brændbare materialer: Do not direct hot air towards flammable liquids, gases, or materials.
• Bloker ikke luftventiler: Sørg for, at luftindtag og udstødningsventiler er fri for blokeringer under drift.
• Korrekt opbevaring: Store the heat gun in a dry, secure place, out of reach of children.

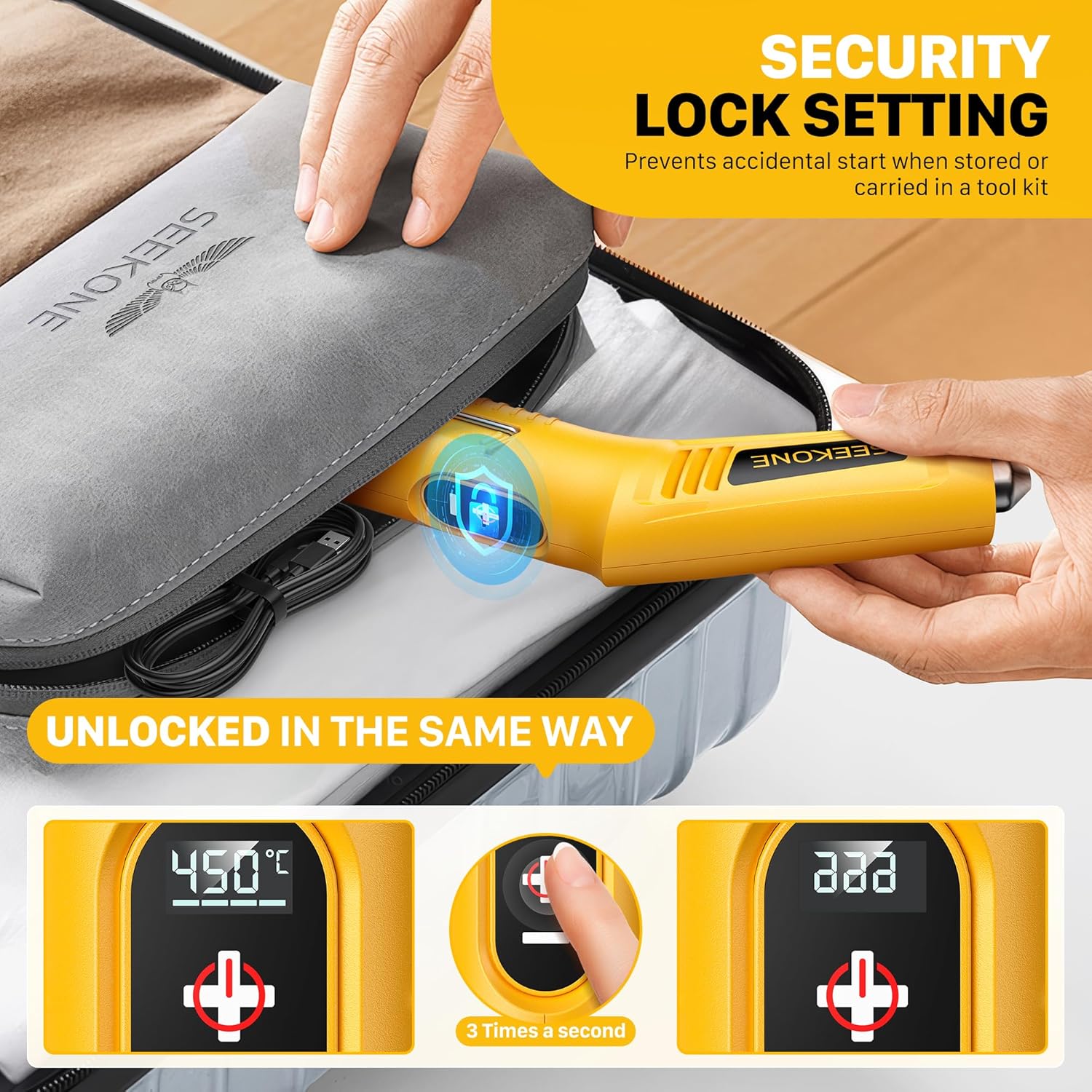

Image illustrating the security lock setting, which prevents accidental activation when the heat gun is stored or transported.

Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• 1 x SEEKONE Cordless Mini Heat Gun
• 1 x Refleksmundstykke
• 1 x USB ladekabel
• 1 x brugermanual

Produktegenskaber

• 4 Temperature Settings & Memory Function: Offers four precise temperature levels (150°C, 250°C, 350°C, 450°C) with an automatic memory function that recalls the last used setting.
• LCD Screen & Battery Level Indicator: A clear LCD displays the current temperature and real-time battery capacity, allowing for efficient work planning.
• Praktisk USB-opladning: Supports both PD fast charging and normal charging via USB, adapting automatically for optimal charging. Features a built-in 3.6V 5.0Ah high-capacity lithium battery.
• Kompakt og bærbart design: Lightweight and small, ideal for flexible use in confined spaces or outdoors without the need for power cords.
• Hurtig opvarmning: Quickly reaches desired temperatures for efficient operation.

Diagram showing the internal fast heating element of the heat gun, capable of reaching up to 450°C.

Opsætning

1. Initial Unlocking: The heat gun is factory-locked. Upon first use, the LCD screen will display "GGG" flashing. To unlock, quickly press the "+" button three times within 1 second.
2. Indledende opladning: Ensure the heat gun is fully charged before its first use. Connect the provided USB charging cable to the heat gun's charging port and a suitable USB power adapter. The LCD will indicate charging status.

   Illustration of the heat gun being charged via a USB Type-C cable, highlighting its fast charging capability and battery level visualization.
3. Fastgør dyse: If required for your application, attach the reflector nozzle to the heat gun's output.

Betjeningsvejledning

1. Tænd/sluk: After unlocking, press and hold the power button (usually the '+' button or a dedicated power button if present) to turn the unit on. Press and hold again to turn off.
2. Justering af temperatur: Brug "+"og"-" buttons to cycle through the four temperature settings: 150°C, 250°C, 350°C, and 450°C. The selected temperature will be displayed on the LCD screen.

   Visual representation of the four available temperature settings (150°C, 250°C, 350°C, 450°C) and the temperature memory function.

3. Temperaturenhedsomregning (°C/°F): To switch between Celsius (°C) and Fahrenheit (°F), quickly press the "-" button three times within 1 second.

   Demonstration of how to convert temperature units between Celsius and Fahrenheit by pressing the '-' button three times.
4. Hukommelsesfunktion: The heat gun automatically remembers the last temperature setting used, improving efficiency for repetitive tasks.
5. Sikkerhedslås: To lock the heat gun for storage or transport, quickly press the "+" button three times within 1 second. The LCD will display "GGG" flashing, indicating it is locked. Unlock using the same method.
6. Anvendelse: Direct the hot air stream towards the material you wish to heat. Maintain a safe distance to prevent overheating or damage to the material.

Opretholdelse

• Batteripleje: If the heat gun will not be used for an extended period (e.g., 3-6 months), ensure it is charged periodically to maintain battery health.
• Rensning: Keep the air intake and exhaust vents clean and free of dust and debris. Use a soft, dry cloth to wipe down the exterior of the unit. Do not use abrasive cleaners or solvents.
• Opbevaring: Store the heat gun in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure it is locked before storage or transport.

Fejlfinding

Specifikationer

Detailed dimensions of the compact and precise SEEKONE Cordless Mini Heat Gun, showing its length and width.

Garantioplysninger

Specific warranty details for the SEEKONE Cordless Mini Heat Gun are not provided in this manual. Please refer to the product packaging, the manufacturer's official website, or contact the seller for comprehensive warranty information and terms.

Kundesupport

For any questions, technical assistance, or support regarding your SEEKONE Cordless Mini Heat Gun, please contact the manufacturer, SEEKONE, or the authorized seller from whom you purchased the product. Contact information can typically be found on the product packaging or their respective webwebsteder.
