BANTI 63x55 Inch L-Shaped Electric Standing Desk User Manual

Indledning

The BANTI L-shaped height adjustable electric standing desk is designed to enhance your workspace by allowing seamless transitions between sitting and standing positions. This 63"x55" desk helps alleviate neck, shoulder, and back discomfort, promoting a healthier and more productive work environment. Its intelligent layout optimizes efficiency by keeping essential items within reach and minimizing device switching.

Sikkerhedsoplysninger

Vigtige sikkerhedsretningslinjer:

• Always use the desk's memory controller to adjust the height slowly and carefully.
• Overbelast ikke skrivebordet. Den anbefalede maksimale vægt er 80 kg.
• This desk is intended for home use only and may not meet commercial or industrial safety standards.
• Hold børn og kæledyr væk fra skrivebordet under brug for at forhindre ulykker.
• Ensure all cables are properly managed and secured to avoid entanglement or damage during height adjustments.

Produktegenskaber

• Ample Workspace: 63"x55" L-shaped design for multi-device work scenarios.
• Solid and Durable Construction: Features a wear-resistant tabletop and three equal-length alloy steel legs. Motor tested for 50,000 lifting and lowering cycles.
• Easy Height Adjustment: Electric motor allows height adjustment from 27.5" to 46.8".
• Smart Memory Controller: Three programmable height presets for one-touch access to preferred sitting/standing positions.
• Børnesikringslås: Prevents accidental operation of the height adjustment mechanism.
• Jævn og støjsvag drift: High-performance motor operates at a low noise level of 48 dB.
• Anti-kollisionsfunktion: Stopper og bakker automatisk, hvis der registreres en forhindring under bevægelse.
• Justerbare fødder: Six adjustable feet for stability on uneven surfaces.
• Inkluderet tilbehør: Headphone hook and installation tools.

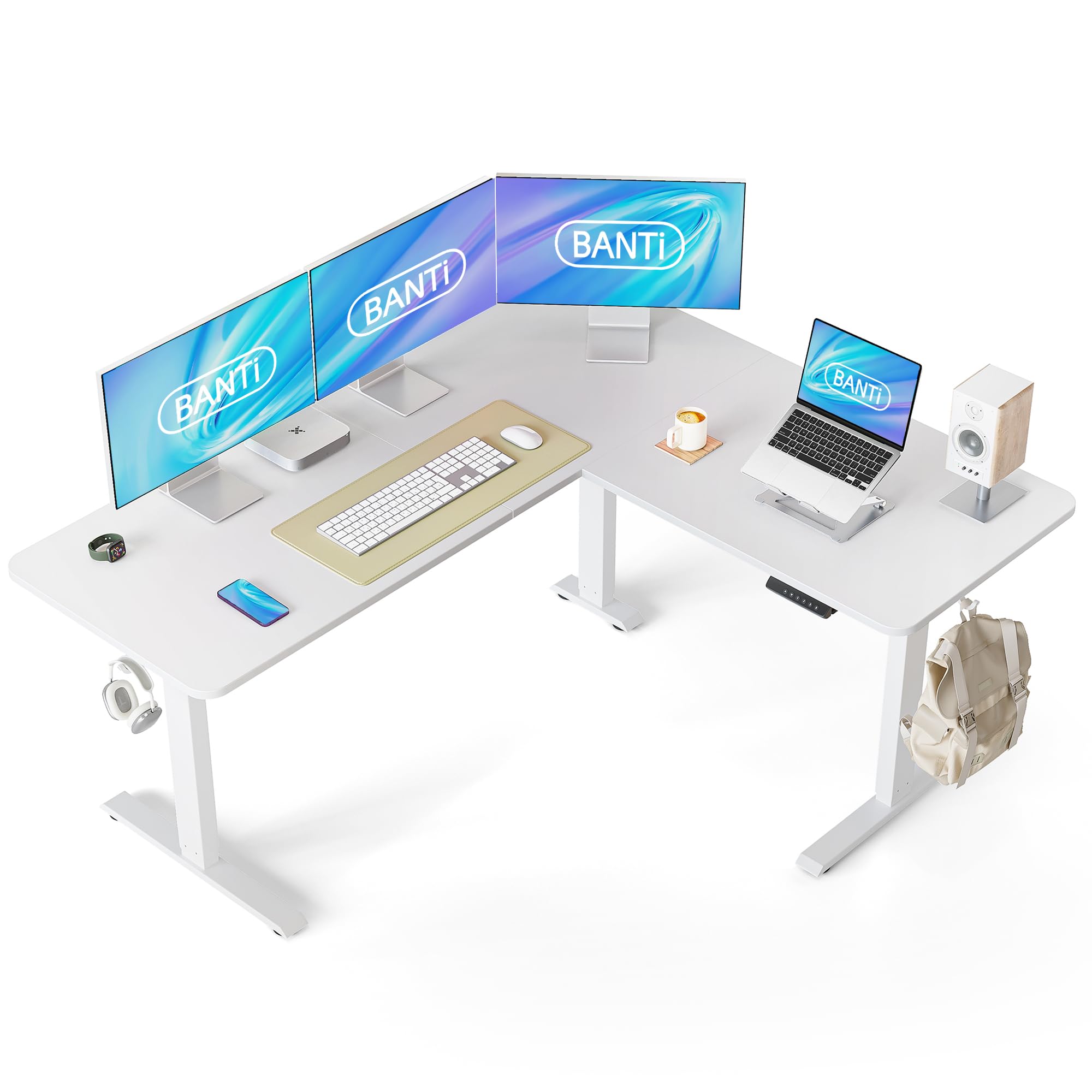

Image: Desk dimensions showing 55" and 63" lengths, and 23.6" depth on one side, 31.5" on the other, with a 176 lbs load capacity.

Opsætning og installation

Assembly of the BANTI L-Shaped Electric Standing Desk typically takes approximately 45 minutes. Follow the detailed steps provided in the included manual and refer to the official installation video for visual guidance.

Installationsvideoguide

Vigtige monteringstrin:

1. Udpak komponenter: Lay out all parts and hardware. Verify against the parts list in your manual.
2. Saml benrammer: Attach the horizontal support beams to the vertical leg columns using the provided screws and tools.
3. Connect Drive Shafts: Insert and secure the drive shafts between the leg columns to enable synchronized height adjustment.
4. Saml bordpladen: Join the L-shaped tabletop sections using dowels and screws, ensuring a secure fit.
5. Fastgør bordpladen til rammen: Carefully place the assembled tabletop onto the leg frames and secure it with screws.
6. Install Control Box and Wiring: Mount the control box and connect all motor and controller cables. Use cable ties or clips to manage wiring neatly.
7. Vedhæft tilbehør: Install the headphone hook and any other accessories as desired.

Betjeningsvejledning

The BANTI L-Shaped Electric Standing Desk features an intuitive control panel for easy height adjustments and memory functions.

Image: Close-up of the desk's control panel with LED display, up/down arrows, and memory buttons.

Grundlæggende betjening:

• Juster højden: Brug Op (^) og Ned (v) arrow buttons to raise or lower the desk to your desired height. The current height is displayed on the LED screen.
• Set Memory Presets:
  1. Juster skrivebordet til din foretrukne højde.
  2. Tryk på "M" button (or similar memory set button) once. The display will show "S-".
  3. Tryk straks på en af ​​de nummererede hukommelsesknapper (1, 2 eller 3) to save the current height to that preset. The display will confirm with "S-1", "S-2", or "S-3".
• Recall Memory Presets: Press the corresponding numbered memory button (1, 2 eller 3) for automatisk at flytte skrivebordet til den gemte højde.
• Børnesikringslås: To activate or deactivate the child safety lock, press and hold the "Låse" button (often combined with a memory button or a dedicated button) for 3-5 seconds until the display indicates "LOC" or "UNL".

Image: Illustration showing the desk adjusting height from 27.5 inches (sitting) to 46.8 inches (standing).

Opretholdelse

To ensure the longevity and optimal performance of your BANTI L-Shaped Electric Standing Desk, follow these simple maintenance guidelines:

• Rensning: Wipe the desk surfaces with a dry, soft cloth. Avoid abrasive cleaners or harsh chemicals that could damage the laminated finish.
• Kabelstyring: Periodically check and reorganize cables to prevent tangling or interference with the desk's movement.
• Vægtfordeling: Distribute weight evenly across the desk surface. Avoid placing excessive weight on one side or corner.
• Regelmæssig inspektion: Occasionally inspect all screws and connections to ensure they are secure. Tighten if necessary.

Fejlfinding

If you encounter any issues with your BANTI L-Shaped Electric Standing Desk, please refer to the following common troubleshooting steps:

• Skrivebordet bevæger sig ikke:
  • Kontroller, om strømkablet er korrekt tilsluttet både skrivebordet og stikkontakten.
  • Ensure the child safety lock is not activated. Deactivate it by pressing and holding the lock button.
  • Perform a reset: Press and hold the "Reset" button (often labeled "RST" or combined with another button) for 3-5 seconds until the desk moves to its lowest position and resets.
• Ujævn højde:
  • Ensure the desk is not overloaded beyond its maximum weight capacity (176 lbs).
  • Check that all leg connections are secure and tightened.
  • Udfør en nulstilling som beskrevet ovenfor.
• Fejlkoder på displayet: Refer to your physical instruction manual for specific error code meanings and solutions. If the issue persists, contact customer support.

Specifikationer

Garanti og support

The BANTI L-Shaped Electric Standing Desk comes with a limited manufacturer's warranty. Extended warranty options may also be available.

For any quality issues, technical assistance, or warranty claims, please contact BANTI customer support via the Amazon platform. Our professional team aims to resolve inquiries within 24 hours.
