Indledning
The Wiltec Mobile Camping Toilet 10 L provides a portable and hygienic sanitation solution for various outdoor and travel scenarios. Designed for comfort and ease of use, this manual outlines the proper procedures for assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your camppå toilettet.
Produkt overview
The Wiltec Mobile Camping Toilet consists of two main sections: a fresh water tank and a waste water tank, both with a 10-liter capacity. It features a manual pump for flushing and a T-flush nozzle for thorough cleaning.
Figur 1: The Wiltec Mobile Camping Toilet positioned outside a camper van, ready for use in a campmiljø.

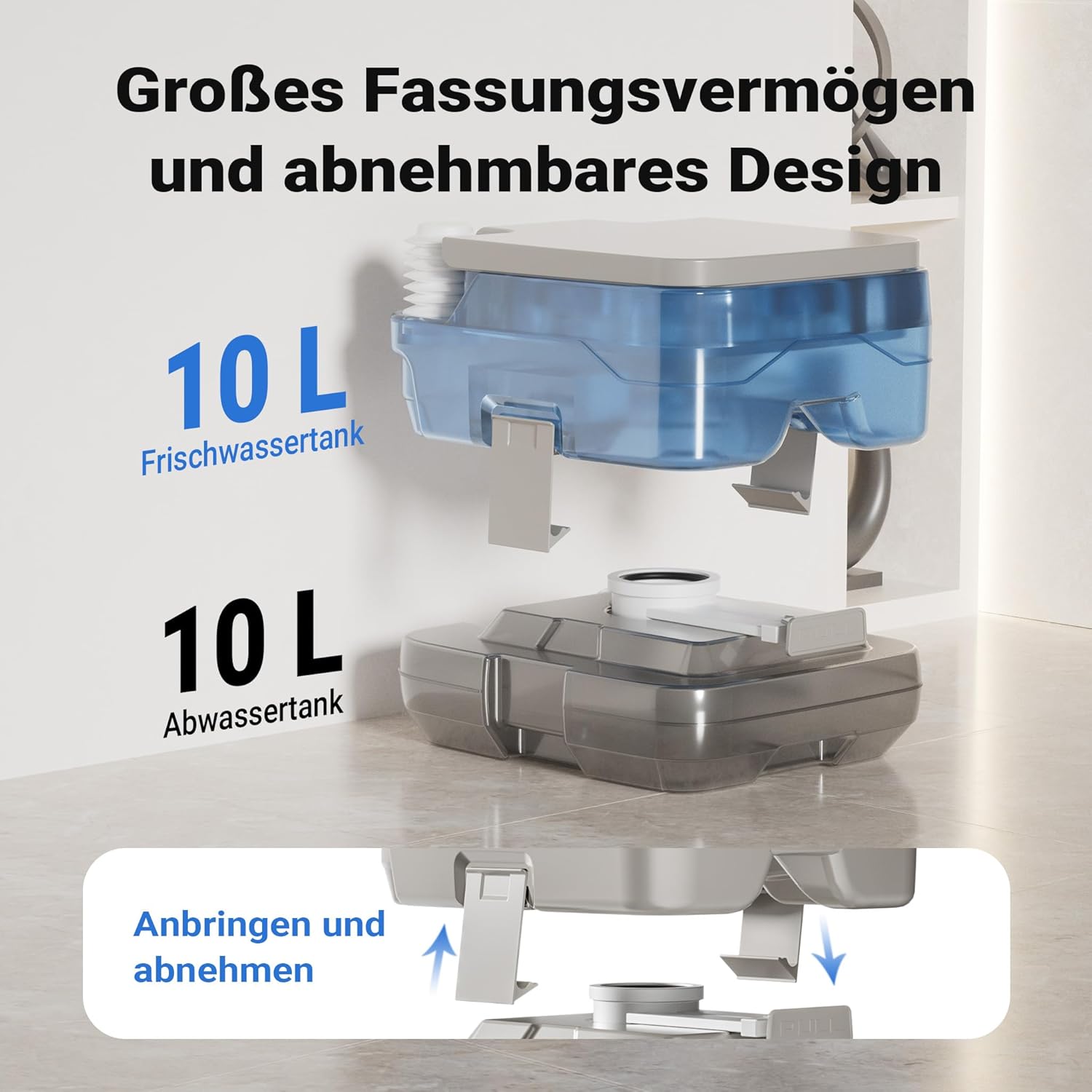

Figur 2: Illustration of the toilet's two-part design, highlighting the 10-liter fresh water tank and the 10-liter waste water tank, and how they detach for emptying.
Figur 3: Detaljeret view of the manual bellows pump and the T-shaped water outlet, demonstrating the efficient flushing mechanism for thorough cleaning.
Opsætning
- Separate tanke: Disconnect the upper fresh water tank from the lower waste water tank by releasing the side latches.
- Fyld friskvandstanken: Unscrew the cap of the fresh water tank and fill it with clean water. For optimal hygiene, a small amount of toilet fluid (not included) can be added. Securely close the cap.
- Prepare Waste Water Tank: Open the waste tank cap and add a small amount of water (approximately 1 liter) and a suitable waste tank additive (not included) to help break down waste and control odors. Close the cap.
- Saml igen: Align the fresh water tank with the waste water tank and securely fasten the side latches until they click into place.
- Position: Place the toilet on a flat, stable surface.
Betjeningsvejledning
- Åbn skydeventil: Before use, pull the slide valve handle located at the front of the toilet to open the passage to the waste water tank.
- flushing: After use, press the manual pump button repeatedly to flush water from the fresh water tank into the bowl. The T-flush nozzle ensures water covers the entire bowl surface.
- Luk skydeventil: Push the slide valve handle back in to seal the waste water tank and prevent odors.
Figur 4: The movable slide valve, shown in both open and closed positions, which seals the waste water tank to prevent odors.
Opretholdelse
Tømning af spildevandstanken
- Sørg for, at skydeventilen er lukket.
- Separate the fresh water tank from the waste water tank.
- Carry the waste water tank to an approved disposal site (e.g., designated RV dump station, public toilet).
- Unscrew the waste tank cap and carefully pour out the contents.
- Rinse the waste water tank thoroughly with clean water. A small amount of cleaning solution can be used.
- Add a small amount of water and waste tank additive before reassembling.
Rengøring af toilettet
- Clean the toilet bowl and exterior surfaces with a mild, non-abrasive cleaner and a soft cloth or sponge.
- Do not use harsh chemicals or abrasive materials, as these can damage the plastic surfaces and seals.
- Regularly check the seals for wear and tear and replace if necessary to prevent leaks and odors.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Weak or no flush | Fresh water tank empty; pump mechanism issue. | Refill fresh water tank. Check pump for obstructions or damage. |
| Odors escaping | Slide valve not fully closed; waste tank full; worn seals. | Ensure slide valve is completely closed. Empty waste tank. Inspect and replace seals if damaged. |
| Utætheder | Løse forbindelser; beskadigede pakninger. | Check all connections are secure. Inspect and replace seals around the tanks and valve if damaged. |
Specifikationer
Figur 5: Dimensional diagram of the Wiltec Mobile Camping Toilet, indicating its length, width, height, and overall weight for portability.
- Model: 65041
- Mærke: WilTec
- Fresh Water Tank Capacity: 10 liter
- Spildevandstankkapacitet: 10 liter
- Materiale: High-density polyethylene (HDPE) and polypropylene (PP)
- Maksimal belastningskapacitet: 200 kg (440 lbs)
- Produktmål (L x B x H): Cirka 41 x 36.5 x 30 cm (16.14 x 14.37 x 11.81 tommer)
- Varens vægt: Cirka 3.72 kg (8.18 pund)
- Skyllesystem: Manual pump with T-flush nozzle
Garantioplysninger
Specific warranty details for the Wiltec Mobile Camping Toilet 10 L are not provided in this manual. Please refer to the product packaging or the manufacturer's official website for the most current warranty terms and conditions. Keep your purchase receipt as proof of purchase for any warranty claims.
Støtte
For technical assistance, spare parts, or further inquiries regarding your Wiltec Mobile Camping Toilet, please contact WilTec customer support. Contact information can typically be found on the product packaging or on the official WilTec webwebsted. Når du kontakter support, bedes du have dit produktmodelnummer (65041) og købsoplysninger klar.
