Generisk instruktionsmanual til erstatningsfjernbetjening

Indledning

This document provides instructions for the Generic Replacement Remote Control, designed for use with specific Aiwa Music Center models including RBT-3000M, XR-FA660, XR-FA770, and XR-MN75. This remote is a functional replacement and may not replicate all features or functions of your original equipment remote control. Please review this manual to understand its operation and capabilities.

Produkt overview

The replacement remote control features a standard layout for audio system operation. Familiarize yourself with the button arrangement as shown in the image below.

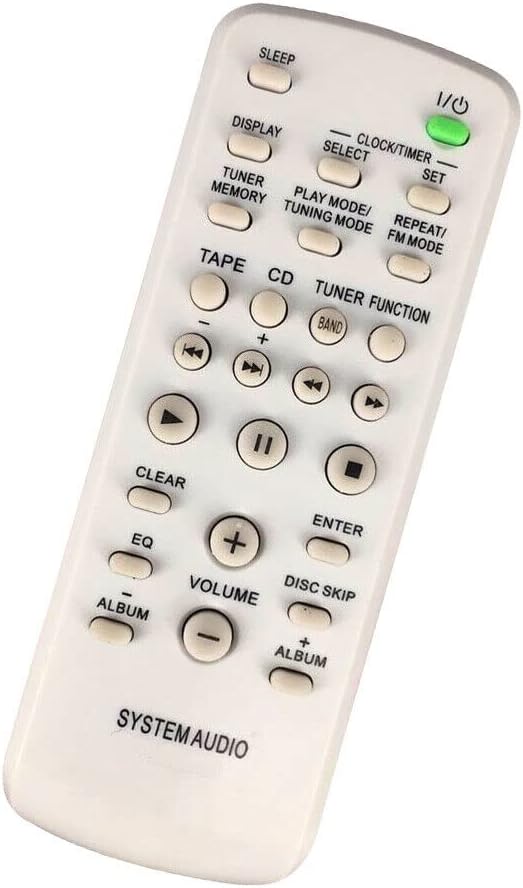

Figur 1: Forside View af fjernbetjeningen. This image displays the front of the white replacement remote control, highlighting its array of buttons. Key buttons visible include Power (I/O), Sleep, Display, Clock/Timer Set, Select, Tuner Memory, Play Mode/Tuning Mode, Repeat/FM Mode, Tape, CD, Tuner Function, Band, various playback controls (rewind, fast forward, play, pause, stop), Clear, EQ, Enter, Volume up/down, Disc Skip, and Album up/down. The bottom of the remote is labeled "SYSTEM AUDIO".

The rear of the remote control, where the battery compartment is located, is designed for easy access.

Figur 2: Tilbage View af fjernbetjeningen. This image shows the rear of the white replacement remote control. The design is simple, featuring a smooth surface with a visible battery compartment cover in the lower section, indicating where batteries are to be inserted.

Opsætning

Installation af batteri

1. Find batterirummet på bagsiden af ​​fjernbetjeningen (se figur 2).
2. Skub batteridækslet nedad, eller tryk på låsen, og løft det for at åbne.
3. Isæt to AAA-batterier (medfølger ikke), og sørg for, at de positive (+) og negative (-) poler er justeret korrekt med markeringerne inde i batterirummet.
4. Sæt batteridækslet på igen ved at skubbe det på plads, indtil det klikker sikkert.

Note: Brug altid nye batterier, og udskift begge batterier samtidig. Bland ikke gamle og nye batterier eller forskellige typer batterier.

Betjeningsvejledning

This remote control requires no programming or setup. Simply insert batteries and point it towards your Aiwa Music Center. Functionality may vary depending on your specific Aiwa model.

Grundlæggende funktioner

• Strøm (I/O): Press to turn the music center on or off.
• Lydstyrke (+/-): Justerer lydudgangsniveauet.
• Playback Controls (►, ⏸⏸, ◀◀, ■, ⏹⏹): Control CD or Tape playback (Play, Pause, Fast Forward, Rewind, Stop).
• CD / TAPE / TUNER: Vælger inputkilden.
• BAND: Switches between FM and AM radio bands.

Specifikke funktioner

• SKÆRM: Toggles display information on the music center.
• CLOCK/TIMER SET: Giver adgang til ur- og timerindstillinger.
• TUNER MEMORY: Stores or recalls radio station presets.
• PLAY MODE / TUNING MODE: Changes playback modes (e.g., repeat, shuffle) or tuner modes (e.g., auto-tune, manual tune).
• REPEAT / FM MODE: Activates repeat playback or changes FM reception mode.
• EQ: Justerer equalizer-indstillingerne.
• GÅ IND: Bekræfter valg.
• DISC SKIP: Skips to the next or previous disc in a multi-disc changer (if applicable).
• ALBUM (+/-): Navigerer mellem albummer eller mapper.

For detailed information on specific functions, please refer to your original Aiwa Music Center's instruction manual.

Opretholdelse

• Rensning: Tør fjernbetjeningen af ​​med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Batteripleje: Remove batteries if the remote control will not be used for an extended period to prevent leakage. Dispose of used batteries responsibly according to local regulations.
• Opbevaring: Opbevar fjernbetjeningen på et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.

Fejlfinding

• Fjernbetjeningen svarer ikke:
  • Sørg for, at batterierne er isat korrekt med den korrekte polaritet.
  • Udskift gamle batterier med nye.
  • Check for any obstructions between the remote and the music center's infrared receiver.
  • Ensure you are within the effective range and pointing the remote directly at the music center.
• Nogle funktioner virker ikke:
  • As a replacement remote, some advanced or specific functions of your original remote may not be supported. This is not a defect of the product.
  • Verify that the function you are trying to use is applicable to your specific Aiwa Music Center model.

Specifikationer

Garanti og support

This product is a generic replacement remote control. Specific warranty information may vary by seller. For any issues or support inquiries, please contact the retailer or seller from whom you purchased this product. It is recommended to retain your purchase receipt for warranty claims, if applicable.
