1. Introduktion
This manual provides essential information for the safe assembly, operation, and maintenance of your INFANS Baby Activity Center. Please read all instructions carefully before use and retain this manual for future reference. This activity center is designed to provide a secure and stimulating environment for infants aged 6-12 months, with a maximum weight capacity of 26 lbs (11.79 kg) and a maximum height of 30 inches.
Image 1.1: The INFANS Baby Activity Center, providing a safe play space for infants.
2. Produktfunktioner
- 3-i-1 design: Functions as a baby bouncer, activity center, and play table.
- Interaktivt legetøj: Includes 10 diverse toys such as plush hanging toys (monkey, giraffe, leopard, cloud-shaped), a roller, teeter-totter, bead game, and a music tray with lights.
- 360° roterende sæde: Allows the baby to easily access all surrounding toys and activities.
- 3 Adjustable Heights: Accommodates growing infants with seat positions at 17.5", 19.5", and 21" from the floor.
- Bouncy Foot Mat: Features a crinkly mat that produces sound when jumped on, stimulating tactile development.
- Safety & Stability: Constructed with a sturdy metal frame, strong springs for gentle bouncing, and anti-slip footpads.
- Let at rengøre: Removable and machine-washable seat pad and footpad for convenient maintenance.
- Certificeret sikker: Compliant with US CPSIA and ASTM requirements, made from non-toxic materials (BPA, PVC, Phthalates, Lead, Latex, and Formaldehyde-free).
Image 2.1: Detail of the various interactive toys designed to engage infants.

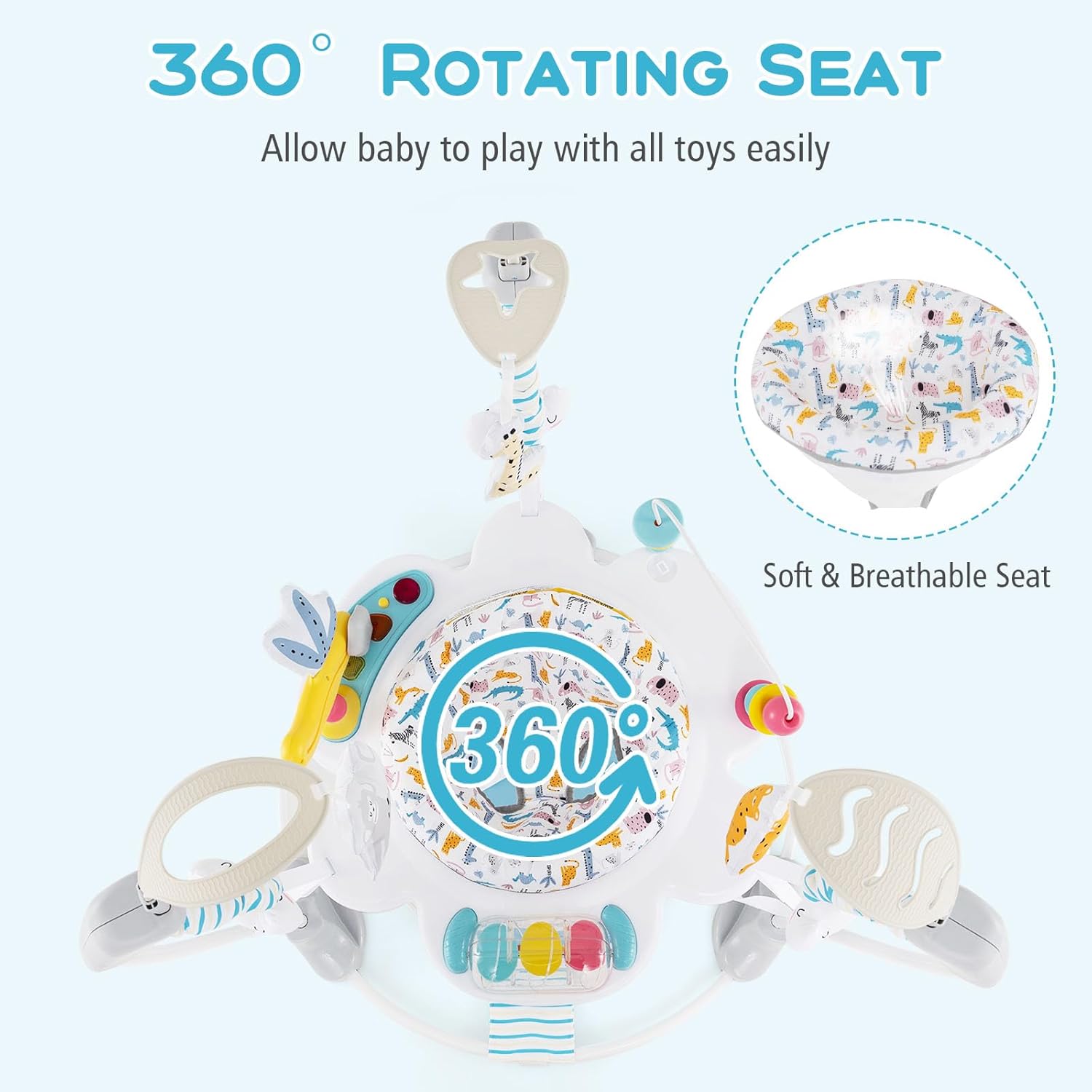

Image 2.2: The 360-degree rotating seat allows full access to all activities.
3. Reservedelsliste
Before assembly, ensure all components are present and undamaged. If any parts are missing or damaged, do not use the product and contact customer support.
- Main Activity Center Frame (Base and Upper Tray)
- Adjustable Height Legs (3 sections per leg)
- 360° Rotating Seat with Fabric Seat Pad
- Bouncy Foot Mat
- Hanging Toy Arches (3 pieces)
- Plush Hanging Toys (e.g., monkey, giraffe, leopard, cloud-shaped)
- Activity Table Toys (e.g., roller, teeter-totter, bead game, music tray with lights, mirror)
- Brugervejledning
4. Opsætningsvejledning
Følg disse trin for korrekt montering:
- Udpak komponenter: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Verify all parts against the Parts List.
- Saml rammen: Connect the adjustable height legs to the main activity center base and upper tray. Ensure all connections click securely into place.
- Attach the Foot Mat: Secure the bouncy foot mat to the designated area on the base.
- Installer sædet: Place the 360° rotating seat into the central opening of the upper tray. Ensure it is properly seated and can rotate freely. Attach the fabric seat pad to the seat.
- Attach Toy Arches: Insert the three hanging toy arches into their respective slots on the upper tray.
- Place Interactive Toys: Securely attach the plush hanging toys to the arches and place the activity table toys onto the tray. Ensure the music tray is correctly positioned.
- Install Batteries (Music Tray): The music tray requires 3 AAA batteries (not included). Open the battery compartment, insert the batteries with correct polarity, and close the compartment securely.

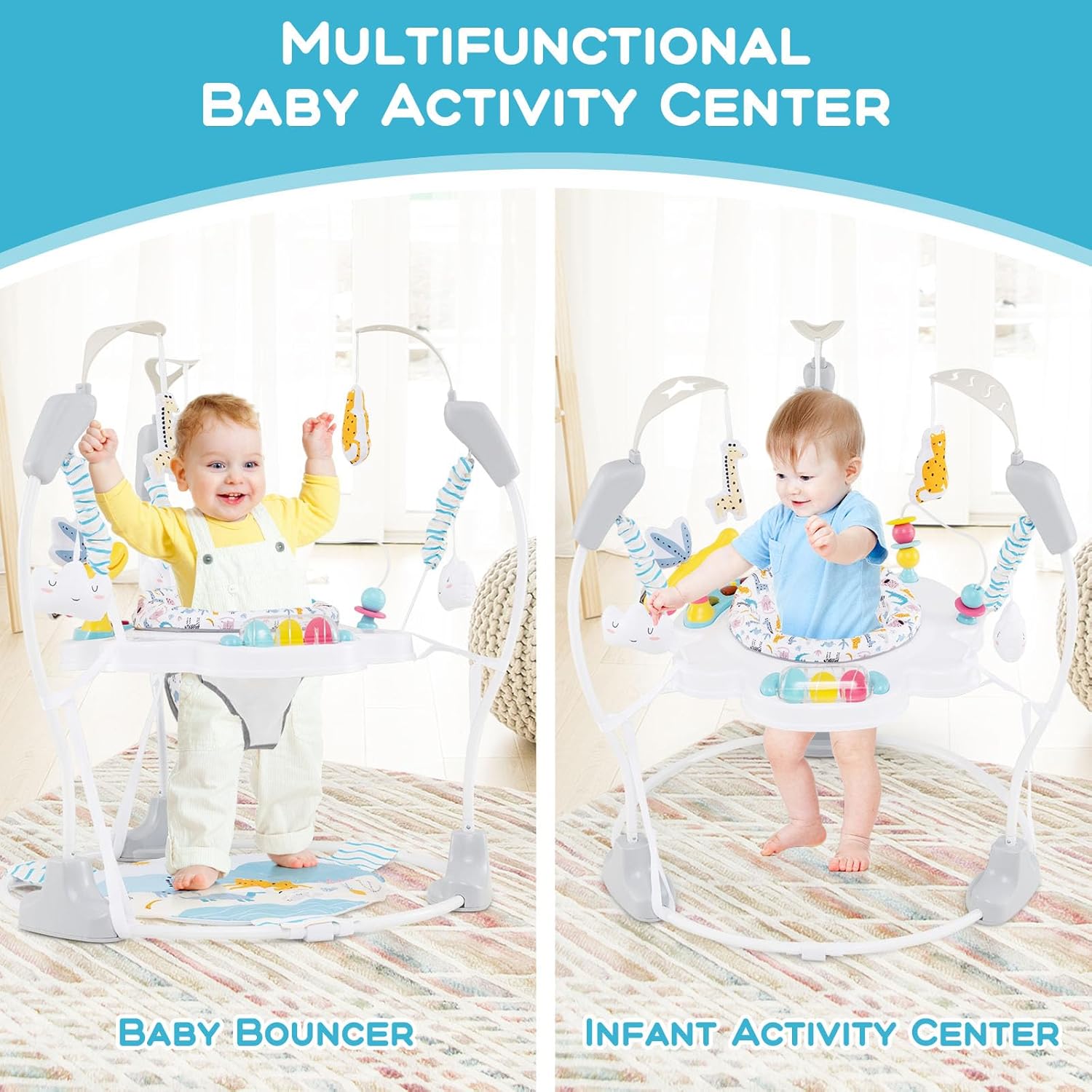

Image 4.1: The activity center can be used as a bouncer or an infant activity center.
5. Betjeningsvejledning
- Placering af din baby: Gently place your baby into the 360° rotating seat. Ensure their feet can comfortably touch the bouncy foot mat.
- Justering af højde: To adjust the height, locate the buckle under the play table (as shown in Image 5.1). Press the release buttons and slide the legs to one of the three available height positions (17.5", 19.5", 21"). Ensure all legs are locked into the same height position before placing your baby in the activity center.
- Using the Rotating Seat: The seat is designed to rotate 360 degrees, allowing your baby to turn and interact with all the toys around the activity tray.
- Engaging with Toys: Encourage your baby to reach, grasp, and play with the various interactive toys. The music tray will play sounds and light up when activated.
- Hoppehandling: The sturdy frame and springs allow for safe bouncing, which helps develop leg muscles.
Image 5.1: The height adjustment buckle located beneath the seat.
Image 5.2: The bouncy crinkly mat adds an auditory element to playtime.
6. Vedligeholdelse og rengøring
Regular cleaning and maintenance will ensure the longevity and hygiene of your activity center.
- Seat Pad & Foot Mat: The fabric seat pad and bouncy foot mat are removable and machine washable. Use a gentle cycle with cold water and mild detergent. Air dry or tumble dry on low heat.
- Plastkomponenter: Wipe down all plastic surfaces, including the tray, frame, and toys, with a damp klud og mild sæbe. Skyl grundigt og tør helt.
- Hængende legetøj: The plush hanging toys can be removed and wiped clean with a damp klæde.
- Batterirum: Periodically check the music tray's battery compartment for corrosion. Replace batteries as needed.
- Inspektion: Regularly inspect the activity center for any loose screws, worn parts, or damage. Do not use the product if any part is compromised.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Music tray not working. | Døde eller forkert installerede batterier. | Kontroller batteripolariteten, og udskift dem med nye AAA-batterier. |
| Sædet roterer ikke jævnt. | Obstruction under the seat or improper installation. | Remove baby, inspect for obstructions, and re-install the seat ensuring it clicks into place. |
| Height adjustment is difficult or not locking. | Buckle not fully engaged or mechanism is dirty. | Ensure the buckle is pressed firmly until it locks. Clean the adjustment mechanism if necessary. |
| Toys fall off easily. | Toys not securely attached. | Ensure all toys are firmly clipped or inserted into their designated slots. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Produktmål (L x B x H) | 34.5 "x 34.5" x 37 "(87.63 x 87.63 x 93.98 cm) |
| Nettovægt | 13 lbs (5.9 kg) |
| Vægt kapacitet | 26 lbs (11.79 kg) |
| Højdegrænse | Under 30 tommer |
| Gældende alder | 6-12 måneder |
| Height from Table to Floor | 17.5”, 19.5”, 21” (Adjustable) |
| Materiale | Metal, PP, Lint (Fabric), Springs, Foam |
| Batterier påkrævet | 3 x AAA (for music tray, not included) |
| Farve | Blå |
| Producentreference | BC10264 |

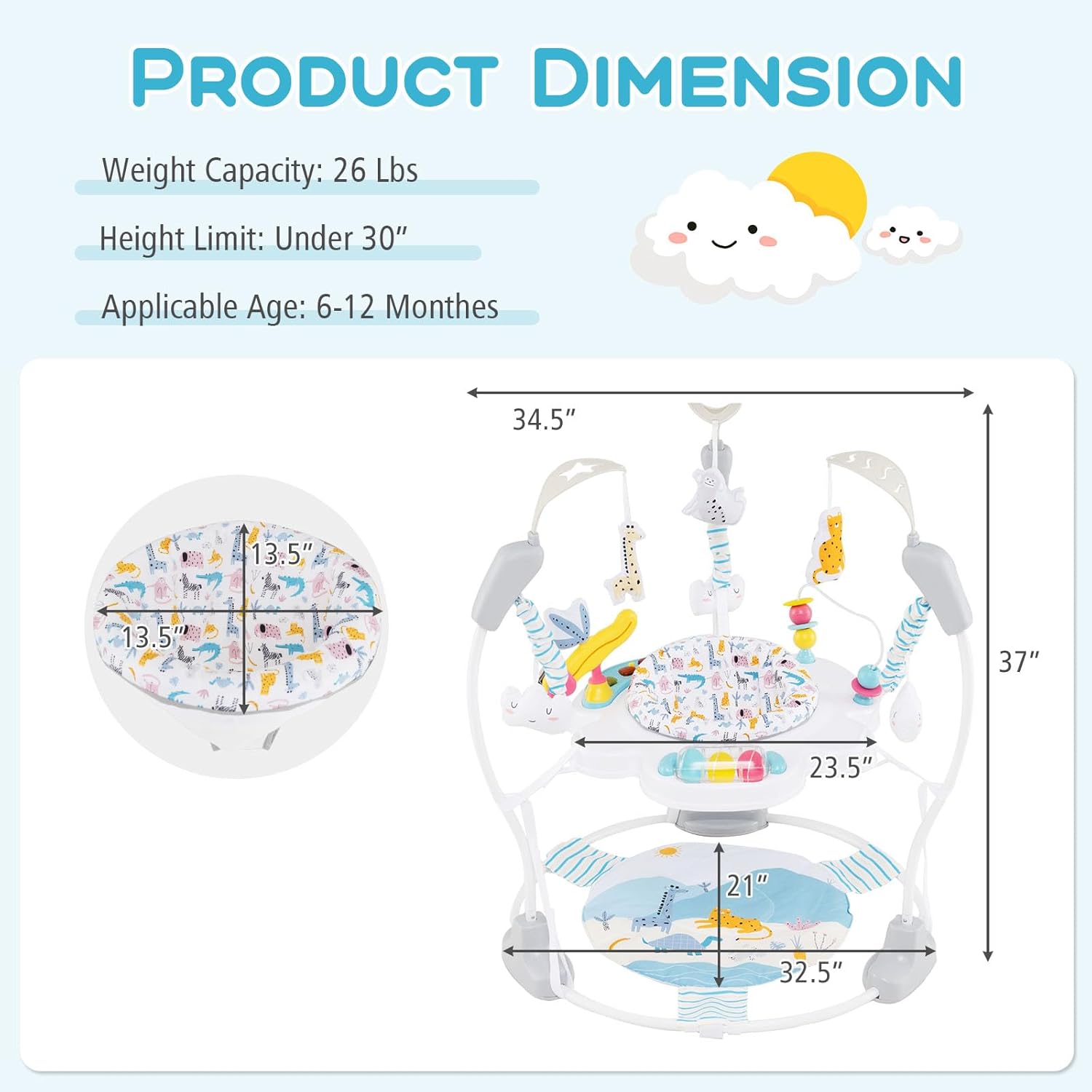

Billede 8.1: Vigtigste produktdimensioner og specifikationer.
9. Sikkerhedsoplysninger
ADVARSEL: Manglende overholdelse af disse advarsler og instruktioner kan resultere i alvorlig personskade eller død.
- Hold altid barnet inde view mens i produktet.
- Efterlad aldrig barnet uden opsyn.
- Discontinue use when child can walk unassisted, climb out, or reaches 30 inches in height or 26 lbs in weight, whichever comes first.
- Place the activity center on a flat, level surface. Never use on elevated surfaces.
- Keep the product away from stairs, steps, uneven surfaces, and heat sources.
- Sørg for, at alle dele er korrekt samlet og forsvarligt fastgjort før hver brug.
- Brug ikke produktet, hvis det er beskadiget eller ødelagt.
- Voksensamling påkrævet.
- Dette produkt er ikke beregnet til længere perioder med søvn.
- Batteries should be kept out of reach of children. Do not mix old and new batteries.

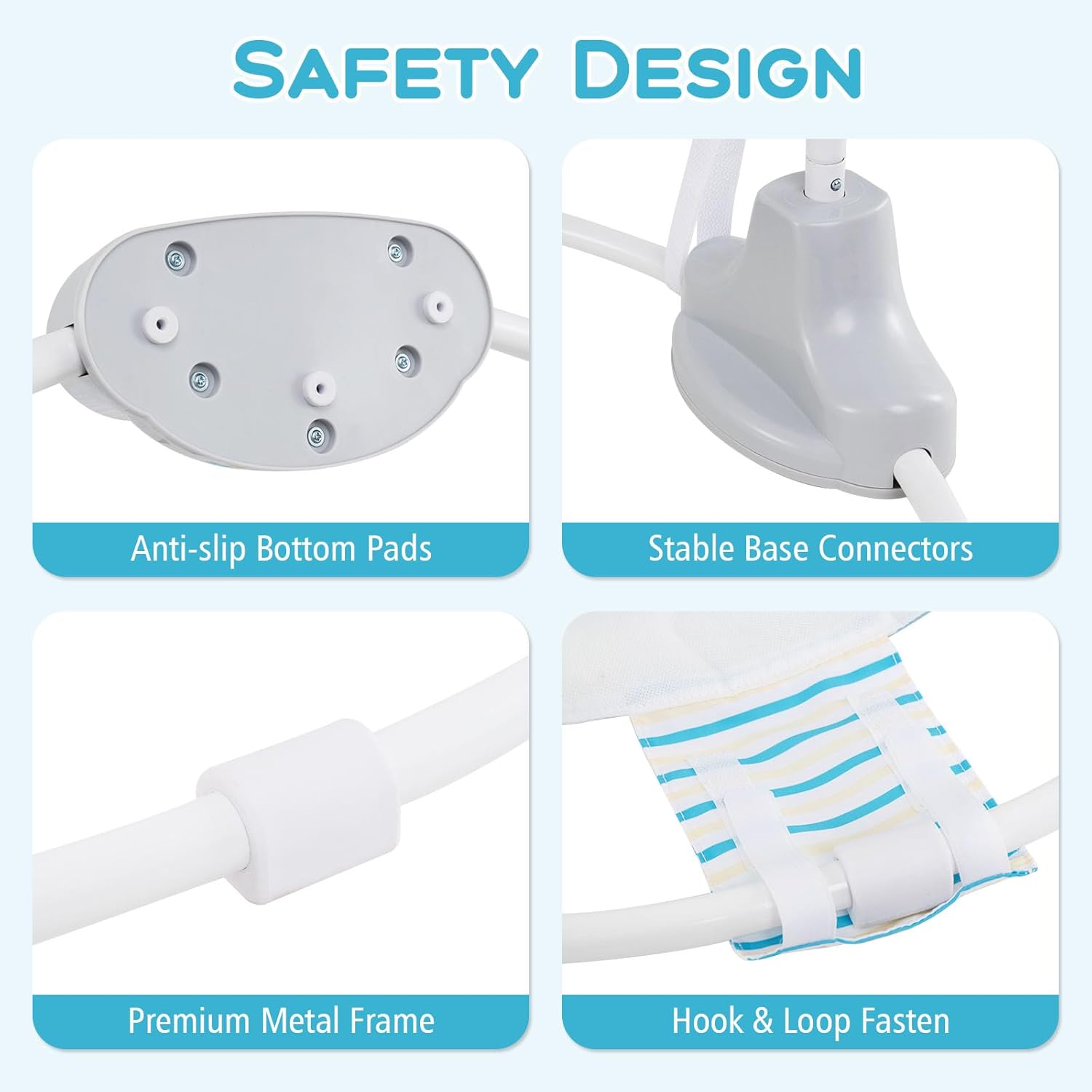

Image 9.1: Key safety design elements of the activity center.
10. Garanti og support
INFANS products are manufactured to high-quality standards. For warranty information, product support, or to report any issues, please refer to the contact details provided with your purchase documentation or visit the official INFANS website. Please have your model number (BC10264) and purchase date available when contacting support.
