Indledning
This manual provides instructions for the safe and efficient use of your TriPole Mini Desk Fan, Model KW59P. This USB-powered portable fan features three-speed settings, a 180-degree adjustable head, and a compact design suitable for various environments.
Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- 1 x TriPole USB Desk Fan (Model KW59P)
- 1 x USB Charging Cord (3.3 ft)
- 1 x brugermanual
Image: Contents of the TriPole Mini Desk Fan package, showing the fan, USB cable, and user manual.
Opsætning
- Pak ventilatoren ud: Tag forsigtigt ventilatoren og alt tilbehør ud af emballagen.
- Placer ventilatoren: Place the fan on a stable, flat surface. The fan features a foldable base for desktop use or can be hung.
- Tilslut strøm: Insert the small end of the provided USB cable into the USB port on the fan. Connect the larger end of the USB cable to a compatible USB power source (e.g., laptop, power bank, USB wall adapter, car charger).

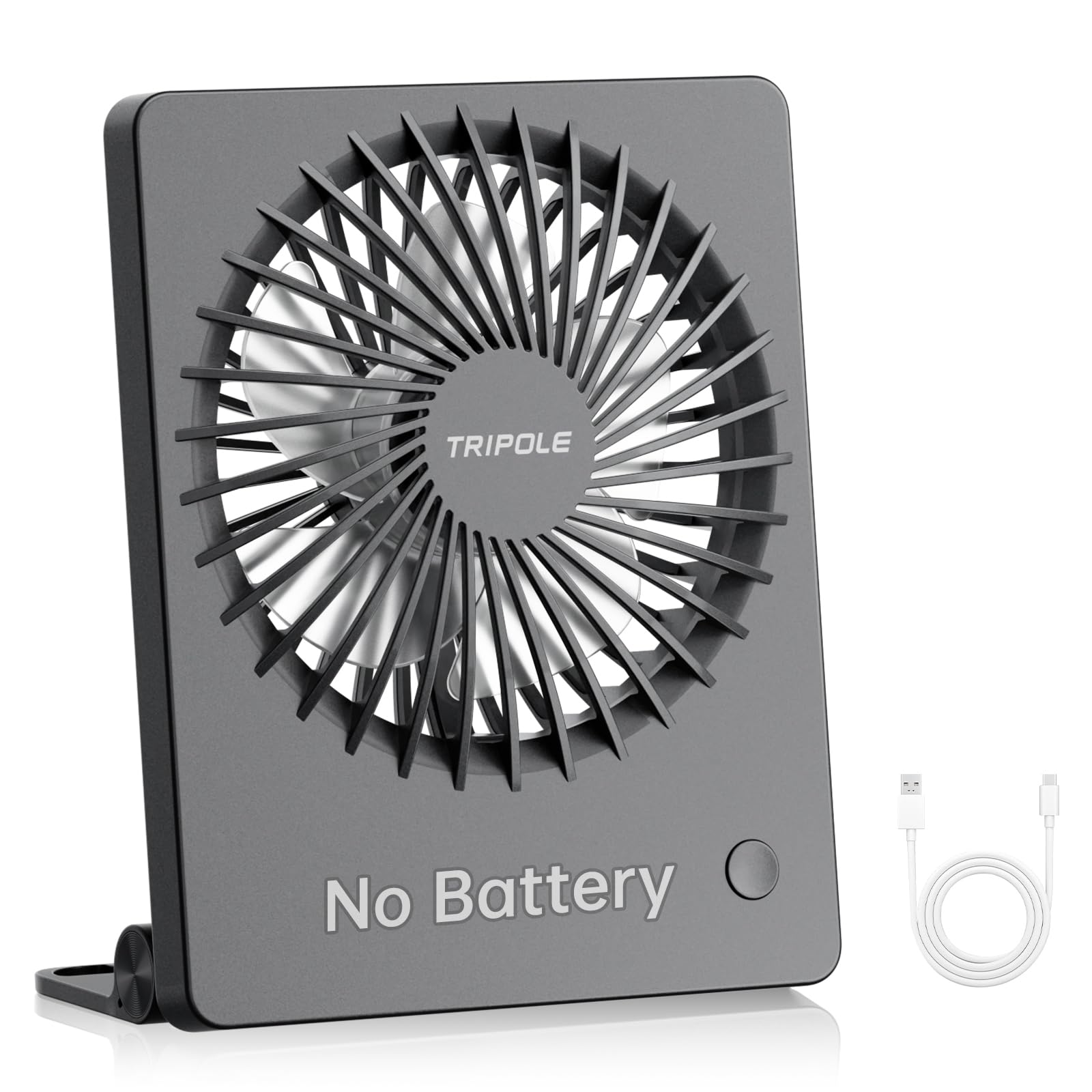

Image: The TriPole Mini Desk Fan connected via USB cable, illustrating its compact design.
Image: Illustration of multiple power methods for the fan, including laptop, power bank, wall socket, computer, and car charger.
Video: An unboxing and initial setup demonstration of the TriPole Mini Desk Fan.
Betjeningsvejledning
- Tænd/sluk: With the fan connected to a power source, press the power button located on the side of the fan to turn it on.
- Juster blæserhastighed: Press the power button repeatedly to cycle through the three available speed settings:
- First press: Low speed (Soft wind - 2.4 m/s, 2500 rpm)
- Second press: Medium speed (Cool wind - 3.6 m/s, 3200 rpm)
- Third press: High speed (Strong wind - 4.6 m/s, 4000 rpm)
- Fourth press: Turn off the fan.
- Juster luftretning: The fan head can be manually rotated vertically up to 180 degrees to direct airflow as needed.
Image: Visual representation of the three fan speed settings and their respective airflow and RPMs.
Image: The fan demonstrating its 180-degree adjustable tilt feature, allowing for flexible air direction.
Opretholdelse
To ensure optimal performance and longevity of your TriPole Mini Desk Fan, follow these maintenance guidelines:
- Rensning: Disconnect the fan from its power source before cleaning. Use a soft, dry cloth to wipe the exterior of the fan. Do not use liquid cleaners or immerse the fan in water.
- Fjernelse af støv: Periodically use a soft brush or compressed air to gently remove dust from the fan blades and grille.
- Opbevaring: Når ventilatoren ikke er i brug, skal den opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ventilatoren tænder ikke. | Ingen strømforsyning eller løs forbindelse. | Ensure the USB cable is securely connected to both the fan and a working USB power source. Try a different USB port or power adapter. |
| Ventilatorens luftstrøm er svag. | Fan is on a low speed setting or obstructed. | Press the power button to increase the fan speed. Check for any obstructions blocking the fan grille and remove them. |
| Blæseren larmer. | Dust accumulation or fan operating at high speed. | Clean the fan blades and grille to remove dust. Operating at higher speeds will naturally produce more noise; consider a lower speed setting if noise is a concern. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | TriPole |
| Modelnavn | KW59P |
| Farve | Sort |
| Strømkilde | USB-drevet |
| Antal hastigheder | 3 |
| Støjniveau | Less than 45 Decibels |
| Wattage | 5 watt |
| Produktmål (D x B x H) | 1.38" D x 4.37" B x 5.5" H |
| Varens vægt | 0.17 kilo |
| Speciel funktion | 180-degree Adjustable Tilt |
| Kontrolmetode | Touch Button |
| Materiale | Plast |
Garanti og support
For warranty information and customer support, please refer to the documentation included with your product or visit the official TriPole brand store.
Official TriPole Store: TriPole Store on Amazon
