1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of your Ailgely Motorcycle LED Display Gauge. This multi-functional instrument integrates a speedometer, odometer, tachometer, and fuel gauge, designed to provide essential riding information with enhanced visibility and customizable settings.
Nøglefunktioner:
- Indstillinger, der kan tilpasses: Easily adjust speed, RPM, and fuel capacity with a button press for a personalized driving experience.
- Multifunktionelt display: Integrates speedometer, odometer, tachometer, and fuel gauge for comprehensive monitoring.
- Nem installation: Designed for quick and hassle-free setup, enhancing rider convenience.
- Forbedret synlighed: Features a white backlight and large LCD display for clear readability day and night, reducing eye strain.
- Accurate Fuel Gauge: Displays fuel level in 5 segments, providing precise and reliable information for efficient fuel management.
2. Sikkerhedsoplysninger
Please read all safety warnings and instructions carefully before installation and operation. Failure to follow these instructions may result in product damage, property damage, or personal injury.
- Ensure the motorcycle's power is off before beginning installation.
- Kontakt en kvalificeret tekniker, hvis du er usikker på nogen af installationstrinnene.
- Do not modify the product or its wiring in any way not described in this manual.
- Hold produktet væk fra ekstreme temperaturer og fugt.
3. Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- Ailgely Motorcycle LED Display Gauge (Model Aiafz5gcgpun-2)
- Ledningsnet
- Speed Sensor (if included with your specific variant)
- Monteringsudstyr (bolte, møtrikker, skiver)
- Brugervejledning (dette dokument)

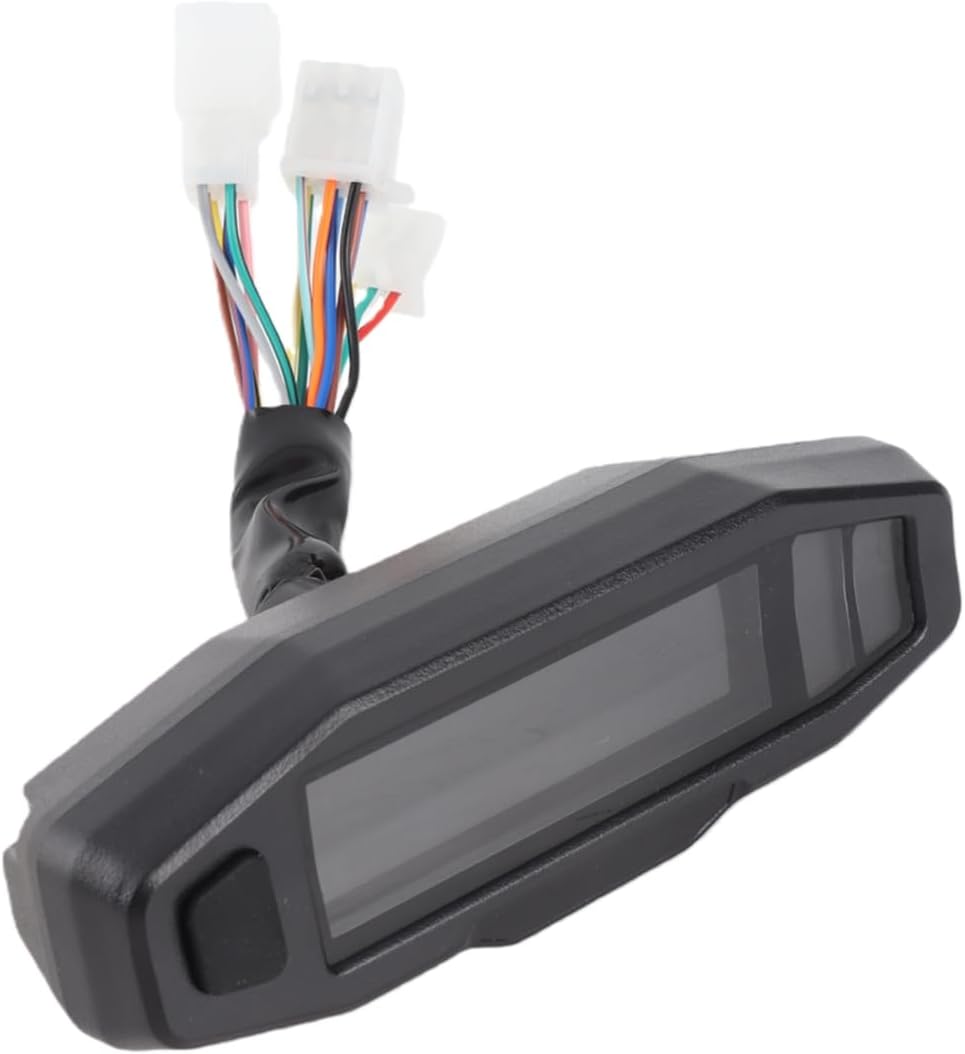

Billede 1: Forside view of the Ailgely Motorcycle LED Display Gauge with its wiring harness.

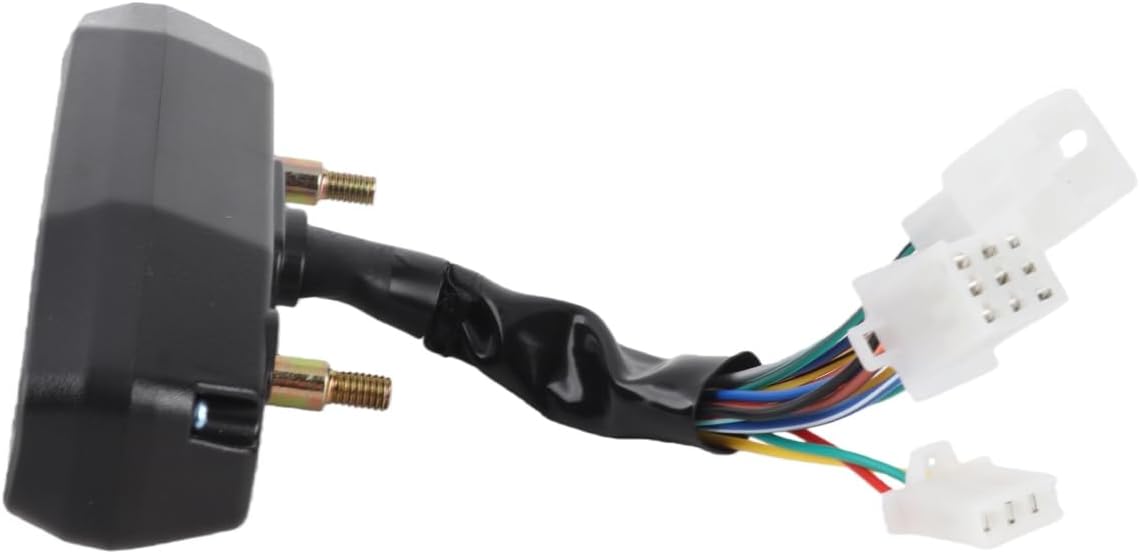

Billede 2: Bagside view of the gauge, highlighting the mounting bolts and electrical connectors.
4. Opsætning og installation
This section details the steps for installing your new LED display gauge. Professional installation is recommended if you are unfamiliar with motorcycle electrical systems.
4.1 Ledningsdiagram
Refer to the following general wiring guide. Specific wire colors may vary, but the functions are standard. Always cross-reference with your motorcycle's wiring diagram.
Billede 3: Eks.ample wiring diagram showing connections for power, ground, speed sensor, tachometer, and indicator lights.
- Rød ledning: +12V (Ignition Switched Power)
- Sort ledning: Jord (-)
- Grøn ledning: Hastighedssensorsignal
- Yellow/Black Wire: Tachometer Signal (Connect to ignition coil positive or ECU tach output)
- Blå ledning: High Beam Indicator (+)
- Orange ledning: Left Turn Signal Indicator (+)
- Light Blue Wire: Right Turn Signal Indicator (+)
- Brun tråd: Fuel Level Sensor Input
- Hvid ledning: Neutral Gear Indicator (+)
- Other Wires (if present): Refer to specific product documentation or consult a professional.
Bemærk: Nogle reviews indicate that the turn signal indicators might not be separated for left/right. If your motorcycle uses separate left/right signals and the gauge only has one input, you may need to use diodes to combine the signals before connecting to the gauge.
4.2 Montering af måleren
- Choose a suitable location on your motorcycle's dashboard or handlebars.
- Use the provided mounting hardware to securely attach the gauge. Ensure it is stable and visible to the rider.
Billede 4: Side view showing the compact design and mounting points of the gauge.
4.3 Installation af hastighedssensor
- Install the speed sensor near a rotating part of the wheel (e.g., brake rotor bolts).
- Attach the magnet(s) to the rotating part, ensuring they pass close to the sensor head with each rotation.
- Connect the speed sensor wire to the corresponding input on the gauge's wiring harness.
4.4 Initial Configuration (Speed and RPM)
To enter the setup mode for speed and RPM calibration:
- With the motorcycle's ignition OFF, press and hold the button on the gauge.
- While holding the button, turn the ignition ON.
- The display will enter configuration mode. Follow the on-screen prompts or refer to the specific instructions provided with your unit for detailed calibration steps.
- Hastighedskalibrering: Set the tire circumference (diameter x π). This value is crucial for accurate speed and odometer readings.
- RPM Calibration: Adjust the RPM setting according to your engine's cylinder count and ignition type. This typically involves setting the pulse ratio.
5. Betjeningsvejledning
Once installed and configured, the gauge will display various parameters:
- Hastighed: Nuværende kørehastighed.
- RPM: Motorens omdrejninger i minuttet.
- Kilometertæller: Samlet tilbagelagt afstand.
- Brændstofmåler: Displays current fuel level in 5 segments. If not connected, it may display battery voltage.
- Indikatorlys: High beam, turn signals (left/right), and neutral gear.
Billede 5: Forside view of the gauge, illustrating the display screen and control button.
5.1 Knapfunktioner
The single button on the gauge typically serves multiple functions:
- Kort tryk: Cycle through display modes (e.g., Odometer, Trip A, Trip B).
- Langt tryk: Reset trip meters or enter/exit settings mode (as described in Section 4.4).
6. Vedligeholdelse
To ensure the longevity and optimal performance of your Ailgely LED Display Gauge, follow these maintenance guidelines:
- Rensning: Wipe the display with a soft, damp klud. Undgå slibende rengøringsmidler eller opløsningsmidler, der kan beskadige skærmen.
- Ledningsinspektion: Periodically check all wiring connections for looseness or corrosion. Ensure wires are securely routed and protected from heat and moving parts.
- Sensorkontrol: Verify that the speed sensor and its magnet(s) are clean and properly aligned.
- Vandeksponering: While designed to be water-resistant, avoid direct high-pressure water jets on the unit.
7. Fejlfinding
If you encounter issues with your gauge, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm/skærm slukket | Loose wiring connection, blown fuse, faulty power supply. | Check all power and ground connections. Inspect motorcycle fuses. Ensure 12V power is reaching the red wire. |
| Speed/Odometer Inaccurate or Not Working | Incorrect speed calibration, faulty speed sensor, misaligned magnet. | Recalibrate speed setting (tire circumference). Check speed sensor wiring. Ensure magnet passes close to the sensor. |
| Tachometer Not Working | Incorrect RPM calibration, incorrect wiring to ignition coil/ECU, weak signal. | Recalibrate RPM setting. Verify tachometer signal wire connection. Try connecting to a different signal source if available (e.g., negative side of ignition coil if connected to positive). |
| Fuel Gauge Inaccurate or Not Working | Incorrect fuel sensor wiring, incompatible fuel sensor, faulty sensor. | Check fuel sensor wiring. Ensure the fuel sensor type is compatible with the gauge. If no fuel sensor is connected, the gauge may display battery voltage. |
| Indicator Lights Not Functioning | Incorrect wiring, faulty bulb/LED in motorcycle, diode required for combined signals. | Verify wiring for each indicator. If turn signals are combined, ensure diodes are used if necessary. |
If the problem persists after attempting these solutions, contact customer support or a qualified motorcycle technician.
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærkenavn | Ailgely |
| Modelnummer | Aiafz5gcgpun-2 |
| Producentens modelnummer | Aiafz5gcgpun-2 |
| Oprindelse | Kina |
| Produkttype | Car Monitor Accessory (Motorcycle Instrument Cluster) |
| Display Type | LED LCD with White Backlight |
| Funktioner | Speedometer, Odometer, Tachometer, Fuel Gauge, Indicator Lights |
| Materiale | Black Plastic + Metal |
9. Garanti og support
Garanti: Dette produkt leveres med en 1 års garanti fra købsdatoen, dækker fabrikationsfejl. Gem venligst din købsbevis i tilfælde af garantikrav.
Ekskluderinger: Garantien dækker ikke skader forårsaget af forkert installation, misbrug, ulykker, uautoriserede ændringer eller normal slitage.
Kundesupport: For technical assistance, warranty claims, or any questions regarding your Ailgely Motorcycle LED Display Gauge, please contact your retailer or the manufacturer directly. Refer to your purchase documentation for contact details.
