RATION 2-Pack Carburetor Rebuild Kit Instruction Manual

1. Introduktion

This instruction manual provides essential information for the proper use, installation, and maintenance of your RATION 2-Pack Carburetor Rebuild Kit. This kit is designed to restore optimal performance to compatible Walbro carburetors. Please read this manual thoroughly before attempting any repairs or installations.

2. Produktet er slutview

The RATION 2-Pack Carburetor Rebuild Kit provides a comprehensive set of replacement components for two Walbro carburetors. These kits are crucial for maintaining the fuel system of small engines, ensuring efficient fuel delivery and reliable operation. Regular maintenance and timely replacement of worn carburetor components can prevent common engine issues such as poor starting, rough idling, and reduced power.

Kompatibilitet: This kit is specifically designed for Walbro carburetor models WT58, WT59, WT62, WT26, and WT57.

3. Sikkerhedsoplysninger

Always prioritize safety when working with fuel systems and small engines. Failure to follow safety precautions can result in injury or damage.

• Sørg for, at motoren er slukket og afkølet, før du påbegynder noget arbejde.
• Frakobl tændrørskablet for at forhindre utilsigtet start.
• Arbejd i et godt ventileret område for at undgå indånding af brændstofdampe.
• Brug passende personlige værnemidler, herunder sikkerhedsbriller og handsker.
• Handle fuel with extreme care. Keep open flames, sparks, and other ignition sources away from fuel.
• Bortskaf gammelt brændstof og reservedele ansvarligt i henhold til lokale regler.
• If you are unsure about any step, consult a qualified technician or the specific carburetor's service manual.

4. Pakkens indhold

Each RATION 2-Pack Carburetor Rebuild Kit contains the following components for two carburetors:

• membraner
• Gaskets (various shapes and sizes)
• Fuel inlet needles
• Fjedre
• Other small metal components

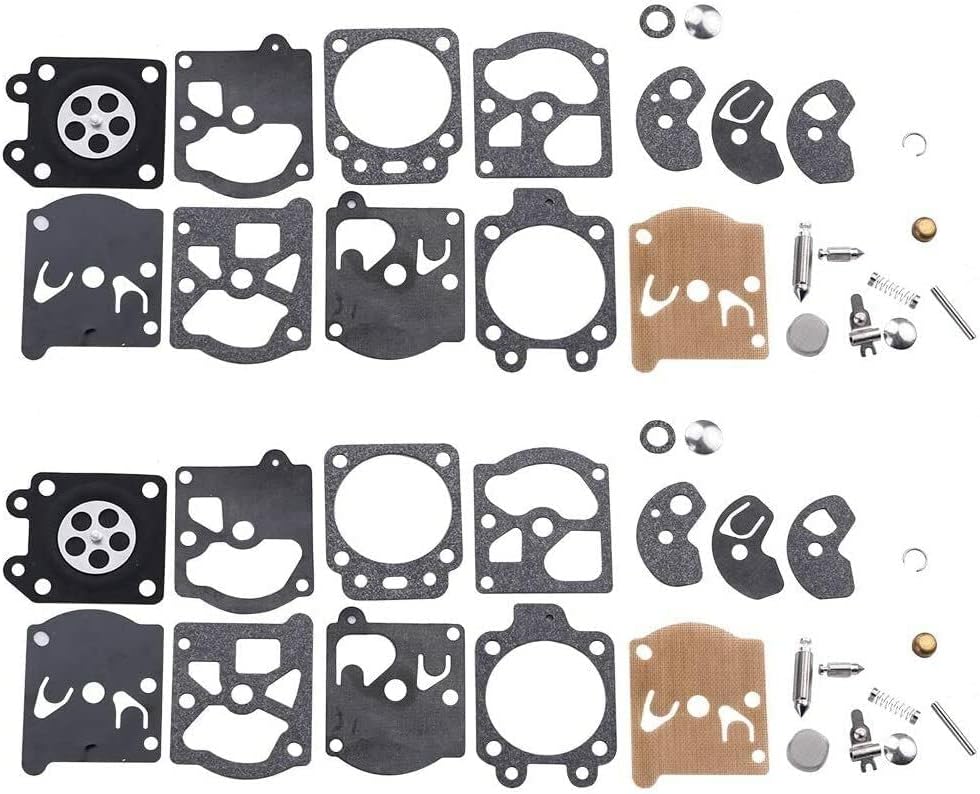

This image displays the complete contents of the RATION 2-Pack Carburetor Rebuild Kit. It includes two sets of components, each featuring multiple gaskets of different shapes and sizes, rubber diaphragms, a fuel inlet needle, a spring, and other small metal parts necessary for a comprehensive carburetor overhaul. The components are laid out neatly against a white background, illustrating the variety of parts provided for two separate carburetor rebuilds.

5. Opsætning og installation

Carburetor rebuilding requires careful attention to detail. It is highly recommended to refer to the specific service manual for your Walbro carburetor model (WT58, WT59, WT62, WT26, or WT57) for detailed, step-by-step instructions and torque specifications.

Generelle installationstrin:

1. Demontering: Carefully remove the carburetor from the engine. Disassemble the carburetor, paying close attention to the order and orientation of all components. Take photos or make diagrams if necessary.
2. Rensning: Thoroughly clean all carburetor components. Use a carburetor cleaner to remove fuel varnish, carbon deposits, and debris. Ensure all passages and jets are clear.
3. Inspektion: Inspect the carburetor body for any damage, cracks, or excessive wear. Replace the carburetor if significant damage is found.
4. Udskiftning af komponenter: Replace all old gaskets, diaphragms, fuel inlet needle, and other worn components with the new parts from the RATION rebuild kit. Ensure each new part matches the old one in size and shape.
5. Genmontering: Reassemble the carburetor in reverse order of disassembly. Ensure all screws are tightened to the manufacturer's specifications (refer to your carburetor's service manual).
6. Geninstallation: Reinstall the rebuilt carburetor onto the engine, ensuring all fuel lines and linkages are correctly connected.

6. Operation (Post-Rebuild Checks)

After rebuilding and reinstalling the carburetor, perform the following checks before operating the engine:

• Brændstoflækager: Check all fuel lines and carburetor connections for any signs of fuel leaks. Address any leaks immediately.
• Engine Start-up: Start the engine according to the manufacturer's instructions. It may take a few pulls for fuel to prime the carburetor.
• Tomgangsjustering: Once the engine is warm, adjust the idle speed and mixture screws as needed to achieve a smooth and stable idle. Refer to your engine's service manual for specific adjustment procedures.
• Ydelsestjek: Test the engine under various loads to ensure proper acceleration and power delivery.

7. Vedligeholdelse

Regular maintenance helps prolong the life of your carburetor and engine.

• Brændstofkvalitet: Always use fresh, clean fuel. Stale or contaminated fuel can clog carburetor passages and degrade rubber components.
• Brændstoffilter: Regularly inspect and replace the fuel filter to prevent debris from reaching the carburetor.
• Luftfilter: Keep the air filter clean to ensure proper air-fuel mixture and prevent dirt from entering the carburetor.
• Opbevaring: If storing the engine for an extended period, drain the fuel system or use a fuel stabilizer to prevent fuel degradation and carburetor issues.

8. Fejlfinding

If you encounter issues after rebuilding your carburetor, consider the following common problems and solutions:

9. Specifikationer

• Produkt: Carburetor Rebuild Kit (2-Pack)
• Mærke: RATIONERE
• Kompatibilitet: Walbro WT58, WT59, WT62, WT26, WT57 Carburetors
• Fabrikant: RATIONERE

10. Garanti og support

For any questions regarding the RATION 2-Pack Carburetor Rebuild Kit, or if you require assistance with installation or troubleshooting, please contact the seller or manufacturer directly through your purchase platform. Please have your order details available when contacting support.
