Indledning
Thank you for choosing the Rolanstar Full Size Bed Frame. This bed frame is designed for comfort and convenience, featuring an upholstered headboard with integrated LED lighting and a charging station. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure safe and proper use of your product.
Sikkerhedsoplysninger
- Vægtgrænse: Do not exceed the maximum weight limit of 900 pounds (408 kg) for this full-size bed frame. Exceeding this limit may result in structural damage or injury.
- Forsamling: Assembly requires two adults. Ensure all parts are correctly aligned and tightened before use.
- Placering: Place the bed frame on a flat, level surface to prevent instability.
- Elektrisk sikkerhed: Ensure the power cord for the LED lights and charging station is not pinched or damaged during assembly or use. Do not expose electrical components to moisture.
- Børn: Hold små dele og emballagematerialer væk fra børn under samling for at forhindre kvælningsfare.
Pakkens indhold
Før montering påbegyndes, skal det kontrolleres, at alle nedenstående komponenter er til stede og ubeskadigede:
- Sengegavl
- Fodplade
- Sideskinner
- Metallameller
- RGB LED lysbånd
- USB Charging Station (2 USB-A, 1 USB-C)
- Fjernbetjening til LED-lys
- Samlebeslag (bolte, skiver, unbrakonøgle)
Figur 1: Eksploderet view of bed frame components with dimensions.
Opsætning og montering
Assembly of the Rolanstar Full Size Bed Frame is designed to be straightforward, utilizing a bolt-free quick-lock assembly system for the slats. It is recommended that two people perform the assembly.
- Udpak komponenter: Tag forsigtigt alle dele ud af emballagen, og læg dem på en ren, blød overflade for at forhindre ridser.
- Saml ramme: Connect the headboard, footboard, and side rails according to the included diagram. Ensure all connections are secure.
- Installer lameller: Position the metal slats onto the frame. The bolt-free quick-lock system allows for easy installation by snapping them into place. Ensure all slats are firmly seated.
- Install Headboard Features: Secure the LED light strip and charging station into their designated slots on the headboard. Connect the power cables.
Figure 2: Detail of the bolt-free quick-lock assembly system for metal slats.
Figure 3: Sturdy metal slats provide mattress support.
Betjeningsvejledning
LED lyssystem
The integrated RGB LED light system offers customizable lighting options for your bedroom ambiance.
- Tænd/sluk: Use the remote control to turn the LED lights on or off.
- Farvevalg: Choose from 20 different static colors using the color buttons on the remote.
- Dynamiske tilstande: Vælg mellem 21 dynamiske tilstande for forskellige lyseffekter.
- Hastighedstilpasning: Adjust the speed of dynamic modes with 8 available levels.
- Lysstyrkekontrol: Modify the brightness of the lights with 8 different brightness modes.
Figure 4: LED light features and remote control.
Opladning Station
The headboard includes a convenient charging station to power your electronic devices.
- USB-porte: The charging station features 2 USB-A ports (5V/2.4A Max) and 1 USB-C port (5V/3A Max).
- Anvendelse: Connect your tablet, phone, or other mobile devices to the appropriate USB port for charging.
- Strømkilde: The charging station is powered by the bed frame's main power connection.
Figure 5: Integrated charging station on the headboard.
Opretholdelse
Regelmæssig vedligeholdelse forlænger levetiden og udseendet af din sengeramme.
- Rengøringsramme: For general cleaning, wipe the metal frame with a dry cloth.
- Rengøring af polstring: For the upholstered headboard and footboard, wipe with a damp klud. Undgå skrappe kemikalier eller slibende rengøringsmidler.
- Tjek forbindelser: Periodically check all connections and hardware to ensure they remain tight and secure. Retighten if necessary.
- Elektriske komponenter: Keep the LED light strip and charging station free from dust and debris. Do not attempt to disassemble or repair electrical components yourself.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| LED-lys tænder ikke. | Power cable disconnected; remote control battery low; LED strip faulty. | Ensure power cable is securely plugged in. Replace remote control battery. Contact customer support if the LED strip is faulty. |
| LED lights change colors or modes unexpectedly. | Remote control interference; faulty LED controller. | Ensure no other devices are interfering with the remote. If the issue persists, contact customer support. |
| Ladestationen virker ikke. | Power cable disconnected; device cable faulty; charging station faulty. | Verify the bed frame is powered. Try a different charging cable. If still not working, contact customer support. |
| Sengerammen larmer eller knirker. | Løse forbindelser; ujævnt gulv. | Check and tighten all bolts and connections. Ensure the bed frame is on a level surface. |
Specifikationer
- Model: BF007-V2-BK-F-RR-VC
- Størrelse: Fuld
- Dimensioner (L x B x H): 78.35" x 53.94" x 44.49" (199 cm x 137 cm x 113 cm)
- Vægt kapacitet: 900 pund (408 kg)
- Materiale: Metal frame, Velvet upholstered headboard/footboard (PU Leather finish)
- Særlige funktioner: RGB LED Lights (20 colors, 21 dynamic modes, 8 speed, 8 brightness), Integrated Charging Station (2 USB-A, 1 USB-C), Noise-Free Design, Under-bed storage space (10.4 inches / 26.4 cm clearance).
- Montering påkrævet: Ja
- Vedligeholdelsesinstruktioner: Tør med Damp Klud, tør af med en tør klud

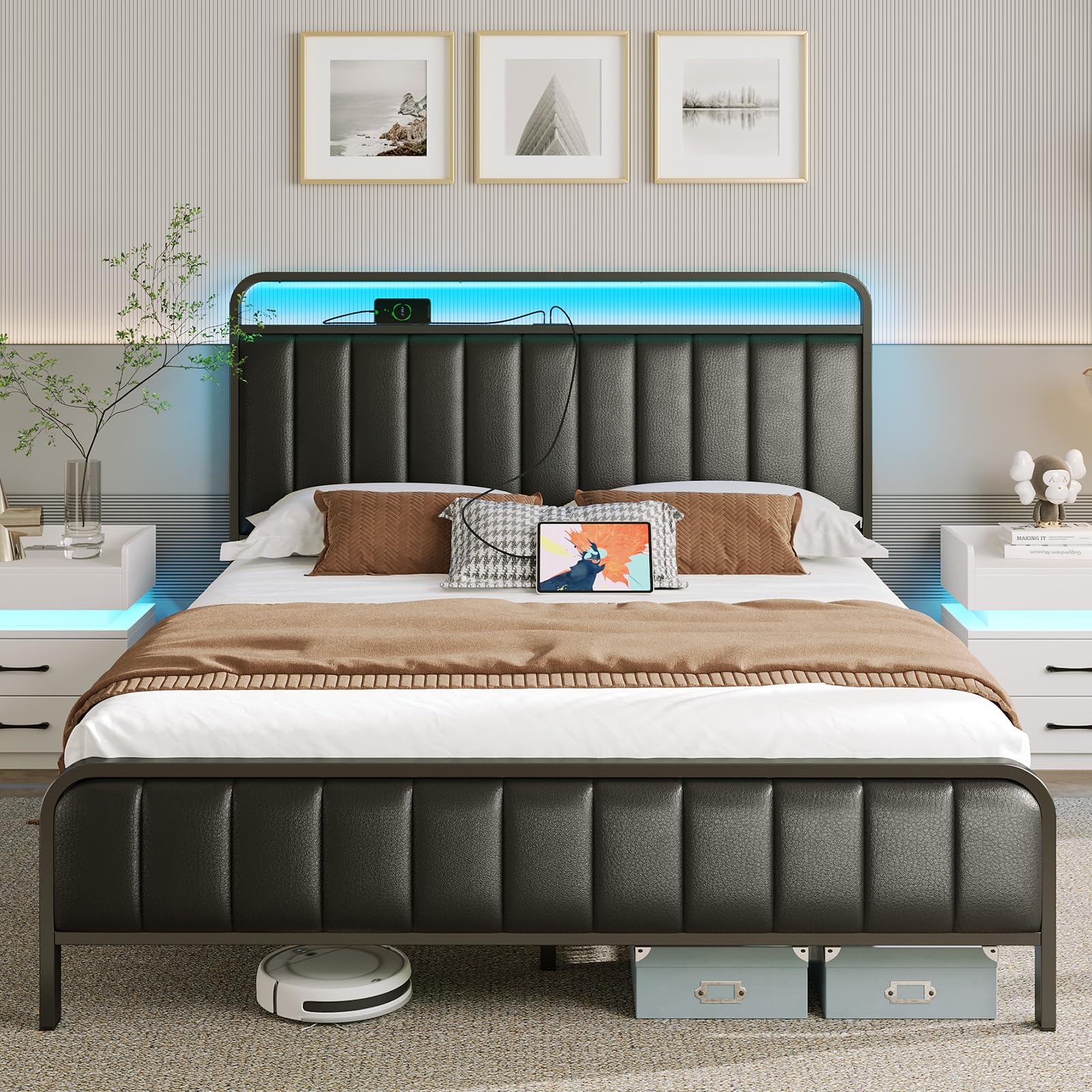

Figure 6: Rolanstar Full Size Bed Frame.
Garanti og support
Rolanstar products are designed for quality and durability. For specific warranty details, please refer to the documentation included with your purchase or visit the official Rolanstar store.
- Returpolitik: Dette produkt er berettiget til en 30-dages nem returret.
- Beskyttelsesplaner: Extended protection plans may be available for purchase.
- Kundesupport: For assistance with assembly, missing parts, or any other inquiries, please contact Rolanstar customer service.
- Online butik: Besøg Rolanstar Store on Amazon for mere information og produkter.
