AWEI Portable Bluetooth Speaker User Manual

Indledning

Thank you for choosing the AWEI Portable Bluetooth Speaker. This speaker is designed to provide high-quality stereo sound with the convenience of wireless Bluetooth 5.0 connectivity. It features a unique rotatable disc for decompression, offering various soothing sounds, and supports multiple play modes including TF card, AUX, and FM radio. Its portable and waterproof design makes it suitable for various environments, from home to outdoor activities.

Image: The AWEI Portable Bluetooth Speaker, showcasing its unique phonograph-style design with a rotatable disc.

Hvad er der i æsken

Kontroller venligst pakkens indhold ved udpakning:

• 1 x AWEI Portable Bluetooth Speaker (Model: KA26)
• 1 x Type-C ladekabel
• 1 x Quick Start Guide

Produkt overview

Gør dig bekendt med højttalerens komponenter og betjeningselementer.

Image: A top-down perspective of the AWEI speaker, highlighting the central rotatable disc and the adjacent control buttons for various functions.

Nøglefunktioner:

• Rotatable Disc: For accessing 12 soothing sounds and decompression features.
• Kontrolknapper: Power, Volume Up/Down, Play/Pause, Mode selection.
• Forbindelsesporte: TF card slot, 3.5mm AUX jack, Type-C charging port.
• Indbygget mikrofon: Til håndfri opkald.
• Højttalergitter: Durable fabric covering the speaker drivers.

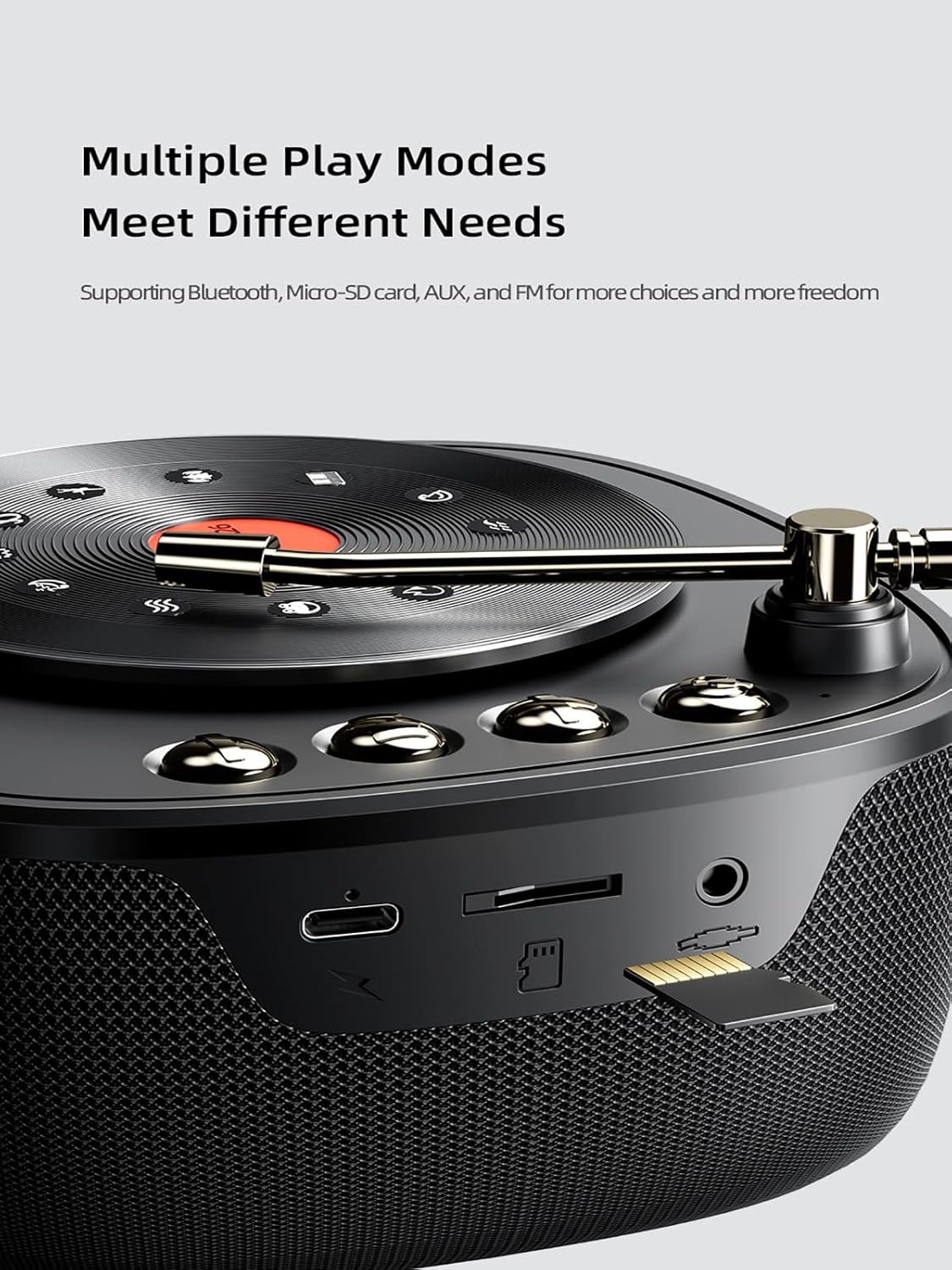

Billede: Et nærbillede view of the speaker's side, illustrating the various input ports including the TF card slot, AUX input, and Type-C charging port, indicating its versatile connectivity options.

Billede: En intern view of the speaker's diaphragm and horn, emphasizing the components responsible for delivering high-fidelity stereo sound and vigorous bass.

Opsætning

1. Opladning af højttaleren

Before first use, fully charge the speaker. Connect the provided Type-C charging cable to the speaker's charging port and the other end to a USB power adapter (not included) or a computer's USB port. The charging indicator light will show charging status and turn off when fully charged.

2. Tænd/sluk

• Tænd: Tryk på tænd/sluk-knappen og hold den nede i cirka 3 sekunder, indtil du hører en lydmeddelelse.
• Sluk: Tryk på tænd/sluk-knappen og hold den nede i cirka 3 sekunder, indtil du hører en lydmeddelelse.

Betjeningsvejledning

1. Bluetooth-parring

1. Sørg for, at højttaleren er tændt og i Bluetooth-parringstilstand (indikeret med en blinkende LED).
2. Aktiver Bluetooth på din enhed (smartphone, tablet, computer).
3. Søg efter "AWEI KA26" or similar in the list of available Bluetooth devices.
4. Select "AWEI KA26" to connect. Once connected, the LED indicator will stop flashing, and you will hear a confirmation sound.

Højttaleren vil automatisk forsøge at genoprette forbindelsen til den sidst parrede enhed, når den tændes.

2. Ægte trådløs stereoforbindelse (TWS)

For an enhanced stereo experience, you can connect two AWEI KA26 speakers together.

1. Sørg for, at begge højttalere er tændt og ikke er forbundet til nogen anden Bluetooth-enhed.
2. On one speaker (this will be the primary speaker), double-press the Power button (or a dedicated TWS button if available, refer to quick start guide). The speaker will enter TWS pairing mode.
3. De to højttalere vil automatisk søge efter og oprette forbindelse til hinanden. Når der er oprettet forbindelse, vil du høre en bekræftelseslyd.
4. Now, connect your device to the primary speaker via Bluetooth as described in "Bluetooth Pairing" above. Audio will play through both speakers, creating a stereo soundstage.

Image: A visual representation of two AWEI speakers wirelessly linked to a tablet, demonstrating the True Wireless Stereo (TWS) connection for immersive 3D surround sound.

3. Afspilning af musik

• Bluetooth-tilstand: After successful pairing, play audio from your connected device. Use the speaker's Play/Pause button to control playback, and Volume Up/Down buttons to adjust volume.
• TF-korttilstand: Insert a TF (Micro-SD) card with audio files i TF-kortstikket. Højttaleren skifter automatisk til TF-korttilstand og begynder afspilning.
• AUX-tilstand: Connect an audio device using a 3.5mm audio cable (not included) to the AUX input port. The speaker will automatically switch to AUX mode.
• FM -radiotilstand: Press the Mode button to cycle through available modes until you reach FM radio. Use the Play/Pause button to auto-scan for stations, and Volume Up/Down buttons to navigate between stations.

4. Rotatable Disc and Soothing Sounds

The unique rotatable disc on top of the speaker provides access to 12 soothing sounds designed for relaxation and decompression.

Billede: En detaljeret view of the speaker's rotatable turntable, displaying icons representing the 12 soothing sounds available for selection, such as Music Box, Alpha Brainwave, Drizzle, Cricket, Rivulet, Frog, Bell, Sea Wave, White Noise, Warble, Piano, and Bonfire.

To activate and select sounds:

• Gently rotate the disc to cycle through the available soothing sounds.
• The speaker will play the selected sound.
• One of the sounds is "White Noise," which can aid in relaxation and sleep.

Image: A person sleeping soundly, with the AWEI speaker placed on a bedside table, illustrating the speaker's function in providing white noise or other soothing sounds to aid in sleep and relaxation.

5. Håndfri opkald

When connected to a smartphone via Bluetooth, the speaker's built-in microphone allows for hands-free calling.

• Besvar opkald: Tryk én gang på Afspil/Pause-knappen for at besvare et indgående opkald.
• Afslut opkald: Tryk på Afspil/Pause-knappen én gang under et opkald for at afslutte det.
• Afvis opkald: Tryk og hold Afspil/Pause-knappen nede i 2 sekunder for at afvise et indgående opkald.

Opretholdelse

• Rensning: Brug en blød, tør klud til at tørre højttalerens overflade af. Brug ikke slibende rengøringsmidler, alkohol eller kemiske opløsningsmidler.
• Opbevaring: Opbevar højttaleren et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Vandtæthed: While the speaker is waterproof, avoid submerging it for extended periods or exposing it to high-pressure water jets. Ensure the charging port cover is securely closed when near water.
• Batteripleje: For at forlænge batteriets levetid bør du undgå at aflade batteriet helt ofte. Oplad højttaleren regelmæssigt, selvom den ikke er i brug i længere perioder.

Fejlfinding

Specifikationer

Image: The AWEI speaker on a wooden table, with an overlay indicating its 1200mAh Li-Polymer battery and up to 7 hours of play time, highlighting its long-lasting companionship.

Garanti og support

The AWEI Portable Bluetooth Speaker comes with a 2-year warranty from the date of purchase, covering manufacturing defects. For warranty claims or technical support, please contact AWEI customer service through their official webwebstedet eller forhandleren, hvor produktet blev købt. Gem venligst din købsbevis for at validere garantien.

For further assistance, you may visit the AWEI Store on Amazon: AWEI Official Store
