Cudy AX3000 WiFi 6 Mesh System M3000 User Manual

1. Introduktion

This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your Cudy AX3000 WiFi 6 Mesh System M3000. Please read this guide carefully to ensure optimal performance and longevity of your device.

The Cudy AX3000 WiFi 6 Mesh System is designed to replace your traditional router and extenders, offering seamless, whole-home mesh WiFi coverage. It features a powerful 1.3 GHz dual-core CPU for fast data transmission and low latency, supporting up to 200 devices simultaneously.

Image: Two Cudy M3000 Mesh Units displayed on a wooden surface, highlighting their design and the product's premium multi-gig AX3000 Wi-Fi 6 capabilities.

2. Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• Cudy M3000 Mesh Unit
• Strømadapter
• Ethernet kabel
• Hurtig installationsvejledning

Image: The retail box for the Cudy M3000 Mesh System, showing the product and branding.

3. Produktet er slutview

The Cudy M3000 Mesh Unit features a sleek design with essential ports and indicators for easy management.

3.1. Physical Appearance and Ports

Billede: Bagside view of the Cudy M3000 Mesh Unit, highlighting the WAN and LAN ports, power input, and reset button.

The unit typically includes:

• WAN Port (2.5G Multi-Gigabit): Connects to your modem or existing router for internet access.
• LAN-port(e): For wired connections to devices like PCs, gaming consoles, or network storage.
• Strømindgang: Tilsluttes den medfølgende strømadapter.
• Nulstil knap: Used to restore factory default settings.

3.2. LED-indikatorer

The LED indicator on the front of the unit provides status information:

• Ensfarvet blå: Device is powered on and operating normally.
• Pulserende blå: Device is starting up or establishing a connection.
• Ensfarvet rød: No internet connection or an error has occurred.

4. Opsætningsvejledning

Follow these steps to set up your Cudy AX3000 Mesh System.

4.1. Indledende placering

Place your first M3000 unit (main unit) in a central location in your home, away from obstructions and interference sources like microwaves or cordless phones. For multi-unit systems, strategically place additional units to maximize coverage.

Image: A diagram illustrating optimal placement of mesh units for comprehensive WiFi coverage across different floor plans, including single-unit, two-unit, and three-unit setups for varying square meterages.

4.2. Hardwareforbindelse

1. Sluk: Disconnect power from your modem (if applicable) and any existing router.
2. Tilslut hovedenheden: Connect one end of the provided Ethernet cable to the WAN port (2.5G) of the Cudy M3000 unit and the other end to your modem's LAN port.
3. Tænd: Connect the power adapter to the Cudy M3000 unit and plug it into a power outlet. Wait for the LED indicator to turn solid blue.
4. Connect Additional Units (if applicable): For multi-unit systems, place additional M3000 units and power them on. They will automatically connect to the main unit.

4.3. Netværkskonfiguration

You can configure your mesh system using the Cudy App or a web browser.

Using the Cudy App:

1. Download the "Cudy" app from your mobile device's app store.
2. Open the app and follow the on-screen instructions to detect and set up your Cudy M3000 Mesh System.

Image: Screenshots of the Cudy mobile application interface, demonstrating device management and setup features.

Ved hjælp af en Web Browser:

1. Connect your computer or mobile device to the Cudy M3000's default WiFi network (SSID and password are on the bottom label of the unit).
2. Åbn a web browser og indtast http://cudy.net or 192.168.10.1 i adresselinjen.
3. Follow the setup wizard to configure your internet connection and WiFi settings.

5. Betjeningsvejledning

Once set up, your Cudy M3000 Mesh System provides seamless WiFi coverage. Here are key operational aspects:

5.1. Problemfri roaming

The mesh system allows your devices to automatically switch to the strongest WiFi signal as you move around your home, ensuring an uninterrupted connection.

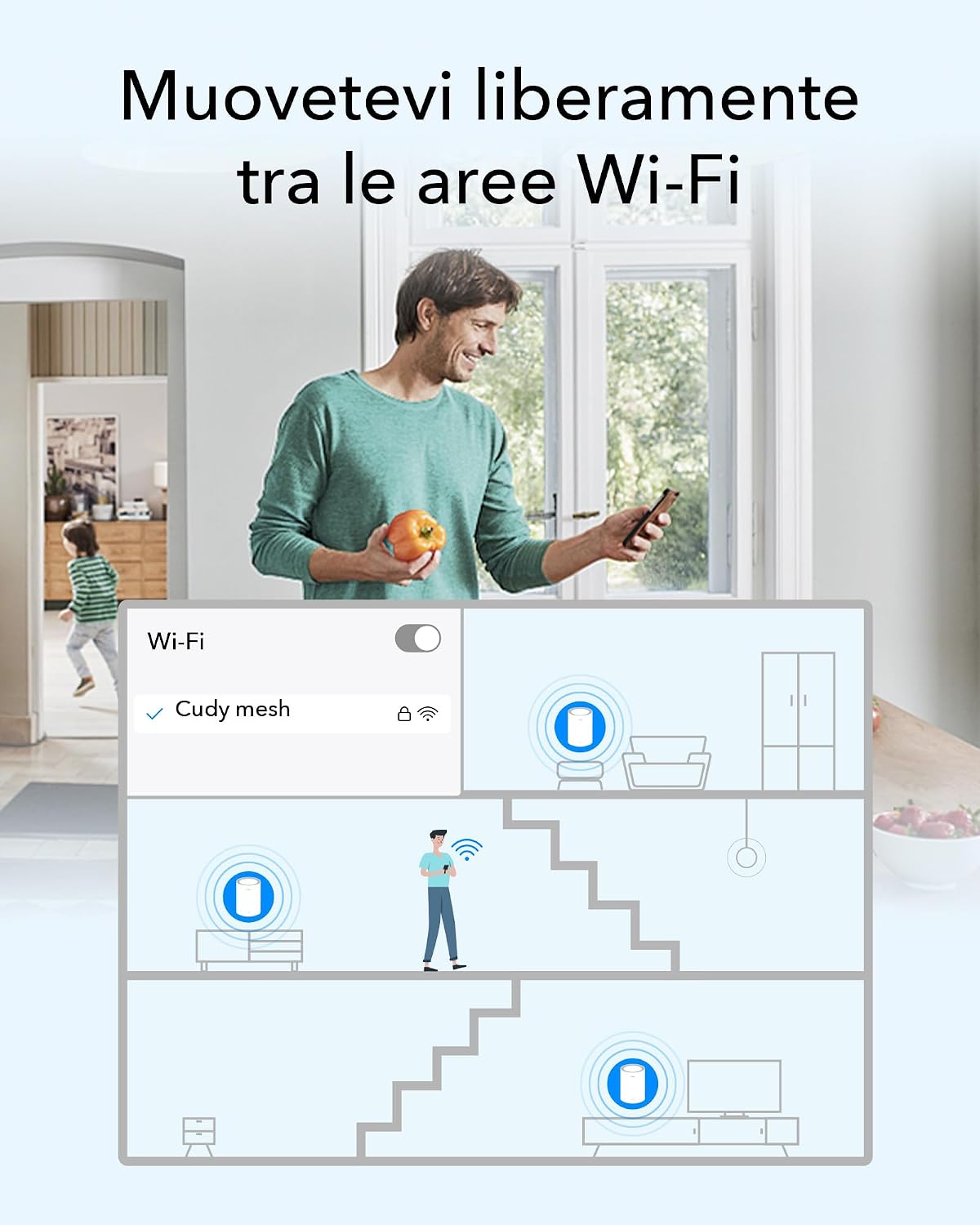

Image: A visual representation of a person moving through a house while their device maintains a continuous WiFi connection by seamlessly switching between mesh units.

5.2. Ethernet Backhaul

For optimal performance, especially in larger homes or with high-bandwidth applications, you can connect mesh units via Ethernet cables. This creates a dedicated wired connection between units, improving speed and stability.

5.3. Tilslutning af enheder

Connect your wireless devices to the WiFi network using the SSID and password you configured during setup. For wired devices, use the available LAN ports on any mesh unit.

6. Avancerede funktioner

The Cudy M3000 offers several advanced features for enhanced control and security.

6.1. VPN-support

The system supports various VPN protocols, including WireGuard, OpenVPN, ZeroTier, IPSec, PPTP, and L2TP, allowing for secure remote connections and privacy.

Image: A collection of logos representing the VPN protocols supported by the Cudy M3000, including WireGuard, OpenVPN, ZeroTier, IPSec, L2TP, and PPTP.

6.2. Forældrekontrol

Manage internet access for specific devices or users with features like website filtering and time limits.

Image: A child reading a book in bed, accompanied by icons for home network management and parental controls, illustrating the ability to manage internet access.

6.3. Servicekvalitet (QoS)

Prioriter netværkstrafik til bestemte applikationer eller enheder for at sikre problemfri ydeevne ved kritiske opgaver som spil eller videokonferencer.

6.4. Security Protocols

The system supports WPA2 and WPA3 security protocols to protect your network from unauthorized access.

Image: Three golden shield icons symbolizing WPA3 encryption, Guest Network functionality, and DoS Protection, highlighting the system's security features.

7. Vedligeholdelse

Regular maintenance ensures your mesh system operates efficiently.

• Firmware opdateringer: Check for and install firmware updates regularly through the Cudy App or web interface to benefit from new features and security enhancements.
• Genstarter: Periodically reboot your mesh units to refresh network connections and resolve minor issues.
• Rensning: Keep the units clean and free from dust to prevent overheating. Use a soft, dry cloth.

8. Fejlfinding

Hvis du støder på problemer, kan du prøve følgende løsninger:

8.1. No Internet Connection (Red LED)

• Check the connection between your main M3000 unit and the modem. Ensure the Ethernet cable is securely plugged into the WAN port.
• Reboot your modem and then your Cudy M3000 unit.
• Verify your internet service is active by connecting a computer directly to the modem.

8.2. Svagt WiFi-signal eller døde zoner

• Adjust the placement of your mesh units to ensure optimal coverage. Avoid placing them near large metal objects or thick walls.
• Consider adding another Cudy M3000 unit to expand coverage.
• If using multiple units, ensure they are within effective range of each other.

8.3. Unable to Access Web Ledelsesside

• Ensure your device is connected to the Cudy M3000's WiFi network or via an Ethernet cable.
• Prøv at rydde din browsers cache eller brug en anden browser.
• Bekræft at du bruger den korrekte adresse: http://cudy.net or 192.168.10.1.

8.4. Fabriksindstilling

If problems persist, you may need to perform a factory reset. With the unit powered on, press and hold the Reset button (usually located on the back) for about 10 seconds until the LED indicator changes. The unit will reboot with factory default settings.

9. Specifikationer

10. Garanti og support

10.1. Produktgaranti

The Cudy AX3000 WiFi 6 Mesh System M3000 comes with a 2 års garanti fra købsdatoen. Gem venligst din købsbevis i tilfælde af garantikrav.

10.2. Teknisk support

For technical assistance, troubleshooting, or any questions regarding your Cudy product, please contact Cudy technical support or customer service. You can find contact information on the official Cudy webwebstedet eller i den hurtige installationsvejledning, der følger med dit produkt.

Official Cudy videos are available to guide users step-by-step through configuration and setup processes.
