Instruktionsmanual

Indledning

This document serves as an instruction manual for the Generic replacement remote control designed for use with Teac RC-1303 and AG-D500 7.1-Channel AV Digital Home Theater Receivers. This remote is an infrared (IR) replacement unit. Please ensure your original remote control matches the appearance of this replacement unit for compatibility.

Vigtig bemærkning: This remote control is a replacement unit and may not offer all functions identical to your original remote. It is recommended to consult your receiver's original manual for specific functions and programming if needed. If your receiver model is not explicitly listed in the product title, please contact customer support for compatibility verification before use.

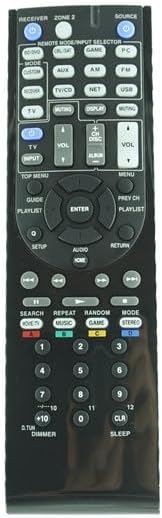

Figur 1: Forside view of the replacement remote control, showing various function buttons for receiver control.

Opsætning

Installation af batteri

The remote control requires two (2) AAA batteries for operation. Follow these steps to install the batteries:

1. Find batterirummet på bagsiden af ​​fjernbetjeningen.
2. Tryk ned på låsen, og skub batteridækslet nedad for at åbne det.
3. Isæt to AAA-batterier, og sørg for, at de positive (+) og negative (-) poler er justeret korrekt med markeringerne inde i batterirummet.
4. Skub batteridækslet tilbage på plads, indtil det klikker sikkert.

Figur 2: Tilbage view of the remote control with the battery cover removed, illustrating the correct orientation for inserting two AAA batteries.

Note: Udskift altid begge batterier på samme tid. Bland ikke gamle og nye batterier eller forskellige typer batterier.

Betjeningsvejledning

This replacement remote control is designed to function as an infrared (IR) remote for compatible Teac AV receivers. Point the remote directly at your receiver's IR sensor when operating.

Grundlæggende funktioner

• Power knap: Located at the top left, typically labeled "RECEIVER" or with a power symbol. Press to turn the receiver on or off.
• Source/Input Selector Buttons: Buttons like "CD," "DVD," "AUX," "AM," "FM," "PC," "USB," "TV/CD," "NET," "GAME" allow you to select the desired audio/video input source on your receiver.
• Lydstyrkekontrol: "VOL +" and "VOL -" buttons adjust the master volume level of your receiver.
• Mute-knap: Typically located near volume controls, mutes or unmutes the audio output.
• Navigationsknapper: A central directional pad (up, down, left, right) with an "ENTER" button is used for navigating menus and confirming selections on your receiver's display.
• Menu/Setup Buttons: Buttons like "SETUP," "MENU," "TOP MENU," "RETURN," "DISPLAY" are used to access and navigate the receiver's on-screen display (OSD) or internal settings.
• Afspilningskontroller: Buttons such as "PLAY," "PAUSE," "STOP," "SKIP," "SEARCH," "REPEAT," "RANDOM" are for controlling media playback from connected devices.
• Numerisk tastatur: Number buttons (0-9, +10) are used for direct input, such as selecting radio presets or track numbers.

For detailed functionality of each button, refer to your Teac receiver's original instruction manual, as this replacement remote is designed to mimic the original's IR signals.

Opretholdelse

For at sikre din fjernbetjenings levetid og korrekte funktion, skal du følge disse vedligeholdelsesretningslinjer:

• Rensning: Tør fjernbetjeningen regelmæssigt af med en blød, tør klud. Ved genstridigt snavs, tør let afampRengør kluden med vand eller et mildt, ikke-slibende rengøringsmiddel. Brug ikke skrappe kemikalier eller slibende materialer.
• Batteripleje: Remove batteries if the remote control will not be used for an extended period (e.g., one month or more) to prevent battery leakage, which can damage the remote.
• Opbevaring: Opbevar fjernbetjeningen et køligt, tørt sted, væk fra direkte sollys, ekstreme temperaturer og høj luftfugtighed.
• Undgå dråber: Protect the remote from physical impact. Dropping it can damage internal components or the casing.

Fejlfinding

Hvis du oplever problemer med din fjernbetjening, kan du prøve følgende fejlfindingstrin:

• Fjernbetjeningen reagerer ikke:
  • Kontroller, om batterierne er isat korrekt med den korrekte polaritet (+/-).
  • Replace the batteries with new ones. Weak or dead batteries are a common cause of remote control malfunction.
  • Sørg for, at der ikke er nogen forhindringer mellem fjernbetjeningen og receiverens IR-sensor.
  • Confirm you are pointing the remote directly at the receiver.
• Certain Buttons Not Working:
  • This replacement remote may not support all functions of your original remote. Refer to your receiver's manual to confirm if the function is supported by the original remote.
  • Rengør fjernbetjeningen, især omkring de knapper, der ikke reagerer, for at fjerne snavs eller rester, der kan forhindre korrekt kontakt.
• Remote Control Range is Limited:
  • Udskift batterierne.
  • Sørg for, at der ikke er nogen stærk lyskilde (som direkte sollys eller klart lysstofrør), der forstyrrer IR-signalet.

Hvis problemet fortsætter efter at have prøvet disse trin, bedes du kontakte kundesupport for yderligere assistance.

Specifikationer

Garanti og support

As a generic replacement product, specific warranty details may vary. Please refer to the seller's return policy and warranty information provided at the time of purchase. For any questions, troubleshooting assistance, or compatibility concerns, please contact the seller directly through the platform where the product was purchased.

Fabrikant: Nemt at prøve

Dato først tilgængelig: 13. september 2024
