Generic PWC 900 Engine Piston Kit Instruction Manual

1. Introduktion

This manual provides essential information for the proper installation and care of your Generic PWC 900 Engine Piston Kit. Please read these instructions thoroughly before proceeding with installation to ensure optimal performance and longevity of the product. Adherence to these guidelines is crucial for safe and effective use.

2. Produktet er slutview og komponenter

The PWC 900 Engine Piston Kit is specifically designed for 900 engines. It includes a high-quality, high-strength cast eutectic piston, a wrist pin, and piston rings, all engineered for reliable engine performance.

Nøglefunktioner

• High-quality, high-strength cast eutectic piston construction.
• Anodized surface for enhanced heat resistance and improved surface strength.
• Graphite coating on piston sides to reduce friction between the piston and cylinder wall, promoting smoother operation and reduced wear.
• Available in standard, 0.50mm oversize, or 1.00mm oversize to accommodate various engine rebuilding requirements.

Sættets komponenter

• Piston (1 unit)
• Wrist Pin (1 unit)
• Piston Rings (set, quantity as supplied)
• Circlips (set, if supplied)

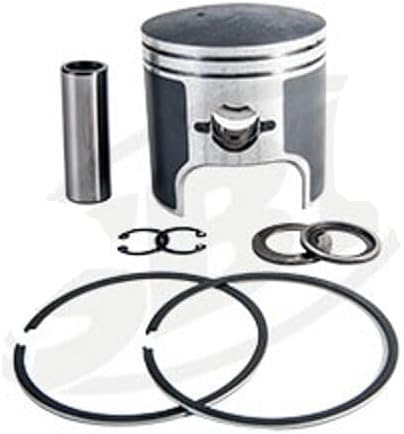

The image above displays the typical contents of the PWC 900 Engine Piston Kit, which includes the main piston unit, a wrist pin for connecting the piston to the connecting rod, and a set of piston rings designed to seal the combustion chamber and control oil. Small circlips are also included to secure the wrist pin.

3. Installationsvejledning

Installation of engine internal components requires specialized knowledge, precision tools, and experience. It is highly recommended that installation be performed by a qualified and certified mechanic. Incorrect installation can lead to severe engine damage, personal injury, and will void any potential product warranty.

Før installation

• Verify Piston Size: Confirm that the piston size (standard, 0.50mm oversize, or 1.00mm oversize) precisely matches the cylinder bore after any necessary machining.
• Renhed: Ensure all components, including the cylinder, connecting rod, and new piston kit parts, are meticulously clean and free from any debris, dust, or manufacturing residues.
• Cylinder Inspection: Thoroughly inspect the cylinder bore for wear, scoring, or out-of-round conditions. Honing or boring may be required to achieve the correct piston-to-cylinder clearance.
• Ring Gap: Check piston ring end gaps according to the engine manufacturer's specifications. Adjust if necessary.

Installation Steps (General Procedure)

1. Carefully install the piston rings onto the piston, ensuring correct orientation (top/bottom) and proper gap spacing as per engine manufacturer specifications.
2. Install one circlip into the piston's wrist pin bore on one side.
3. Lubricate the wrist pin, piston pin bores, and the connecting rod small end with clean engine assembly lubricant or engine oil.
4. Align the piston with the connecting rod and carefully insert the wrist pin through the piston and connecting rod.
5. Install the second circlip to securely retain the wrist pin. Ensure both circlips are fully seated in their grooves.
6. Lubricate the piston skirt and cylinder bore with clean engine oil to aid in installation and initial startup.
7. Using a piston ring compressor, carefully guide the piston assembly into the cylinder bore, ensuring that the piston rings do not catch or get damaged.
8. Torque all associated fasteners (e.g., connecting rod bolts, cylinder head bolts) to the engine manufacturer's specifications using a calibrated torque wrench.

Advarsel: Always refer to your specific engine service manual for detailed torque specifications, precise procedures, and any special tools required. Failure to follow manufacturer guidelines can result in severe engine damage, component failure, and potential safety hazards.

4. Brugsovervejelser

After the successful installation of the piston kit, proper engine break-in procedures are critically important for the longevity and optimal performance of the new components and the engine as a whole.

• Indbrudsprocedure: Strictly follow the engine manufacturer's recommended break-in period and procedures. This typically involves varying engine speeds and loads without excessive stress.
• Undgå ekstremer: During the initial break-in phase, avoid sustained high RPMs, heavy loads, or prolonged idling.
• Overvågning: Closely monitor engine temperature, oil pressure, and any unusual noises or vibrations during the first hours of operation.
• Væsker: Use only the recommended fuel and oil types and grades specified by your engine manufacturer.

5. Vedligeholdelse

Regular and diligent engine maintenance is vital for ensuring the continued performance, reliability, and extended lifespan of your piston kit and the entire engine.

• Olieskift: Adhere strictly to the engine manufacturer's recommended oil change intervals and always use the specified oil type and viscosity.
• Filterudskiftning: Regularly inspect and replace air and fuel filters as per the service schedule to prevent contaminants from entering the engine.
• Tændingssystem: Check spark plugs and other ignition system components as recommended by the engine manufacturer.
• Compression Checks: Periodically monitor engine compression to assess the health of the piston rings and overall engine sealing.

6. Specifikationer

Note: Specific dimensions, tolerances, and additional technical data should always be confirmed with your engine's official service manual for precise application.

7. Garanti og support

For detailed warranty information, technical assistance, or support regarding this Generic PWC 900 Engine Piston Kit, please contact the retailer from whom the product was purchased or the manufacturer directly. It is essential to retain your proof of purchase for any warranty claims or inquiries.
