Scheppach MRS500 Universal Renovation Sander

1. Introduktion

The Scheppach MRS500 Universal Renovation Sander is designed for working on various wooden and metal surfaces. Its versatile design allows access to hard-to-reach areas such as table legs, contoured skirting boards, beams, ramps, and larger surfaces like garage doors. The variable speed control makes it suitable for a wide range of materials and applications. This manual provides essential information for the safe and efficient use of your sander.

2. Generelle sikkerhedsinstruktioner

ADVARSEL: Læs alle sikkerhedsadvarsler, instruktioner, illustrationer og specifikationer, der følger med dette elværktøj. Undladelse af at følge alle instruktionerne nedenfor kan resultere i elektrisk stød, brand og/eller alvorlig personskade.

• Brug altid passende personlige værnemidler, herunder øjenbeskyttelse, høreværn og støvmaske.
• Sørg for, at arbejdsområdet er rent og godt oplyst. Rodede eller mørke områder indbyder til ulykker.
• Brug ikke elværktøj i eksplosive atmosfærer, såsom i nærheden af ​​brændbare væsker, gasser eller støv.
• Hold børn og omkringstående væk, mens du betjener et elværktøj. Distraktioner kan få dig til at miste kontrollen.
• Tag altid stikket ud af stikkontakten, før du foretager justeringer, skifter tilbehør eller opbevarer elværktøj.
• Brug det korrekte elværktøj til din opgave. Tving ikke værktøjet.
• Vedligehold elværktøj og tilbehør. Kontroller for fejljustering eller fastklæbning af bevægelige dele, brud på dele og enhver anden tilstand, der kan påvirke elværktøjets funktion.
• Refer to the complete safety manual provided with your product for detailed safety information.

3. Produktet er slutview og komponenter

Familiarize yourself with the main components of your Scheppach MRS500 sander before operation.

Figure 1: Scheppach MRS500 Universal Renovation Sander with various attachments.

Figure 2: Key features include 10 mm or 60 mm brush width, 300 Watt motor, and variable speed (1600-3000 min⁻¹).

Figure 3: The sander features an Auto-Lock system for quick accessory changes and a Softgrip handle for comfort.

4. Opsætning og montering

4.1 Montering af hjælpehåndtaget

For enhanced control and precision, attach the auxiliary handle to the designated mounting point on the sander. Ensure it is securely tightened before use.

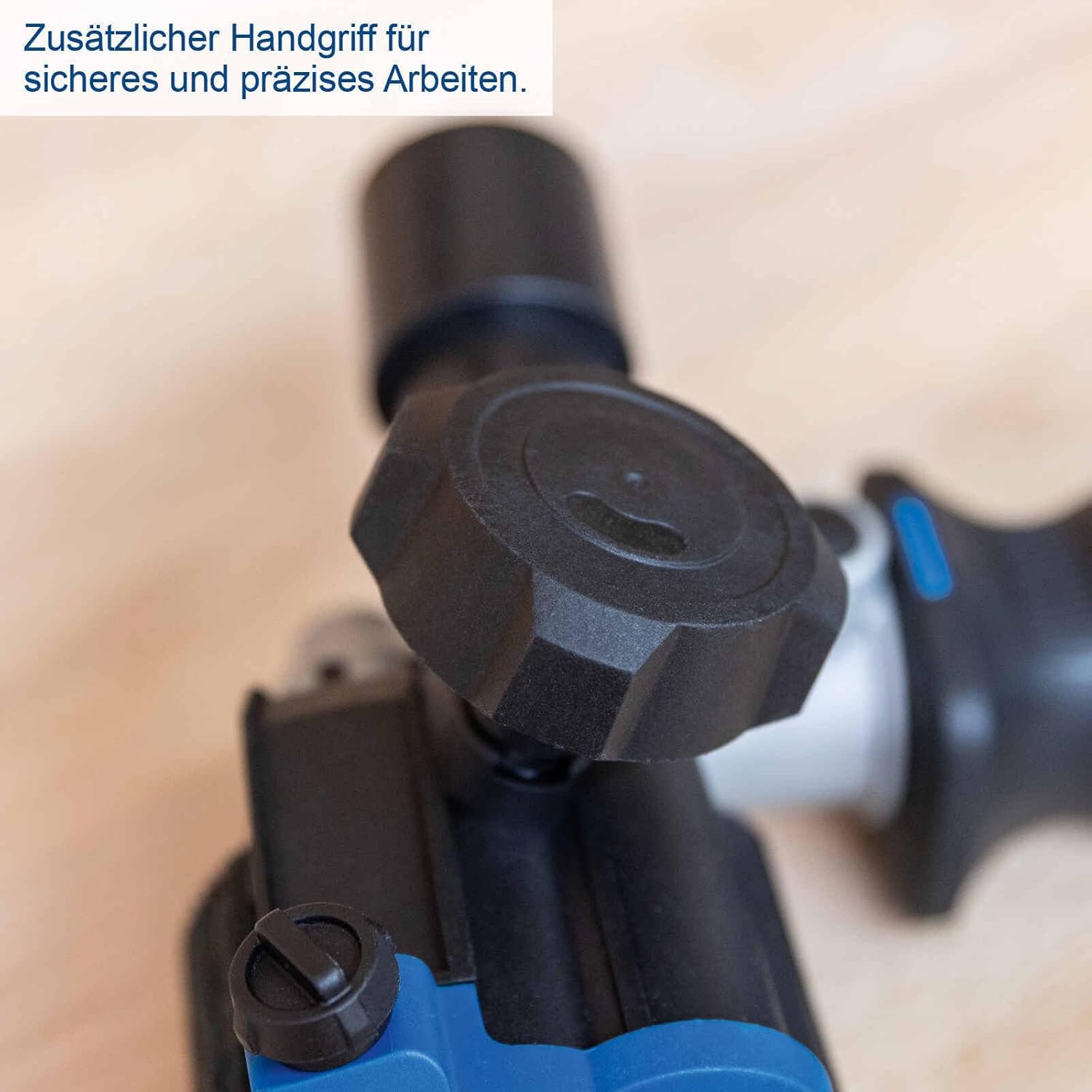

Figure 4: The additional handle provides secure and precise control during operation.

4.2 Changing Sanding Sleeves/Brushes (Auto-Lock System)

The MRS500 features an Auto-Lock system for quick and easy changing of sanding sleeves or brushes.

1. Sørg for, at slibemaskinen er frakoblet strømkilden.
2. Press and hold the Auto-Lock button located near the spindle. This locks the spindle in place.
3. Unscrew or remove the current sanding sleeve/brush.
4. Attach the desired new sanding sleeve or brush, ensuring it is properly seated and secured.
5. Release the Auto-Lock button.

Figure 5: Press the Auto-Lock button for quick and easy sanding sleeve changes.

5. Betjening

5.1 Tænd/sluk

Connect the sander to a suitable power outlet. To turn the sander ON, press the power switch. To turn it OFF, release or press the switch again, depending on the switch type.

5.2 Justering af hastighed

The MRS500 features variable speed control, allowing you to adjust the rotation speed between 1600 and 3200 revolutions per minute. Use the speed dial to select the appropriate speed for your material and application.

• Lower speeds are suitable for delicate work, polishing, or when working with softer materials.
• Higher speeds are ideal for aggressive material removal on harder surfaces.

Figure 6: Adjust the variable speed using the dial for optimal performance on different materials.

5.3 Slibeteknikker

Always apply light, even pressure. Let the tool do the work. Avoid pressing too hard, as this can reduce efficiency and damage the workpiece or the tool.

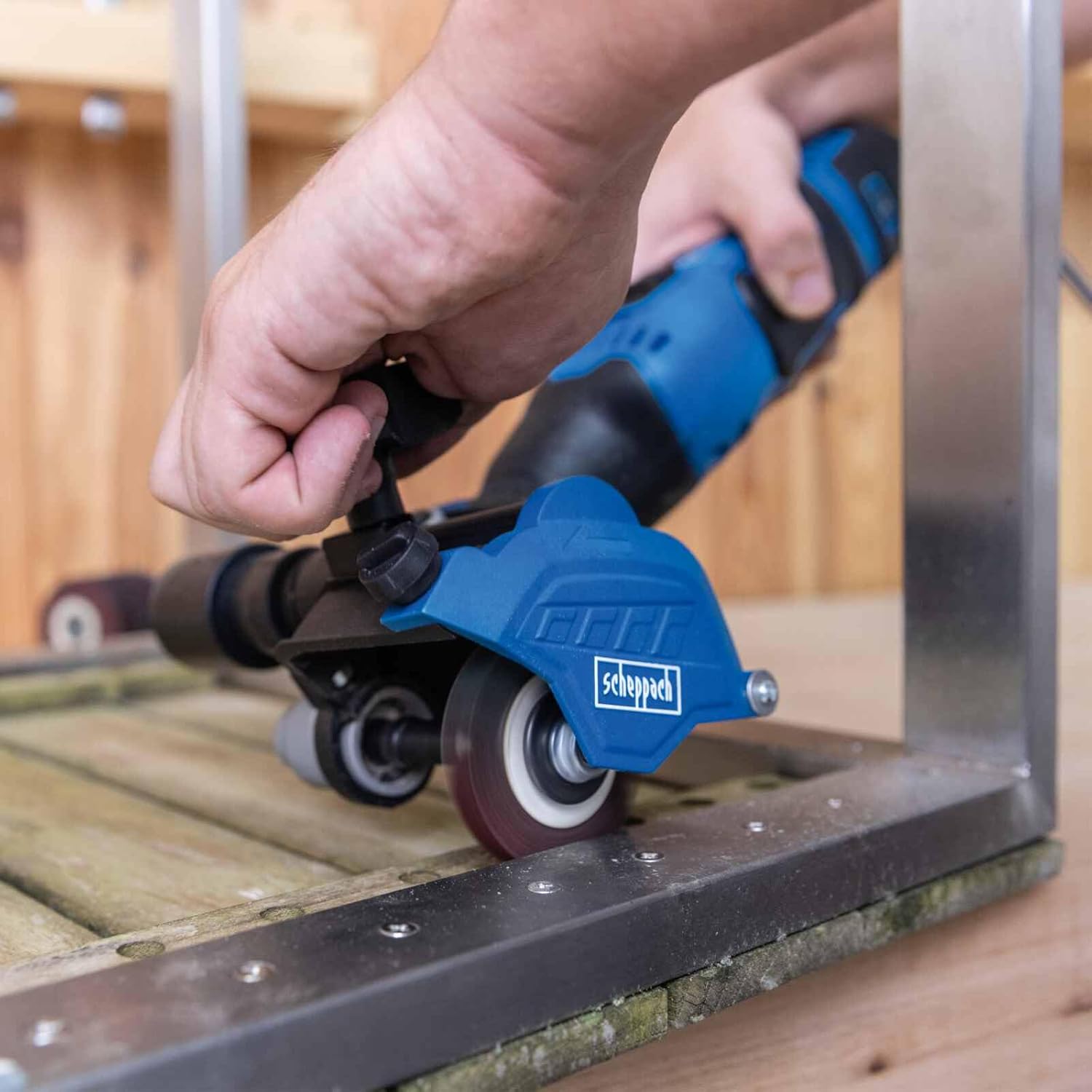

Figur 7: Eksample of sanding an untreated wooden beam.

Figur 8: Eksample of sanding a contoured wooden surface, such as a table leg.

• For large, flat surfaces: Use the wider sanding sleeves (60 mm) and move the sander in overlapping passes.
• For hard-to-reach areas and contours: Utilize the narrower sanding sleeves (10 mm) or specialized brushes. The compact design allows for precise work in tight spaces.
• Rust removal: With optional accessories, the sander can be used for rust removal on metal surfaces.

6. Vedligeholdelse

6.1 Rengøring

Regelmæssig rengøring sikrer optimal ydeevne og forlænger levetiden på dit værktøj.

• Always disconnect the sander from the power supply before cleaning.
• Brug en blød børste eller trykluft til at fjerne støv og snavs fra ventilationsåbningerne.
• Tør huset af med adamp klæde. Brug ikke skrappe rengøringsmidler eller opløsningsmidler.

6.2 Udskiftning af kulbørste

The motor's carbon brushes are wear parts and will need replacement over time. Refer to the full product manual for specific instructions on how to inspect and replace carbon brushes. It is recommended to have this procedure performed by qualified personnel if you are unsure.

7. Fejlfinding

If you encounter issues with your MRS500 sander, refer to the following common problems and solutions:

For problems not listed here or if solutions do not resolve the issue, please contact Scheppach customer support or an authorized service center.

8. Tekniske specifikationer

9. Garanti og support

For warranty information, technical support, or to purchase additional accessories and replacement parts, please refer to the official Scheppach website or contact your local dealer. Keep your purchase receipt as proof of purchase for any warranty claims.
