Mankeel 350W Electric Scooter

1. Introduktion

Welcome to the Mankeel 350W Electric Scooter user manual. This guide provides essential information for the safe operation, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

2. Sikkerhedsoplysninger

Your safety is paramount. Always adhere to local laws and regulations regarding electric scooter usage. Failure to follow safety guidelines may result in serious injury or property damage.

• Brug altid hjelm og passende sikkerhedsudstyr (knæbeskyttere, albuebeskyttere) når du kører.
• Kør ikke i vådt føre, kraftig regn eller gennem vandpytter.
• Sørg for, at scooteren er fuldt opladet, og at alle komponenter er forsvarligt fastgjort før hver brug.
• Overskrid ikke den maksimale lastekapacitet på 120 kg.
• Hold en sikker afstand til andre køretøjer og fodgængere.
• Familiarize yourself with the dual braking system (drum braking and EABS anti-lock braking) for effective stopping.

3. Pakkens indhold

Når du åbner pakken, skal du kontrollere, at alle følgende varer er inkluderet:

• Mankeel 350W Electric Scooter (Model MK-083)
• Oplader
• Brugermanual
• Nødvendigt værktøj til montering (hvis relevant)

4. Produktet er slutview

The Mankeel 350W Electric Scooter is designed for efficient and convenient commuting. Below are the key features and components:

The Mankeel Electric Scooter in its unfolded and folded states, showcasing dens kompakte design.

A user riding the Mankeel Electric Scooter, demonstrating its ergonomic design for comfortable travel.

Visual representation of the scooter's performance capabilities: 350W motor power, 19 MPH max speed, and ability to handle up to a 15% maximum slope.

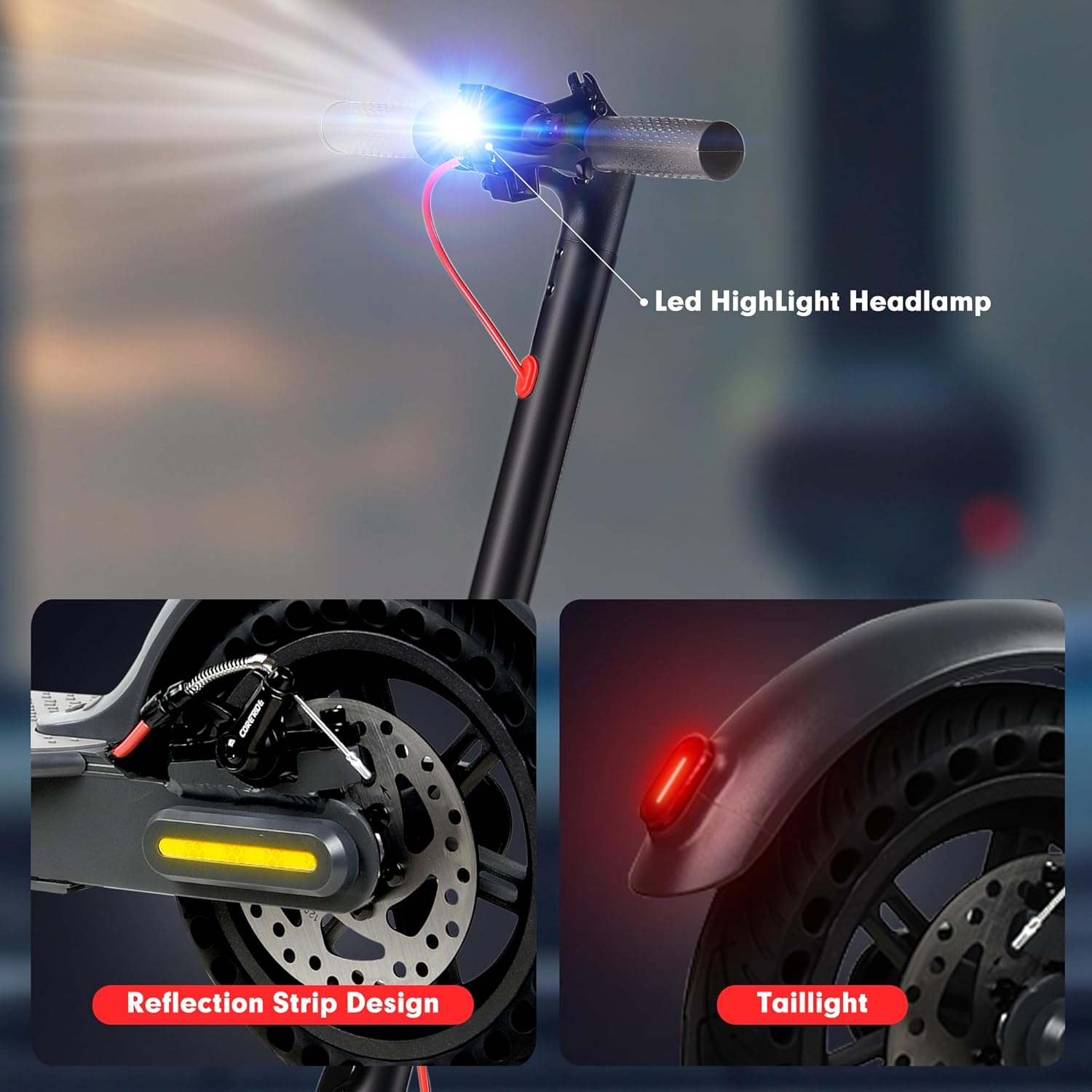

Details of the scooter's lighting system, including the LED headlight, taillight, and reflective strip for enhanced visibility.

Close-up of the LED smart display, indicating current speed, selected gear, and battery level for easy monitoring.

Information on the 8.5-inch solid tires, highlighting their long service life, wear-resistant properties, anti-slip design, and durability.

Details of the 36V/10.4Ah lithium battery, offering a long range of up to 21 miles and approximately 6 hours for a full charge.

Demonstration of the scooter's 3-second folding design, illustrating its ease of transport and storage in a car trunk or by hand.

Diagram showing the unfolded dimensions (41.5 x 17.17 x 45.28 inches) and folded dimensions (41.5 x 17.17 x 18.9 inches) of the scooter.

5. Opsætning

Follow these steps to prepare your Mankeel Electric Scooter for its first ride:

1. Fold scooteren ud: Løft forsigtigt styrstammen, indtil den låser i den oprejste position. Sørg for, at foldemekanismen er forsvarligt låst.
2. Check Handlebars: Ensure the handlebars are firmly attached and do not wobble.
3. Indledende opkrævning: Before first use, fully charge the scooter's battery. Connect the charger to the charging port and then to a power outlet. The indicator light on the charger will change when fully charged.
4. Inspicer dæk: Although solid tires require no inflation, visually inspect them for any damage or debris.

6. Betjeningsvejledning

Learn how to operate your Mankeel Electric Scooter safely and efficiently:

• Tænd/sluk: Tryk og hold tænd/sluk-knappen på LED-displayet nede for at tænde eller slukke scooteren.
• Hastighedstilstande: The scooter features 3 gears (7 MPH, 11 MPH, 19 MPH). Press the mode button on the display to cycle through the speed settings.
• Ridning: Place one foot on the deck and push off with the other foot to gain initial momentum. Once moving, gently press the accelerator.
• Bremsning: Use the brake lever on the handlebar to engage the dual braking system. Apply brakes smoothly to avoid sudden stops.
• App-forbindelse: Download the dedicated smartphone app to unlock and lock the scooter, monitor battery percentage, total range, and driving time.
• Foldbar til transport: To fold, disengage the locking mechanism near the base of the handlebar stem and carefully fold the stem down until it clicks into place.

7. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din scooters lange levetid og sikre drift:

• Rensning: Tør scooteren af med reklameamp klud efter brug. Brug ikke højtryksvand, og nedsænk ikke scooteren i vand.
• Batteripleje: Charge the battery regularly, even if not in use, to maintain its health. Avoid completely draining the battery. Store the scooter in a cool, dry place when not in use for extended periods.
• Dæk inspektion: Periodically check the solid tires for excessive wear or embedded objects.
• Bremsejustering: If you notice a decrease in braking performance, have the braking system inspected and adjusted by a qualified technician.

8. Fejlfinding

Her er løsninger på almindelige problemer, du kan støde på:

9. Specifikationer

10. Garanti og support

Mankeel provides a 1-year warranty for some accessories of the electric scooter. For warranty claims, technical support, or any inquiries not covered in this manual, please contact Mankeel customer service through the official webwebstedet eller dit købssted.
