1. Introduktion
Thank you for choosing the GreenBlue GB415 Front-Loading Electric Dryer. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read it thoroughly before first use and keep it for future reference.
1.1 Sikkerhedsoplysninger
- Always ensure the dryer is properly grounded.
- Do not install or store the dryer where it will be exposed to water or weather.
- Hold brandfarlige materialer væk fra tørretumbleren.
- Tør ikke genstande, der er blevet tilsmudset med madolie, benzin eller andre brandfarlige stoffer.
- Rengør altid fnugfilteret før eller efter hver vask.
- Hold opsyn med børn, når tørretumbleren er i brug.
- Ensure proper ventilation for the dryer to prevent overheating and ensure efficient operation.
2. Produktet er slutview
The GreenBlue GB415 is a compact, front-loading electric dryer designed for small spaces, offering efficient drying with a 3 kg capacity.
2.1 Nøglefunktioner
- Kapacitet: 3 kg, suitable for small families and daily use.
- Type: Vented dryer, expelling moisture outside via a duct.
- Programmer: 5 drying programs (Fresh, Anti-crease, Standard, Extra, Air Dry) for various fabric types.
- Magt: 830 Watts for quick and efficient drying.
- Kontrollere: Intuitive rotary knob for easy program selection and adjustable drying time (20 to 180 minutes).
- Kompakt design: Ideal for small apartments or limited spaces.
2.2 Dryer Components
Familiarize yourself with the main parts of your GreenBlue GB415 dryer:
Figur 1: Front view of the GreenBlue GB415 electric dryer, showing the control knob and the GreenBlue logo on the black door panel.
Figur 2: The dryer with its front door open, providing a clear view of the internal drum and the lint filter located at the bottom of the drum opening.
3. Opsætning og installation
3.1 Udpakning
Carefully remove the dryer from its packaging. Inspect the appliance for any damage incurred during transit. Retain packaging materials for potential future transport or service.
3.2 Placering
Place the dryer on a firm, level surface. Ensure there is adequate space around the appliance for ventilation. The dryer can also be wall-mounted if desired, following proper installation guidelines for secure mounting.
Figur 3: The GreenBlue GB415 dryer shown mounted on a wall, demonstrating its compact design and flexible placement options.
3.3 Dimensioner
The compact dimensions of the GB415 dryer allow for flexible placement in various living spaces.
Figur 4: Technical drawing illustrating the dimensions of the dryer: 460 mm (depth) x 495 mm (width) x 595 mm (height).
3.4 Elektrisk tilslutning
Tilslut tørretumbleren til en korrekt jordet stikkontakt. Sørg for, at volumentage og frekvens stemmer overens med specifikationerne på apparatets typeskilt.
3.5 Udluftning
As a vented dryer, the GB415 requires an exhaust hose to expel moist air to the outside. Ensure the hose is securely connected to the dryer and vented outdoors, free from kinks or obstructions.
4. Betjeningsvejledning
4.1 Fyldning af tørretumbleren
Open the dryer door and load items loosely into the drum. Do not overload the dryer, as this can reduce drying efficiency and cause excessive wrinkling. The maximum load capacity is 3 kg.
Figur 5: A person demonstrating how to load clothes into the front-loading dryer, emphasizing proper loading techniques.
4.2 Kontrolpanel overview
The dryer features a simple rotary knob for selecting programs and setting the drying time.
- Drejeknap: Turn to select your desired drying program and set the drying duration.
4.3 tørreprogrammer
Select the appropriate program based on the fabric type and desired dryness level:
- Frisk: For refreshing clothes or light drying.
- Anti-krøl: Helps reduce wrinkles in garments.
- Standard: General drying for everyday items.
- Ekstra: For heavier fabrics or when extra dryness is required.
- Lufttør: Uses ambient air for delicate items or to fluff clothes without heat.
4.4 Start af en cyklus
- Fyld tørretumbleren med tøj.
- Luk tørretumblerens låge forsvarligt.
- Turn the rotary knob to select the desired drying program and time (20 to 180 minutes).
- The dryer will begin operation.
5. Pleje og vedligeholdelse
Regelmæssig vedligeholdelse sikrer din tørretumblers lange levetid og effektive ydeevne.
5.1 Rengøring af fnugfilteret
The lint filter must be cleaned before or after every load to maintain drying efficiency and prevent fire hazards. The filter is located at the bottom of the dryer drum opening.
- Åbn tørretumblerens dør.
- Fjern fnugfilteret ved at trække det opad.
- Peel off any accumulated lint from the filter screen.
- Skyl filteret under rindende vand om nødvendigt, og sørg for, at det er helt tørt, før det sættes i igen.
- Place the clean filter back into its slot until it clicks into place.
Figur 6: Et nærbillede view of the lint filter being removed from its housing inside the dryer drum, highlighting the importance of regular cleaning.

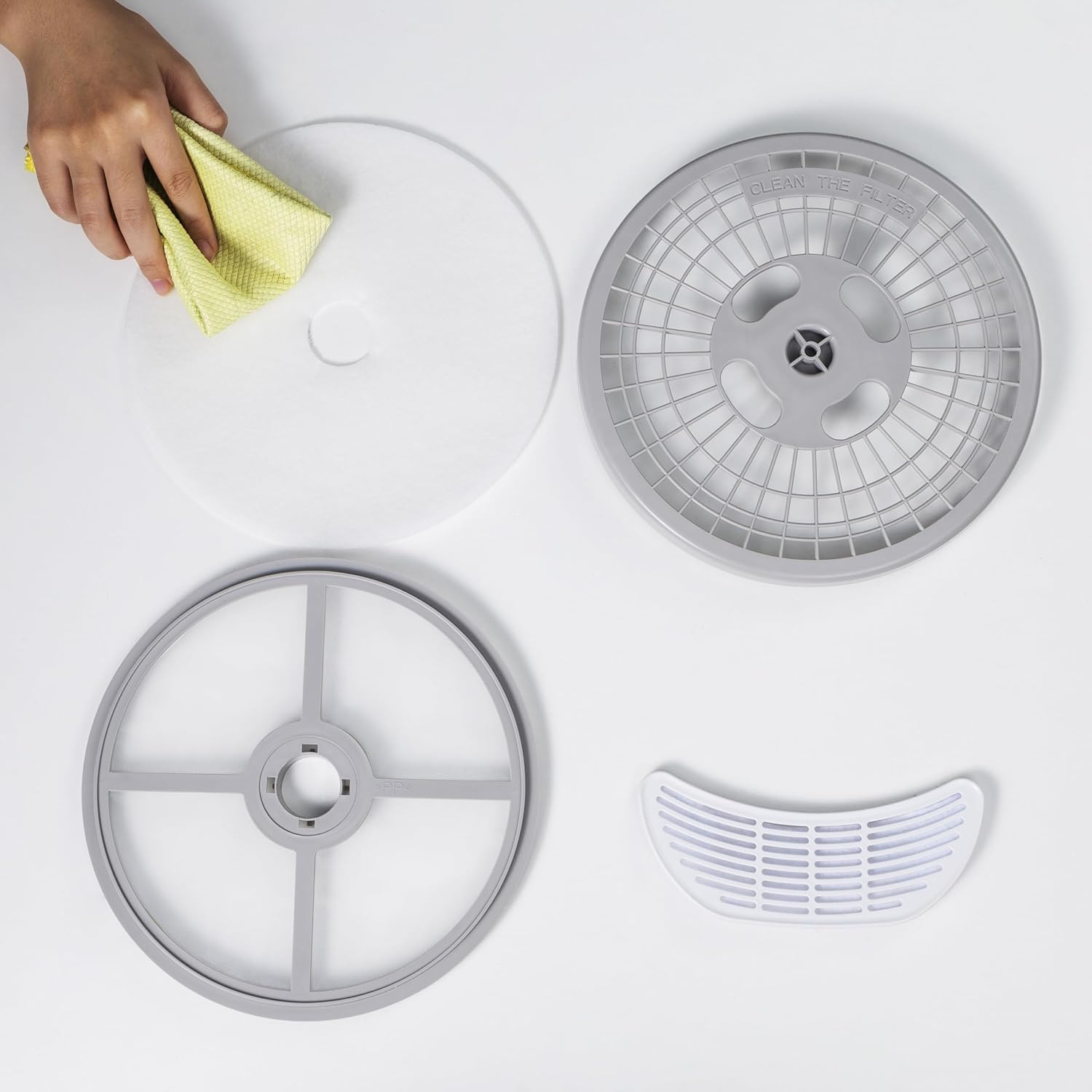

Figur 7: The disassembled components of the lint filter, including the filter screen and its cover, laid out for cleaning.
5.2 Rengøring af ydersiden
Tør tørretumblerens yderside af med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
6. Fejlfindingsvejledning
Før du kontakter kundeservice, bedes du se følgende tabel for almindelige problemer og løsninger på disse:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Tørretumbleren starter ikke | Ingen strøm; Døren er ikke lukket; Program ikke valgt. | Check power supply; Ensure door is latched; Select a drying program. |
| Tøjet tørrer ikke ordentligt | Overloaded; Lint filter clogged; Vent hose obstructed; Incorrect program. | Reduce load size; Clean lint filter; Check vent hose for blockages; Select a more suitable program. |
| Tørretumbler er støjende | Unbalanced load; Foreign object in drum. | Redistribute clothes; Check drum for loose items. |
| Excessive lint on clothes | Lint filter clogged. | Clean the lint filter thoroughly. |
7. Tekniske specifikationer
The following table details the technical specifications of the GreenBlue GB415 dryer:
| Specifikation | Værdi |
|---|---|
| Mærke | GrønBlå |
| Modelnummer | GB415 |
| Produktmål (B x D x H) | 49.5 x 46 x 59.5 cm (495 x 460 x 595 mm) |
| Vægt | 17.7 kg |
| Kapacitet | 3 kg |
| Energieffektivitetsklasse | C (Scale A+++ to D) |
| Årligt energiforbrug | 221.0 kWh/år |
| Magt | 830 watt |
| Støjniveau | 62 dB |
| Tørreprogrammer | 5 (Fresh, Anti-crease, Standard, Extra, Air Dry) |
| Adjustable Drying Time | 20 - 180 minutter |
| Dørorientering | Venstre |
| Materiale | Metal, Plast |
| Oprindelsesland | Kina |
For mere detaljerede produktoplysninger kan du besøge EPREL-databasen: https://eprel.ec.europa.eu/qr/2095076
Figur 8: The official product information card, displaying comprehensive technical data and energy efficiency details for the GreenBlue GB415 dryer.
8. Garanti og kundesupport
Your GreenBlue GB415 dryer comes with a standard manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and conditions.
8.1 Kundesupport
For technical assistance, warranty claims, or any questions regarding your GreenBlue GB415 dryer, please contact our customer support team:
- E-mail: import@centrumelektroniki.pl
- Webwebsted: centrumelektroniki.eu
- Telefon: +48 609999779
