VitalKos HY2025RX-SE JR1839 WH Remote Control and Receiver Instruction Manual

Indledning

This manual provides essential instructions for the setup, operation, and maintenance of your VitalKos HY2025RX-SE JR1839 WH Remote Control and Receiver. This product is designed for use with compatible 12V kids' ride-on cars, allowing for external control of the vehicle. Please read these instructions carefully before use to ensure proper function and safety.

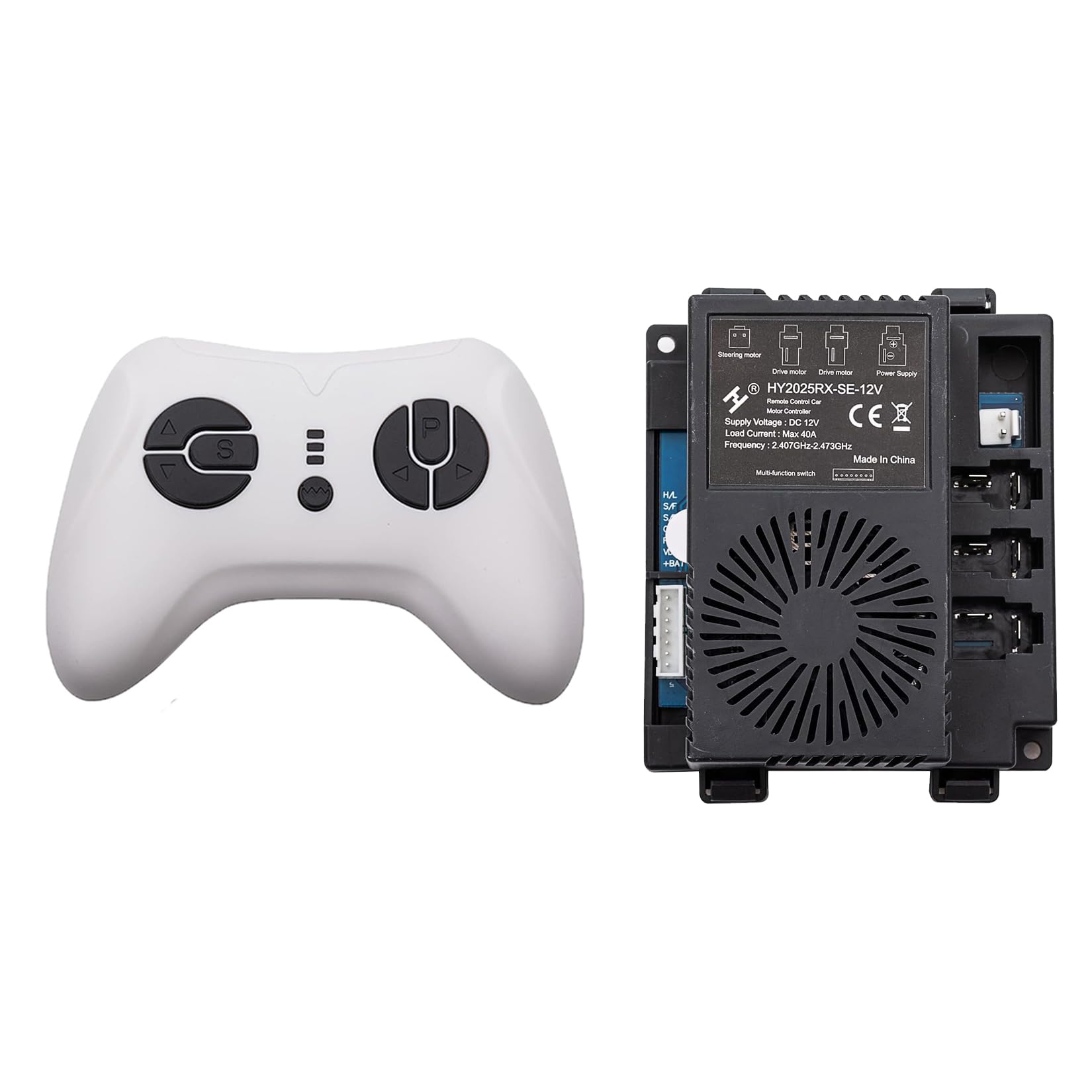

Billede: Forside view of the VitalKos HY2025RX-SE JR1839 WH remote control, showing the directional and speed/brake buttons.

Opsætning

1. Kompatibilitetskontrol

Before attempting to install or pair, ensure your ride-on car's receiver model is consistent with the HY2025RX-SE JR1839 WH remote control. Incompatibility can prevent normal operation.

Image: Visual guide indicating compatibility with JR/HY series receivers. Ensure your receiver matches the compatible models shown.

2. Batteriinstallation

The remote control requires two (2) 1.5V AAA batteries (not included). Open the battery compartment on the back of the remote and insert the batteries, observing correct polarity. The remote control has a memory function, so replacing batteries does not require re-pairing.

Billede: Bagside view of the remote control, displaying the battery compartment cover and regulatory markings.

3. Parringsinstruktioner

Follow these steps to pair the remote control with your ride-on car:

1. Sørg for, at kørestolen er slukket.
2. Tryk på og hold på fjernbetjeningen Tilbage (▼) and Forskud (▲) buttons simultaneously for 3 seconds. The first LED indicator on the remote will begin to flicker.
3. While the LED is flickering, turn on the power switch of the ride-on car.
4. The red indicator light on the remote control should stop flashing, indicating successful pairing.
5. If pairing fails, repeat steps 2-4.

The remote control will enter standby mode if no buttons are pressed for 10 seconds. Press any key to wake it up.

Betjeningsvejledning

The remote control allows you to operate the ride-on car with the following functions:

• Fremad (▲): Bevæger bilen fremad.
• Back (▼): Flytter bilen baglæns.
• Left (◀): Drejer bilen til venstre.
• Right (▶): Drejer bilen til højre.
• Speed (S): Press the 'S' button to cycle through speed settings.
  • One LED lit: Low speed.
  • Two LEDs lit: Medium speed.
  • Three LEDs lit: High speed.

  Note: When moving backward, the car operates only at low speed.
• Brake (P): Press and hold the 'P' button to engage the brake. All LED indicators will flicker while the brake is active.

The remote controller should only be used under adult guidance.

Image: A scanned instruction sheet detailing button functions and pairing steps for the JR1839FCC remote control.

Opretholdelse

To ensure the longevity and proper functioning of your remote control and receiver, follow these maintenance guidelines:

• Keep the remote control and receiver clean and dry. Avoid exposure to water or excessive moisture.
• Clean the surfaces with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Store the remote control in a cool, dry place away from direct sunlight when not in use.
• Hvis fjernbetjeningen ikke skal bruges i længere tid, skal batterierne tages ud for at forhindre lækage.

Fejlfinding

Parringsproblemer

• If the remote control fails to pair with the ride-on car, ensure the receiver model is compatible.
• Repeat the pairing steps carefully, ensuring the car's power is turned on efter the remote's LED starts flickering.
• Kontroller fjernbetjeningens batterier og udskift dem om nødvendigt.

Interferens

Denne enhed overholder del 15 af FCC-reglerne. Betjening er underlagt følgende to betingelser: (1) Denne enhed må ikke forårsage skadelig interferens, og (2) Denne enhed skal acceptere enhver modtaget interferens, inklusive interferens, der kan forårsage uønsket drift.

Hvis dette udstyr forårsager skadelig interferens på radio- eller tv-modtagelse, hvilket kan fastslås ved at slukke og tænde for udstyret, opfordres brugeren til at forsøge at korrigere interferensen ved en eller flere af følgende foranstaltninger:

• Drej eller flyt modtagerantennen.
• Øg afstanden mellem udstyret og modtageren.
• Tilslut udstyret til en stikkontakt på et andet kredsløb end det, som modtageren er tilsluttet.
• Kontakt forhandleren eller en erfaren radio/tv-tekniker for at få hjælp.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Specifikationer

Garanti og support

Specific warranty information for the VitalKos HY2025RX-SE JR1839 WH Remote Control and Receiver is not provided in this manual. For warranty details or technical support, please contact VitalKos directly through their official webwebstedet eller forhandleren, hvor produktet blev købt.

For further assistance, you may also refer to the product listing on Amazon: VitalKos HY2025RX-SE JR1839 WH on Amazon.
