Indledning
This manual provides essential information for the safe and efficient use of the Ebm Papst 6324/19HP industrial cooling fan. Designed for power electrics and power supply applications, this fan offers high efficiency and reliable cooling performance. Please read this manual thoroughly before installation and operation.
Produkt overview

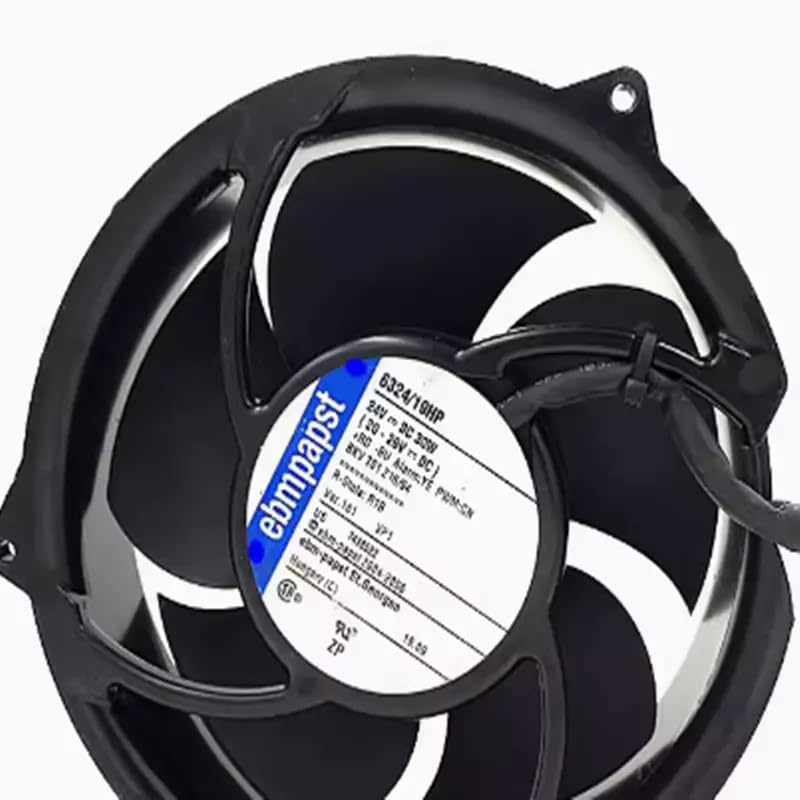

Image showing the Ebm Papst 6324/19HP industrial cooling fan. The fan is black with a central label displaying model number, voltage, and power specifications. The fan blades are visible through the housing.
The Ebm Papst 6324/19HP is a robust industrial cooling fan featuring a high-speed motor and durable metal construction. It is engineered to provide efficient cooling for various power electrics and power supply systems, ensuring optimal performance and longevity of connected equipment.
Opsætning og installation
Sikkerhedsforanstaltninger
- Always disconnect power to the system before installing or servicing the fan.
- Sørg for korrekt jording for at forhindre elektriske farer.
- Brug passende personlige værnemidler (PPE) under installationen.
Montering
- Identify a suitable mounting location within your system that allows for adequate airflow.
- Secure the fan using appropriate screws through the designated mounting holes. Ensure the fan is firmly attached to prevent vibration.
- Verify the fan's airflow direction. The fan is designed to push or pull air in a specific direction, typically indicated by an arrow on the fan housing. Install it to achieve the desired cooling airflow.
Ledningsføring
- Connect the fan's power leads to a compatible 24V DC power supply. Refer to the fan's label for specific voltage og wattage requirements (24V DC, 30W).
- Ensure correct polarity when connecting DC power. Incorrect polarity can damage the fan.
- If applicable, connect any control wires (e.g., PWM, alarm) according to your system's requirements.
- Secure all wiring connections to prevent accidental disconnection or short circuits.
Betjeningsvejledning
Once properly installed and connected to a power source, the Ebm Papst 6324/19HP fan will operate automatically when power is supplied. It is designed for continuous operation in industrial environments.
- Tænd: Apply 24V DC power to the fan. The fan blades should begin to rotate, generating airflow.
- Luftstrøm: Confirm that the fan is moving air in the intended direction for effective cooling of your components.
- Støjniveau: As an industrial fan, a certain level of operational noise is normal. Significant changes in noise level may indicate an issue.
Opretholdelse
The Ebm Papst 6324/19HP fan is designed for low maintenance. However, regular inspection and cleaning can extend its lifespan and ensure optimal performance.
- Regelmæssig rengøring: Periodically inspect the fan blades and housing for dust and debris accumulation. Use compressed air or a soft brush to gently remove any buildup. Ensure power is disconnected before cleaning.
- Inspektion: Check for any signs of physical damage, loose connections, or unusual wear.
- Ingen dele, der kan serviceres af brugeren: The fan unit contains no user-serviceable parts. Do not attempt to disassemble the fan, as this will void any warranty and may cause damage.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ventilatoren roterer ikke | No power; Incorrect wiring; Fan motor failure | Check power supply and connections; Verify wiring polarity; Replace fan if motor is faulty. |
| Overdreven støj eller vibrationer | Loose mounting; Obstruction in fan blades; Worn bearings | Tighten mounting screws; Remove any obstructions; Replace fan if bearings are worn. |
| Reduceret luftgennemstrømning | Dust/debris buildup; Obstruction; Incorrect fan direction | Clean fan blades and housing; Remove obstructions; Verify fan is installed in correct airflow direction. |
Specifikationer
| Attribut | Værdi |
|---|---|
| Modelnummer | 6324/19 hk |
| Mærke | Ebm Papst (Generic) |
| Voltage | 24V DC (Operating Range: 20-29V DC) |
| Strømforbrug | 30W |
| Fabrikant | Kina |
| ASIN | B0DBH14GQ9 |
| Dato først tilgængelig | 29. juli 2024 |
| Funktioner | High efficiency, High-speed motor, Durable metal construction, Environmentally friendly |
