USB 3.0 Mobile Hard Disk PCB Board G003250A

1. Introduktion

This manual provides essential information for the installation, operation, and maintenance of the Generic USB 3.0 Mobile Hard Disk PCB Board G003250A. This PCB board is designed as a replacement or repair component for specific Toshiba MQ01UBD series mobile hard drives, including models MQ01UBD100, MQ01UBD075, MQ01UBD050, and compatible 500GB, 750GB, 1TB, and 2TB variants. It facilitates the conversion of the internal hard drive interface to a standard USB 3.0 connection, enabling external use.

2. Opsætning og installation

Proper installation of the PCB board is crucial for its functionality and the safety of your data. This process typically involves replacing an existing PCB on a compatible hard drive.

2.1. Tjekliste før installation

• Ensure the G003250A PCB board is compatible with your specific hard drive model (e.g., MQ01UBD series).
• Gather necessary tools: small Phillips head screwdriver, anti-static wrist strap or mat.
• Arbejd i et rent og statisk-frit miljø.

2.2. Installationstrin

1. Demontering: Carefully open the enclosure of your existing mobile hard drive. Locate and identify the original PCB board.
2. Statiske forholdsregler: Before handling the new PCB, ensure you are grounded using an anti-static wrist strap or by touching a grounded metal object.
3. Fjern gammelt printkort: Gently unscrew and detach the old PCB board from the hard drive. Note the orientation and connection points.
4. Installer nyt printkort: Align the G003250A PCB board with the hard drive's connectors. Ensure all pins are correctly seated. Secure the new PCB with the screws removed earlier. Do not overtighten.
5. Genmontering: Carefully close the hard drive enclosure, ensuring all components are properly seated and secured.
6. Indledende forbindelse: Connect the USB 3.0 cable from the newly assembled external drive to a USB 3.0 port on your computer.

This image displays the top side of the G003250A PCB board, highlighting the main controller chip, USB 3.0 port, and various surface-mounted components. This is the side that interfaces with the hard drive's internal components and provides the external USB connection.

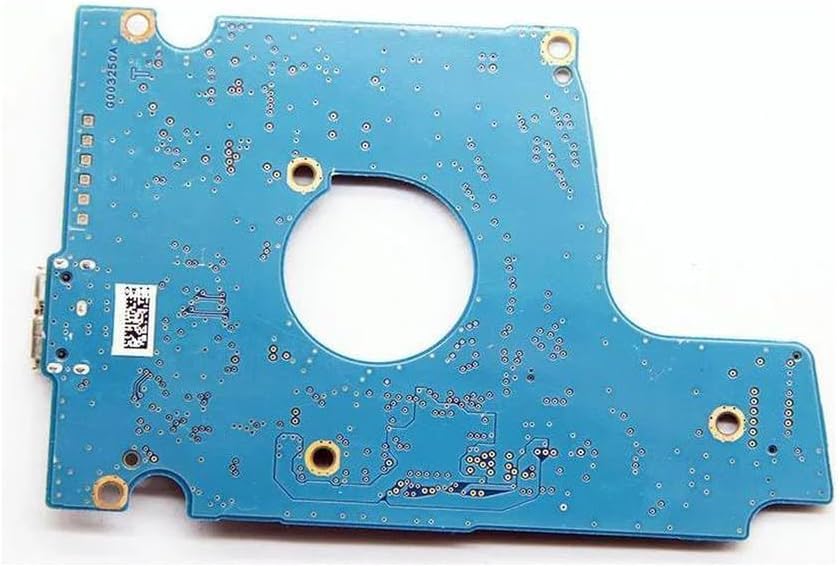

This image shows the underside of the G003250A PCB board, revealing the solder points and circuit traces. This side typically connects to the hard drive's motor and read/write head assembly.

3. Betjeningsvejledning

Once the G003250A PCB board is correctly installed and the hard drive is reassembled, it functions as a standard USB 3.0 external hard drive.

3.1. Tilslutning til en computer

• Plug the USB 3.0 cable into the port on the PCB board.
• Connect the other end of the USB 3.0 cable to an available USB 3.0 port on your computer for optimal performance. The device is backward compatible with USB 2.0 ports, but data transfer speeds will be limited.
• The operating system should automatically detect and install the necessary drivers. The drive will appear as an external storage device.

3.2. Dataoverførsel

Du kan nu overføre files to and from the external hard drive as you would with any other storage device. Drag and drop files, or use copy/paste functions.

3.3. Safe Removal

Always safely eject the hard drive before disconnecting it from your computer to prevent data corruption. On Windows, use the "Safely Remove Hardware and Eject Media" icon in the system tray. On macOS, drag the drive icon to the Trash or use the Eject option in Finder.

4. Vedligeholdelse

To ensure the longevity and reliable performance of your PCB board and the associated hard drive, follow these maintenance guidelines:

• Hold rent: Regularly clean the exterior of the hard drive enclosure with a soft, dry cloth. Avoid using liquid cleaners directly on the PCB or connectors.
• Undgå statisk elektricitet: Always handle the PCB board with anti-static precautions to prevent damage from electrostatic discharge.
• Miljøforhold: Store and operate the drive in a cool, dry environment, away from direct sunlight, extreme temperatures, and high humidity.
• Fysisk beskyttelse: Protect the external drive from drops, impacts, and excessive vibration, as these can damage the internal hard drive components.
• Firmware: While PCB boards typically do not require user-updatable firmware, ensure your operating system's USB drivers are up to date.

5. Fejlfinding

If you encounter issues with your USB 3.0 Mobile Hard Disk PCB Board G003250A, refer to the following common problems and solutions:

• Drev ikke fundet:
  • Sørg for, at USB-kablet er korrekt tilsluttet til både drevet og computeren.
  • Prøv en anden USB-port på din computer.
  • Test med et andet USB-kabel.
  • Verify that the internal hard drive is properly seated and connected to the PCB board.
  • Check Device Manager (Windows) or System Information (macOS) to see if the drive is listed, even if it doesn't appear in 'My Computer'/'Finder'.
• Langsomme dataoverførselshastigheder:
  • Sørg for, at du er tilsluttet en USB 3.0-port på din computer. USB 2.0-porte vil resultere i langsommere hastigheder.
  • Kontroller, at din computers USB 3.0-drivere er opdaterede.
  • Try a different USB 3.0 cable, as some cables may not support full USB 3.0 speeds.
• Drive Makes Unusual Noises:
  • If the hard drive itself is making clicking, grinding, or unusual noises, this indicates a potential mechanical failure of the hard drive, not the PCB board. Immediately back up any accessible data and consider professional data recovery services.
• Datakorruption:
  • Always use the "Safely Remove Hardware" option before disconnecting the drive.
  • Ensure the drive is not subjected to sudden power loss during operation.
  • Run disk error checking utilities provided by your operating system.

If problems persist after following these steps, it may indicate an issue with the hard drive itself or a more complex problem requiring professional assistance.

6. Specifikationer

7. Garanti og support

As a generic replacement component, specific warranty terms may vary depending on your place of purchase. Please refer to the seller's return and warranty policy at the time of purchase.

For technical support or inquiries regarding this PCB board, it is recommended to contact the seller or retailer from whom you purchased the product. They can provide assistance with compatibility, installation, and troubleshooting specific to your purchase.

Sørg altid for at du køberasing from a reputable source to guarantee product authenticity and support.
