Wengart WGM12-63H 20A 2-Pole Miniature Circuit Breaker Instruction Manual

1. Introduktion

This manual provides essential information for the safe installation, operation, and maintenance of the Wengart WGM12-63H 20A 2-Pole Miniature Circuit Breaker (MCB). This device is designed for low-voltage electrical distribution systems, offering crucial protection against overcurrent and short circuits in various applications, including household appliances and lighting circuits.

The WGM12-63H MCB is compact, designed for DIN rail mounting, and features a rapid response time to ensure electrical safety. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Sikkerhedsoplysninger

WARNING: Electrical shock hazard. Installation and maintenance should only be performed by qualified electricians in accordance with local electrical codes and regulations.

Afbryd altid strømmen til hovedforsyningen, før du installerer, servicerer eller fjerner afbryderen.
Ensure the circuit breaker's ratings (voltage, current, breaking capacity) match the requirements of your electrical system.
Do not operate the circuit breaker if it appears damaged or has been subjected to excessive force.
Sørg for korrekt jordforbindelse, hvor det er nødvendigt.
Brug passende personlige værnemidler (PPE) under installation og vedligeholdelse.
Omgå aldrig eller tampmed afbryderens beskyttelsesmekanismer.

3. Produktkomponenter

The Wengart WGM12-63H Miniature Circuit Breaker consists of several key components:

Diagram showing the components of the Wengart WGM12-63H 20A 2-Pole Miniature Circuit Breaker

Figur 3.1: Product Analysis of the Wengart WGM12-63H MCB. Key components include Input Terminal, Rated Current (B20), Indicating Window, Operating Handle, Output Terminal, CE certification mark, and Wiring Guide.

Indgangsterminal: Connects to the incoming power supply.
Udgangsterminal: Connects to the load circuit.
Betjeningshåndtag: Used to manually switch the circuit breaker ON or OFF, and indicates its current status.
Indicating Window: Displays the operational status (e.g., ON/OFF, tripped).
Rated Current (B20): Specifies the nominal current rating and tripping curve type (B-type).
CE-certificering: Indicates compliance with European safety standards.
Ledningsvejledning: Provides information on proper wiring connections.

4. Tekniske specifikationer

Below are the technical specifications for the Wengart WGM12-63H 20A 2-Pole Miniature Circuit Breaker:

Feature	Specifikation
Modelnummer	WGM12-63H
Nominel strøm	20 A
Nominel voltage	AC 240/415V~ (AC 400V for 2-pole)
Antal poler	2
Standard	IEC/EN60898-1
Magnetic Tripping Characteristic	B-type (3-5 times In)
Beskyttelsestype	Overcurrent and Short-circuit
Tripping Type	Termomagnetisk
Energibegrænsende klasse	3
Nominel impulsmodstand Voltage (Uimp)	4000 V
Nominel brudkapacitet	10000 A (10 kA)
Mekanisk liv	10,000 operationer
Elektrisk liv	4,000 operationer
Beskyttelsesgrad	IP20
Maximum Wiring Capacity	25 mm²
Tilspændingsmoment	2.5 Nm
Installation	35 mm DIN Rail Mounting
Dimensioner (ca.)	9 x 8 x 4.2 cm; 224 grams (Package)
Oprindelse	Kina

Graph showing the B-type tripping curve for the circuit breaker, indicating tripping time versus multiple of rated current.

Figur 4.1: B-Type Tripping Curve. This curve illustrates the circuit breaker's response time to overcurrents, suitable for general purpose loads like socket outlets and lighting devices.

Diagram showing the physical dimensions of the Wengart WGM12-63H circuit breaker in millimeters and inches.

Figur 4.2: Product Dimensions. The image displays the length, width, and height of the circuit breaker, along with key specifications like model number, rated current, rated voltage, breaking capacity, standard, certification, installation type, and connection method.

5. Installation og opsætning

The Wengart WGM12-63H MCB is designed for quick and secure installation on a 35mm DIN rail.

5.1. DIN-skinnemontering

Image showing the operating handle, tunnel interface for quick connection, and DIN rail mounting mechanism of the circuit breaker.

Figur 5.1: DIN Rail Mounting. The circuit breaker features a quick installation mechanism for 35mm DIN rails, ensuring a secure fit within distribution boxes.

Sørg for, at hovedstrømforsyningen er SLUKKET.
Juster afbryderen med DIN-skinnen.
Press the circuit breaker firmly onto the rail until it clicks into place. Ensure it is securely fastened and does not wobble.

5.2. Ledningsforbindelser

Connect the input and output wires to the designated terminals. The circuit breaker supports a maximum wiring capacity of 25 mm².

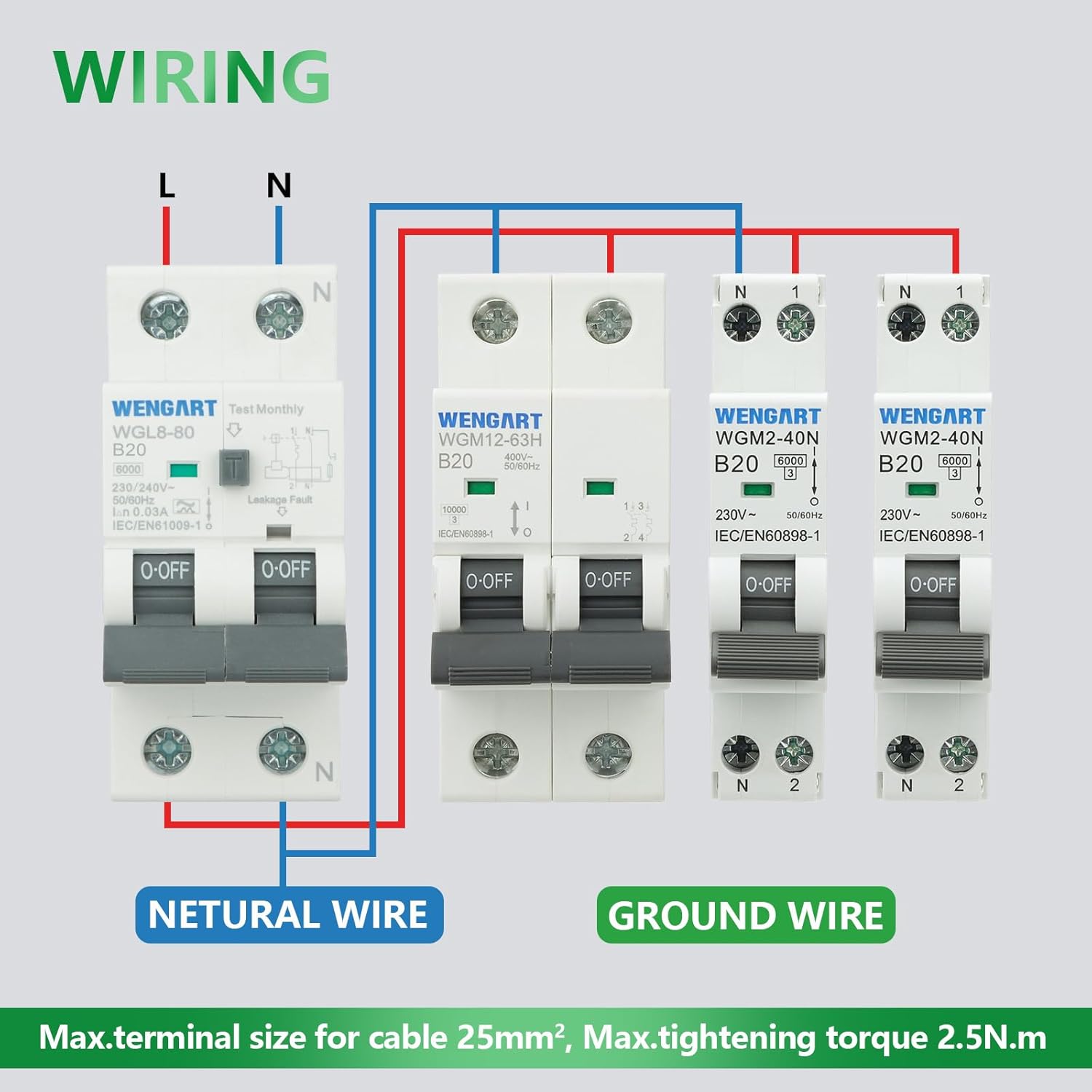

Wiring diagram showing connections for a 2-pole circuit breaker with neutral and ground wires, illustrating proper input and output terminal connections.

Figur 5.2: Wiring Diagram. This diagram illustrates the correct connection of Line (L) and Neutral (N) wires to the input and output terminals of the 2-pole circuit breaker. Max terminal size for cable is 25mm², with a max tightening torque of 2.5 N.m.

Sørg for, at hovedstrømforsyningen er SLUKKET.
Strip the insulation from the ends of the wires to the appropriate length.
Insert the incoming Line (L) and Neutral (N) wires into the upper (input) terminals.
Insert the outgoing Line (L) and Neutral (N) wires (to the load) into the lower (output) terminals.
Tighten the terminal screws to a torque of 2.5 Nm to ensure a secure connection.
Kontroller, at alle forbindelser er stramme og korrekte, før strømmen genoprettes.

6. Betjening

The Wengart WGM12-63H MCB is designed for simple and clear operation.

6.1. Switching ON/OFF

Close-up of the operating handle of the circuit breaker, showing its easy-to-operate design.

Figur 6.1: Operating Handle. The handle allows for manual switching of the circuit breaker and indicates its current status.

To turn the circuit ON, push the operating handle upwards to the "I-ON" position.
To turn the circuit OFF, pull the operating handle downwards to the "O-OFF" position.

6.2. Statusindikation

Images showing the indicator windows of the circuit breaker, with red indicating line connection (ON) and green indicating line disconnection (OFF/Tripped).

Figur 6.2: Indicator Windows. The red indicator signifies a live connection (ON), while the green indicator signifies disconnection (OFF or tripped state).

Rød indikator: When the operating handle is in the "I-ON" position, a red indicator is visible, signifying that the circuit is connected and power is flowing.
Grøn indikator: When the operating handle is in the "O-OFF" position or if the breaker has tripped due to an overload or short circuit, a green indicator is visible, signifying that the circuit is disconnected and power is interrupted.

7. Vedligeholdelse

The Wengart WGM12-63H MCB is designed for long-term reliability with minimal maintenance. However, periodic checks are recommended to ensure optimal performance and safety.

Visuel inspektion: Undersøg regelmæssigt afbryderen for tegn på fysisk skade, misfarvning eller løse forbindelser.
Rensning: Keep the circuit breaker and its surroundings clean and free from dust and debris. Use a dry, non-abrasive cloth for cleaning. Do not use liquids or solvents.
Tilslutningskontrol: Periodically check the tightness of the terminal screws. Loose connections can lead to overheating and potential hazards.
Funktionstest: If safe to do so and in accordance with local regulations, occasionally test the trip mechanism by simulating an overload or short circuit (only by qualified personnel).

IMPORTANT: Any maintenance requiring internal access or complex repairs must be performed by qualified personnel only.

8. Fejlfinding

If the circuit breaker trips or fails to operate correctly, follow these steps:

Breaker Trips (Green Indicator Visible):
- Identificér årsag: A tripped breaker indicates an overload or short circuit. Disconnect all appliances or devices connected to the affected circuit.
- Nulstil: After identifying and resolving the cause (e.g., unplugging a faulty appliance, fixing a short), push the operating handle fully down to the "O-OFF" position, then push it up to the "I-ON" position.
- Vedvarende tripping: If the breaker trips immediately after resetting, do not attempt to reset it again. There may be a serious electrical fault. Contact a qualified electrician.
Afbryderen nulstilles ikke:
- Ensure the handle is pushed fully to the "O-OFF" position before attempting to push it to "I-ON".
- If it still does not reset, there might be an internal fault with the breaker or a severe electrical issue. Do not force the handle. Contact a qualified electrician.
Overophedning:
- If the circuit breaker or surrounding wiring feels hot, immediately disconnect power at the main supply.
- Check for loose connections, overloaded circuits, or damaged wiring. Contact a qualified electrician.

9. Wide Range of Application

The Wengart WGM12-63H 20A 2-Pole Miniature Circuit Breaker is suitable for various low-voltage electrical distribution systems, providing reliable protection in diverse environments.

Collage of images showing the Wengart circuit breaker used in different settings: a dwelling house, an office building, a commercial building, and factory machinery.

Figur 9.1: Anvendelse Examples. The WGM12-63H MCB is suitable for use in residential homes, office buildings, commercial establishments, and industrial machinery for circuit protection.

Beboelsesboliger: Protecting household appliances and lighting circuits.
Office Buildings: Ensuring safety for office equipment and lighting systems.
Commercial Buildings: Suitable for various commercial electrical installations.
Factory Machinery: Providing circuit protection for light industrial applications.

10. Garantioplysninger

Specific warranty details for the Wengart WGM12-63H 20A 2-Pole Miniature Circuit Breaker are not provided in the product information. Please refer to the retailer or manufacturer's official website for current warranty terms and conditions.

11. Kundesupport

For technical assistance, troubleshooting beyond this manual, or inquiries regarding your Wengart WGM12-63H MCB, please contact the manufacturer or your point of purchase. Ensure you have your product model number and purchase details available when seeking support.

Fabrikant: WENGART ELECTRIC CO.,LTD
